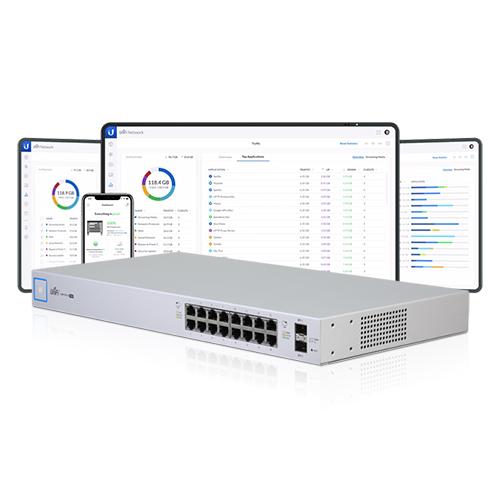

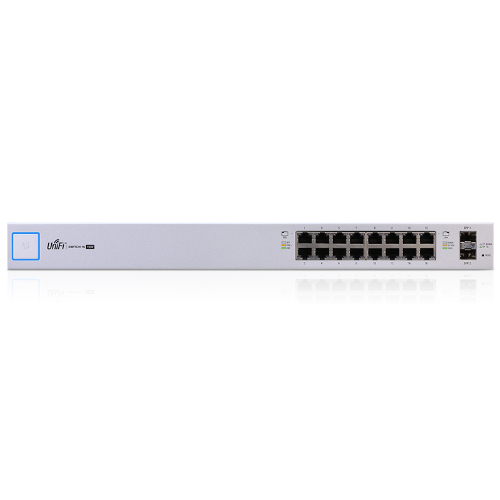

Ubiquiti UniFi Switch 16-port Managed PoE+ Gigabit Switch with SFP, 150W PoE Budget, GEN1

SKU: 124607

POWERFUL ENTERPRISE SWITCH
The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

MULTI-SITE MANAGEMENT
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

OPTICAL FIBRE BACKHAUL
Two SFP ports support uplinks of up to 1 Gbps.

VERSATILE MOUNTING OPTIONS
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

UNIFI CONTROLLER
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface

(124607)

Mechanical
Dimensions 442.4 x 221 x 43.7 mm (17.4 x 8.7 x 1.7")
Weight Without mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 18 Gbps
Switching capacity 36 Gbps
Forwarding rate 26.78 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 150W
Supported voltage range 100—240V AC
Max. power consumption Excluding PoE output: 28W
Including PoE output: 150W
Total available PoE 122W
Max. PoE wattage per port by PSE 24V Passive PoE: 17W
PoE+: 32W
Voltage range PoE mode 24V Passive PoE: 20–27V
PoE+: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Sound level*
Fan level: 0
Fan level: 1, 2, 3

1.7 dBr
10.8 dBr
* Background noise level: 27.5 dBa.
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/Link/Activity
SFP Speed/Link/Activity
SKU 124607
Barcode # 817882023047
Brand UBIQUITI
Shipping Weight 3.4400kg
Shipping Width 0.270m
Shipping Height 0.080m
Shipping Length 0.550m
