Asus USB-AC53 Nano AC1200 Dual Band Wireless Nano USB Adapter

SKU: 115968

AC1200 Dual-band USB Wi-Fi Adapter

  • World’s smallest USB MU-MIMO Wi-Fi adaptor
    Super-fast Wi-Fi in a nano-sized package that’s small enough to leave plugged in!
  • Instant Wi-Fi upgrade for laptops
    Enjoy 802.11ac Wi-Fi speeds.
  • Perfect for streaming and gaming

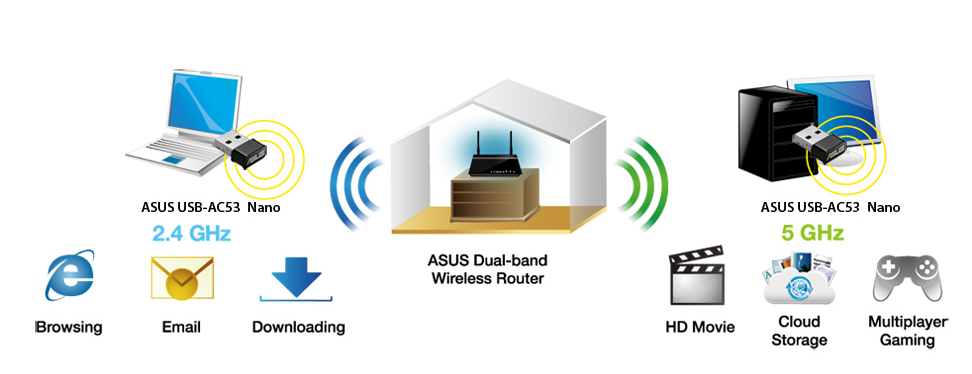

    Dual-band support gives you the 5GHz frequency band for smooth 4K UHD streaming and low latency gaming.

(115968)

Model

USB-AC53 Nano

Network Standard

WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

AC1200 enhanced AC performance : 300+867 Mbps

Interface

USB 2.0

Antenna

2 x PIFA
Internal 1.81 dBi antenna x 2

Security

64-bit WEP, 128-bit WEP, WPA/WPA2/WPA3-Personal

Certificates

CE, FCC, IC, NCC

OS Support

OS Support : Windows 10
Windows 8.1
Windows 8
WindowsR 7
Mac OS X 10.7 to 10.12

Package Content

Support CD
Warranty card

Product Weight (g)

5 g

Product Dimensions

20 x 14 x 7 ~ mm (WxDxH) (Without Bezel)

Note

*The network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.

Out Put power as below:

2412-2472MHz (802.11n HT40 MCS0): 17.24 dBm
5180-5240MHz (802.11n HT20 MCS0): 17.38 dBm
5260-5320MHz (802.11ac VHT80 MCS0): 15.8 dBm
5500-5700MHz (802.11n HT20 MCS0): 13.31 dBm

SKU 115968
Model # USB-AC53 NANO
Barcode # 889349519127
Brand ASUS
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.040m
Shipping Length 0.190m

AC1200 Dual-band USB Wi-Fi Adapter

  • World’s smallest USB MU-MIMO Wi-Fi adaptor
    Super-fast Wi-Fi in a nano-sized package that’s small enough to leave plugged in!
  • Instant Wi-Fi upgrade for laptops
    Enjoy 802.11ac Wi-Fi speeds.
  • Perfect for streaming and gaming
    Dual-band support gives you the 5GHz frequency band for smooth 4K UHD streaming and low latency gaming.

Model

USB-AC53 Nano

Network Standard

WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

AC1200 enhanced AC performance : 300+867 Mbps

Interface

USB 2.0

Antenna

2 x PIFA
Internal 1.81 dBi antenna x 2

Security

64-bit WEP, 128-bit WEP, WPA/WPA2/WPA3-Personal

Certificates

CE, FCC, IC, NCC

OS Support

OS Support : Windows 10
Windows 8.1
Windows 8
WindowsR 7
Mac OS X 10.7 to 10.12

Package Content

Support CD
Warranty card

Product Weight (g)

5 g

Product Dimensions

20 x 14 x 7 ~ mm (WxDxH) (Without Bezel)

Note

*The network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.

Out Put power as below:

2412-2472MHz (802.11n HT40 MCS0): 17.24 dBm
5180-5240MHz (802.11n HT20 MCS0): 17.38 dBm
5260-5320MHz (802.11ac VHT80 MCS0): 15.8 dBm
5500-5700MHz (802.11n HT20 MCS0): 13.31 dBm

SKU 115968
Model # USB-AC53 NANO
Barcode # 889349519127
Brand ASUS
