Ubiquiti UniFi Switch Flex Utility outdoor weatherproof enclosure for Switch Flex

SKU: 124614

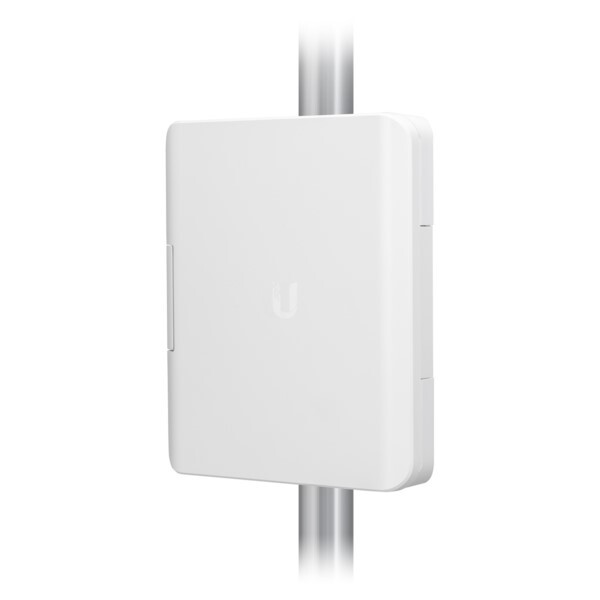

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.

Outdoor weatherproof enclosure

Max. PoE budget 46W

Clean cable management and screw lock for security

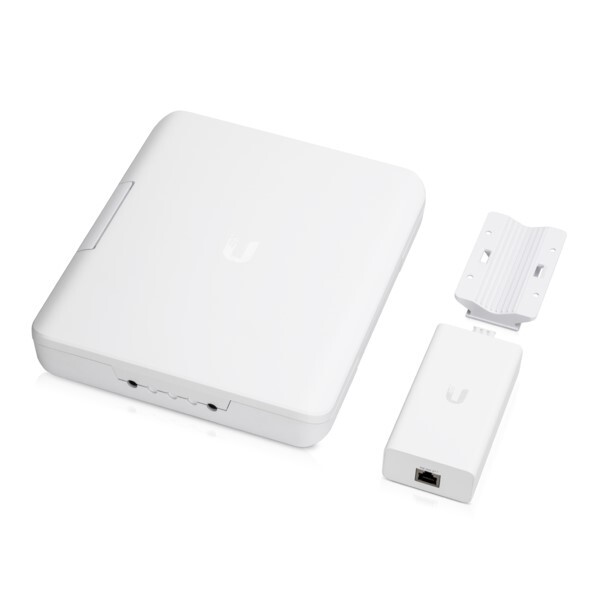

Includes an Ethernet patch cable and a 60W PoE adapter

Compatible with Switch Flex

(124614)

Mechanical
Dimensions Enclosure: 249 x 218 x 60 mm (9.8 x 8.6 x 2.4")
Adapter: 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4")
Weight Enclosure: 740 g (26.1 oz)
Adapter: 206 g (7.27 oz)
60W PoE Adapter
Output voltage 54V, 1.11A
Rated voltage 100-240V AC
Input current Max. 1.5A
Efficiency > 86%
Output ripple 200mVpp
Line regulation < 1%
Load regulation < 3%
4-pair powering Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating temperature -20 to 60° C (-4 to 140° F)
Storage temperature -30 to 70° C (-22 to 158° F)
Operating humidity 5 to 90%, noncondensing
Surge immunity 4kV difference and Common mode
SKU 124614
Barcode # 810010070531
Brand UBIQUITI
Shipping Weight 1.5600kg
Shipping Width 0.300m
Shipping Height 0.090m
Shipping Length 0.300m
