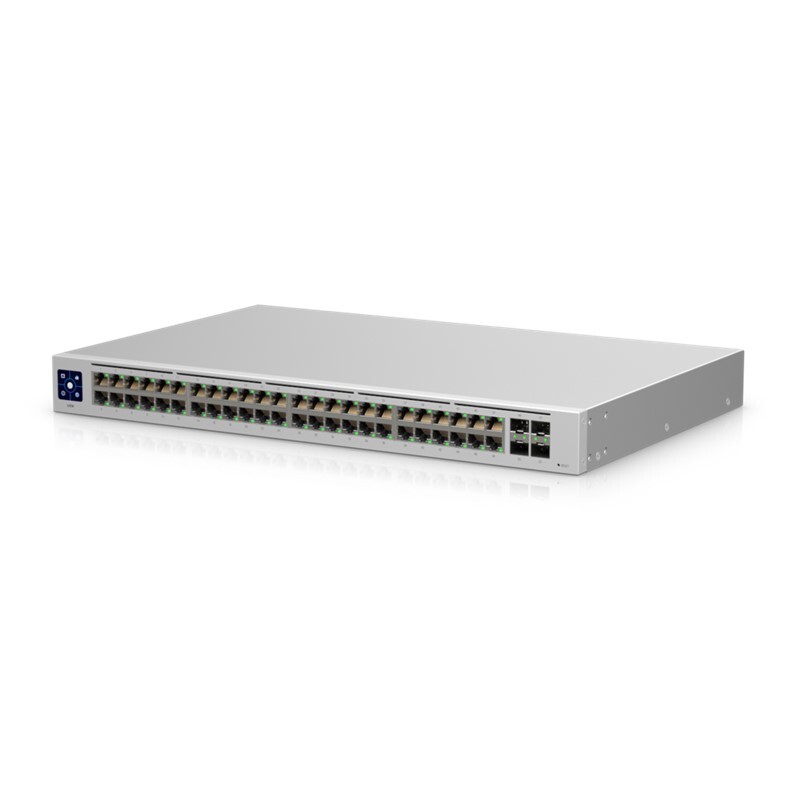

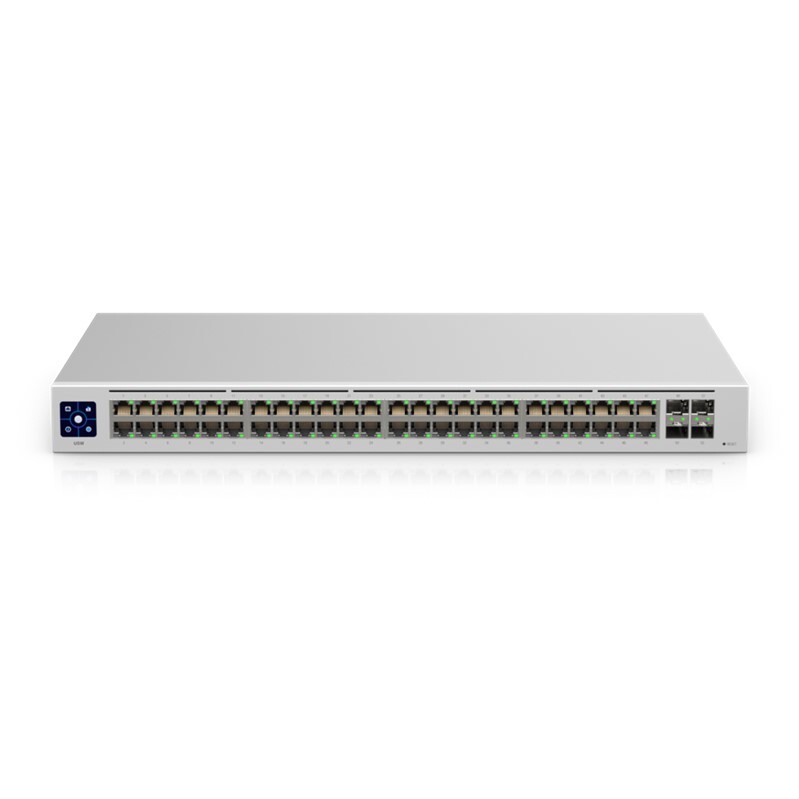

Ubiquiti UniFi 48 port Managed Gigabit Layer2 switch - 48x Gigabit Ethernet Ports 4x SFP Port Touch Display

SKU: 124604

A 48-port, Layer 2 switch with a silent, fanless cooling system.

(48) GbE ports

(4) 1G SFP ports

Fanless, silent cooling

(124604)

Mechanical
Dimensions 442.4 x 285 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1G SFP Ethernet ports
Total non-blocking throughput 52 Gbps
Switching capacity 104 Gbps
Forwarding rate 77.376 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 60W
Supported voltage range 100—240V AC
Max. power consumption 40W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -15 to 40° C (5 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU 124604
Barcode # 810010072528
Brand UBIQUITI
Shipping Weight 5.0400kg
Shipping Width 0.410m
Shipping Height 0.130m
Shipping Length 0.520m

A 48-port, Layer 2 switch with a silent, fanless cooling system.

(48) GbE ports

(4) 1G SFP ports

Fanless, silent cooling

Mechanical
Dimensions 442.4 x 285 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1G SFP Ethernet ports
Total non-blocking throughput 52 Gbps
Switching capacity 104 Gbps
Forwarding rate 77.376 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 60W
Supported voltage range 100—240V AC
Max. power consumption 40W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -15 to 40° C (5 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU 124604
Barcode # 810010072528
Brand UBIQUITI
