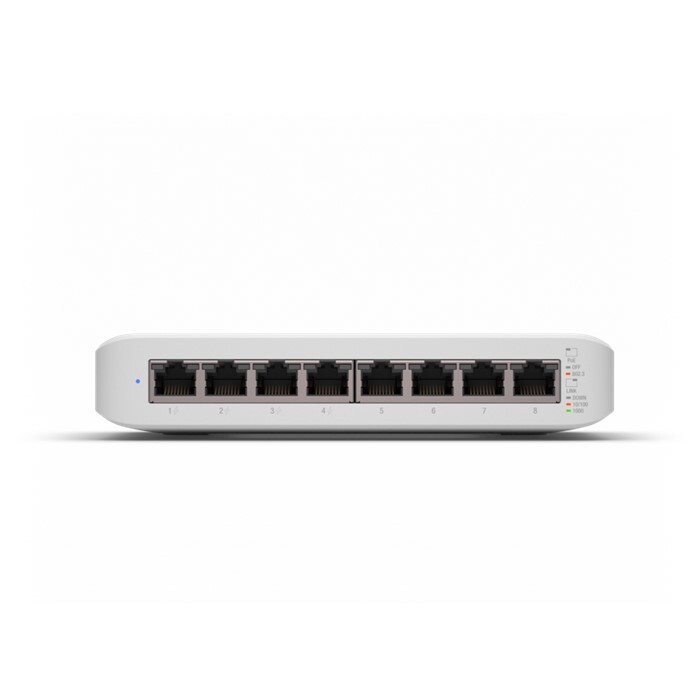

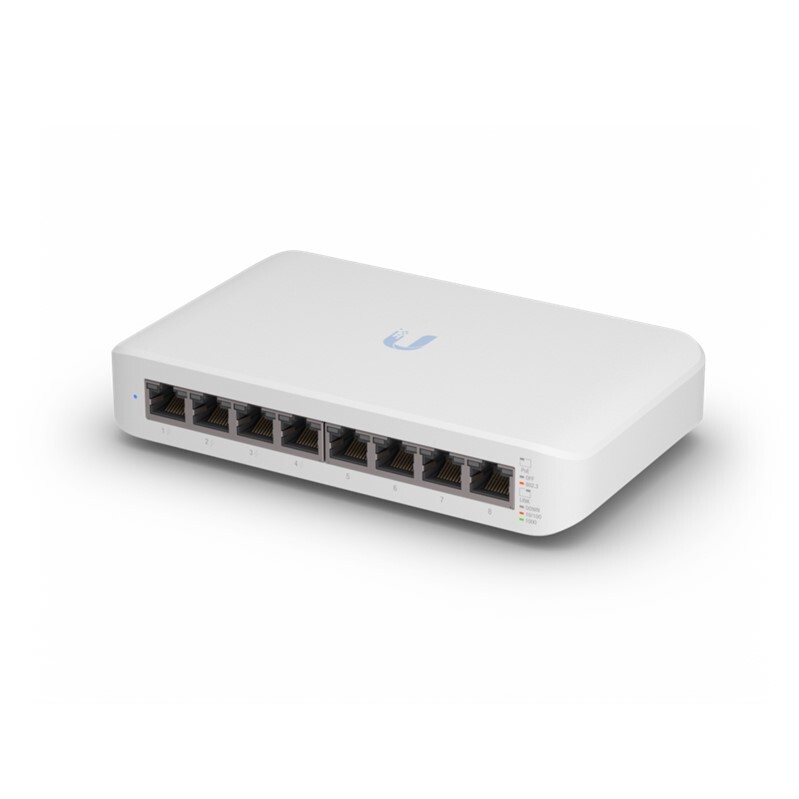

Ubiquiti UniFi Switch Lite 8 PoE, 4x PoE Output Ports, 52W PoE Supply, Fanless, Wall Mount Kit Included

SKU: 124609

An 8-port, Layer 2 PoE switch supporting silent fanless cooling.

(4) GbE PoE+, (4) GbE ports

52W total PoE availability*

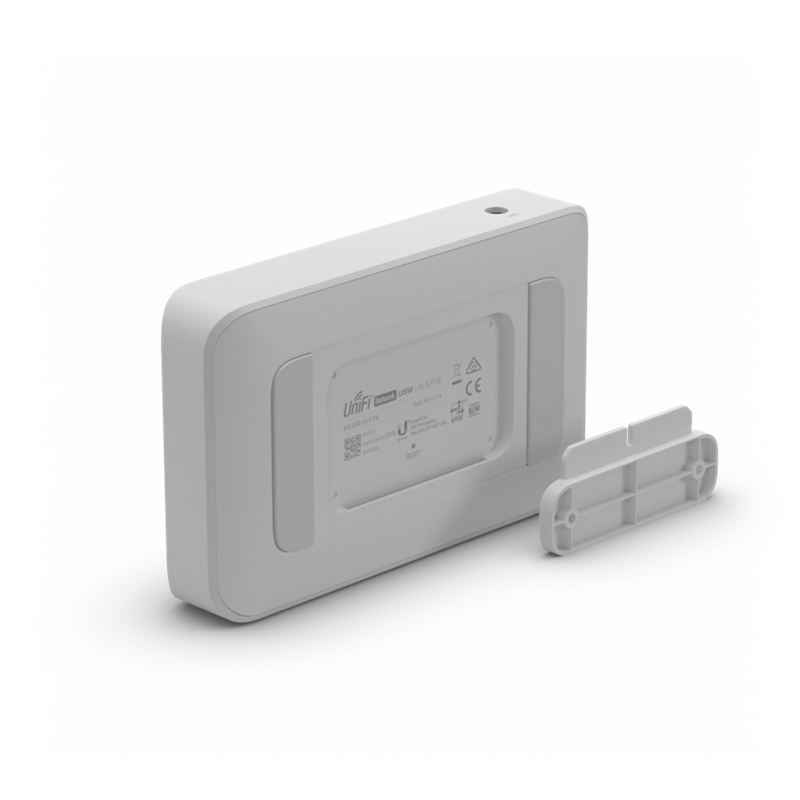

Wall mountable

*With an external 60W power adapter.

(124609)

Mechanical
Dimensions 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
Weight 295 g (10.4 oz)
Enclosure material Plastic
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Power method 54V DC, 1.1A power adapter
Power supply 54V, external, 60W
Supported voltage range 50—57V DC
Max. power consumption 8W (Excluding PoE output)
Total available PoE 52W*
*With an external 60W power adapter.
Max. PoE wattage per port by PSE PoE+: 30W

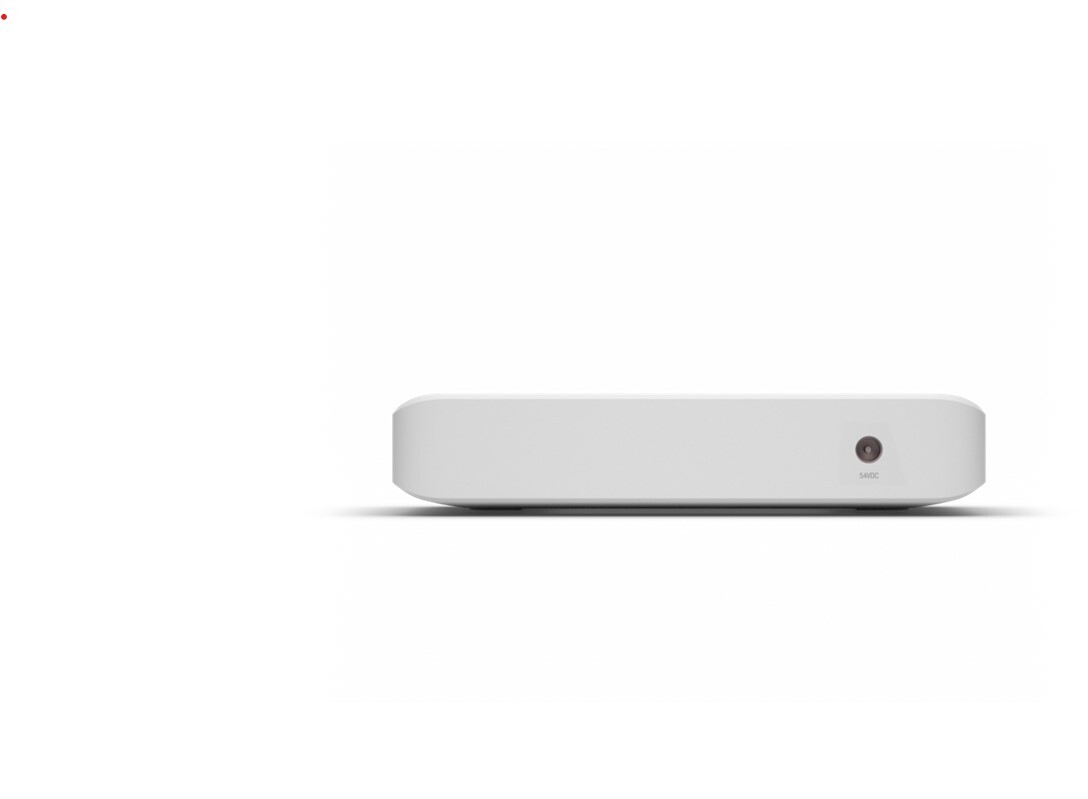

Button Factory reset
Operating temperature -15 to 40° C (5 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU 124609
Barcode # 810010071309
Brand UBIQUITI
Shipping Weight 0.6800kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.280m
