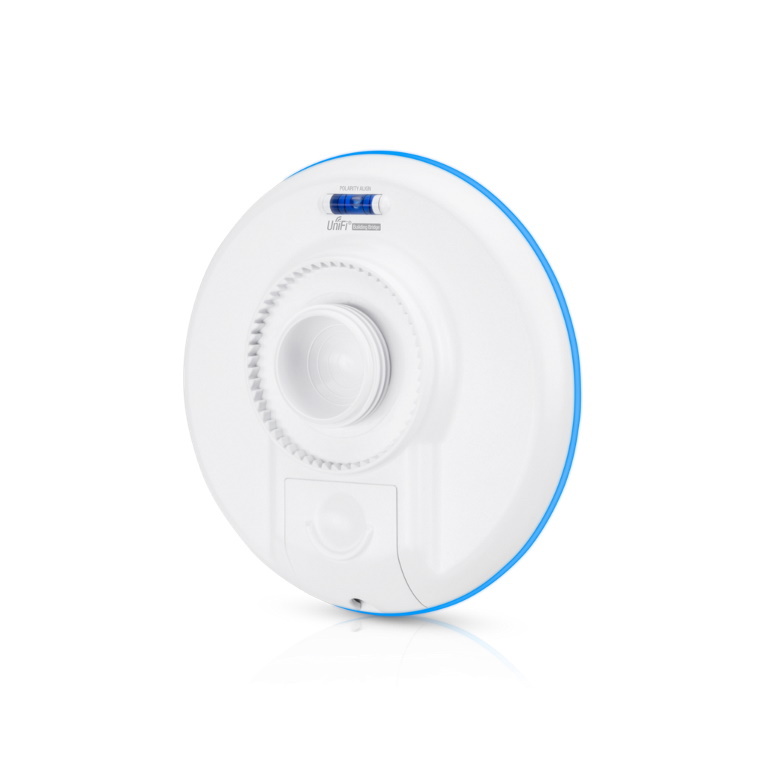

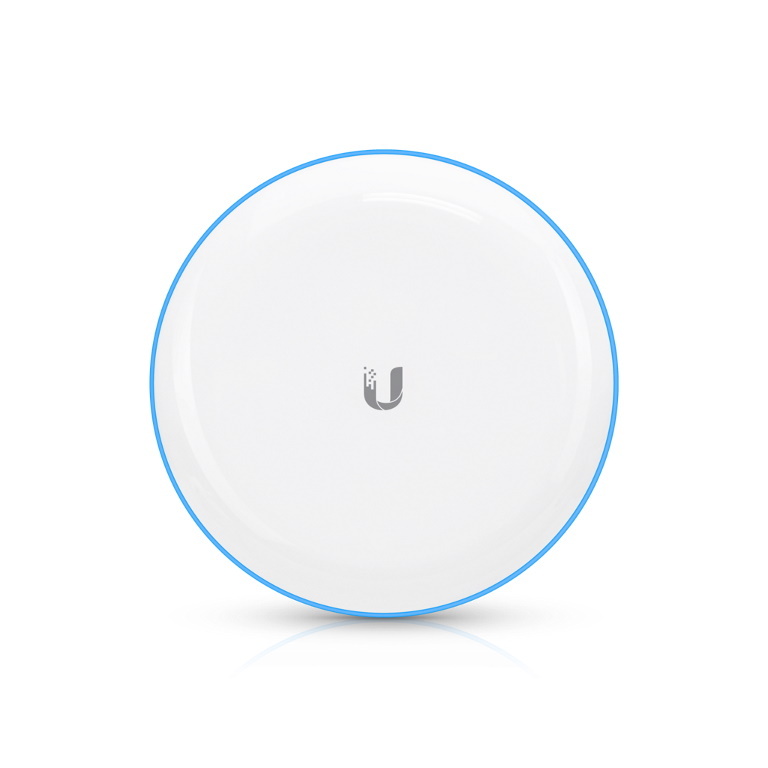

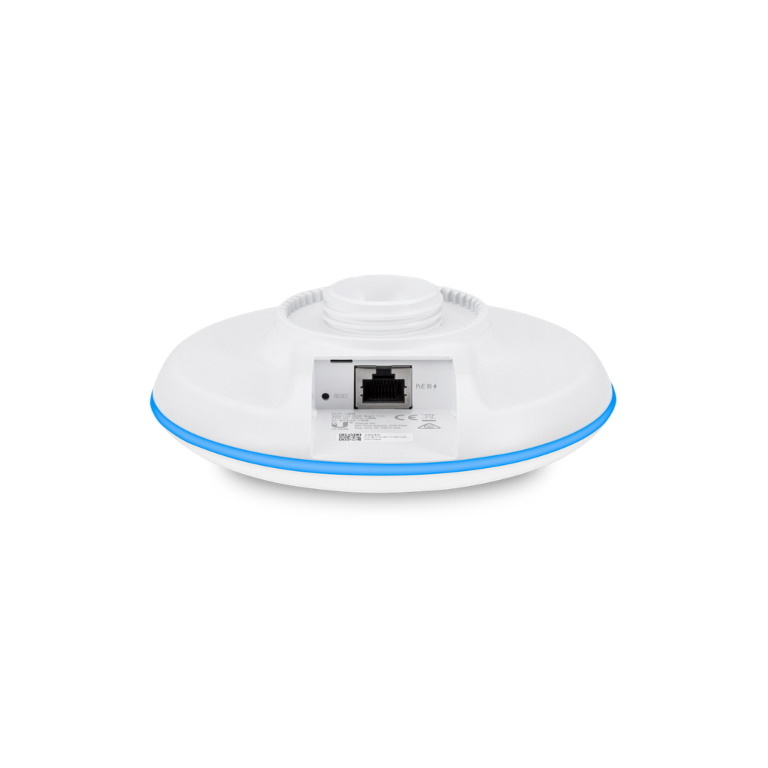

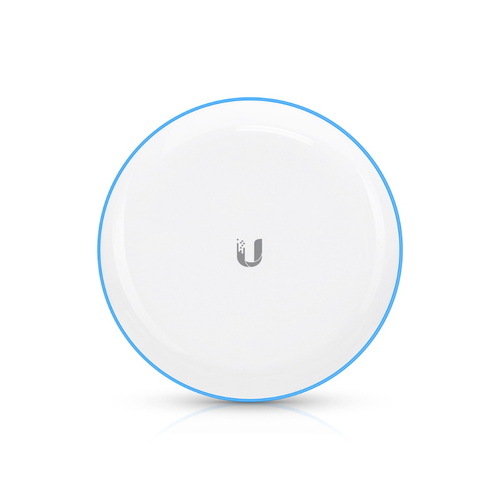

Ubiquiti UniFi Building-to-Building Bridge - 60GHz 1.7Gbps Link - Pack of 2x - Complete PtP Link

SKU: 124591

The Ubiquiti UniFi® Building-to-Building Bridge is a 1+ Gbps Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m. The UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.


(124591)

Mechanical
Dimensions Ø140 x 90 mm (Ø5.51 x 3.54")
Weight 376 g (13.3 oz)
Enclosure material UV-resistant polycarbonate
Mounting Pole-mount (Kit included)
Wall-mount (Not included)
Wind loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) 10/100/1000 MbE port
Management interface Ethernet
Bluetooth
Power method Passive PoE (48V)
Power supply UniFi PoE switch
48V, 0.32A Gigabit PoE adapter (Included)
Max power consumption 11W
ESD/EMP protection ± 24kV Contact/Air
Antenna Gain
2.4 GHz (BLE)
5 GHz
60 GHz
2 dBi
10 dBi
17.2 dBi
GPS Yes
Max. TX power
5GHz
60GHz
25 dBm
32 - 36.5dBm
60 GHz elevation beamwidth 30°
60 GHz azimuthal coverage ±60°
LEDs R/G/B
Button Factory-reset
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 - 5875
57,000 - 66,000
US/CA U-NII-1: 5150 - 5250
U-NII-3: 5725 - 5850
57,000 - 66,000
Bluetooth (MHz)
Worldwide 2400 - 2483.5
SKU 124591
Barcode # 817882029582
Brand UBIQUITI
Shipping Weight 1.6800kg
Shipping Width 0.170m
Shipping Height 0.170m
Shipping Length 0.220m

Be The First To Review This Product!

Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The Ubiquiti UniFi® Building-to-Building Bridge is a 1+ Gbps Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m. The UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.
