Ubiquiti UniFi XG BaseStation - 1,500 Client Capacity, 10 Gbps, Beam-Forming IP67 Wi-Fi BaseStation

SKU: 124589

Tri-radio, 802.11ac Wave 2 access point with a high-performance beamforming antenna designed to support large venues and high-density networks.

465+ m² (5,000+ ft²) open space coverage

1,500+ connected devices

Triple 5 GHz WiFi5 (4x4 MIMO) radios

Software adjustable antenna coverage (50° or 90°)

Powered using PoE++

Gigabit and 10G RJ45 interface

Phased array antenna system

Weatherproof

(124589)

Mechanical
Dimensions 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7")
Weight 3.2 kg (7.1 lb)
Weatherproofing IP67
Hardware
Networking interface (1) GbE RJ45 port
(1) 1/10 GbE ICM Ethernet port
Management interface Ethernet
Bluetooth
Power method PoE++
Power supply Gigabit PoE++ adapter 50V DC, 1.2A (Included)
Max. power consumption 31W
Supported voltage range 44—57V DC
Max. TX power 25 dBm
MIMO (3) 4 x 4
Operating frequency
5 GHz low-band radio
5 GHz mid-band radio
5 GHz high-band radio
Ch 36-64
Ch 100-132
Ch 149-165
Antenna Integrated dual-mode antenna array
Antenna gain
Small cell
Large cell
15 dBi
10 dBi
Antenna beamwidth
Small cell
Large cell
50°
90°
Button Factory reset
LEDs R/G/B

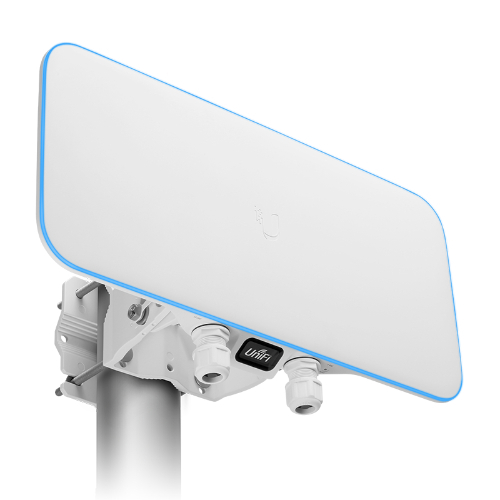

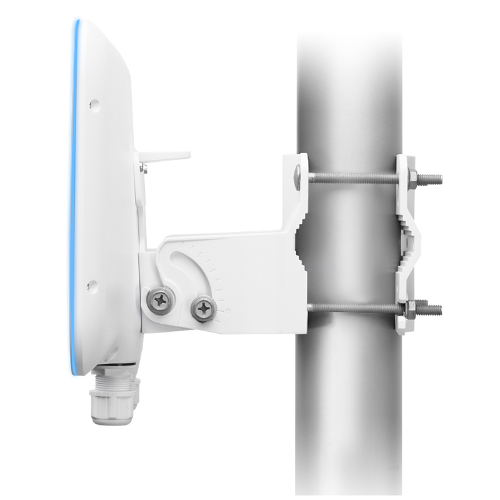

Mounting VESA-compatible mount, pole/wall (Brackets included)
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11 a/n/r/k/v/ac/ac-wave2
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
Beamforming Supported
WMM Voice, video, best effort, and background
Concurrent clients 1500+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
SKU 124589
Barcode # 810010070548
Brand UBIQUITI
Shipping Weight 7.4000kg
Shipping Width 0.340m
Shipping Height 0.180m
Shipping Length 0.570m
