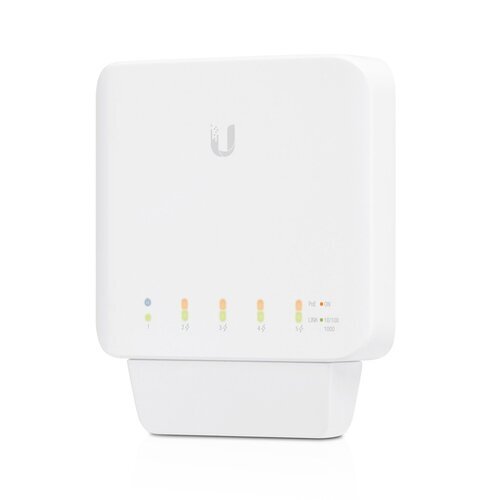

Ubiquiti UniFi USW Flex - Managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support. 1x PoE In, 4x PoE Out

SKU: 124611

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

(4) GbE PoE+ ports

(1) GbE PoE++ input port for power

— 46W PoE availability* PoE++ input
— 20W PoE availability PoE+ input
— 8W PoE availability PoE input

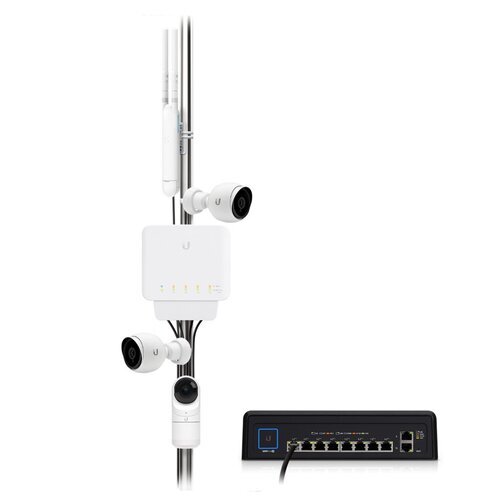

Indoor/Outdoor

(124611)

Mechanical
Dimensions 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight 230 g (8.11 oz)
Hardware
Management interface Ethernet In-Band

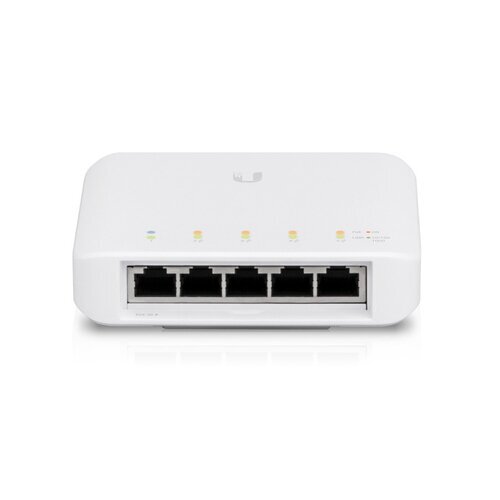

Networking interface (5) GbE RJ45 ports
PoE interface (4) PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Power method PoE++
Power supply PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE adapter (Not included)
Supported voltage range PoE: 44—57V DC
PoE+/PoE++: 50—57V DC
Max. power consumption 5W (Excluding PoE output)
Total available PoE 46W*
*When powered with a PoE++ switch or a 60W PoE adapter(sold separately).
Max. PoE wattage per port by PSE 25W
ESD/EMP protection Air/contact: ± 16kV
Button Factory reset
Operating temperature 46W PoE output: -40 to 55° C (-40 to 131° F)
25W PoE output: -40 to 65° C (-40 to 149° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 5.10.3 and later
SKU 124611
Barcode # 817882027595
Brand UBIQUITI
Shipping Weight 0.4800kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.160m
