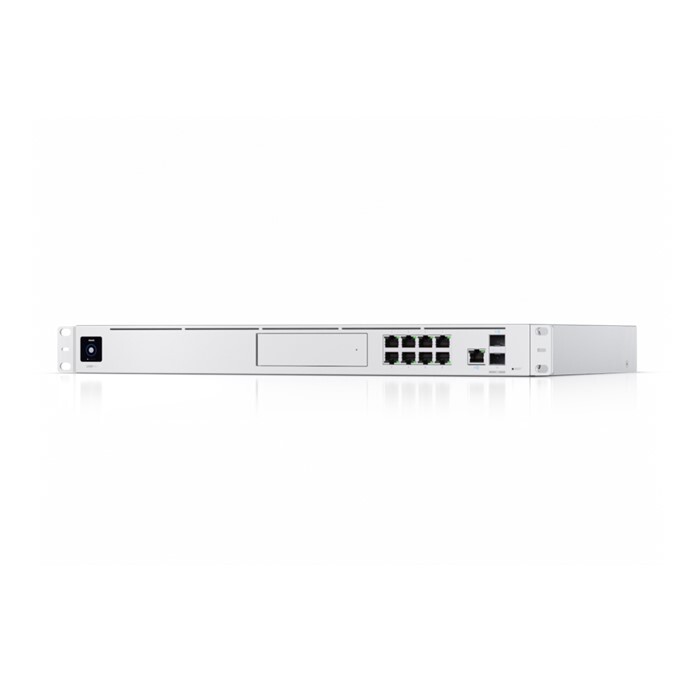

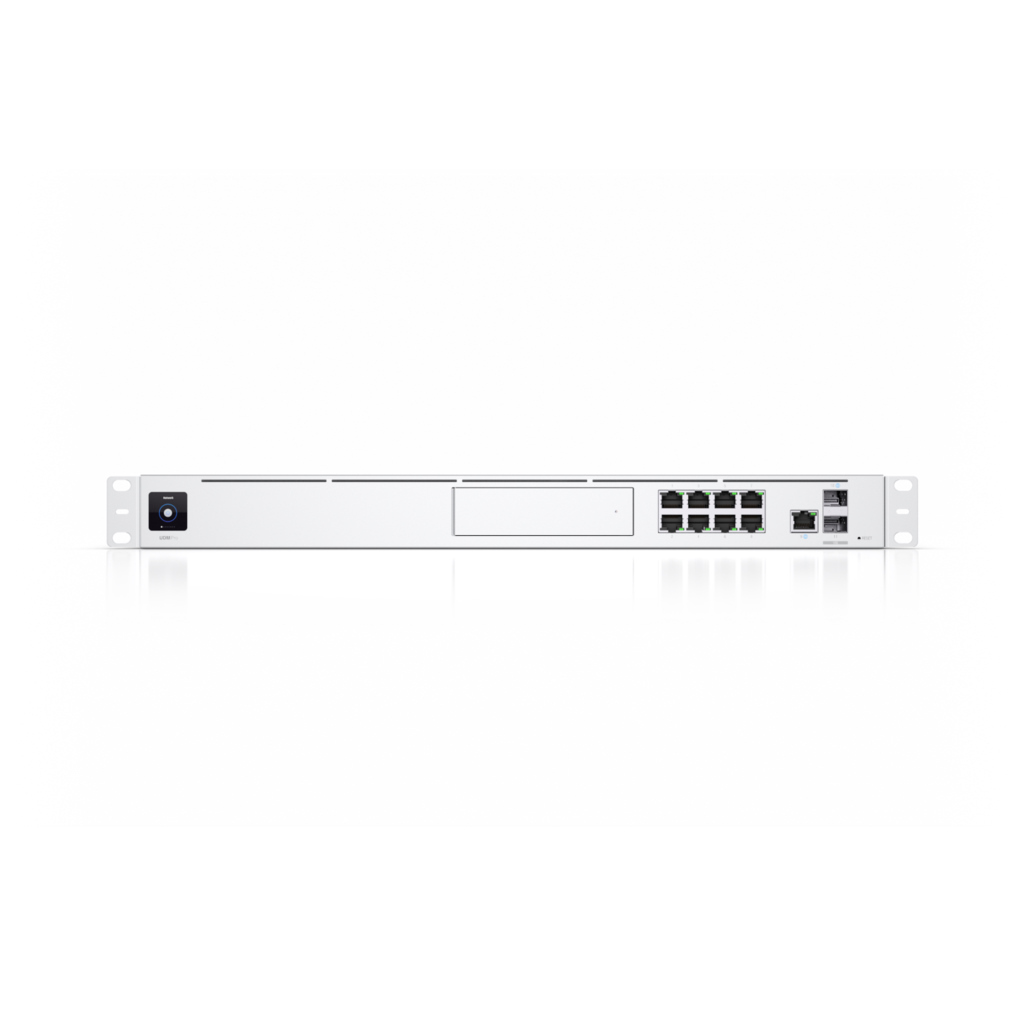

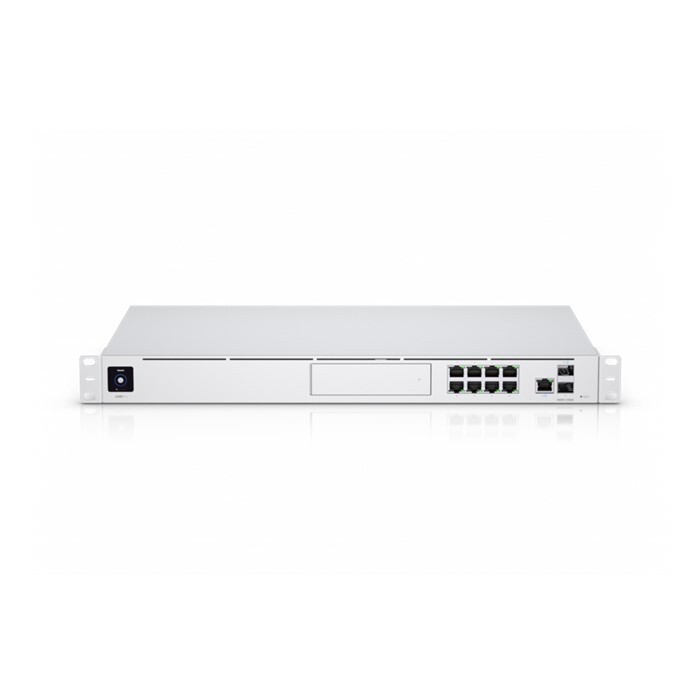

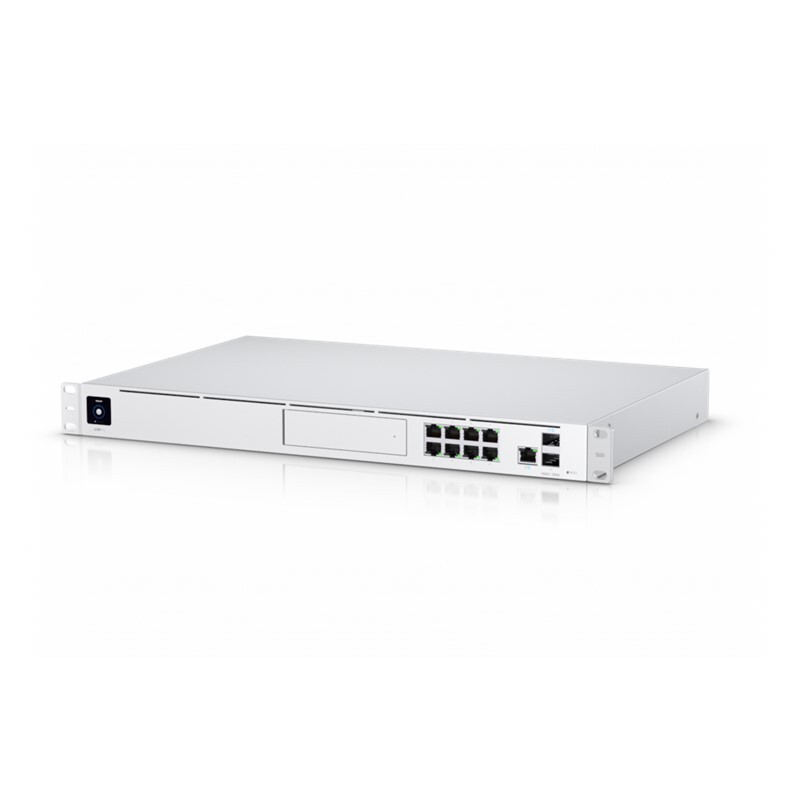

Ubiquiti UniFi Dream Machine Pro - All-in-one Home/Office Network Solution

SKU: 124578

Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated switch.

Includes full UniFi application suite for device management

3.5+ Gbps routing

(1) 10G SFP+, (8) GbE RJ45 LAN ports

(1) 10G SFP+, (1) GbE RJ45 WAN ports

1.3" touchscreen

3.5" HDD bay

(124578)

Technical Specifications

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 3.9 kg (8.6 lb)
Enclosure materials Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Management interface Ethernet
Bluetooth
Networking interface (8) LAN: GbE RJ45 ports
(1) WAN: GbE RJ45 port
SFP+ interface (1) LAN: 10G SFP+
(1) WAN: 10G SFP+
IDS/IPS throughput 3.5 Gbps *
* Measured with iPerf3.
Power method (1) Universal AC Input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 50W
Supported voltage range 100—240V AC
Max. power consumption 33W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -10° to 40° C (14° to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet Link/activity
Green: 1G
Amber: 10/100M
SFP+ Link/activity
White: 10G
Green: 1G
HDD White: disk activity
Amber: disk error
RPS Blue: ready
SKU 124578
Barcode # 810010071071
Brand UBIQUITI
Shipping Weight 5.1200kg
Shipping Width 0.390m
Shipping Height 0.120m
Shipping Length 0.520m
