Ubiquiti UniFi Wi-Fi 6 Enterprise,NHU-U6-ENTERPRISE, Sleek, wall-mounted WiFi 6E access point

SKU: 124581

Ubiquiti UniFi Wi-Fi 6 Enterprise
DESCRIPTION: Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office

SKU: U6-Enterprise

(124581)

Mechanical
Dimensions Ø220 x 48 mm (Ø8.7 x 1.9")
Weight Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb)
Enclosure materials Polycarbonate, aluminum
Mount material Stainless steel (SUS304)
Hardware

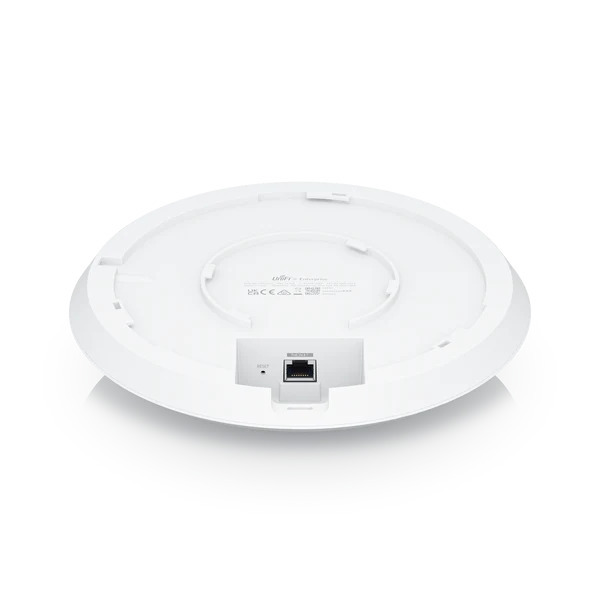

Networking interface (1) 2.5GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE+
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5-7 GHz
22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
3.2 dBi
5.3 dBi
6 dBi
LEDs White/blue
Button Reboot and factory-reset

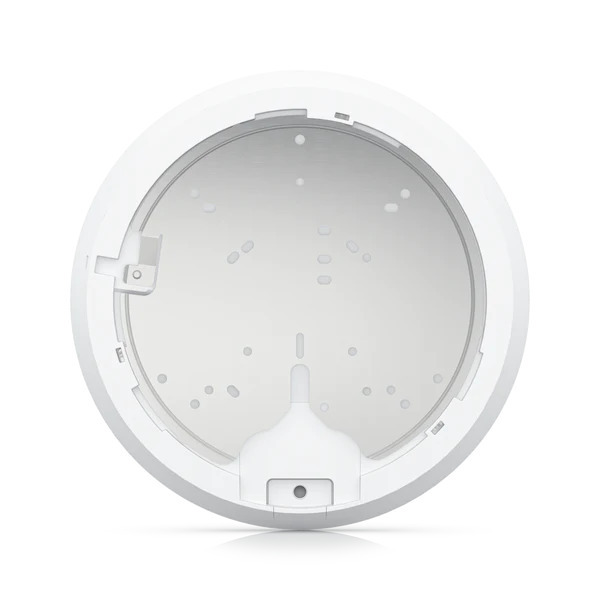

Mounting Wall/ceiling (included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 600+
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 7.2.91 and later
SKU 124581
Barcode # NHU-U6-ENTERPRISE
Brand UBIQUITI
Shipping Weight 1.8800kg
Shipping Width 0.260m
Shipping Height 0.080m
Shipping Length 0.260m
