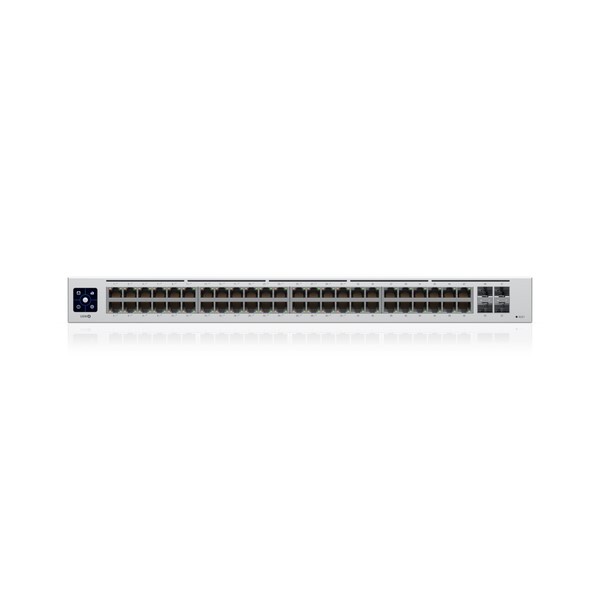

Ubiquiti UniFi 48 port Managed Gigabit Layer2 switch - 48x Gigabit Ethernet Ports w/ 32x 802.3at POE+, 4x SFP Port Touch Display 195W

SKU: 124602

Seamlessly power your network's access points, cameras, and even our mini-switches.
Features:
- (32) GbE PoE+, (16) GbE ports
- (4) 1G SFP ports
- 195W total PoE availability
- Fanless, silent cooling

(124602)

Mechanical
Dimensions 442.4 x 285 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.5 kg (10 lb)
With mounting brackets: 4.6 kg (10.2 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1G SFP ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 52 Gbps
Switching capacity 104 Gbps
Forwarding rate 77.38 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 45W (Excluding PoE output)
Total PoE available 195W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP Link/activity
SKU 124602
Barcode # 810010072177
Brand UBIQUITI
Shipping Weight 4.6100kg
Shipping Width 0.280m
Shipping Height 0.180m
Shipping Length 0.440m
