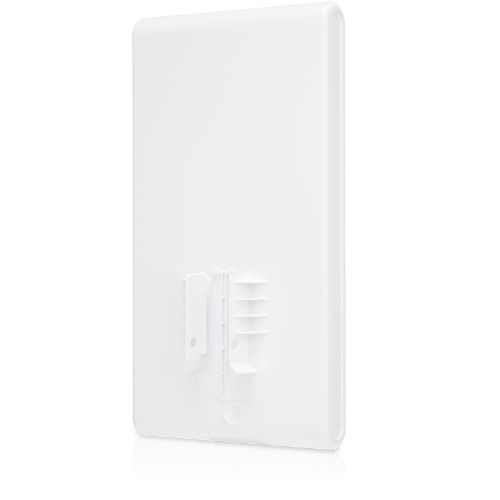

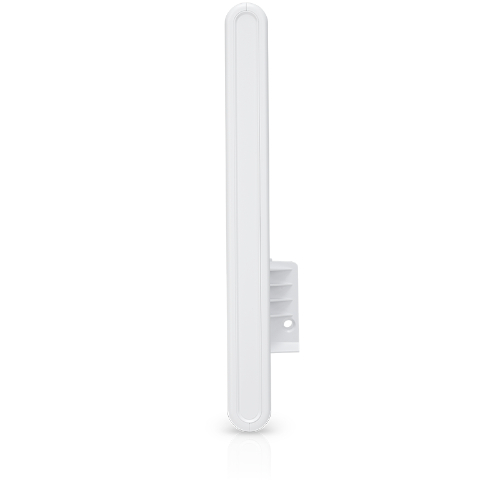

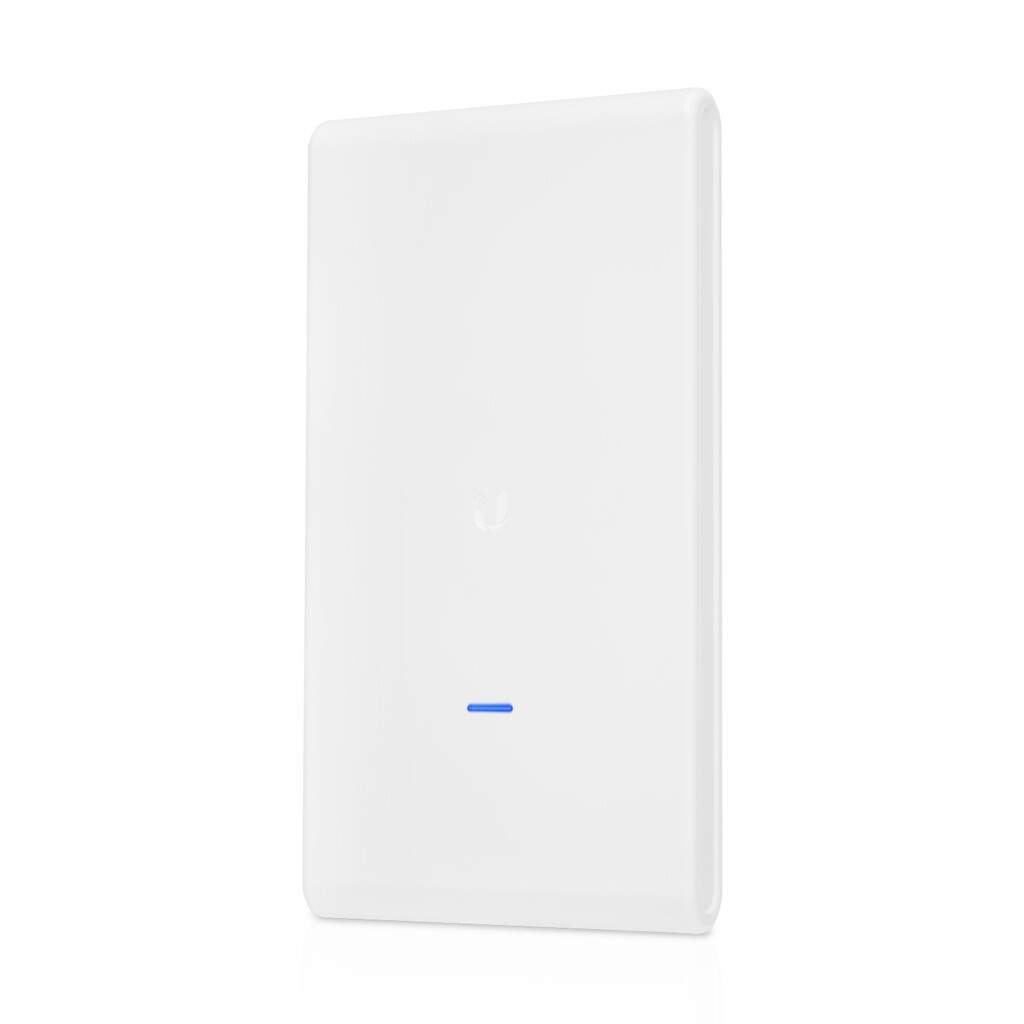

Ubiquiti UniFi AC Mesh Pro 802.11ac Dual Band Indoor & Outdoor Access Point, 2.4GHz @ 450Mbps, 5GHz @ 1300Mbps, 1750Mbps Total, Range Up To 183m

SKU: 124587

Ubiquiti UniFi AP AC Mesh PRO 802.11ac Dual Radio Indoor/Outdoor access point - 1750Mbps



PoE injector included
Mounting brackets included ( wall or pole )




Scalable Enterprise Wi-Fi Management

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.

(124587)

Mechanical
Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight 633 g (1.4 lb)
Hardware

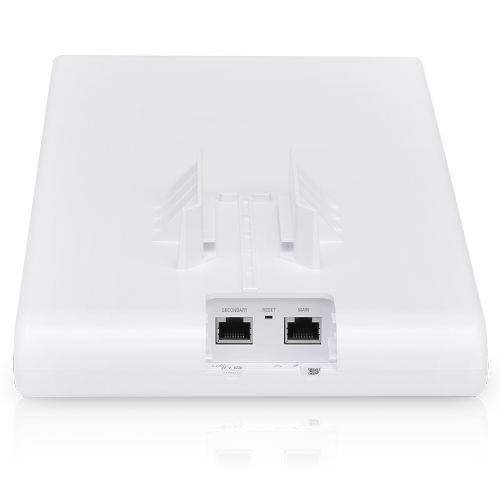

Networking interface (2) GbE ports
Management interface Ethernet
Power method PoE
Power supply Gigabit PoE adapter 48V DC, 0.5A*
*5-packs do not come with PoE adapters.
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
22 dBm
22 dBm
MIMO
2.4 GHz
5 GHz
3 x 3
3 x 3
Throughput rate
2.4 GHz
5 GHz
450 Mbps
1300 Mbps
Antenna gain 8 dBi
Button Factory reset
Mounting Wall/pole (Pole kit included)
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN 802.1Q
BSSID Up to 4 per radio
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
SKU 124587
Barcode # 810354027987
Brand UBIQUITI
Shipping Weight 2.0000kg
Shipping Width 0.230m
Shipping Height 0.090m
Shipping Length 0.400m
