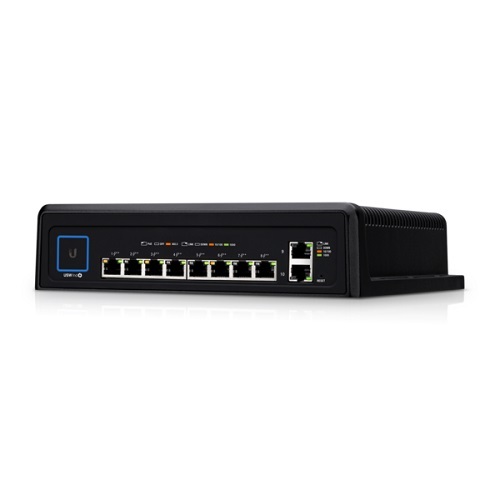

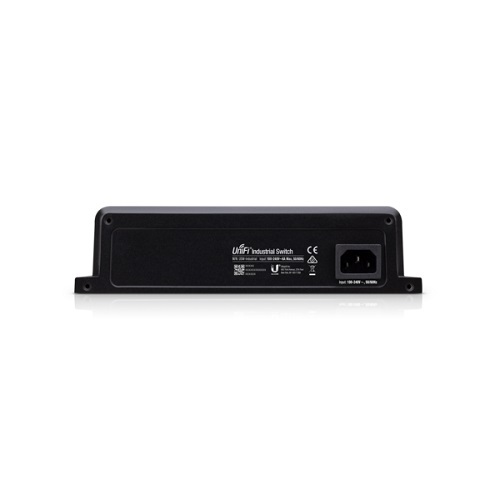

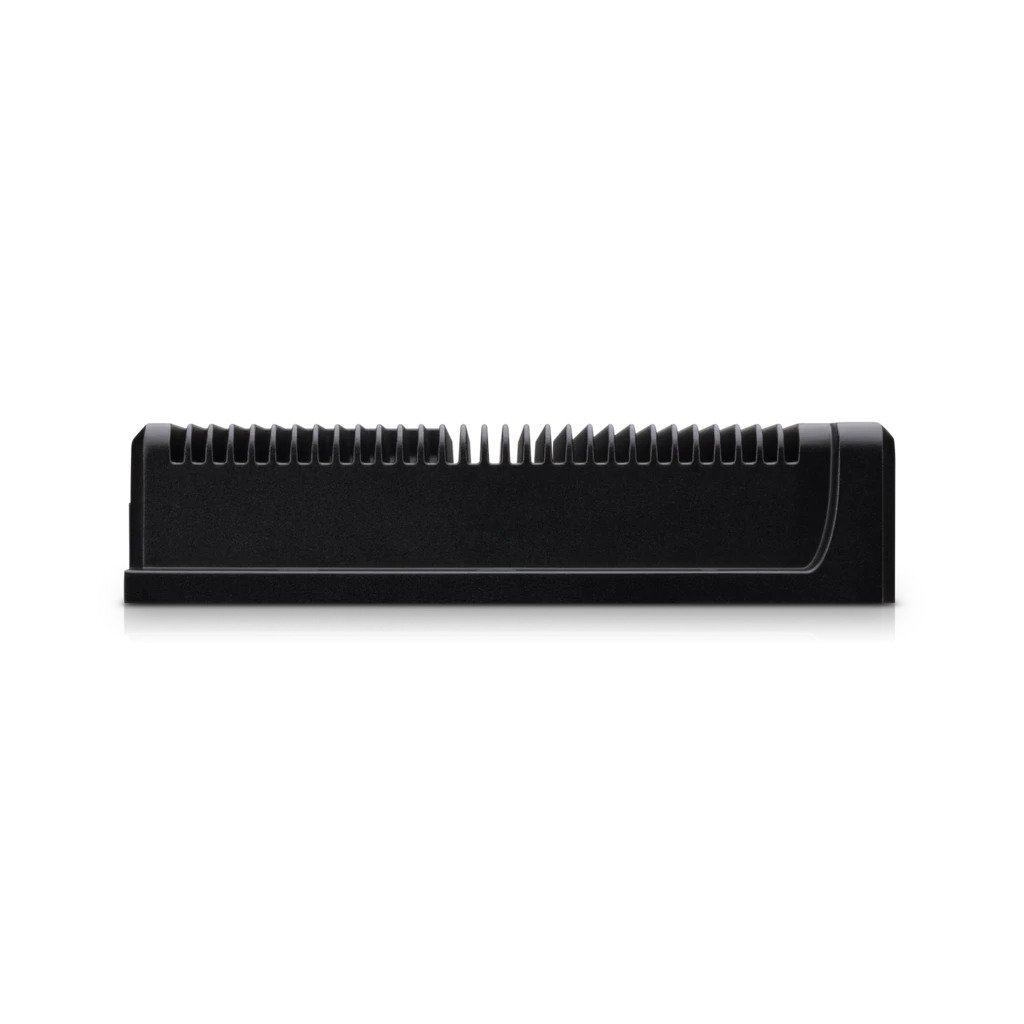

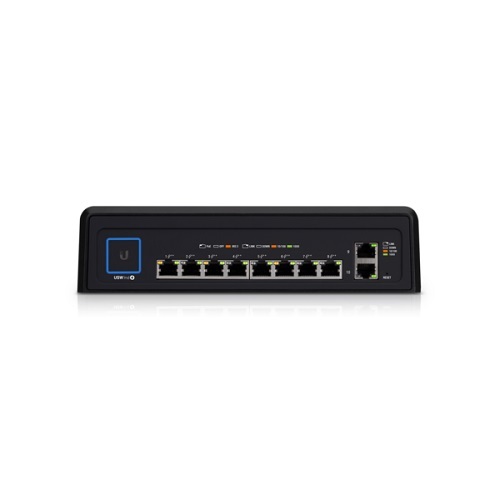

Ubiquiti UniFi Industrial/Rugged Fanless Operates Up To 50-Degrees

SKU: 124617

The USW-Industrial is a managed Gigabit Layer 2 switch with auto-sensing, high-power 802.3bt PoE++ support.

It has 10 RJ45 ports total, 8 of which offer PoE++ (up to 60W per port), ideal for powering devices like UniFi LED Panels, cameras, and APs.
Featuring a ruggedized industrial design, the fanless USW-Industrial is plenum-rated* and can be installed in a horizontal or vertical orientation in plenum spaces.
Its die-cast aluminum enclosure has a black, powder coated finish.

This provides greater resistance to corrosion and durability in environments with extreme temperature variations.


(124617)

Mechanical
Dimensions 254 x 235 x 60 mm (10 x 9.3 x 2.4")
Weight 3.9 kg (8.5 lb)
Enclosure material Die-cast aluminum with black powder coated finish
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE, PoE++ RJ45 ports
(2) GbE RJ45 ports
PoE interface (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 10 Gbps
Switching capacity 20 Gbps
Forwarding rate 14.88 Mpps
Power method Universal input, 100—240V AC, Max. 6A, 50/60 Hz
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 20W (Excluding PoE output)
Total available PoE 430W
Max. PoE wattage per port by PSE PoE++: 60W
Voltage range PoE mode PoE++: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F)
Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SKU 124617
Barcode # 817882028868
Brand UBIQUITI
Shipping Weight 4.3800kg
Shipping Width 0.330m
Shipping Height 0.110m
Shipping Length 0.360m
