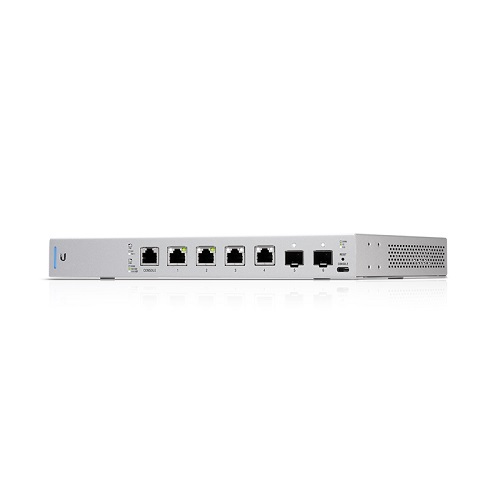

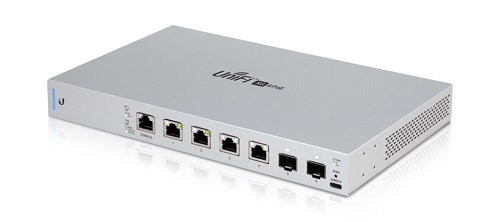

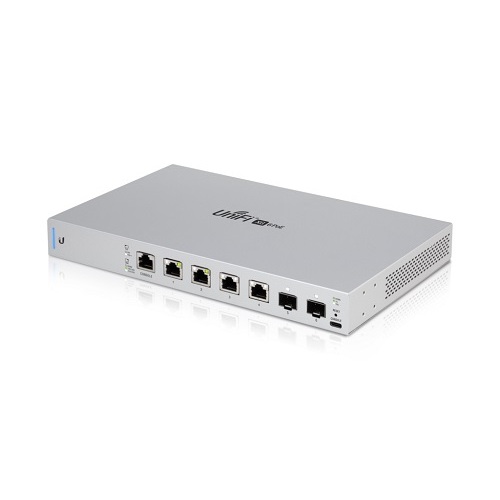

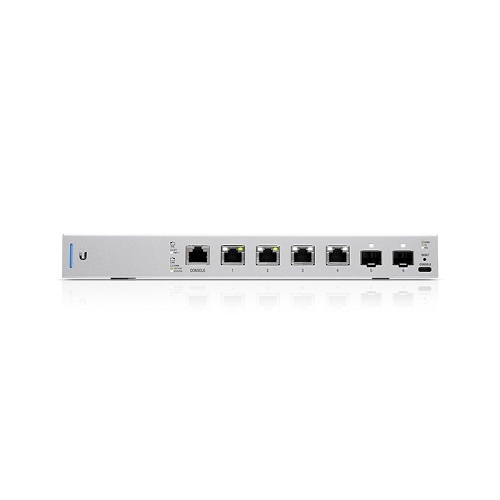

Ubiquiti UniFi Fully Managed, Layer3 - 4x 10GB Ethernet PoE++ (802.3bt) Ports - 2x 10GB SFP+ Uplinks

SKU: 124616

A Layer 3, PoE switch with (4) 10 GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.

(4) 1/2.5/5/10 GbE PoE++ ports

(2) 10G SFP+ ports

170W total PoE availability

Layer 3 switching

Wired DC backup power

(124616)

Mechanical
Dimensions 165 x 268.1 x 31.8 mm (6.5 x 10.6 x 1.3")
Weight 1.3 kg (2.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
(1) RJ45 Serial port Out-of-Band
(1) USB Type C port Out-of-Band
Networking interface (4) 1/2.5/5/10 GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method 54V DC, 3.88A power adapter (Included)
DC input with terminal block
Power supply External AC/DC adapter (Included)
DC power source
Supported voltage range 44–57V DC
Max. power consumption 40W (Excluding PoE output.)
Total available PoE 170W
Max. PoE wattage per port by PSE PoE++: 60W
Voltage range PoE mode PoE: 44–57V
PoE+/PoE++: 50—57V
ESD/EMP protection Air: ± 18kV, contact: ± 12kV
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Link/Speed/Activity
SFP+ Link/Activity
SKU 124616
Barcode # 817882024785
Brand UBIQUITI
Shipping Weight 1.3000kg
Shipping Width 0.160m
Shipping Height 0.030m
Shipping Length 0.270m
