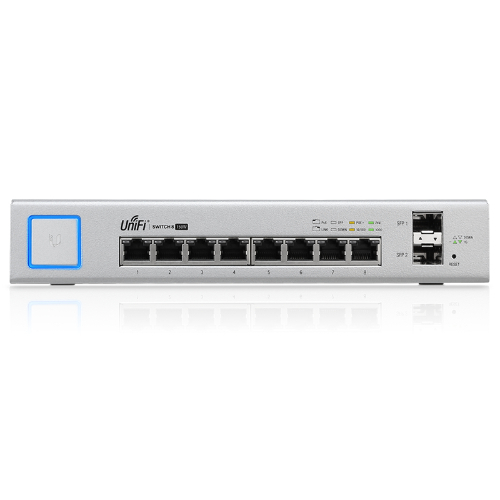

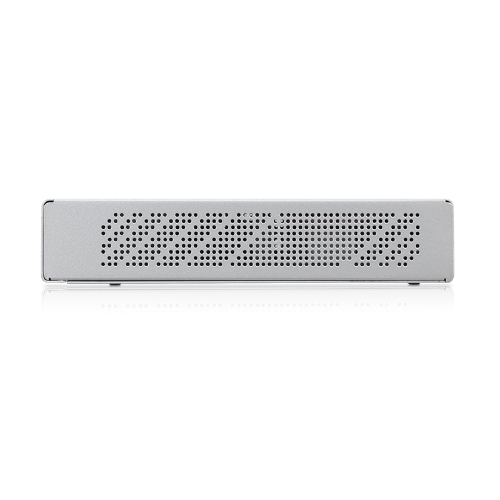

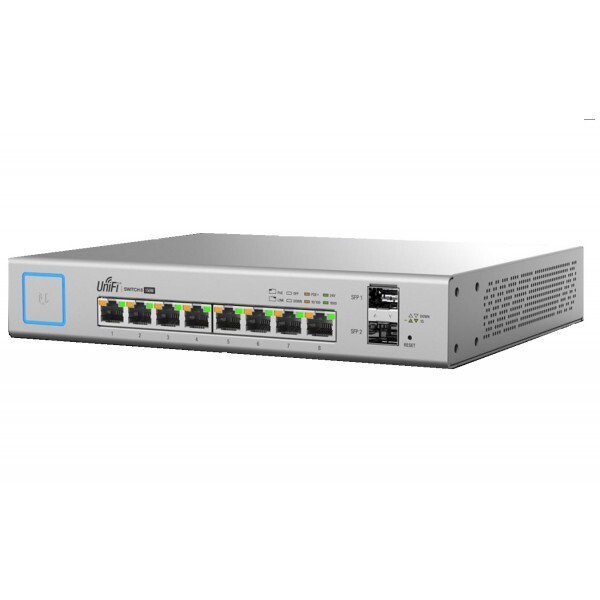

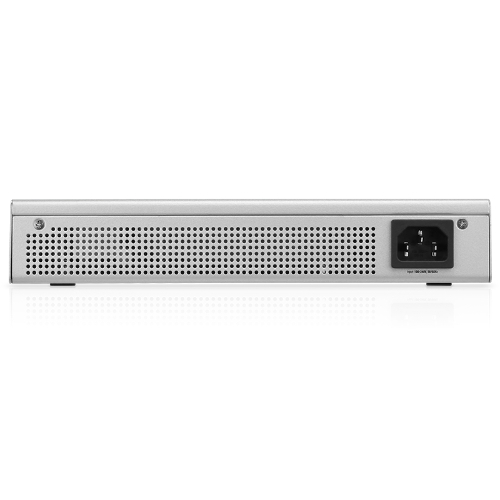

Ubiquiti UniFi Switch 8-port Managed PoE+ Gigabit Switch with SFP, 150W PoE Budget, Quiet Fanless Operation, GEN1

SKU: 124615

UBIQUITI UNIFI SWITCH 8-PORT 150W, WITH 8 PORTS POE AND 2X SFP UPLINK PORTS



Features
•(8) Gigabit RJ45 ports
•(2) SFP ports
•Non-blocking throughput: 10 Gbps
•Switching capacity: 20 Gbps
•Forwarding rate: 14.88 Mpps
•Maximum power consumption: 150W
•Supports Standard POE
•Desktop mountable (unable to be stacked)

(124615)

Mechanical
Dimensions 235 x 43 x 204 mm (9.3 x 1.7 x 8")
Weight 1.7 kg (3.7 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 10 Gbps
Switching capacity 20 Gbps
Forwarding rate 14.88 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 150W
Max. power consumption Excluding PoE output: 20W
Including PoE output: 150W
Total available PoE 130W
Max. PoE wattage per port by PSE PoE: 17W
PoE+: 34W
Voltage range PoE mode 24V passive PoE: 20–27V
PoE+: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
Ethernet PoE
Link/Speed/Activity
SFP Link/Speed/Activity
SKU 124615
Barcode # 817882023023
Brand UBIQUITI
Shipping Weight 3.4000kg
Shipping Width 0.240m
Shipping Height 0.080m
Shipping Length 0.340m

Be The First To Review This Product!

Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

UBIQUITI UNIFI SWITCH 8-PORT 150W, WITH 8 PORTS POE AND 2X SFP UPLINK PORTS



Features
•(8) Gigabit RJ45 ports
•(2) SFP ports
•Non-blocking throughput: 10 Gbps
•Switching capacity: 20 Gbps
•Forwarding rate: 14.88 Mpps
•Maximum power consumption: 150W
•Supports Standard POE
•Desktop mountable (unable to be stacked)

Mechanical
Dimensions 235 x 43 x 204 mm (9.3 x 1.7 x 8")
Weight 1.7 kg (3.7 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 10 Gbps
Switching capacity 20 Gbps
Forwarding rate 14.88 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 150W
Max. power consumption Excluding PoE output: 20W
Including PoE output: 150W
Total available PoE 130W
Max. PoE wattage per port by PSE PoE: 17W
PoE+: 34W
Voltage range PoE mode 24V passive PoE: 20–27V
PoE+: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
Ethernet PoE
Link/Speed/Activity
SFP Link/Speed/Activity
SKU 124615
Barcode # 817882023023
Brand UBIQUITI
