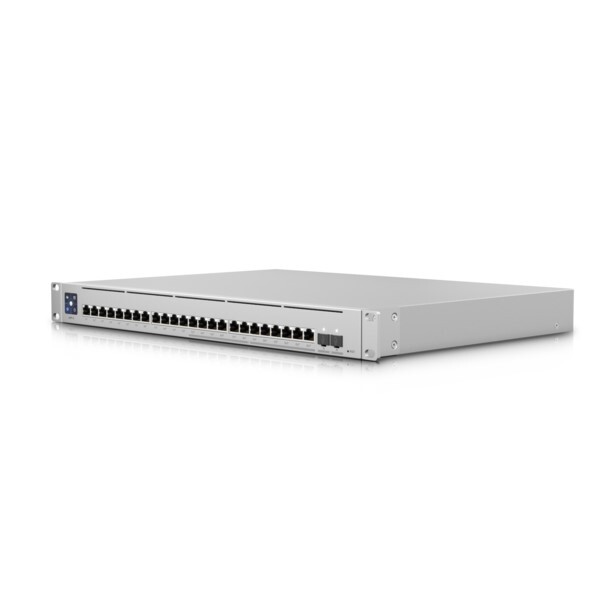

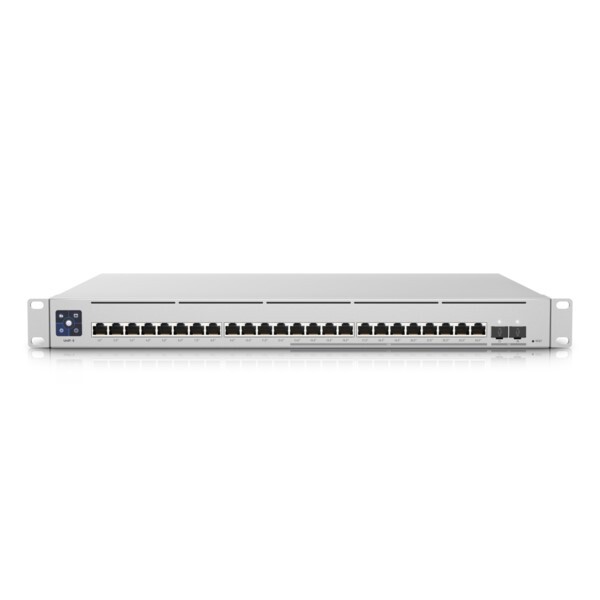

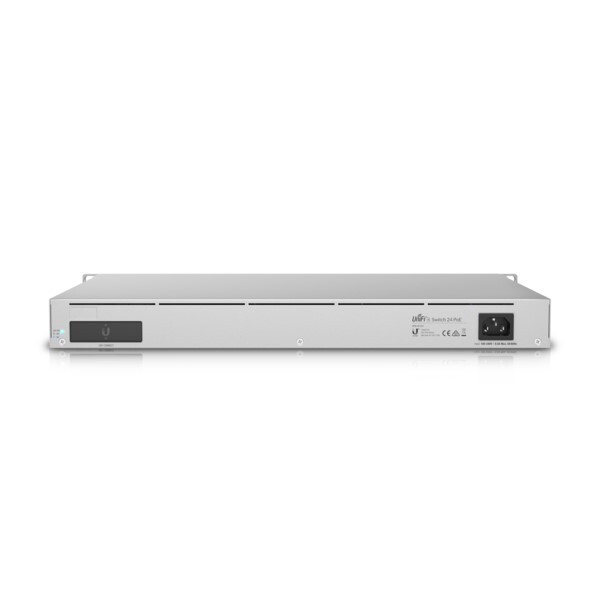

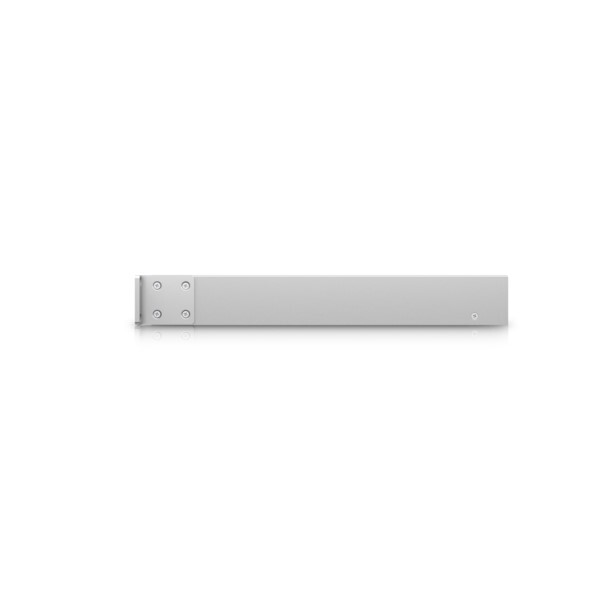

Ubiquiti UniFi Switch Enterprise 24-port PoE+ 12x2.5GbE 12x1GbE Ports, Ideal For Wi-Fi 6 AP, 2x 10g SFP+ Ports, Managed Layer 3 Switch (400W)

SKU: 124593

(12) 2.5 GbE, (12) GbE; all PoE+ ports

(2) 10G SFP+ ports

400W total PoE availability

DC power backup-ready

Layer 3 switching

(124593)

Mechanical
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight Without mounting brackets: 5.11 kg (11.27 lb)
With mounting brackets: 5.2 kg (11.46 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) 1 GbE RJ45 ports
(12) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 62 Gbps
Switching capacity 124 Gbps
Forwarding rate 92.25 Mpps
Power method (1) Universal AC input, 100—240V AC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply AC/DC, internal, 550W
Supported voltage range 100—240V AC
Max. power consumption 550W
PoE budget 400W
Max. PoE+ wattage per port by PSE 34.2W
Voltage range PoE mode PoE: 44— 57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 5.14.12 and later
SKU 124593
Barcode # 810010073129
Brand UBIQUITI
Shipping Weight 8.0000kg
Shipping Width 0.400m
Shipping Height 0.080m
Shipping Length 0.500m

(12) 2.5 GbE, (12) GbE; all PoE+ ports

(2) 10G SFP+ ports

400W total PoE availability

DC power backup-ready

Layer 3 switching

Mechanical
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight Without mounting brackets: 5.11 kg (11.27 lb)
With mounting brackets: 5.2 kg (11.46 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) 1 GbE RJ45 ports
(12) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 62 Gbps
Switching capacity 124 Gbps
Forwarding rate 92.25 Mpps
Power method (1) Universal AC input, 100—240V AC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply AC/DC, internal, 550W
Supported voltage range 100—240V AC
Max. power consumption 550W
PoE budget 400W
Max. PoE+ wattage per port by PSE 34.2W
Voltage range PoE mode PoE: 44— 57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 5.14.12 and later
SKU 124593
Barcode # 810010073129
Brand UBIQUITI
