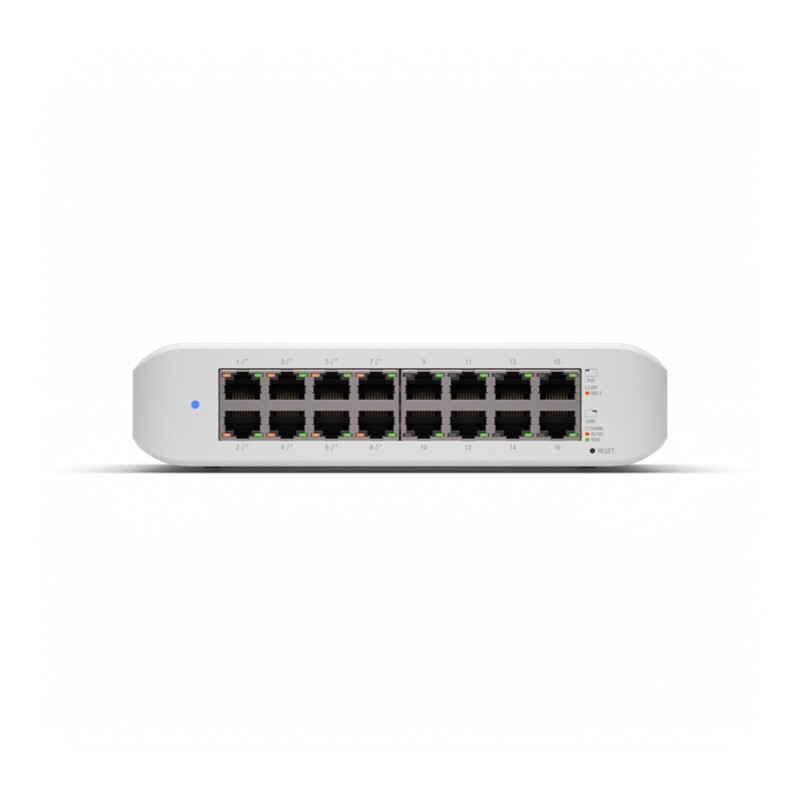

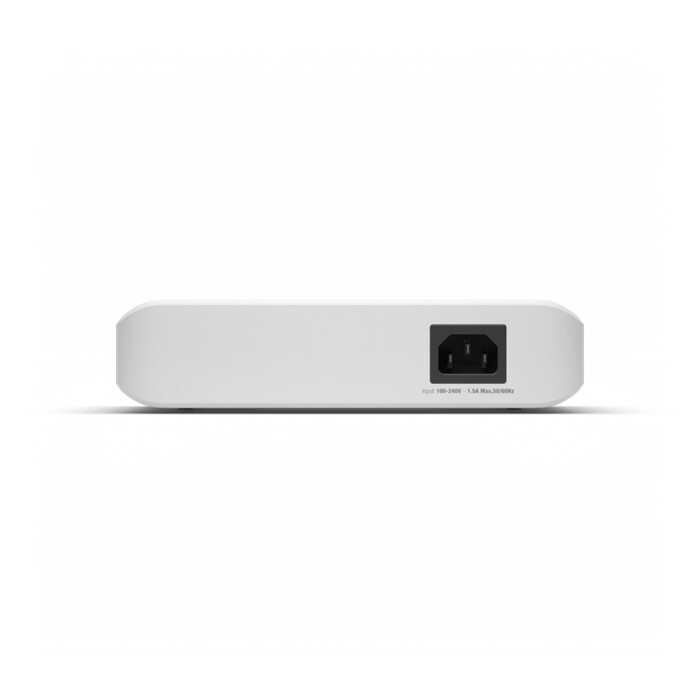

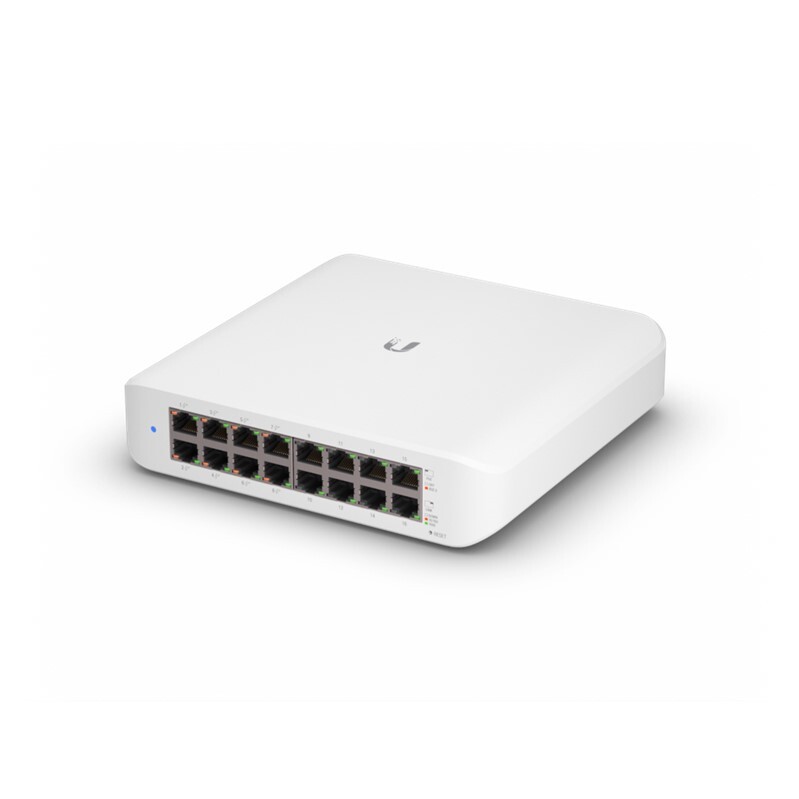

Ubiquiti UniFi Switch Lite 16 PoE, Layer 2, 16x GbE RJ45 Ports, 8x 802.3at PoE+ Ports, 45W PoE Budget, Fanless Unit, Wallmount Kit Included

SKU: 124608

A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

(8) GbE PoE+, (8) GbE ports

45W total PoE availability

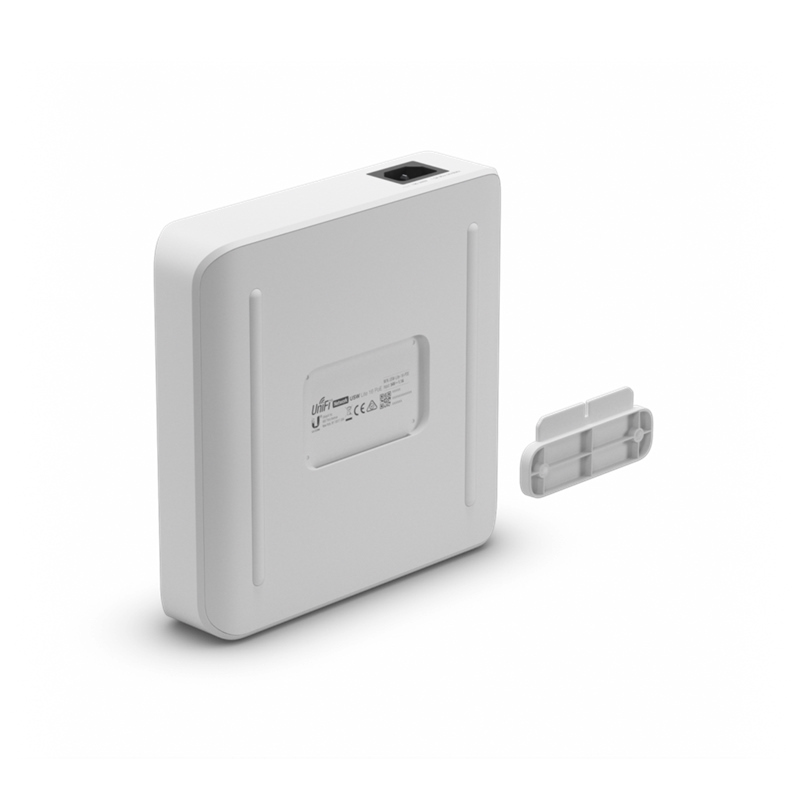

Wall mountable

(124608)

Mechanical
Dimensions 191.7 x 185 x 43.7 mm (7.6 x 7.3 x 1.7")
Weight 1.2 kg (2.6 lb)
Enclosure material Plastic
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 16 Gbps
Switching capacity 32 Gbps
Power method Universal input, 100—240V AC
Power supply AC/DC, internal, 60W
Max. power consumption 15W (Excluding PoE output)
Total available PoE 45W
Max. PoE wattage per port by PSE PoE+: 30W
Button Factory reset
Operating temperature -15 to 40° C (5 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU 124608
Barcode # 810010071316
Brand UBIQUITI
Shipping Weight 1.4600kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.300m
