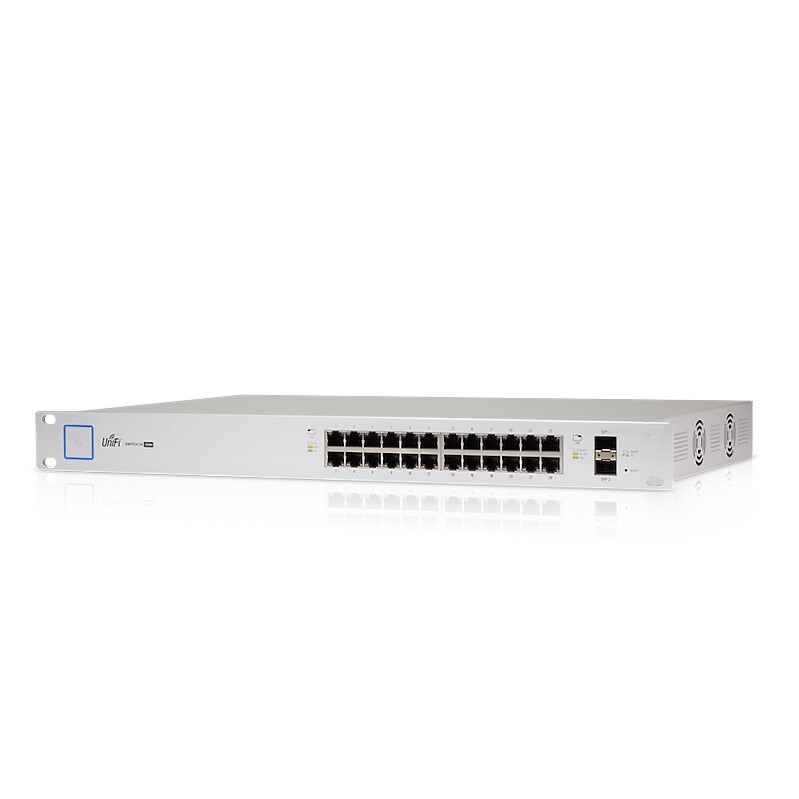

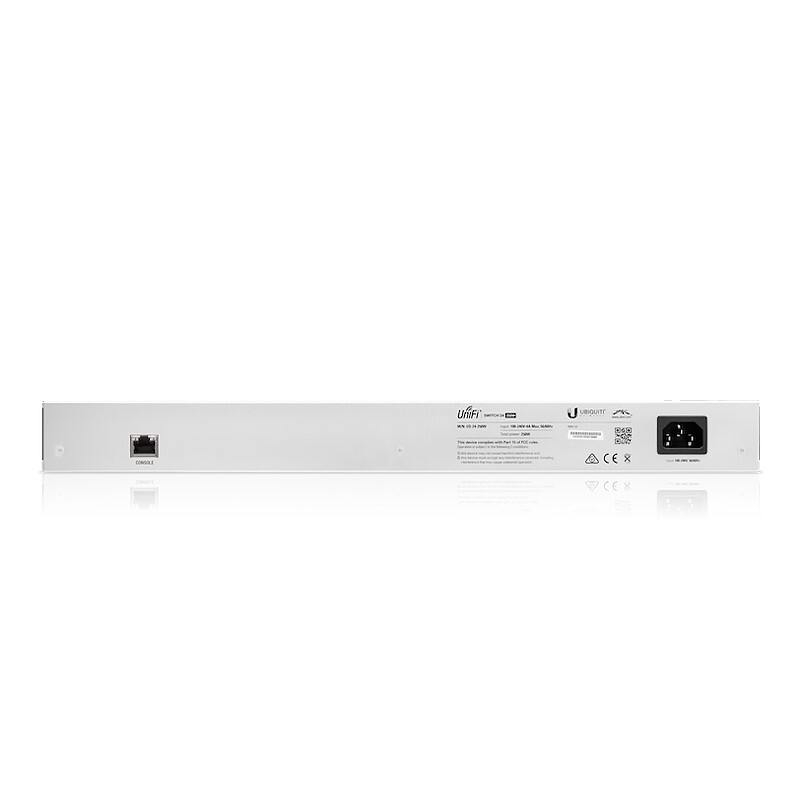

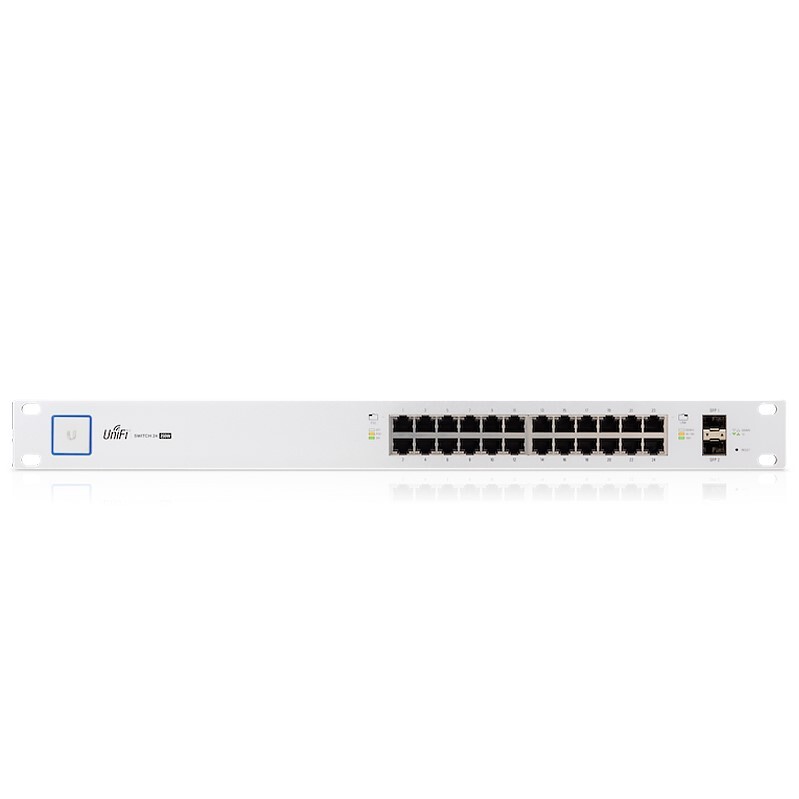

Ubiquiti UniFi Switch 24-port Managed PoE+ Gigabit Switch with SFP, 250W PoE Budget, GEN1
SKU: 124606
Ubiquiti UniFi Switch 24-port Managed PoE+ Gigabit Switch with SFP, 250W PoE Budget, GEN1
SKU: 124606
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
MULTI-SITE MANAGEMENT
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
OPTICAL FIBRE BACKHAUL
Two SFP ports support uplinks of up to 1 Gbps.
VERSATILE MOUNTING OPTIONS
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
UNIFI CONTROLLER
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface
(124606)
| Mechanical | |
|---|---|
| Dimensions | 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7") |
| Weight | 4.8 kg (10.6 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band (1) RJ45 Serial port Out-of-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (24) PoE/PoE+ (Pins 1, 2+; 3, 6-) 24V DC passive PoE (Pins 4, 5+; 7, 8-) |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 2500W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | Excluding PoE output: 30W Including PoE output: 250W |
| Total available PoE | 250W |
| Max. PoE wattage per port by PSE | 24V Passive PoE: 17W PoE+: 34W |
| Voltage range PoE mode | 24V Passive PoE: 20–27V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 24kV, contact: ± 24kV |
| Sound level* Fan level 0 Fan level 1 Fan level 2 Fan level 3 |
9.1 dBr 14.2 dBr 16.8 dBr 21.2 dBr * Background noise level: 27.5 dBa. |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/Link/Activity |
| SFP | Speed/Link/Activity |
| SKU | 124606 |
| Barcode # | 817882023061 |
| Brand | UBIQUITI |
| Shipping Weight | 5.7400kg |
| Shipping Width | 0.340m |
| Shipping Height | 0.080m |
| Shipping Length | 0.570m |
Be The First To Review This Product!
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
MULTI-SITE MANAGEMENT
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
OPTICAL FIBRE BACKHAUL
Two SFP ports support uplinks of up to 1 Gbps.
VERSATILE MOUNTING OPTIONS
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
UNIFI CONTROLLER
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface
| Mechanical | |
|---|---|
| Dimensions | 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7") |
| Weight | 4.8 kg (10.6 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band (1) RJ45 Serial port Out-of-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (24) PoE/PoE+ (Pins 1, 2+; 3, 6-) 24V DC passive PoE (Pins 4, 5+; 7, 8-) |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 2500W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | Excluding PoE output: 30W Including PoE output: 250W |
| Total available PoE | 250W |
| Max. PoE wattage per port by PSE | 24V Passive PoE: 17W PoE+: 34W |
| Voltage range PoE mode | 24V Passive PoE: 20–27V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 24kV, contact: ± 24kV |
| Sound level* Fan level 0 Fan level 1 Fan level 2 Fan level 3 |
9.1 dBr 14.2 dBr 16.8 dBr 21.2 dBr * Background noise level: 27.5 dBa. |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/Link/Activity |
| SFP | Speed/Link/Activity |
| SKU | 124606 |
| Barcode # | 817882023061 |
| Brand | UBIQUITI |
