Ubiquiti Switch Enterprise 24-port Switch 24x10GbE Ports, 2x 25G SFP28 Ports For Uplinks, Managed Layer 3 Switch
SKU: 124595
Ubiquiti Switch Enterprise 24-port Switch 24x10GbE Ports, 2x 25G SFP28 Ports For Uplinks, Managed Layer 3 Switch
SKU: 124595

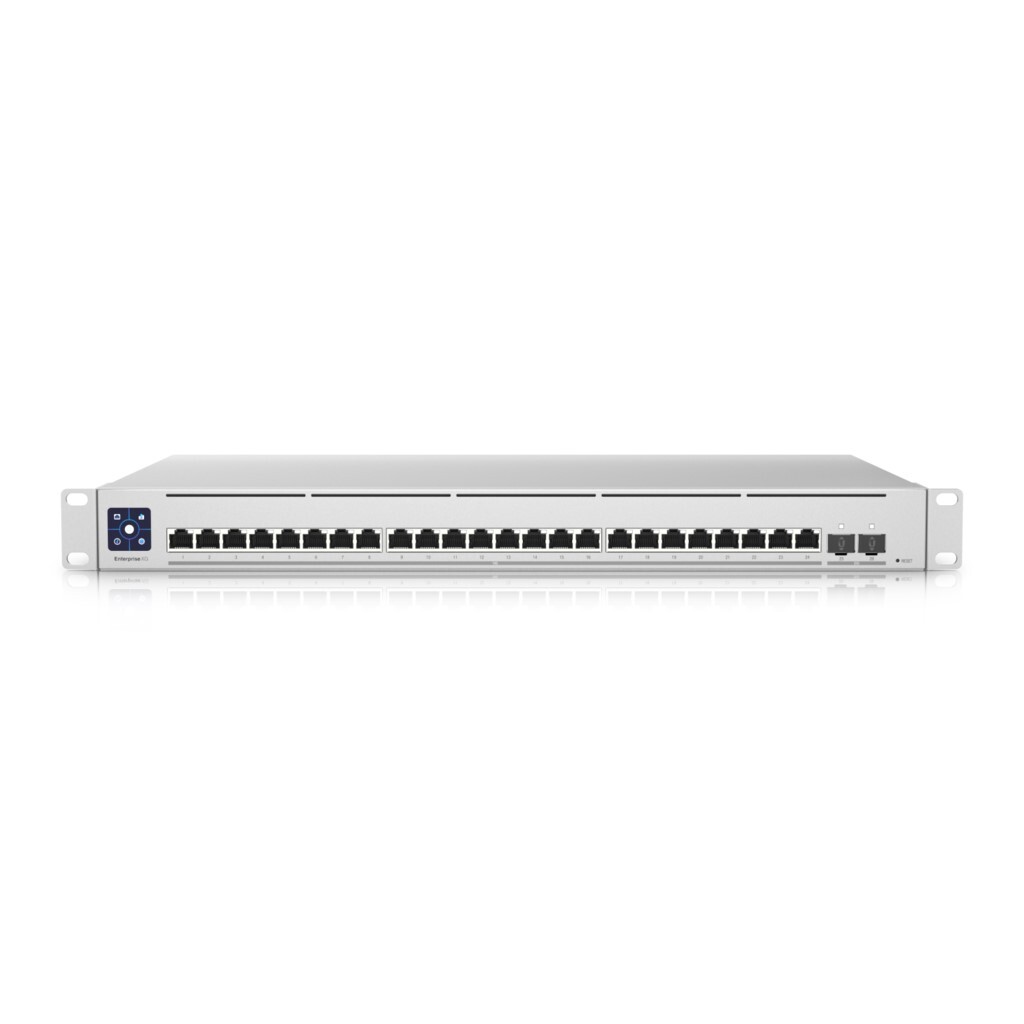

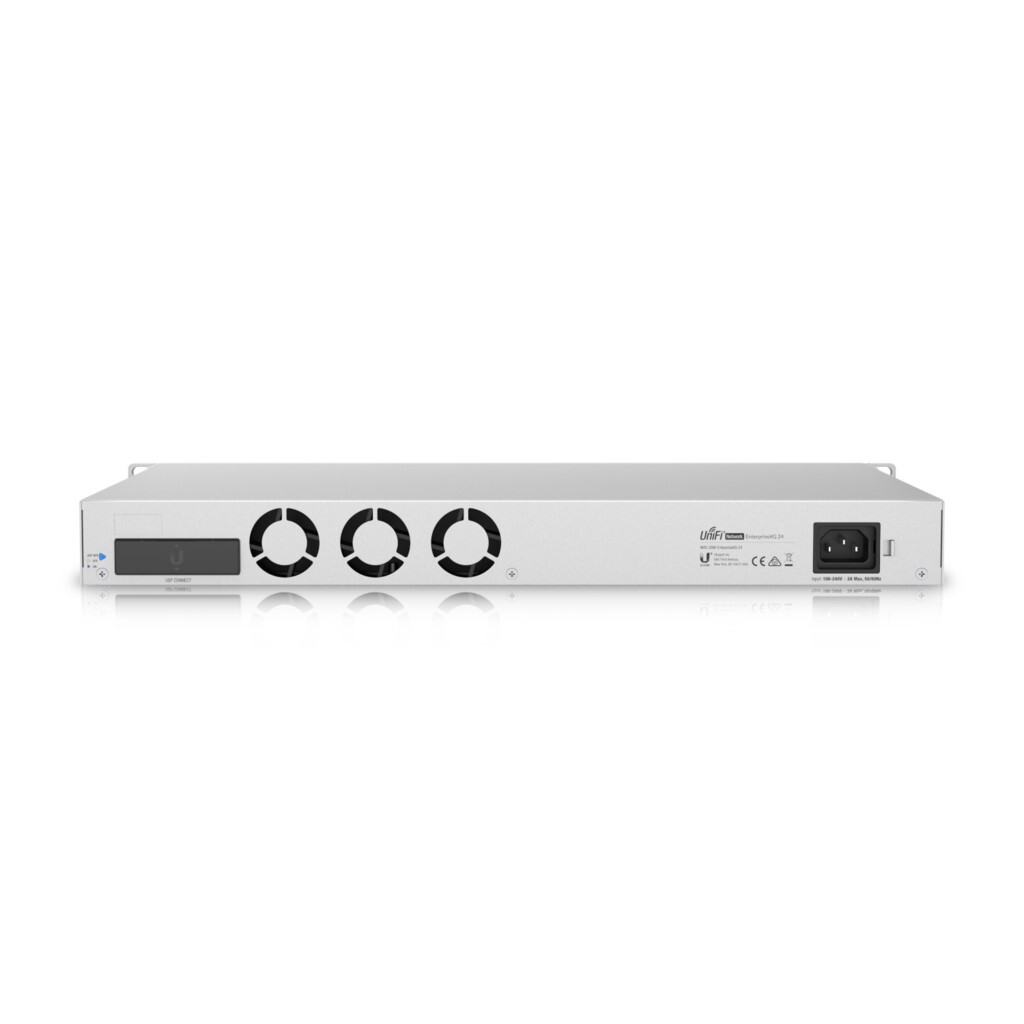

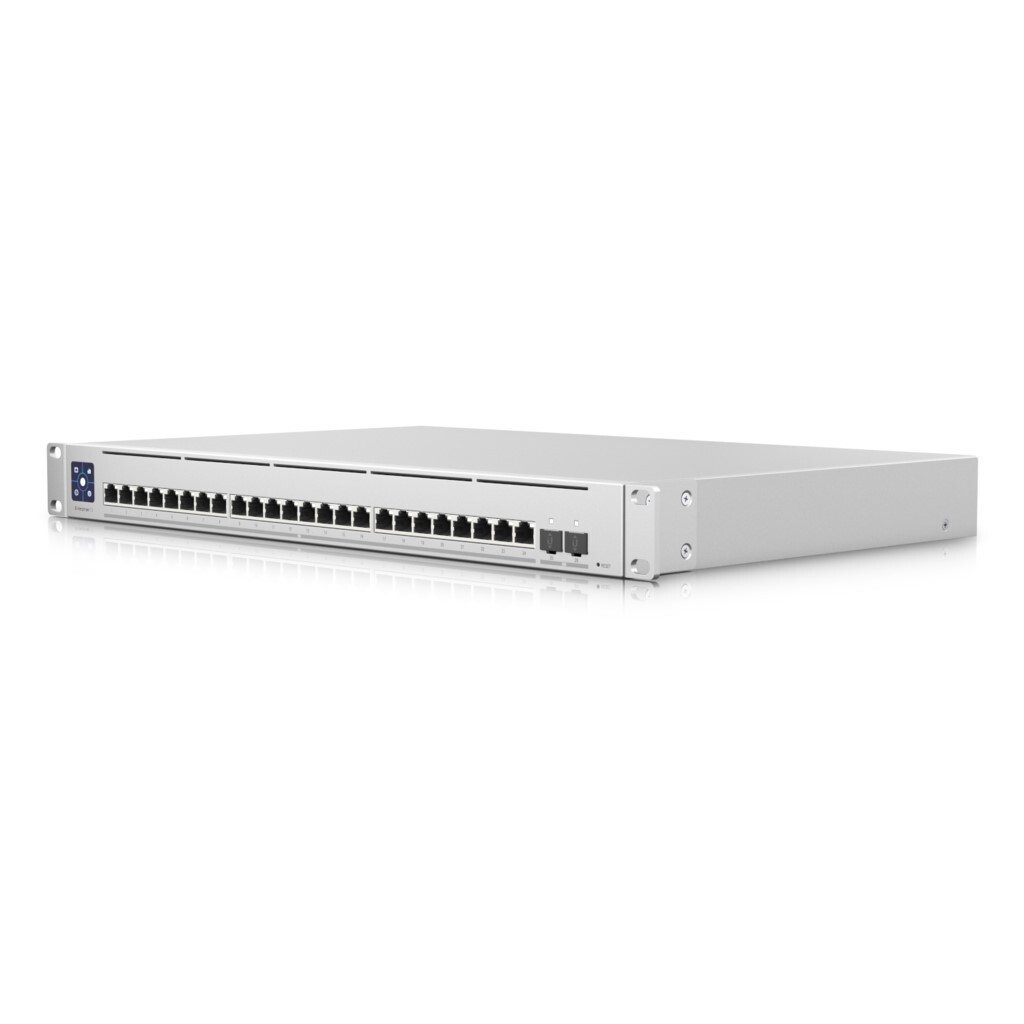

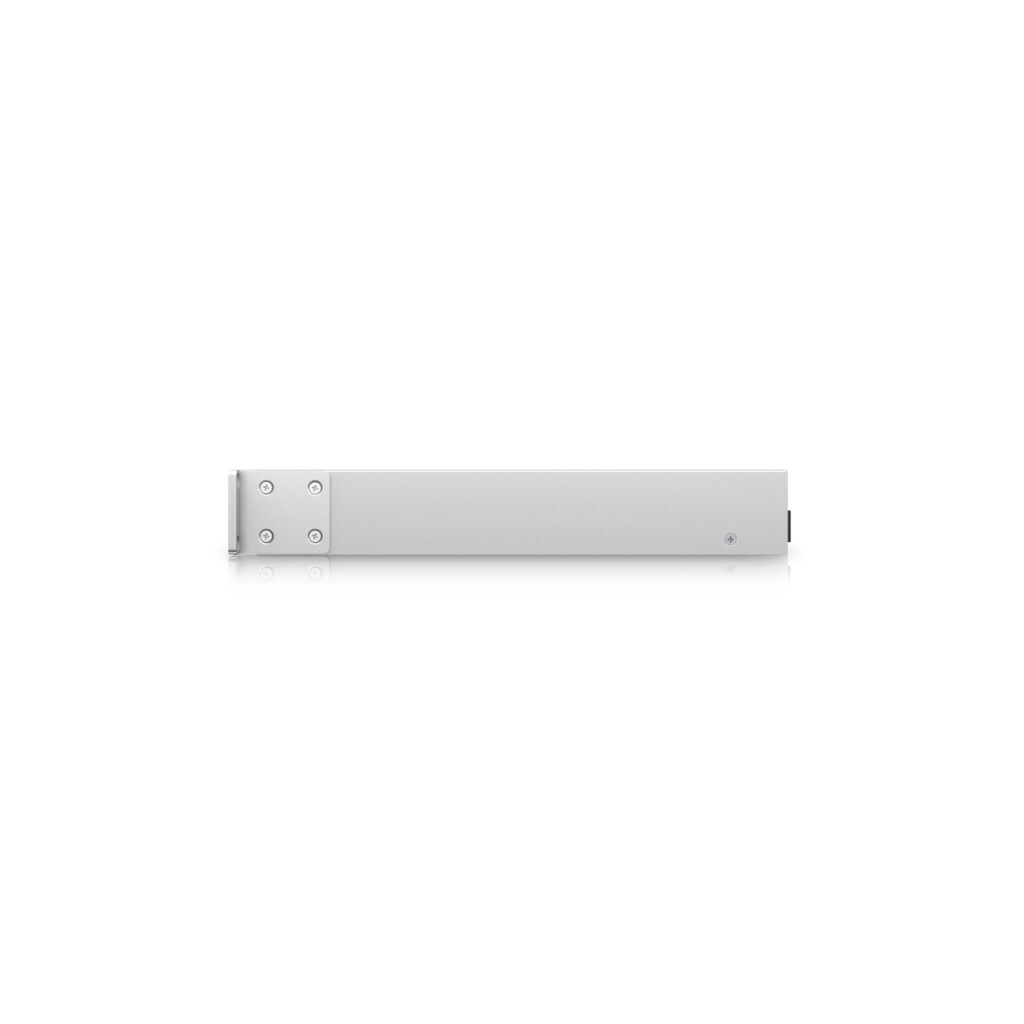

Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(24) 10GbE RJ45 ports
(2) 25G SFP28 ports
(1) USP RPS DC input
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
(124595)
| Mechanical | |
|---|---|
| Dimensions | 442 x 44 x 285 mm (17.4 x 1.7 x 11.2") |
| Weight | Without mounting brackets: 4.5 kg (9.9 lb) With mounting brackets: 4.6 kg (11 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) 1/2.5/5/10 GbE ports |
| SFP28 interface | (2) 25G SFP28 ports* *The two SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. |
| Total non-blocking throughput | 290 Gbps |
| Switching capacity | 580 Gbps |
| Forwarding rate | 431.52 Mpps |
| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| Services | SMB Layer 3 GbE switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
| SKU | 124595 |
| Barcode # | 810010072993 |
| Brand | UBIQUITI |
| Shipping Weight | 5.8200kg |
| Shipping Width | 0.410m |
| Shipping Height | 0.120m |
| Shipping Length | 0.520m |
Be The First To Review This Product!
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(24) 10GbE RJ45 ports
(2) 25G SFP28 ports
(1) USP RPS DC input
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
| Mechanical | |
|---|---|
| Dimensions | 442 x 44 x 285 mm (17.4 x 1.7 x 11.2") |
| Weight | Without mounting brackets: 4.5 kg (9.9 lb) With mounting brackets: 4.6 kg (11 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) 1/2.5/5/10 GbE ports |
| SFP28 interface | (2) 25G SFP28 ports* *The two SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. |
| Total non-blocking throughput | 290 Gbps |
| Switching capacity | 580 Gbps |
| Forwarding rate | 431.52 Mpps |
| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| Services | SMB Layer 3 GbE switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
| SKU | 124595 |
| Barcode # | 810010072993 |
| Brand | UBIQUITI |
