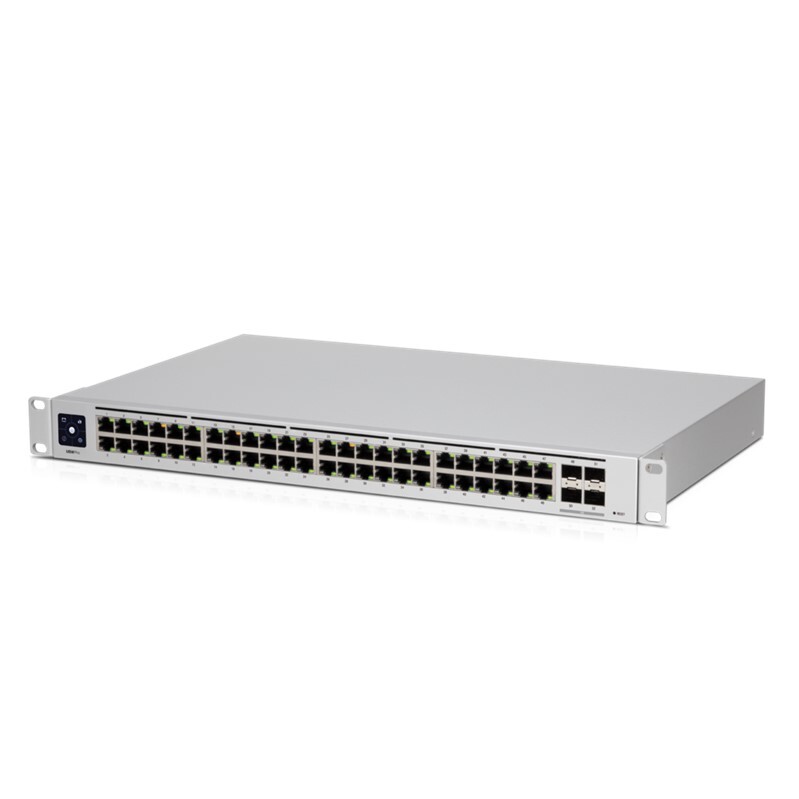

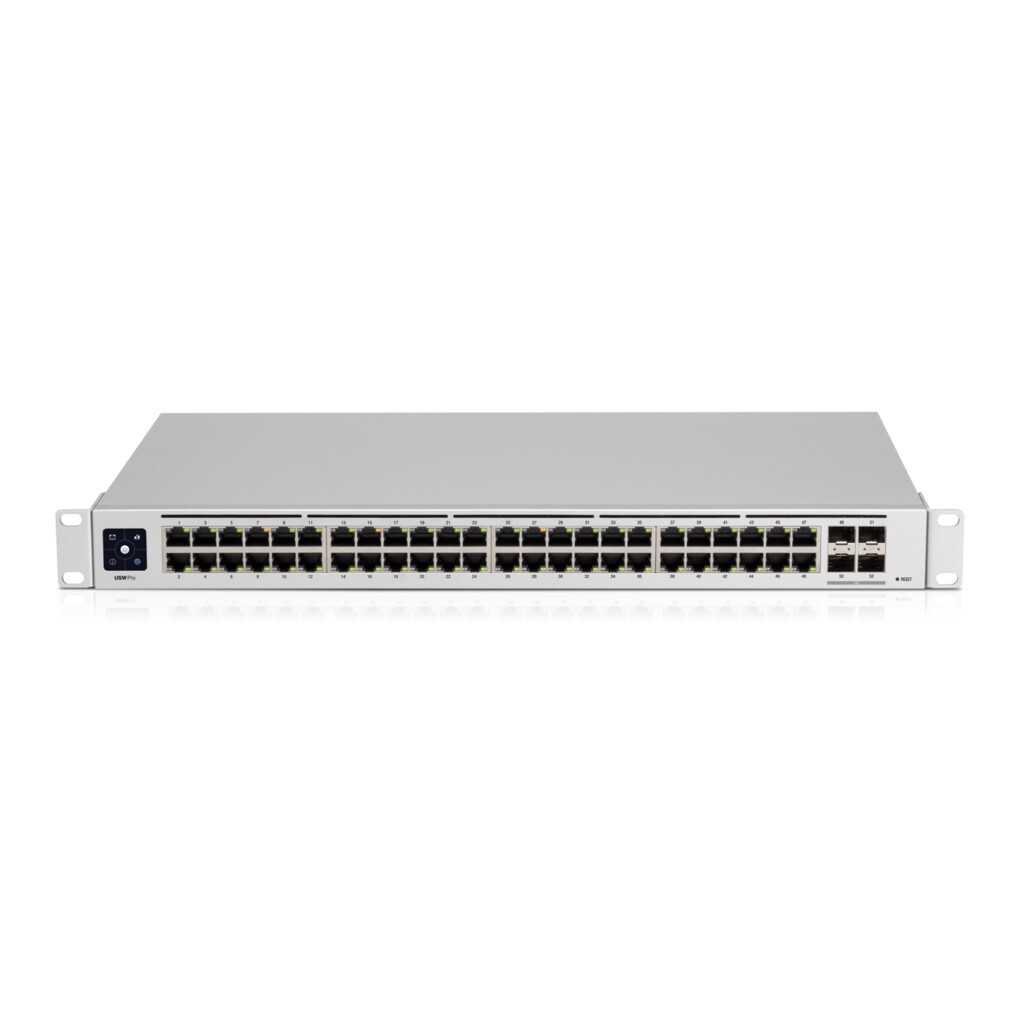

Ubiquiti UniFi 48 port Managed Gigabit Layer2 & Layer3 Switch - 48x Gigabit Ethernet Ports, 4x SFP+ Ports - Touch Display - GEN2
SKU: 124600
Ubiquiti UniFi 48 port Managed Gigabit Layer2 & Layer3 Switch - 48x Gigabit Ethernet Ports, 4x SFP+ Ports - Touch Display - GEN2
SKU: 124600
UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
(48) Gigabit RJ45 ports
(4) 10G SFP+ ports
Layer 2 and Layer 3* features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller
* Available in future firmware upgrade.
(124600)
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) GbE RJ45 ports (4) 1/10G SFP+ ports |
| Total non-blocking throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.944 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 11.5V DC, 5.22A |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.12.11 and later |
| SKU | 124600 |
| Barcode # | 810010070814 |
| Brand | UBIQUITI |
| Shipping Weight | 5.1800kg |
| Shipping Width | 0.390m |
| Shipping Height | 0.130m |
| Shipping Length | 0.520m |
Be The First To Review This Product!
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
(48) Gigabit RJ45 ports
(4) 10G SFP+ ports
Layer 2 and Layer 3* features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller
* Available in future firmware upgrade.
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) GbE RJ45 ports (4) 1/10G SFP+ ports |
| Total non-blocking throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.944 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 11.5V DC, 5.22A |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 60W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.12.11 and later |
| SKU | 124600 |
| Barcode # | 810010070814 |
| Brand | UBIQUITI |
