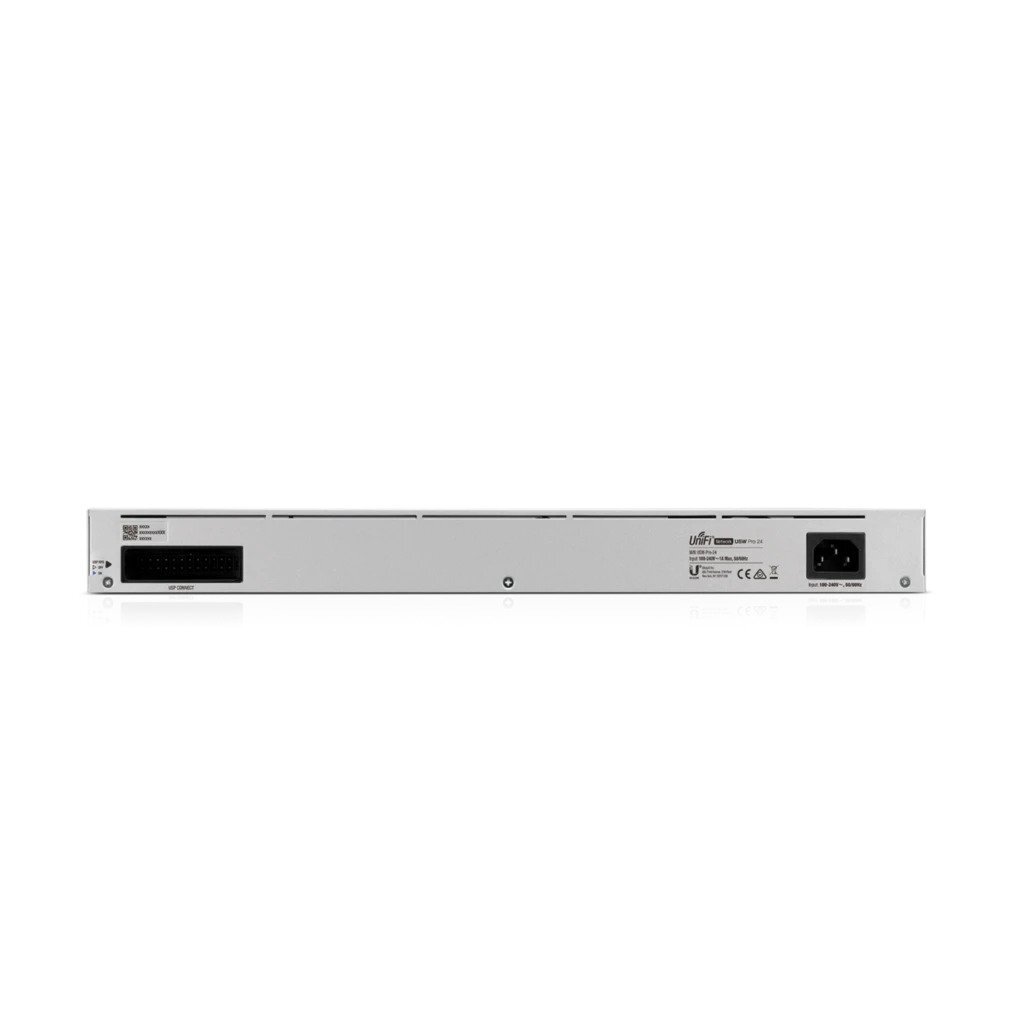

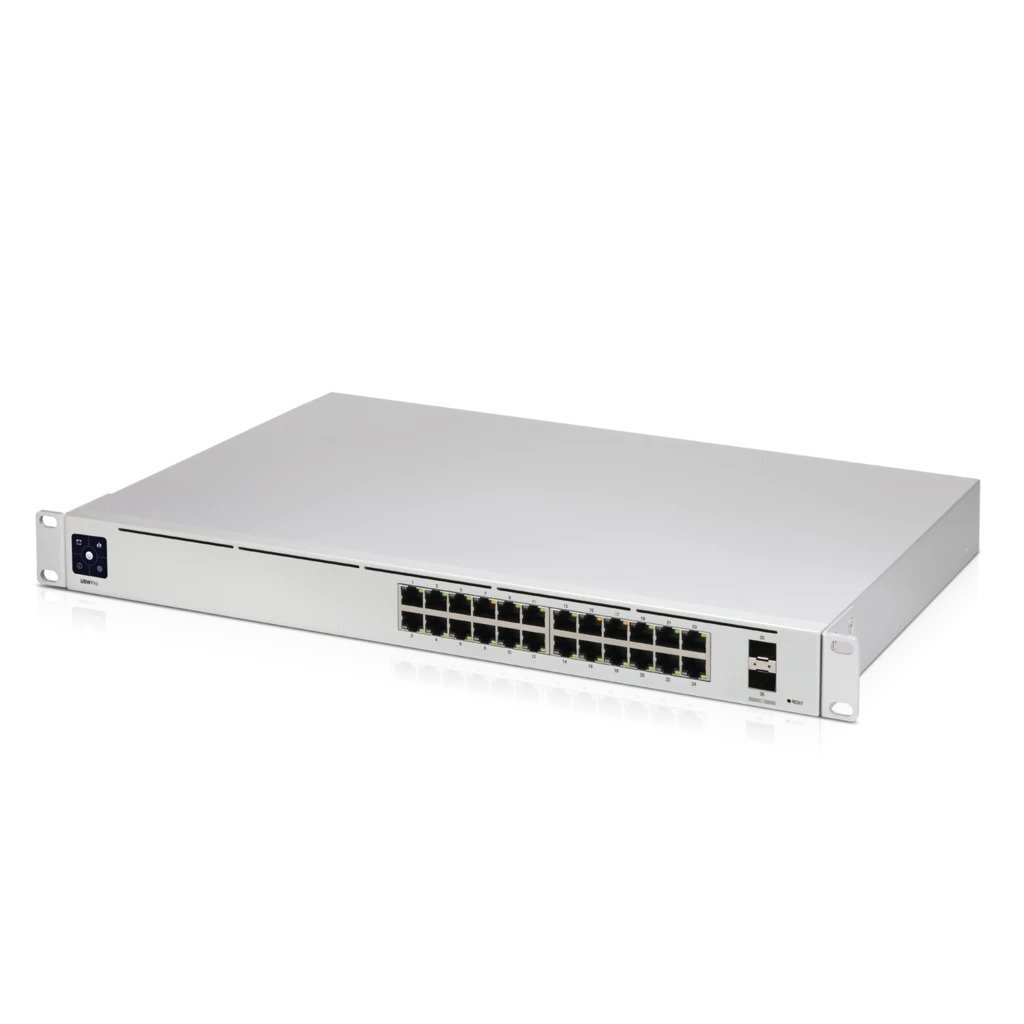

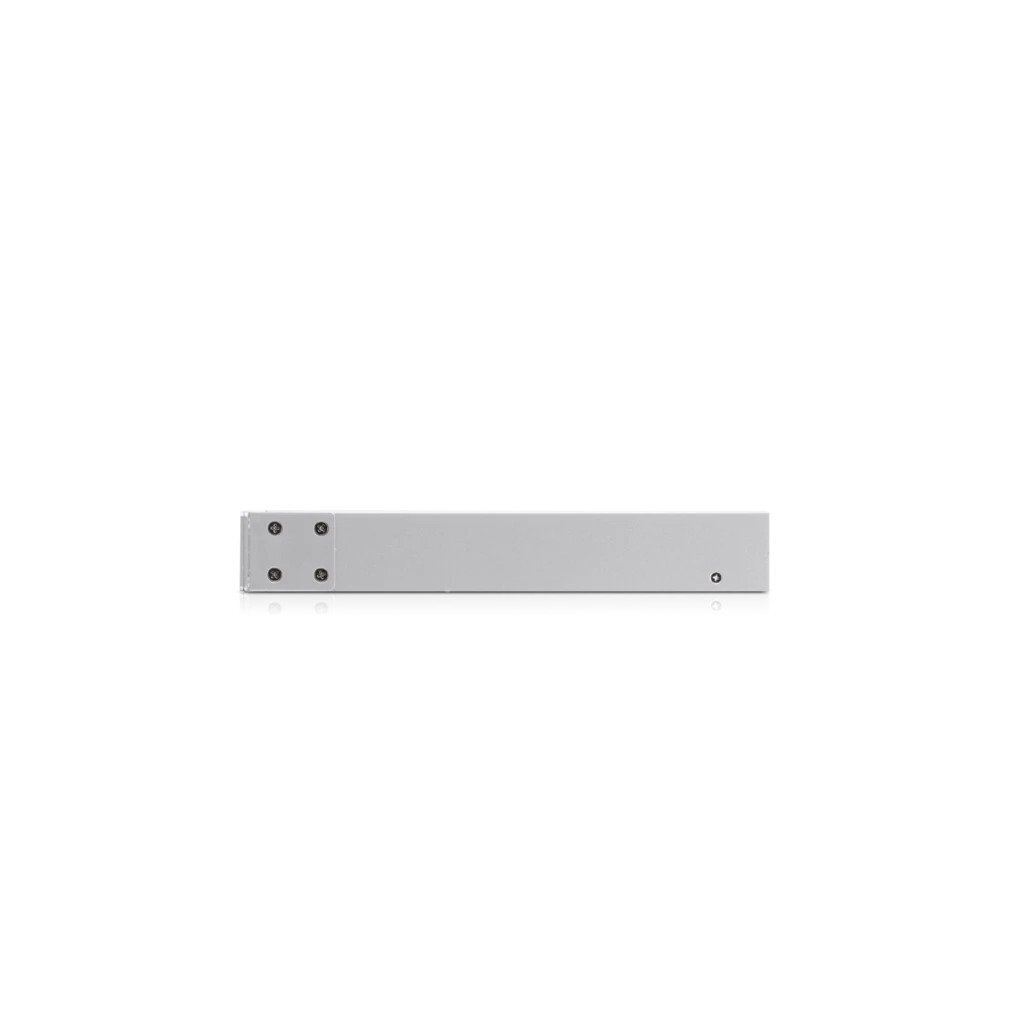

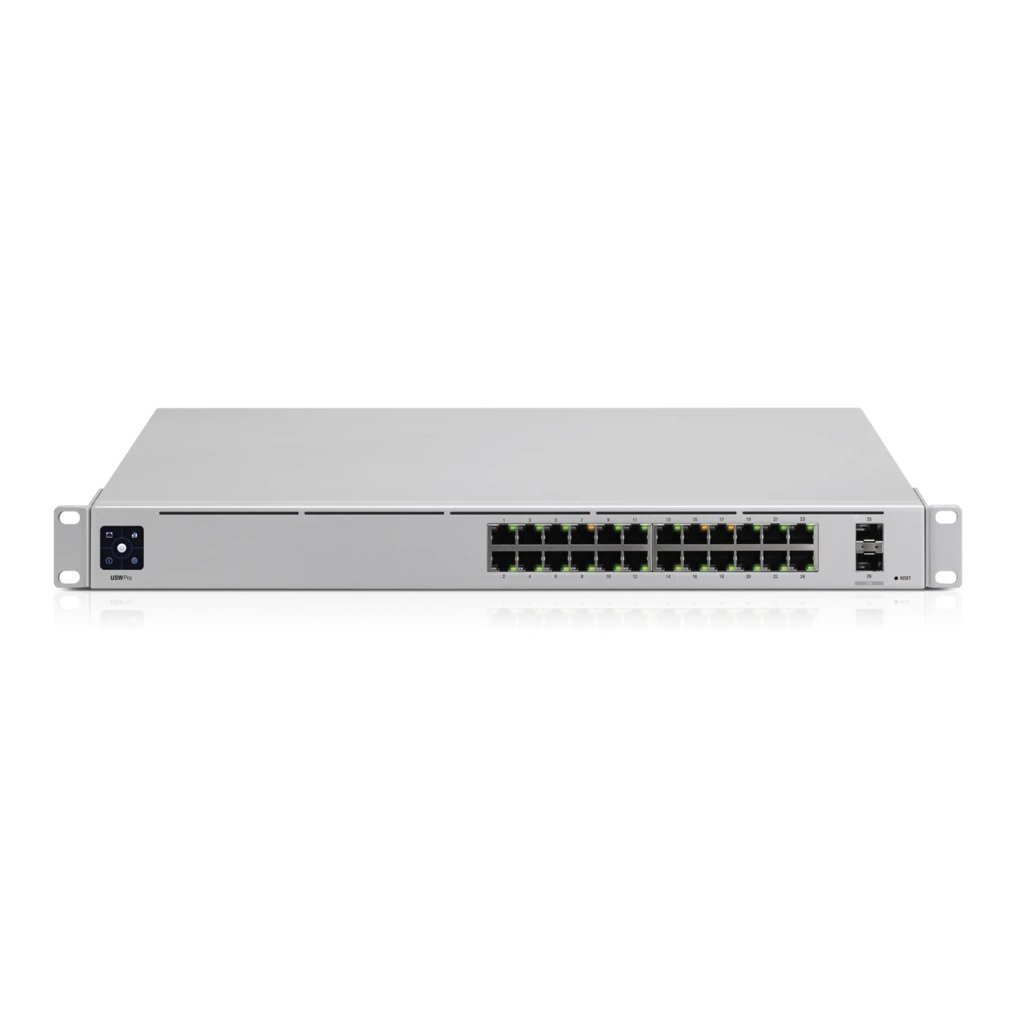

Ubiquiti UniFi 24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching

SKU: 124599

Ubiquiti UniFi 24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching

A 24-port, Layer 3 switch with a silent, fanless cooling system.

Features:
- (24) GbE RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input for power redundancy
- 1.3" LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 5.12.11 and later

(124599)

Mechanical
Dimensions 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 3.5 kg (7.7 lb)
With mounting brackets: 3.6 kg (7.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input 11.5V DC, 2.61A
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 30W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP+ Speed/link/activity
RPS Status
Application Requirements
UniFi Network Version 5.12.11 and later
SKU 124599
Barcode # 810010070821
Brand UBIQUITI
Shipping Weight 4.8200kg
Shipping Width 0.400m
Shipping Height 0.130m
Shipping Length 0.520m

Ubiquiti UniFi 24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching

A 24-port, Layer 3 switch with a silent, fanless cooling system.

Features:
- (24) GbE RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input for power redundancy
- 1.3" LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 5.12.11 and later

Mechanical
Dimensions 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 3.5 kg (7.7 lb)
With mounting brackets: 3.6 kg (7.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input 11.5V DC, 2.61A
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 30W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP+ Speed/link/activity
RPS Status
Application Requirements
UniFi Network Version 5.12.11 and later
SKU 124599
Barcode # 810010070821
Brand UBIQUITI
