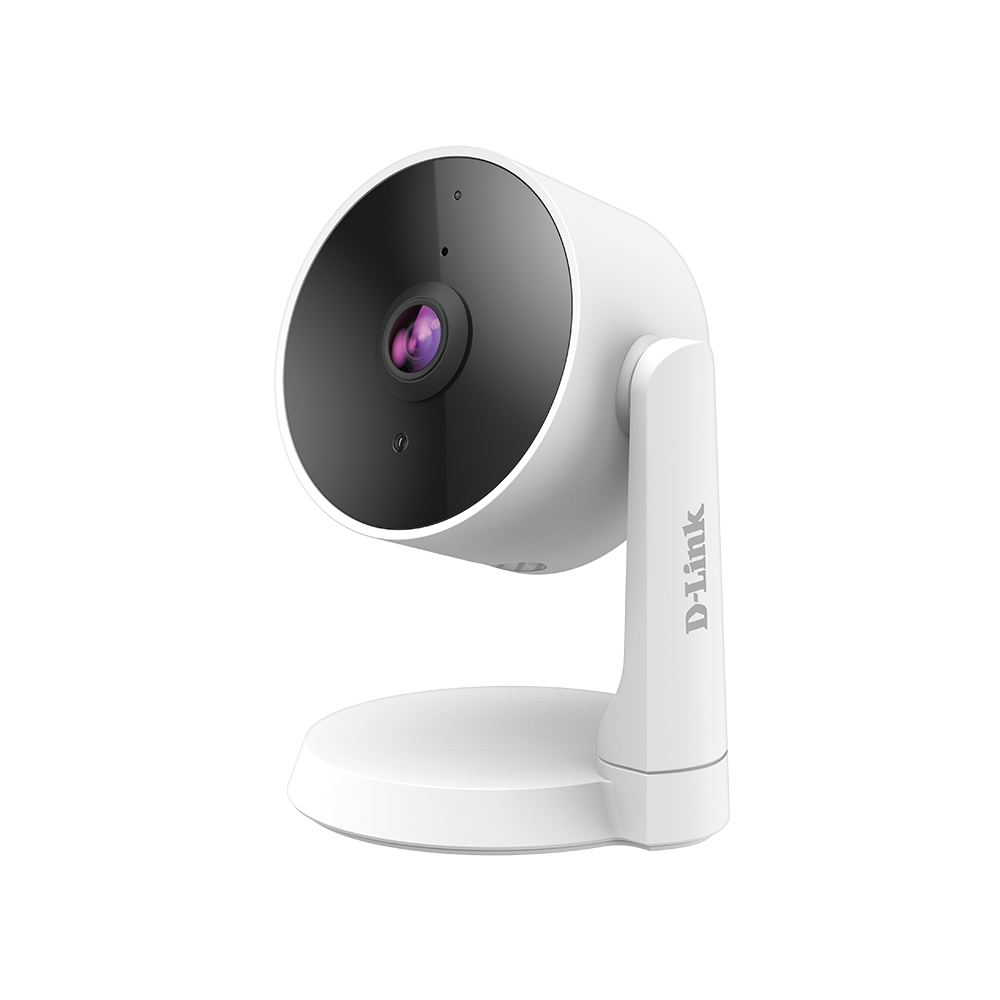

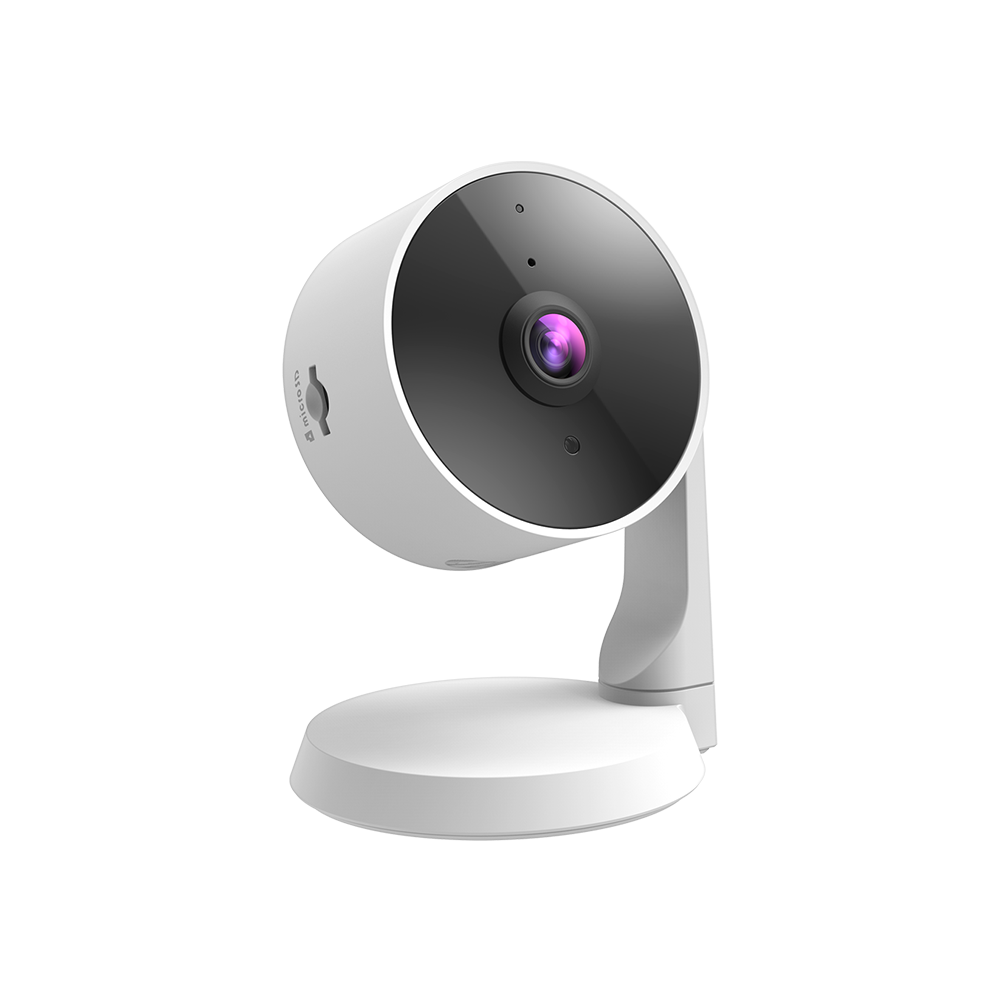

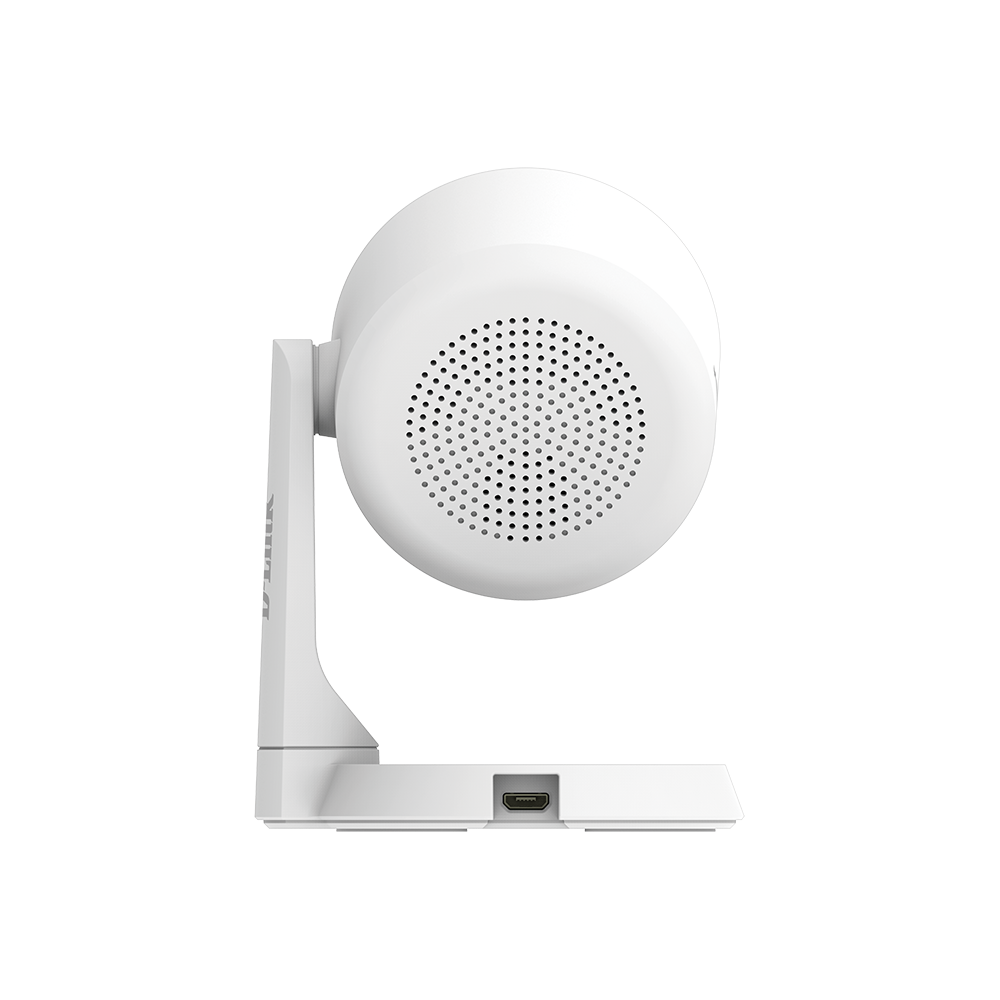

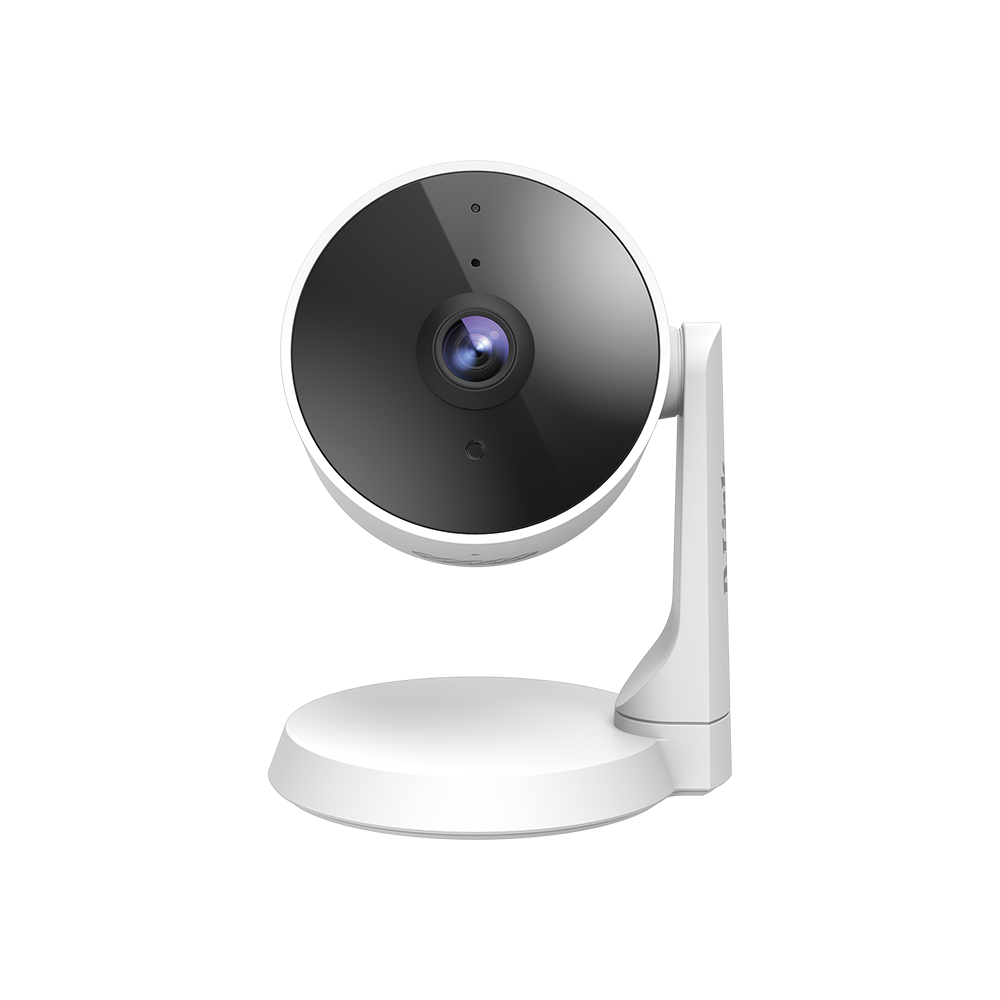

D-LINK DCS-8330LH Wi-Fi Camera

DCS-8330LH

SKU: 125306

AI-based IVA Motion Detection: Intelligent Video Analytics (IVA) for smarter motion detection
Smart Home Compatible: Works with mydlink Smart Home devices, Amazon Alexa and the Google Assistant
Built-in Smart Home Hub: Connects to mydlink Smart DIY devices
151° View: See more of your room
Premium Full HD Clarity: True Full HD 1080p resolution @ 30 fps with night vision
ONVIF Profile S: Continuous video recording with your NAS to capture every moment
Cloud Recording: Record to the Cloud and view from anywhere
microSD Card Slot: Record videos to a microSD card up to a capacity of 256 GB

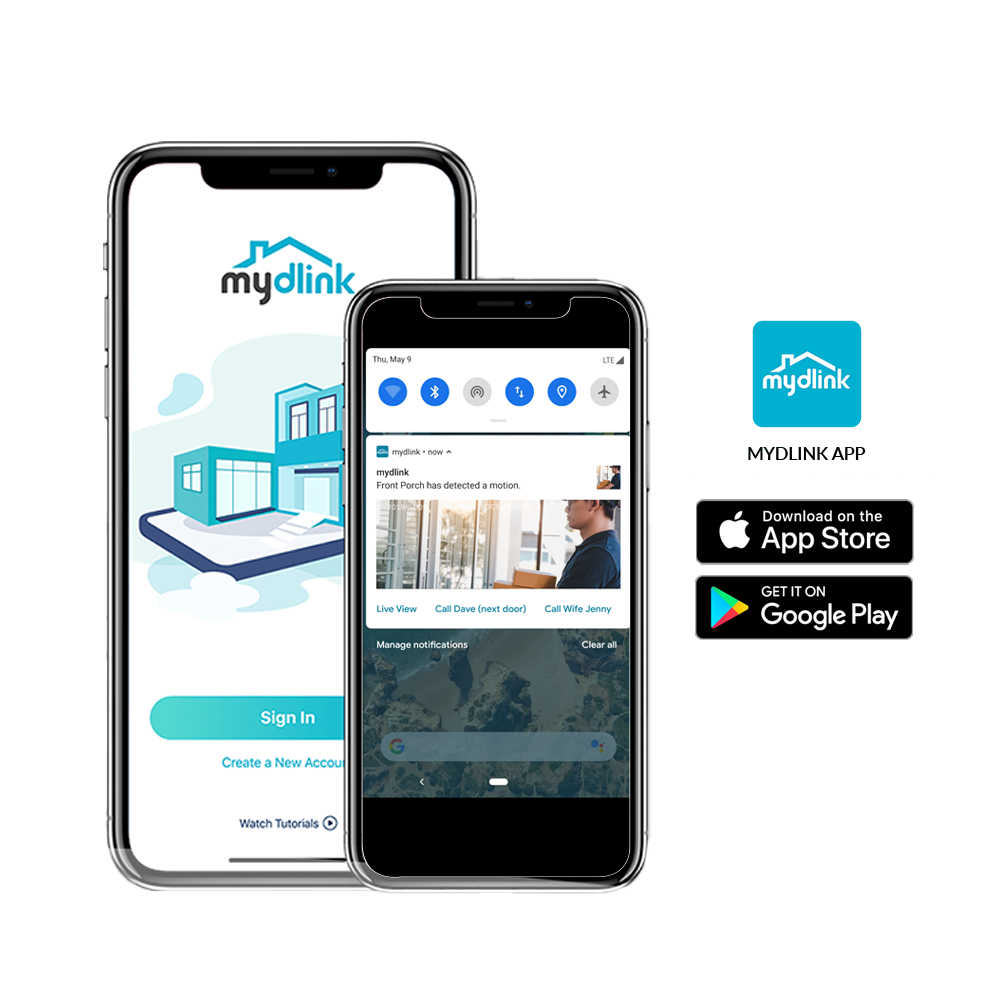

Free mydlink app: Manage your camera and interactions with other mydlink devices

(125306)

HIGHLIGHTS

Technical Specifications

Camera

Camera Hardware Profile

1/2.7” Megapixel progressive CMOS sensor
Minimum illumination:
- B/W mode (IR LEDs on): 0 lux
Lens focal length: 3.0 mm
Aperture: F2.0
5 metre IR illumination distance
Angle of view:
- Horizontal: 126°
- Vertical: 63°
- Diagonal: 151°
Built-in Infrared-Cut Removable (ICR) Filter
Built-in microphone and speaker

Image Features

Configurable image size
Priority Zone Detection
Person Detection
Multi-zone Motion Detection (up to four zones)
Boundary-Corssing Detection

Video Compression

H.264 streaming
JPEG for still images

Video Resolution

Main Profile 1080P (1920 x 1080) at up to 30 fps
Second Profile 720P (1280 x 720) at up to 15 fps

Audio Support

MPEG-2 AAC LC

Connectivity

802.11n/g/b wireless with WPA/WPA2/WPA3 encryption
Wi-Fi operates on the 2.4 GHz band
Zigbee 3.0
microSD card slot
Bluetooth Low Energy 4.0

Network Protocols

IPv4, IPv6
DHCP client
RTP/RTSP
RTSP
RTCP
HTTPS
Bonjour (mDNS and DNS-SD)
ONVIF Profile S

Features

Event Management

Motion object detection
Person detection
Sound detection
Event recording to an SD card²
Event notification and snapshot/video clip download to mobile device
mydlink Cloud Recording²
Push Notification with quick action buttons of Designated Contact Numbers and Live View

Mobile Support

mydlink app for iOS and Android devices¹,³

Physical

Weight

140 grams ± 5%

Power Adapter

Input: 100 to 240 V AC, 50/60 Hz
Output: 5 V DC 2.0 A (Micro-USB)

Power Consumption

Maximum: 7 watts ± 5%

Temperature

Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

Operating: 20% to 80% non-condensing

Certifications

CE
CE LVD
FCC
ICES
RCM

SKU	125306
Shipping Weight	0.5000kg
Shipping Width	0.100m
Shipping Height	0.100m
Shipping Length	0.100m
