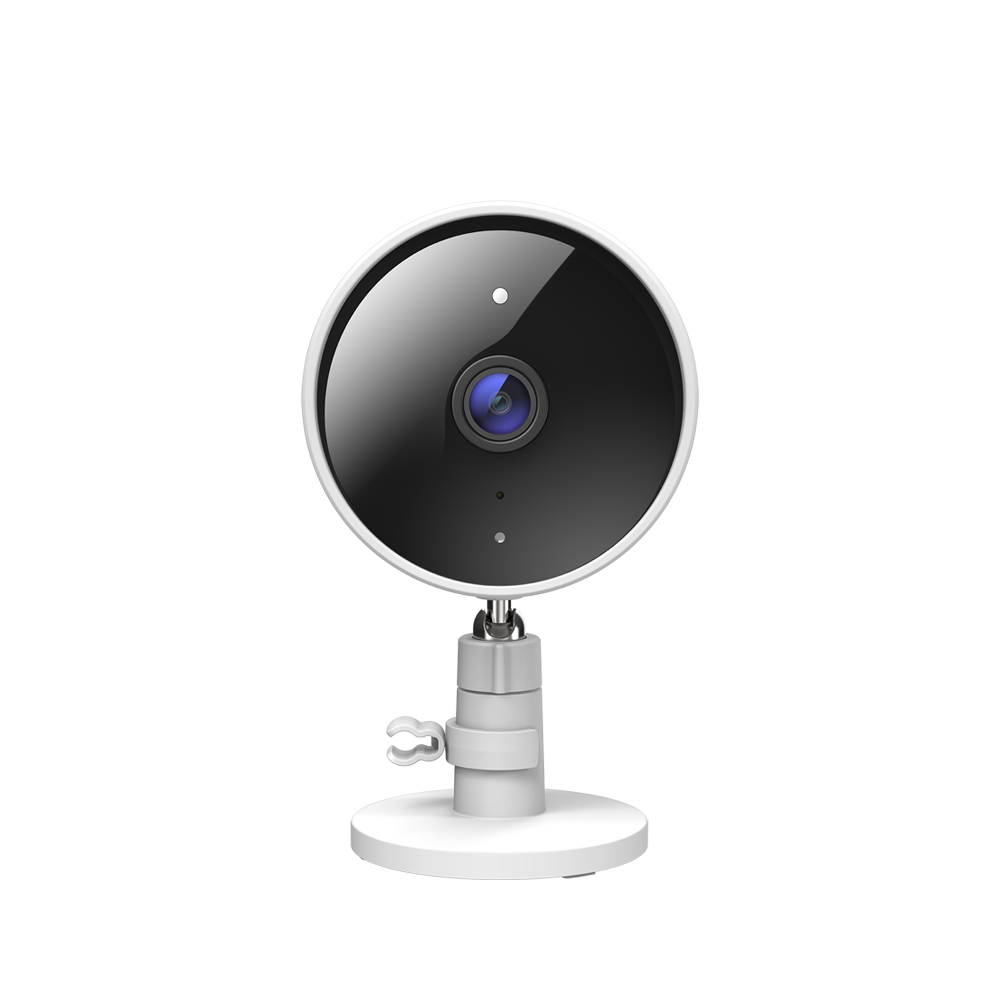

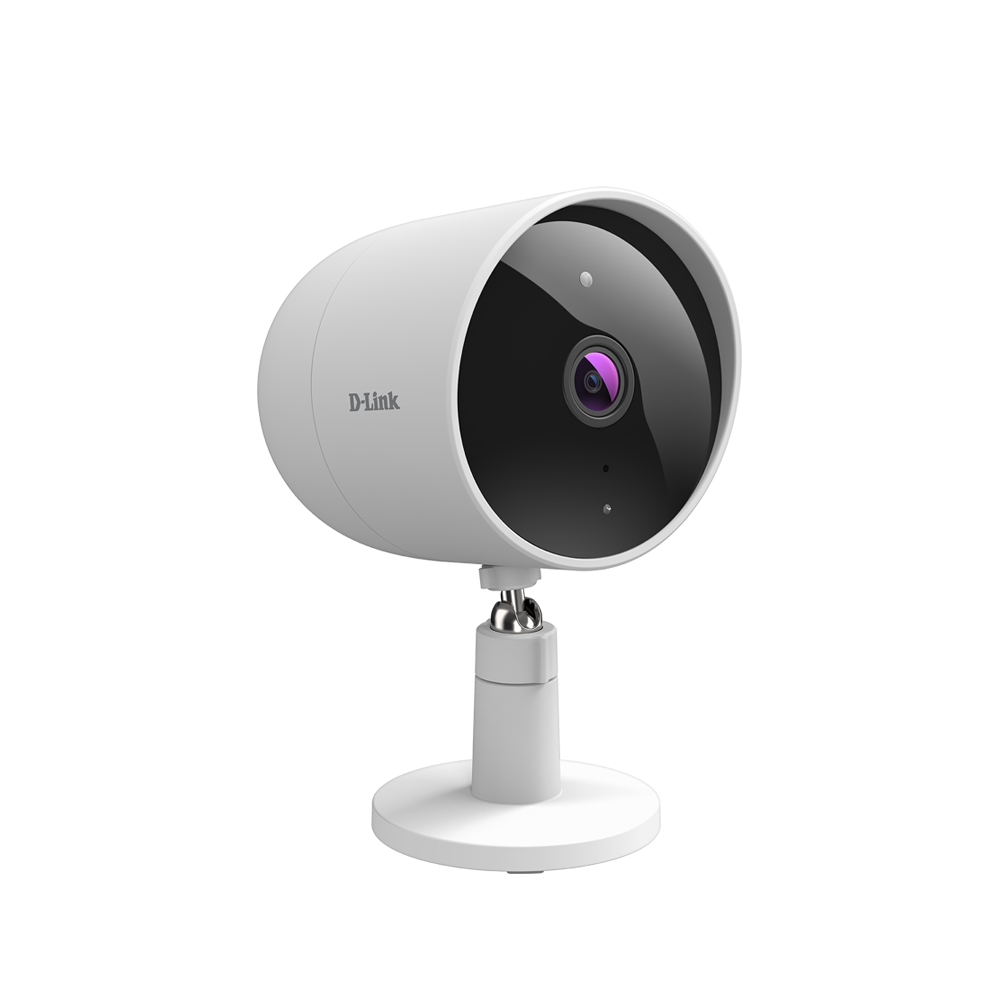

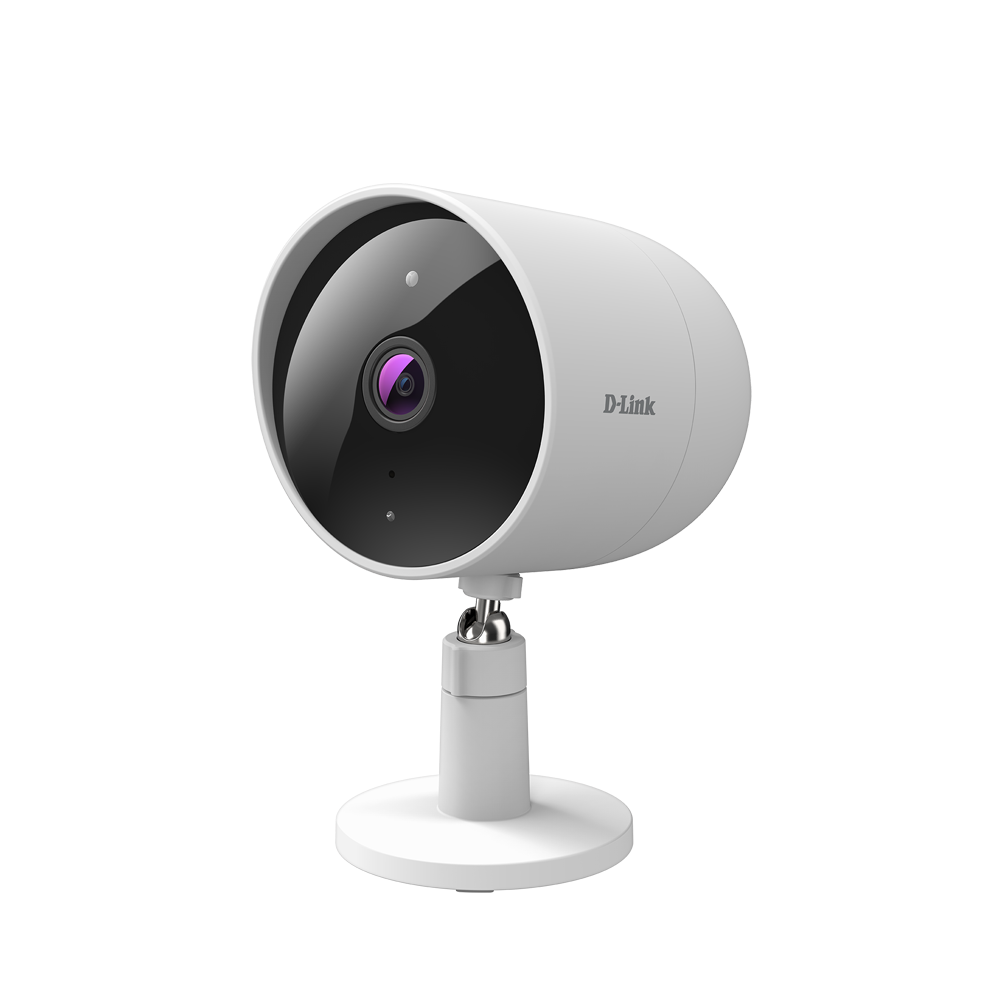

D-LINK DCS-8302LH Wi-Fi Camera

DCS-8302LH

SKU: 125305

  • True Full HD 1080p resolution at 30 fps with 135-degree FOV so you never miss a thing
  • IR night vision up to 5m lets you see what's happening even in total darkness
  • AI-based person detection intelligently identifies human motion
  • Enhanced sound and motion detection add new lines of defence to your home surveillance
  • Weather resistant for outdoor installation
  • Two-way audio with built-in microphone and speaker lets you hear and be heard
  • Built-in 95 dB speaker with siren function wards off intruders and alerts you to a detection
  • Wi-Fi and Ethernet connectivity options
  • Built-in Bluetooth Low Energy technology for faster setup
  • Supports cloud / microSD (max. 256 GB) / phone and ONVIF Profile S recording
  • Supports the latest WPA3™ encryption
  • Wall/Ceiling mountable (hardware included)
  • Works with the Google Assistant and Alexa

(125305)

HIGHLIGHTS

Technical Specifications

Camera

Camera Hardware Profile

  • 1/2.9” Megapixel progressive CMOS sensor
  • Minimum illumination:
    • B/W mode (IR LEDs on): 0 lux
  • Fixed length: 3 mm
  • Aperture: F2.4
  • 5 metre IR illumination distance
  • Angle of view:
    • Horizontal: 109°
    • Vertical: 57°
    • Diagonal: 135°
  • Built-in microphone and speaker

Image Features

  • Configurable image size
  • Motion Detection (PIR sensor)
  • Person Detection

Video Compression

  • H.264 streaming

Video Resolution

  • Main Profile: 1080p (1920 x 1080) at up to 30 fps

Audio Support

  • MPEG-2 AAC LC

Connectivity

  • 802.11n.g wireless with the latest industry-standard 128-bit wireless encryption
  • Fast Ethernet Port
  • Bluetooth Low Energy 4.2

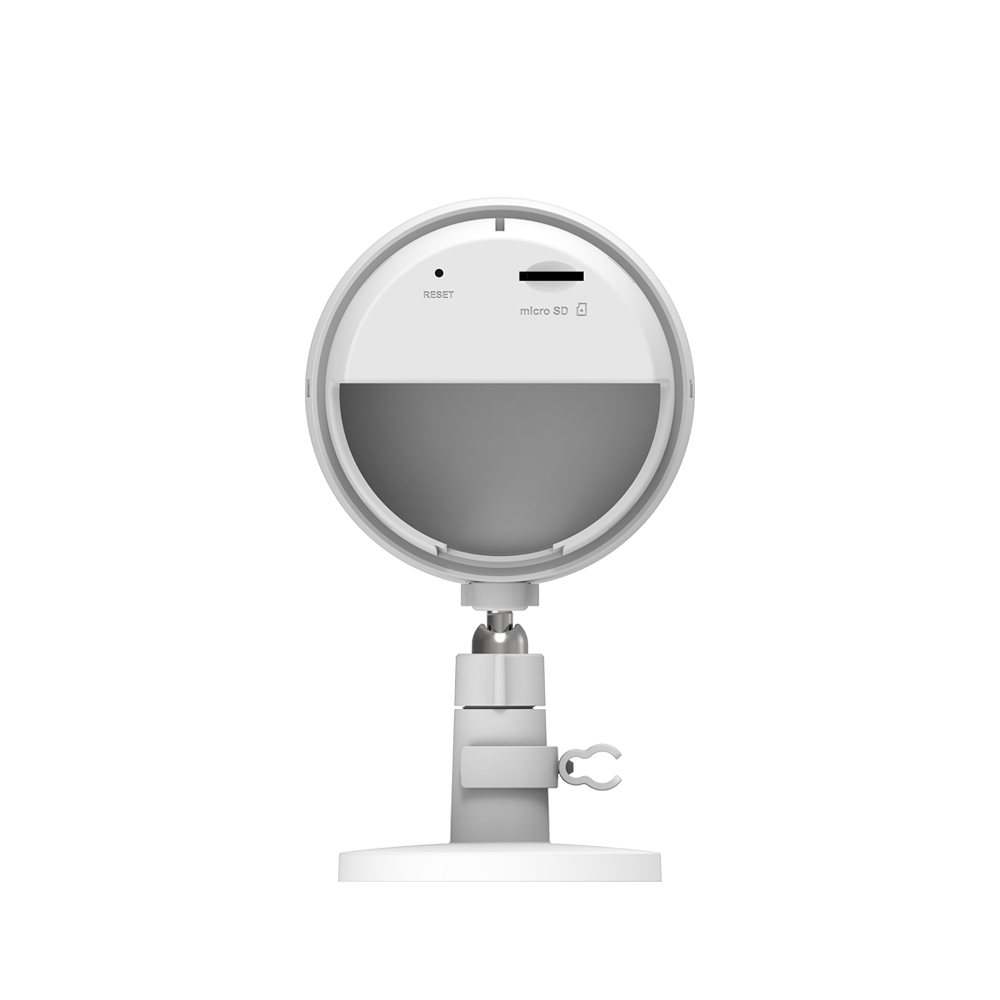

  • MicroSD card slot supports up to 256 GB capacity

Network Protocols

  • IPv4/ IPv6
  • DHCP/ DHCPv6 Client
  • Bonjour (mDNS and DNS-SD)
  • ONVIF Profile S
  • HTTPS
  • RTSP
  • SRTP
  • RTP/ SRTP

Features

Event Management

  • Motion detection
  • Sound detection
  • Person detection
  • Event recording to an SD card2
  • mydlink Cloud Recording2
  • Push Notification with a snapshot when the device detect motion/ people/ sound
  • Push Notification with quick action buttons:
    • Call up to 2 designated contact numbers
    • Live view button
  • Day & Night mode

Device Management

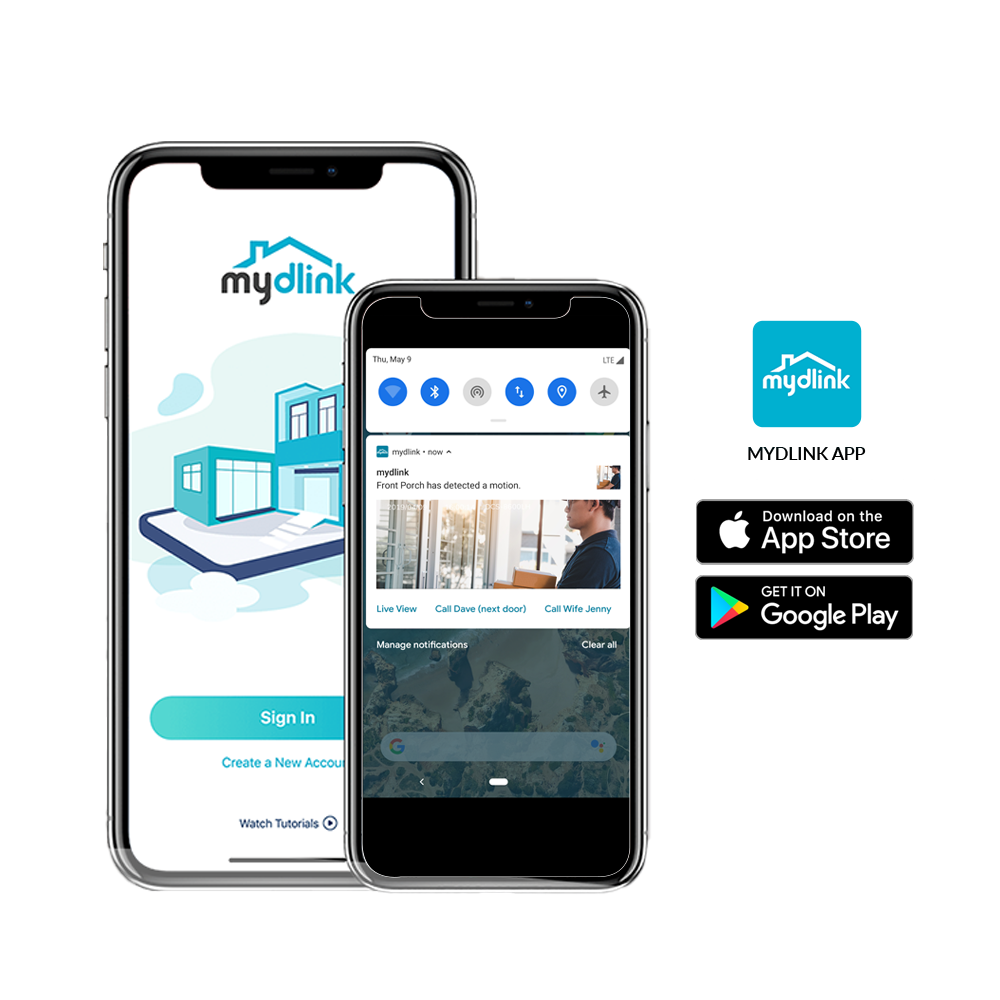

  • mydlink app for iOS and Android devices1,3
  • mydlink Portal (for live view only)

Physical

Weight

  • 250 grams  ± 5%

Power Adapter

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V DC 1 A

Power Consumption

  • Maximum:  7 watts ± 5%

Temperature

  • Operating: -20 to 45 °C (-13 to 104 °F)
  • Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

  • Operating: 20% to 90% non-condensing

Certifications

  • CE
  • LVD
  • FCC Class B
  • IC
  • NCC/ BSMI
  • RCM
SKU 125305
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
