Ubiquiti USW Flex Mini - Switch Flex Mini- Managed, UniFi, Layer 2 Gigabit Switch, 5x GbE RJ45 Ports, Powerable Via PoE (802.3af) or USB Type-C 5V 1A

SKU: 124613

DESCRIPTION

Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input.

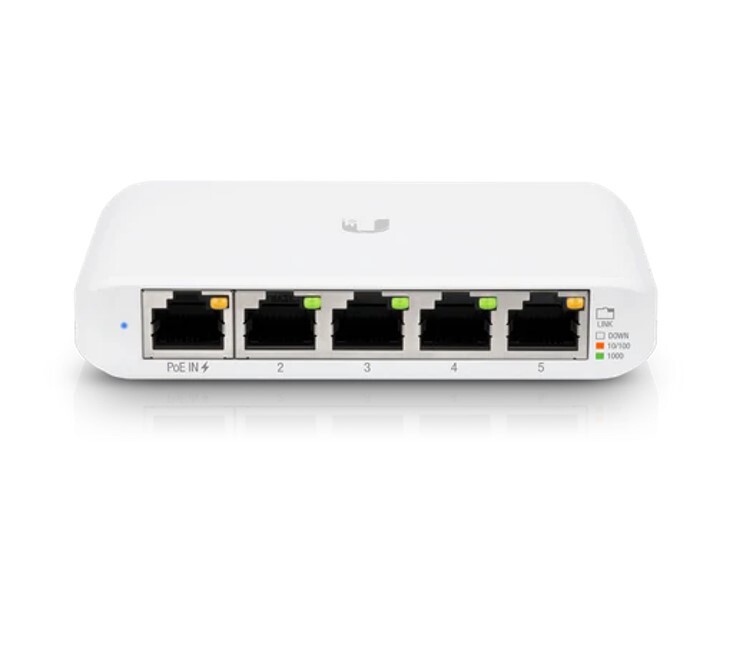

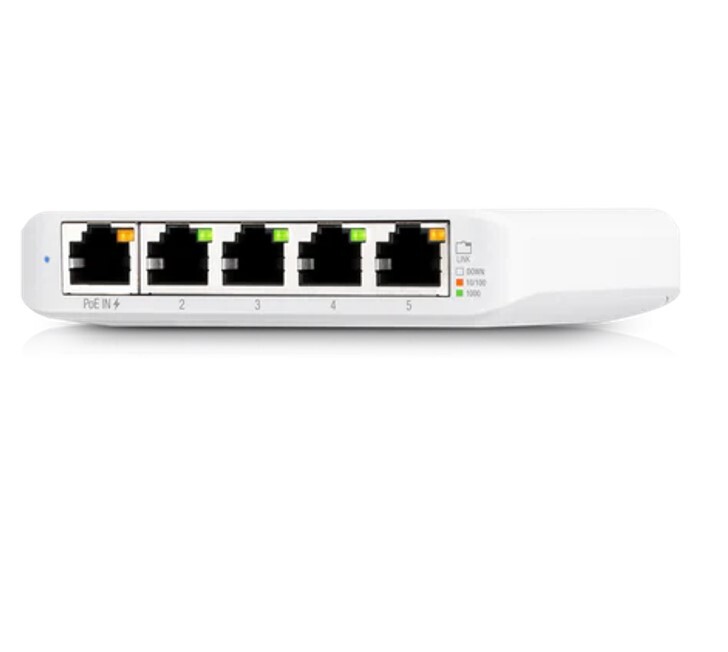

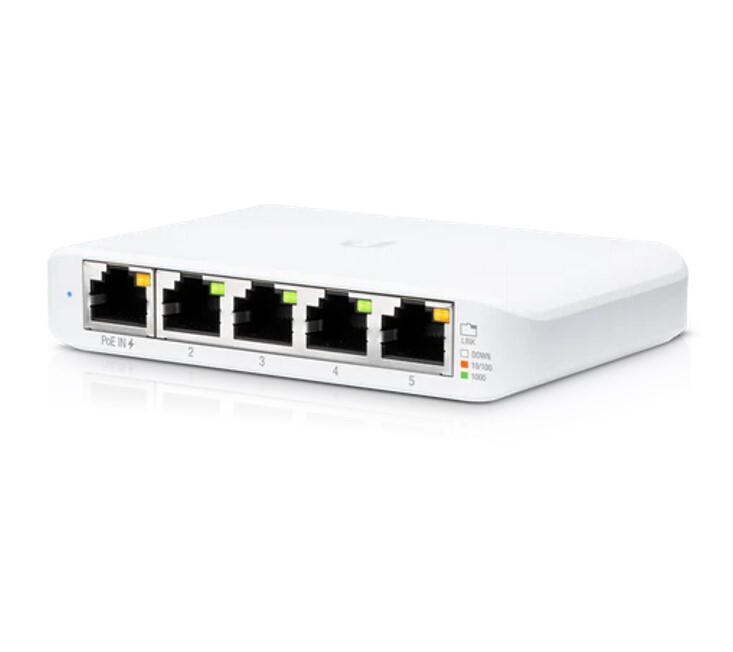

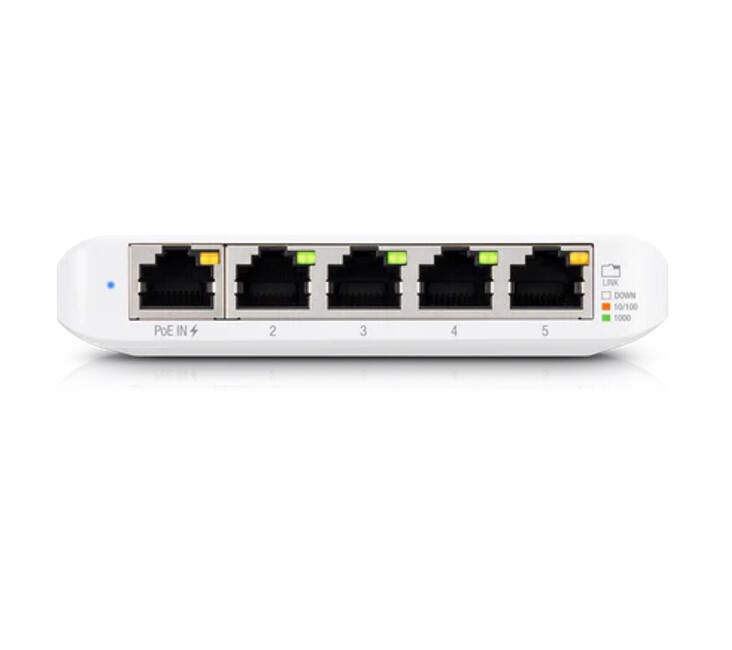

The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:
(1) GbE, 802.3af PoE RJ45 input
(4) GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 1A USB-C adapter (Only Comes In Single Pack)

(124613)

Mechanical
Dimensions 107.2 x 70.2 x 21.2 mm (4.2 x 2.8 x 0.8")
Weight 150 g (5.3 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (5) GbE RJ45 ports
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Forwarding rate 7.44 Mpps
Power method USB Type C, 5V
PoE/PoE+, 44—57V DC, 0.05—0.04A
Power supply 5V, 1A power adapter*
*Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range USB Type C: 4.7—5.3V DC
PoE/PoE+: 44—57V DC
Max. power consumption 2.5W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 5.12.5 and later
SKU 124613
Barcode # 817882029810
Brand UBIQUITI
Shipping Weight 0.0400kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.190m
