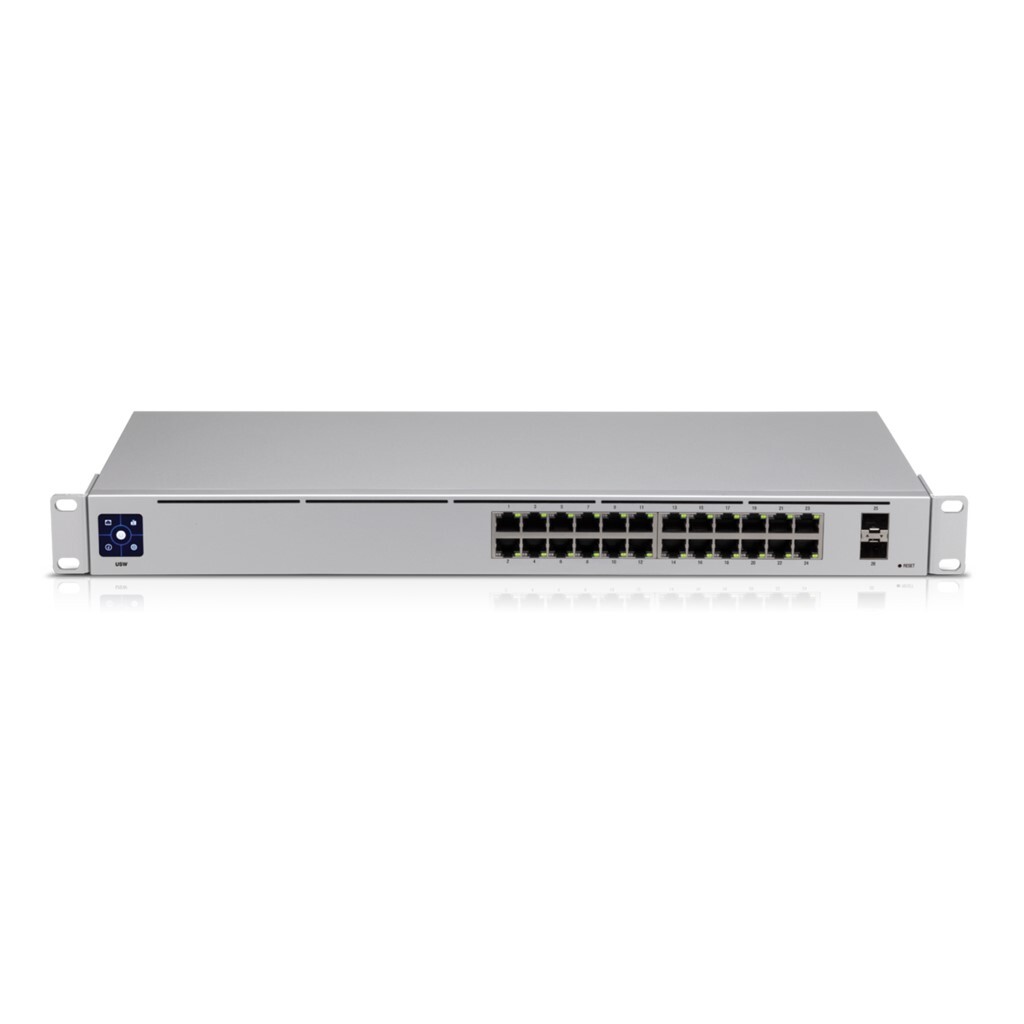

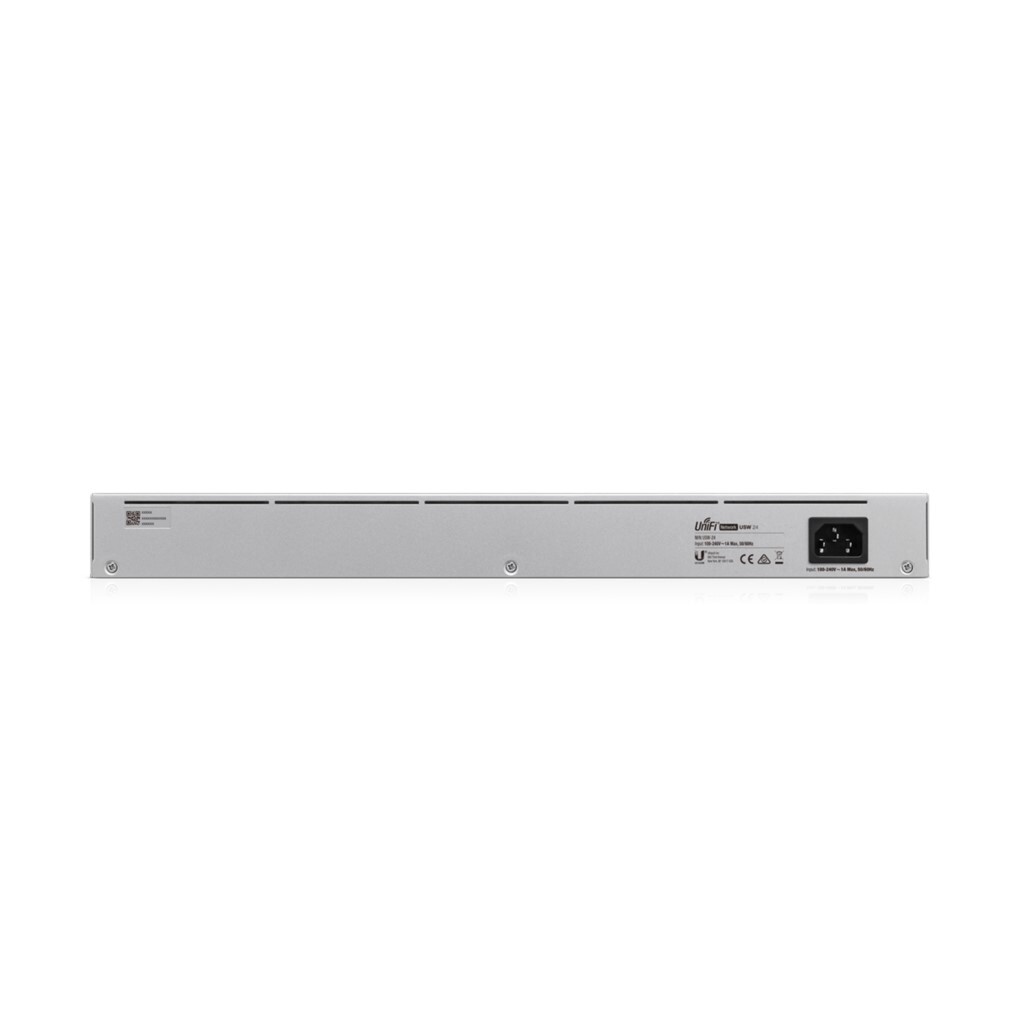

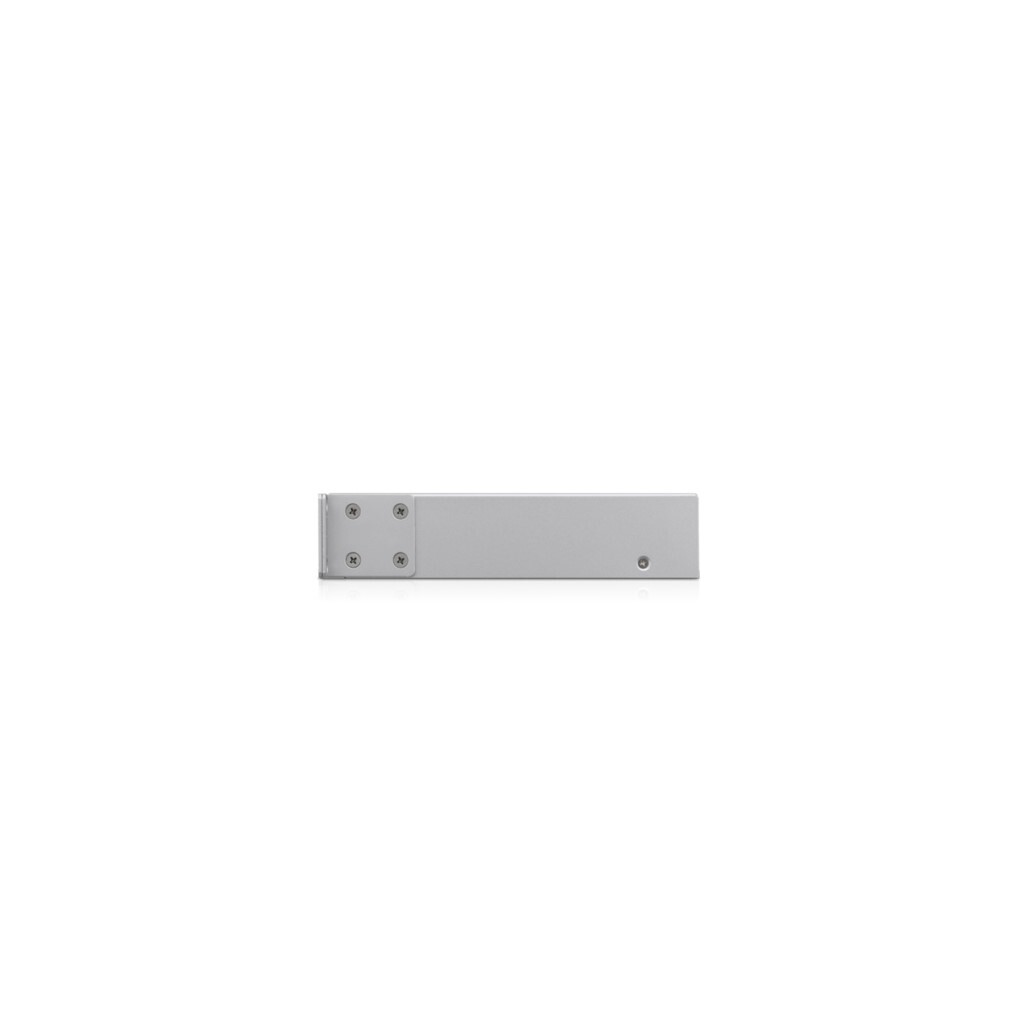

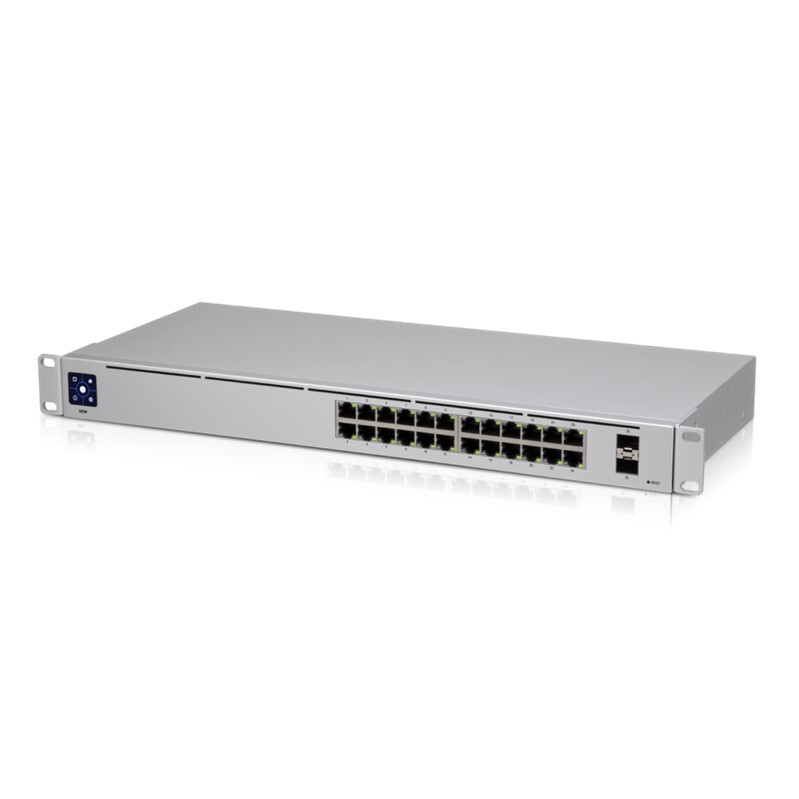

Ubiquiti UniFi 24 port Managed Gigabit Switch - 16x PoE+ Ports, 8x Gigabit Ethernet Ports, with 2xSFP - 120W - Touch Display - Fanless - GEN2

SKU: 124619

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3" color touchscreen for status information
Managed by UniFi Network Controller


(124619)

Mechanical
Dimensions 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
Weight Without mounting brackets: 2.7 kg (6 lb)
With mounting brackets: 2.8 kg (6.2 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1G SFP Ethernet ports
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 25W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU 124619
Barcode # 810010071415
Brand UBIQUITI
Shipping Weight 3.6200kg
Shipping Width 0.310m
Shipping Height 0.120m
Shipping Length 0.520m

Be The First To Review This Product!

Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3" color touchscreen for status information
Managed by UniFi Network Controller


Mechanical
Dimensions 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
Weight Without mounting brackets: 2.7 kg (6 lb)
With mounting brackets: 2.8 kg (6.2 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1G SFP Ethernet ports
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 25W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
SKU 124619
Barcode # 810010071415
Brand UBIQUITI
