Ubiquiti UniFi Switch Flex XG - Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

SKU: 124612

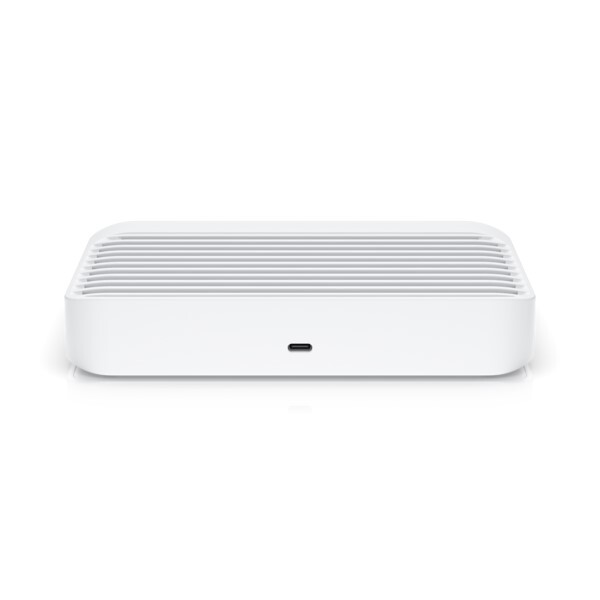

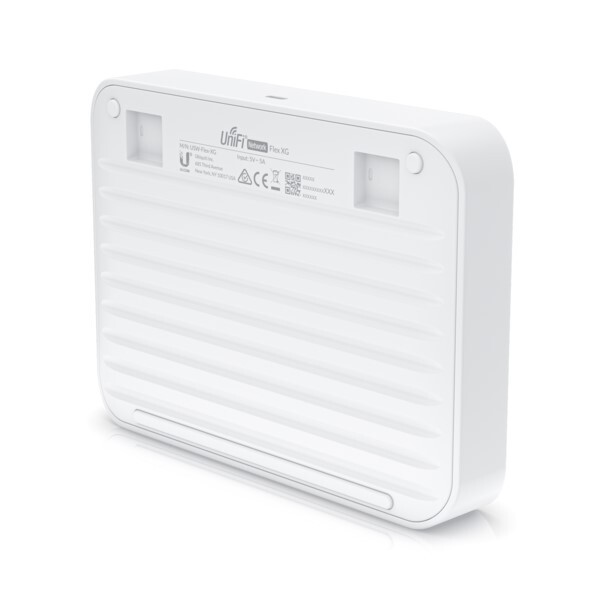

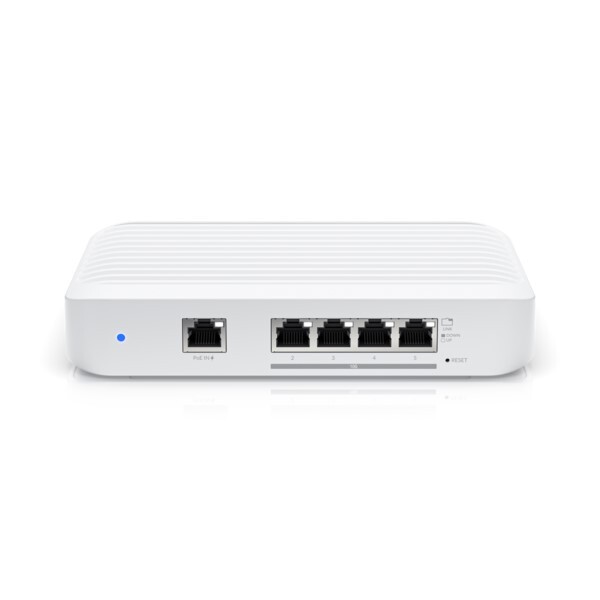

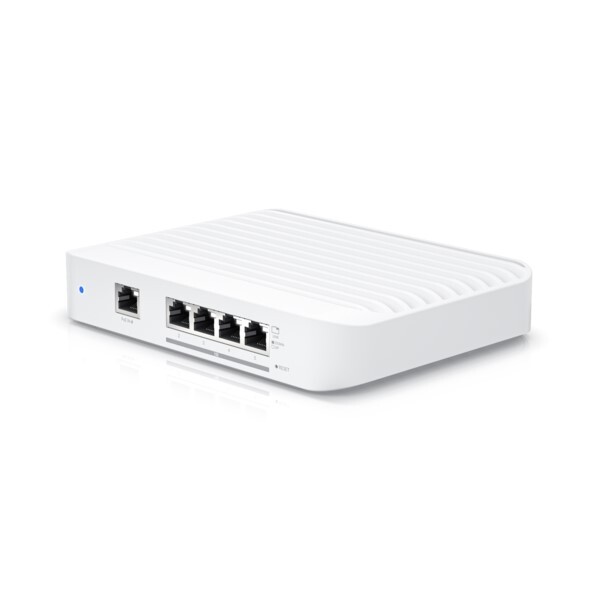

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:
(1) GbE, 802.3at PoE+ RJ45 input
(4) 10GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 5A USB-C adapter

*Fanless Switch, Do not stack other hardware on the USW Flex XG, will affect heat dissipation

(124612)

Mechanical
Dimensions 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
Weight 1.2 kg (2.6 lb)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (1) GbE, PoE+ RJ45 port
(4) 10 GbE RJ45 ports
Total non-blocking throughput 41 Gbps
Switching capacity 82 Gbps
Forwarding rate 61.012 Mpps
Power method (1) PoE+, 50—57V DC, 25W
(1) USB Type-C, 5V DC, 5A
Power supply PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included)
Supported voltage range 90—264V AC (Adapter)
Max. power consumption 25W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 6.1.67 and later
SKU 124612
Barcode # 810010075895
Brand UBIQUITI
Shipping Weight 1.6000kg
Shipping Width 0.180m
Shipping Height 0.070m
Shipping Length 0.290m

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:
(1) GbE, 802.3at PoE+ RJ45 input
(4) 10GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 5A USB-C adapter

*Fanless Switch, Do not stack other hardware on the USW Flex XG, will affect heat dissipation

Mechanical
Dimensions 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
Weight 1.2 kg (2.6 lb)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (1) GbE, PoE+ RJ45 port
(4) 10 GbE RJ45 ports
Total non-blocking throughput 41 Gbps
Switching capacity 82 Gbps
Forwarding rate 61.012 Mpps
Power method (1) PoE+, 50—57V DC, 25W
(1) USB Type-C, 5V DC, 5A
Power supply PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included)
Supported voltage range 90—264V AC (Adapter)
Max. power consumption 25W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 6.1.67 and later
SKU 124612
Barcode # 810010075895
Brand UBIQUITI
