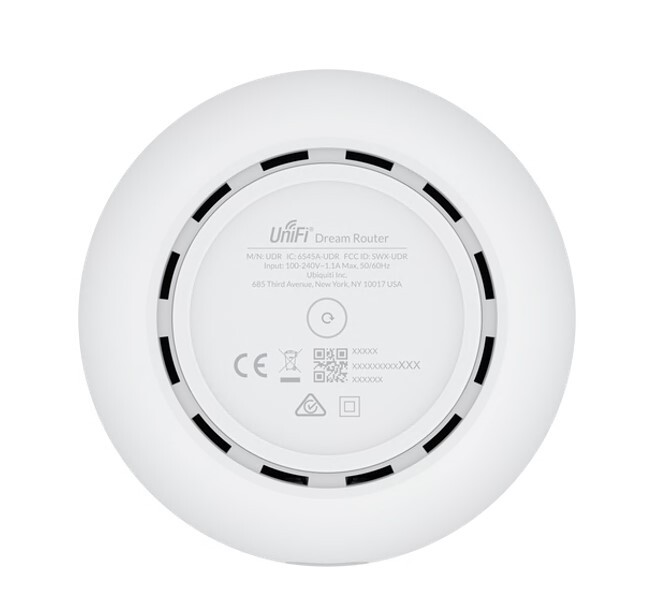

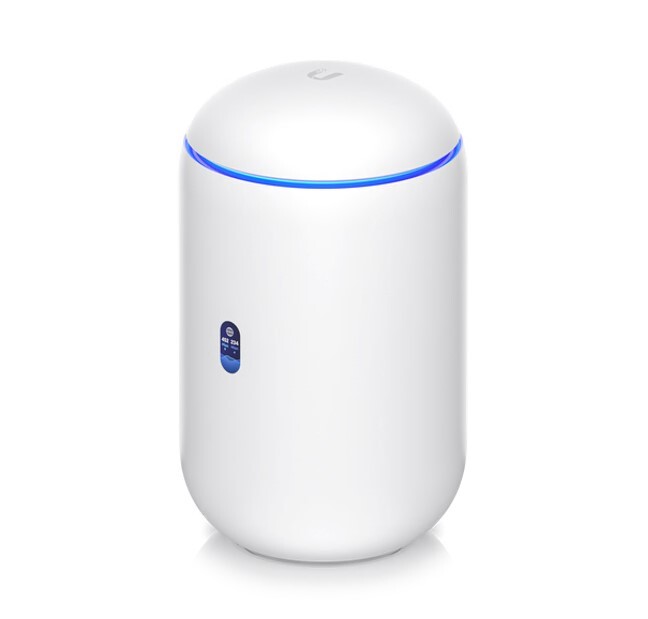

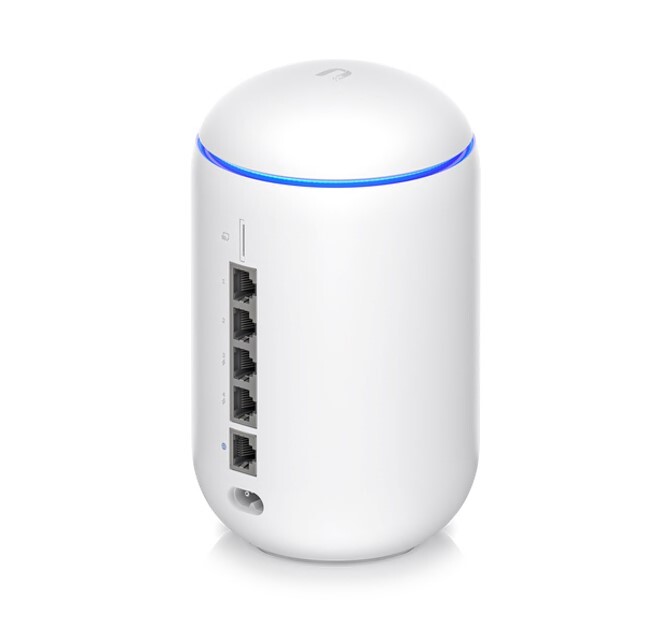

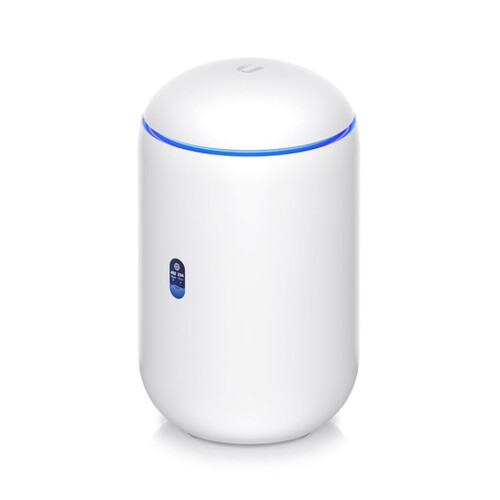

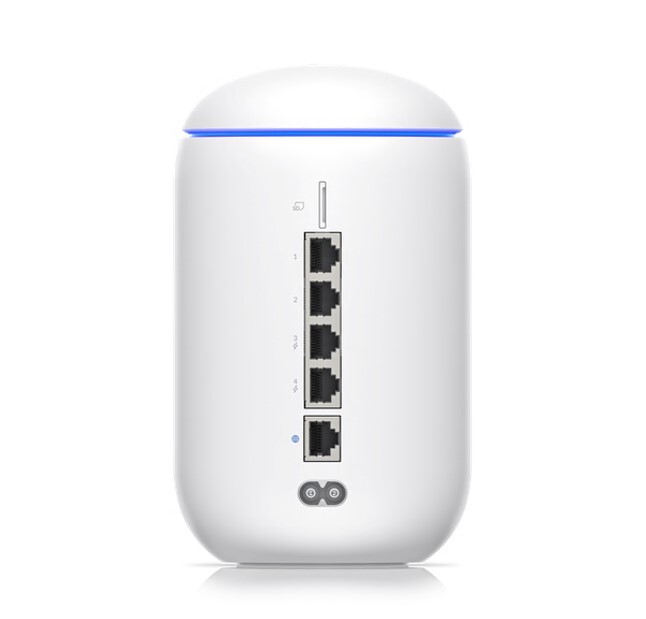

Ubiquiti UniFi Dream Router - WiFi 6 router, USG, 2x PoE Output - UniFi OS Console (UniFi Network, Protect, Talk, Access) Up to 700Mbps WAN Speeds

SKU: 124579

The all-in-one internet gateway, WiFi access point, and UniFi Console for small venues.

Built-in WiFi6 (4x4 MIMO)

Includes support for two UniFi applications for central device management*

4-port switch with (2) PoE ports

(1) GbE RJ45 WAN port**

128 GB SSD + MicroSD card slot

*Consists of UniFi Network plus a choice of Protect, Talk, or Access.

**Internet speeds up to 700 Mbps.

(124579)

Mechanical
Dimensions	Ø110 x 184.1 mm (Ø4.33 x 7.3")
Weight	1.2 kg (2.5 lb)
Enclosure material	Polycarbonate
Hardware
Processor	Dual-core Arm® Cortex® A53 at 1.35 GHz
System memory	2 GB
Expansion slot	Micro SD memory card* (Optional) _{*Requires a memory card with at least 128 GB of storage.}
Management interface	Ethernet Bluetooth
Networking interface	(4) LAN: GbE RJ45 ports (1) WAN: GbE RJ45 port
PoE interface	(2) PoE
Power method	Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz
Power supply	AC/DC, internal, 50W
Supported voltage range	100—240V DC
Max. power consumption	19.37W (Excluding PoE output)
PoE budget	32W
Max. PoE wattage per port by PSE	15.4W
Voltage range PoE mode	44—57V DC
Max. TX power 2.4 GHz 5 GHz	26 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	4 x 4 4 x 4
Throughput rate 2.4 GHz 5 GHz	600 Mbps 2.4 Gbps
Antenna gain 2.4 GHz 5 GHz	3.4 dBi 4.3 dBi
Antenna	(1) Internal, dual-band, quad-polarity antenna
LCM display	(1) 0.96" screen
Button	Factory reset
LEDs	White/blue
Operating temperature	-10 to 45° C (14 to 113° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security	Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking	License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

SKU	124579
Barcode #	810010078261
Brand	UBIQUITI
Shipping Weight	1.6800kg
Shipping Width	0.130m
Shipping Height	0.130m
Shipping Length	0.230m
