$5,812.00
$11,228.00
FG-40F-3G4G
SKU: 124560
FG-40F-3G4G
SKU: 124560
$1,948.00
Sold Out

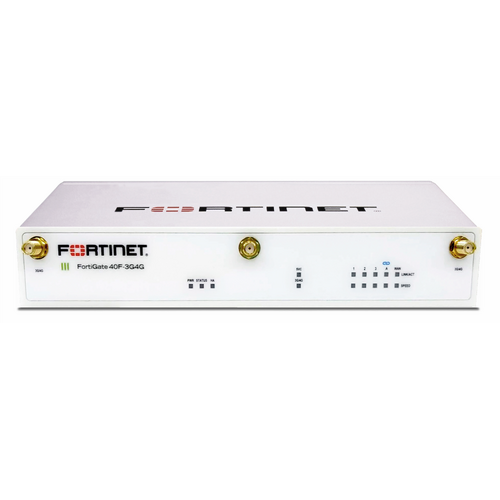

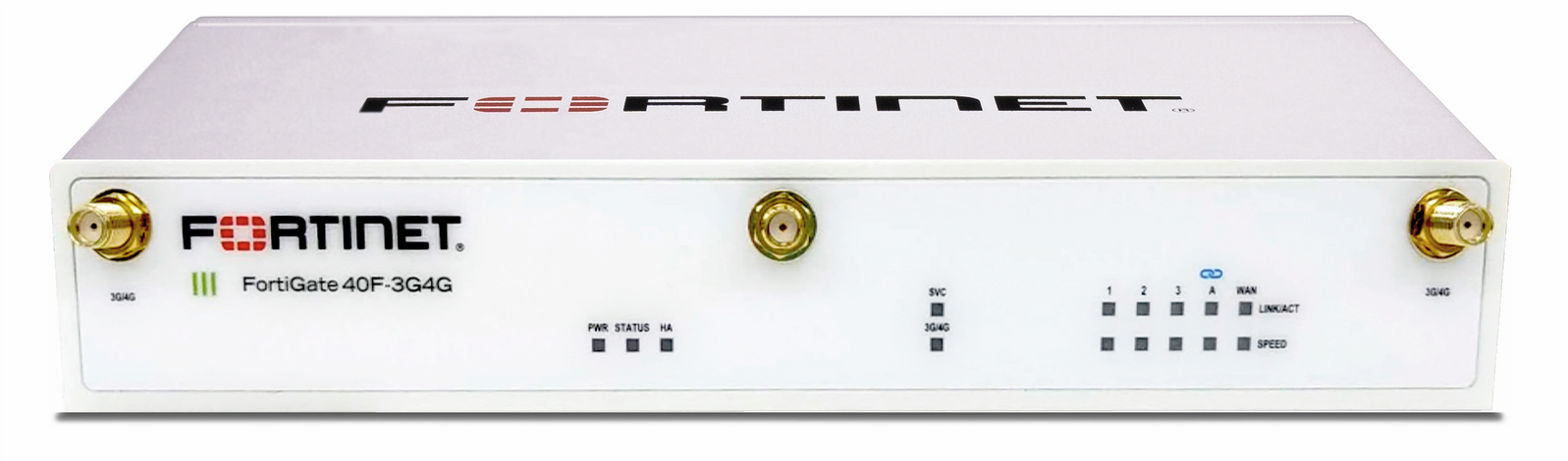

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
(124560)
| FORTIGATE 40F-3G4G | FORTIWIFI 40F-3G4G | |
|---|---|---|
| Interfaces and Modules | ||
| Hardware Accelerated GE RJ45 WAN Ports | 1 | |
| Hardware Accelerated GE RJ45 Internal Ports | 3 | |
| Hardware Accelerated GE RJ45 FortiLink Ports | 1 | |
| Cellular Modem | 3G4G / LTE | |
| Wireless Interface | - | Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2 |
| Antenna Ports (SMA) | 3 | 6 |
| USB Ports | 1 | |
| SIM Slots (Nano SIM) | 2 | |
| Console (RJ45) | 1 | |
| Internal Storage | - | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 1 Gbps | |
| NGFW Throughput | 800 Mbps | |
| Threat Protection Throughput | 600 Mbps | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5/5/5 Gbps | |
| Firewall Latency (64 byte UDP packets) | 2.97 μs | |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps | |
| Concurrent Sessions (TCP) | 700,000 | |
| New Sessions/Second (TCP) | 35,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 4.4 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 250 | |
| SSL-VPN Throughput | 490 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 310 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 320 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 | |
| Application Control Throughput (HTTP 64K) | 990 Mbps | |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 8 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 | |
| Maximum Number of FortiTokens | 500 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 | |
| Height x Width x Length (mm) | 40.5 x 216 x 160 | |
| Weight | 2.2 lbs (1 kg) | |
| Form Factor | Desktop | |
| Input Rating | 12Vdc, 3A | |
| Power Required | Powered by external DC power adapter 100-240V AC, 50/60 Hz | |
| Current (Maximum) | 100V AC / 0.3A, 240V AC / 0.2A | |
| Power Consumption (Average / Maximum) | 15.8 W / 18.6 W | 18.6 W / 19.8 W |
| Heat Dissipation | 63.5 BTU/h | 67.6 BTU/h |
| Operating Environment and Certifications | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
| Radio Specifications | ||
| Multiple (MU) MIMO | - | 3x3 |
| Maximum Wi-Fi Speeds | - | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | - | 20 dBm |
| Antenna Gain | - | 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz |
| SKU | 124560 |
| Barcode # | 842382174500 |
| Shipping Weight | 1.7100kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.120m |
| Shipping Length | 0.290m |
