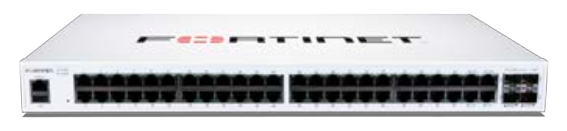

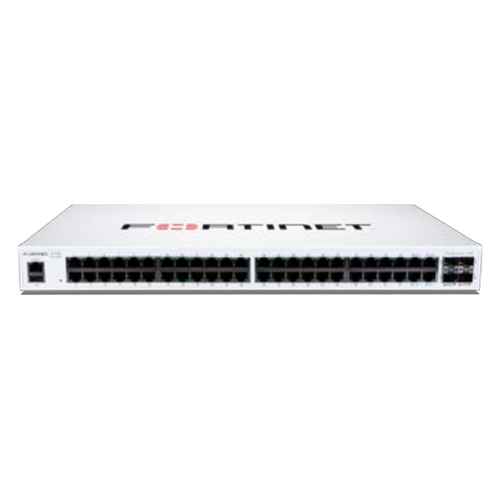

FORTISWITCH-148F-FPOE IS A PERFORMANCE/PRICE COMPETITIVE L2+ MANAGEMENT SWITCH WITH 48X GE PORT + 4X SFP+ PORT + 1X RJ45 CONSOLE. PORT 1- 48 ARE POE P

SKU: 124575

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

(124575)

Hardware Specifications
Total Network Interfaces 48x GE RJ45 and 4x 10GE SFP+ 48x GE RJ45 and 4x 10GE SFP+ 48x GE RJ45 and 4x 10GE SFP+
Dedicated Management 10/100 Port 0 0 0
RJ-45 Serial Console Port 1 1 1
Form Factor 1 RU Rack Mount 1 RU Rack Mount 1 RU Rack Mount
Power over Ethernet (PoE) Ports 0 24 (802.3af/at) 48 (802.3af/at)
PoE Power Budget 0 370 W 740 W
Mean Time Between Failures > 10 years > 10 years > 10 years
System Specifications
Switching Capacity (Duplex) 176 Gbps 176 Gbps 176 Gbps
Packets Per Second (Duplex) 260 Mpps 260 Mpps 260 Mpps
MAC Address Storage 32 K 32 K 32 K
Network Latency < 1µs < 1µs < 1µs
VLANs Supported 4 K 4 K 4 K
Link Aggregation Group Size 8 8 8
Total Link Aggregation Groups 128 128 128
Packet Buffers 2 MB 2 MB 2 MB
DRAM 512 MB DDR3 512 MB DDR3 512 MB DDR3
FLASH 64 MB 64 MB 64 MB
Dimensions
Height x Depth x Width (inches) 1.73 x 10.24 x 17.32 1.73 x 12.20 x 17.32 1.73 x 12.20 x 17.32
Height x Depth x Width (mm) 44 x 260 x 440 44 x 310 x 440 44 x 310 x 440
Weight 7.63 lbs (3.46 kg) 10.32 lbs (4.68 kg) 10.32 lbs (4.68 kg)
Environment
Power Required 100-240V AC, 50-60 Hz 100-240V AC, 50-60 Hz 100-240V AC, 50-60 Hz
Power Supply AC built in AC built in AC built in
Redundant Power No No No
Power Consumption (Average / Maximum) 55.8 W / 57 W 474.8 W / 476.3 W 893.5 W / 895.7 W
Heat Dissipation 194.37 BTU/h 195.73 BTU/h 198.46 BTU/h
Operating Temperature 32-113°F (0-45°C) 32-113°F (0-45°C) 32-113°F (0-45°C)
Storage Temperature -4-158°F (-20-70°C) -4-158°F (-20-70°C) -4-158°F (-20-70°C)
Humidity 10-90% non-condensing 10-90% non-condensing 10-90% non-condensing
Air-Flow Direction side-to-back side-to-back side-to-back
Certification and Compliance
  FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty Limited lifetime** warranty on all models
SKU 124575
Barcode # 842382190067
Brand Fortinet
Shipping Width 0.440m
Shipping Height 0.110m
Shipping Length 0.540m
