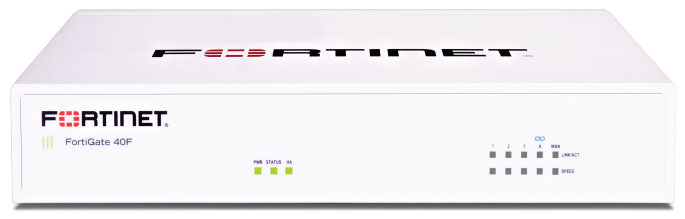

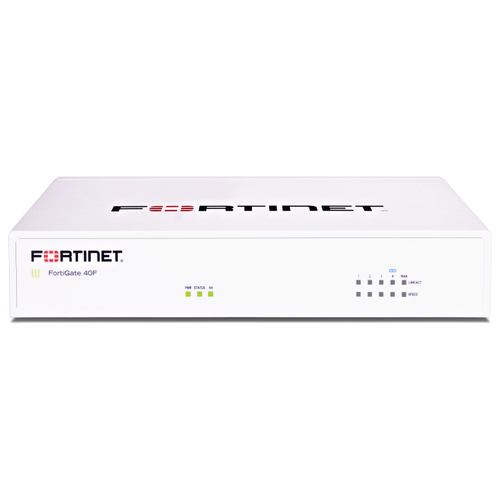

FortiWifi 40F - 5 x GE RJ45 ports (including , 1 x WAN Port, 4 x Internal Ports), Wireless (802.11a/b/g/n/ac) Region Code N

SKU: 124576

The FortiGate 40F series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution.

(124576)

Hardware Specifications
GE RJ45 WAN / DMZ Ports 1
GE RJ45 Internal Ports 3
GE RJ45 FortiLink Ports 1
GE RJ45 PoE/+ Ports -
Wireless Interface -
USB Ports 1
Console (RJ45) 1
Internal Storage -
System Performance - Enterprise Traffic Mix
IPS Throughput 1 Gbps
NGFW Throughput 800 Mbps
Threat Protection Throughput 600 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 5/5/5 Gbps
Firewall Latency (64 byte UDP packets) 4 μs
Firewall Throughput (Packets Per Second) 7.5 Mpps
Concurrent Sessions (TCP) 700,000
New Sessions/Second (TCP) 35,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 320
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
Application Control Throughput (HTTP 64K) 990 Mbps
CAPWAP Throughput (HTTP 64K) 3.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 10 / 5
Maximum Number of FortiTokens 500
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.44 x 5.5 x 8.52
Height x Width x Length (mm) 36.5 x 140 x 216
Weight TBA
Form Factor Desktop
Operating Environment and Certifications
Power Required 100-240V AC, 60-50 Hz (External DC Power Adapter, 12 VDC)
Maximum Current 100V AC / 0.2A, 240V AC / 0.1A
Total Available PoE Power Budget N/A
Power Consumption (Average / Maximum) 12.4 W / 15.4 W 13.6 W / 16.6 W
Heat Dissipation 52.55 BTU/hr 56.64 BTU/hr
Operating Temperature 32-104°F (0-40°C)
Storage Temperature -31-158°F (-35-70°C)
Humidity 10-90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
SKU 124576
Barcode # 842382193402
Brand Fortinet
Shipping Width 0.210m
Shipping Height 0.120m
Shipping Length 0.290m
