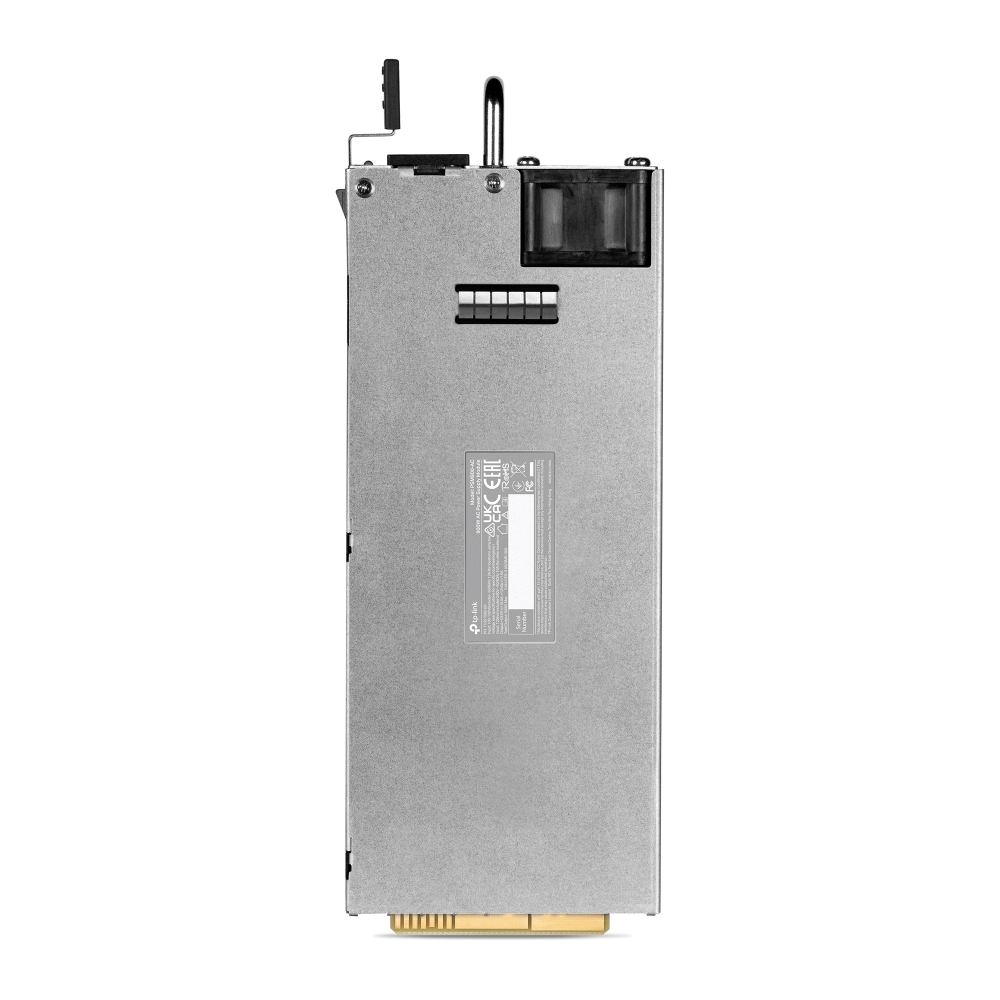

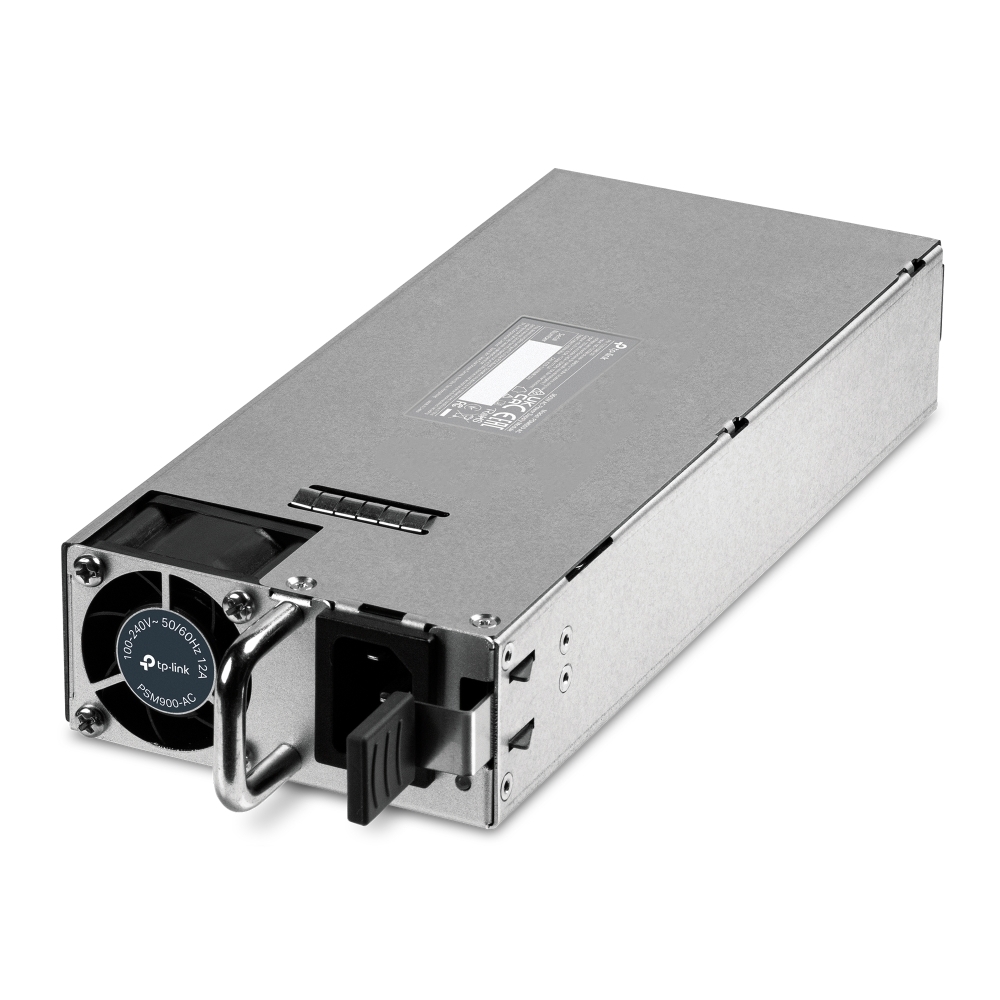

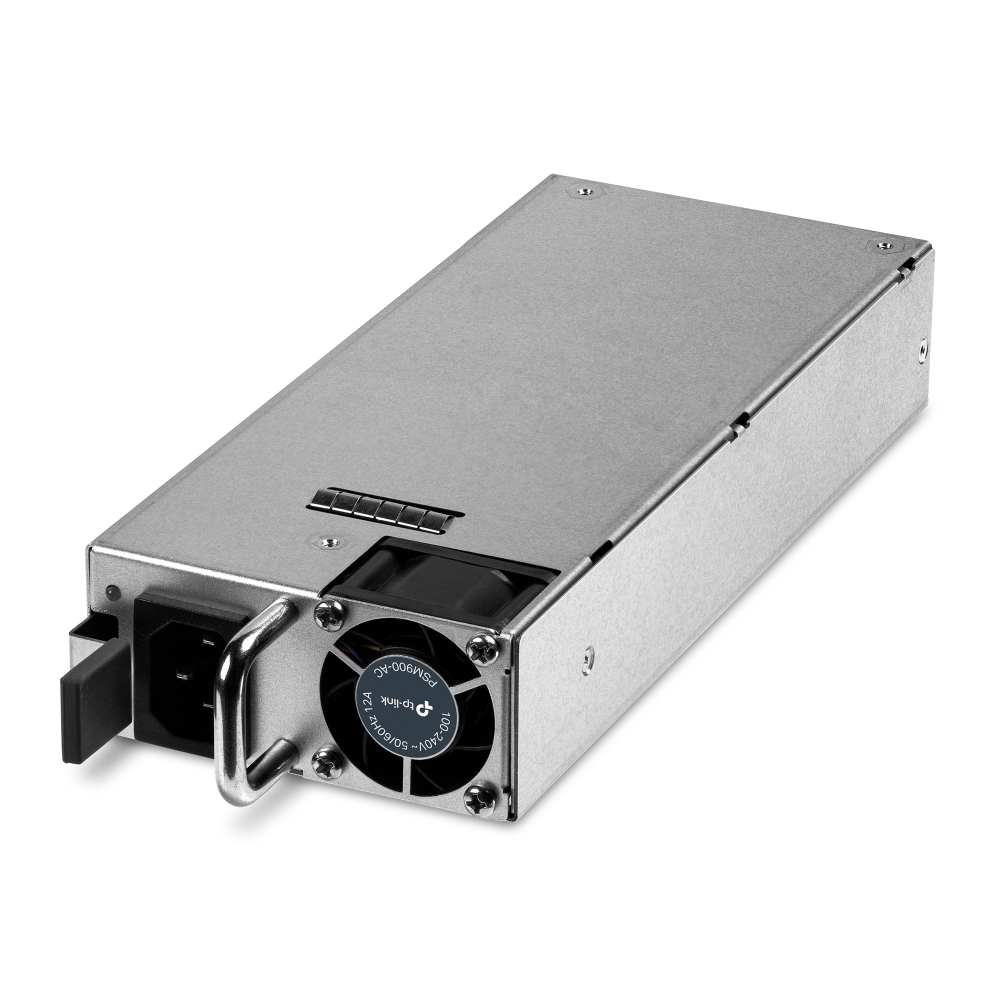

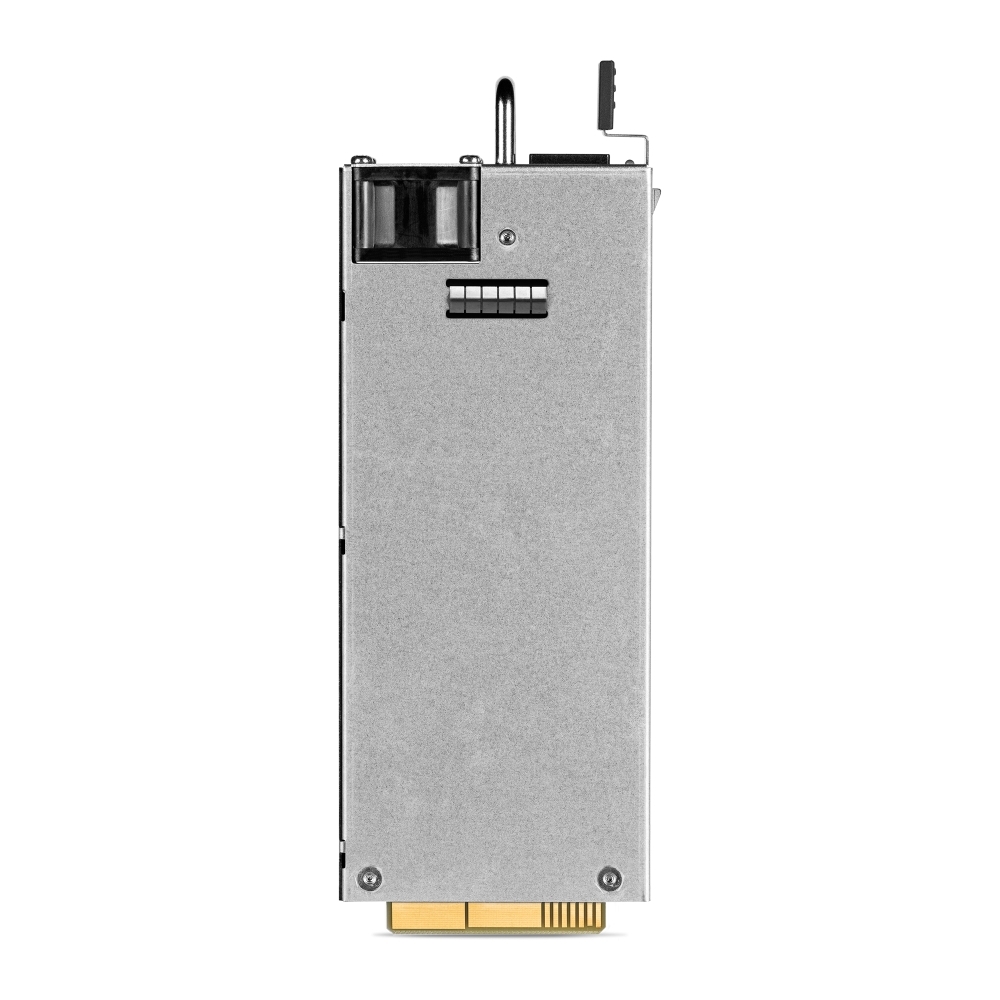

TP-Link PSM900-AC 900W AC Power Supply Module

SKU: 125225

  • Up to 900 watts output power
  • Hot swappable
  • 53.5 V DC output voltage
  • Output over-voltage/under-voltage/short circuit/over-current protection
  • Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y

What This Product Does

The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

(125225)

HARDWARE FEATURES
LED Multi-function indication
REDUNDANT POWER SUPPLY
AC Power Input • 100-120V(include)~ 50/60Hz 12A (for
locations using low voltage)
• 120(not include)-240V~ 50/60Hz 10A (for
other locations)
DC Power Output 53.5 V/16.5 A
Surge Protection ±6 kV
Dimensions 259.5*95.8*40.1 mm
Maximum Power Output 900W
Environment • Operating Temperature: 0˚C–45˚C (32˚F to 113˚F)
• Storage Temperature: -40℃–70℃ (-40℉~158℉)
• Operating Humidity: 10%–90% RH, Non-condensing
• Storage Humidity: 5%–90% RH, Non-condensing
SKU 125225
Model # PSM900-AC
Brand TP-LINK
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.500m
