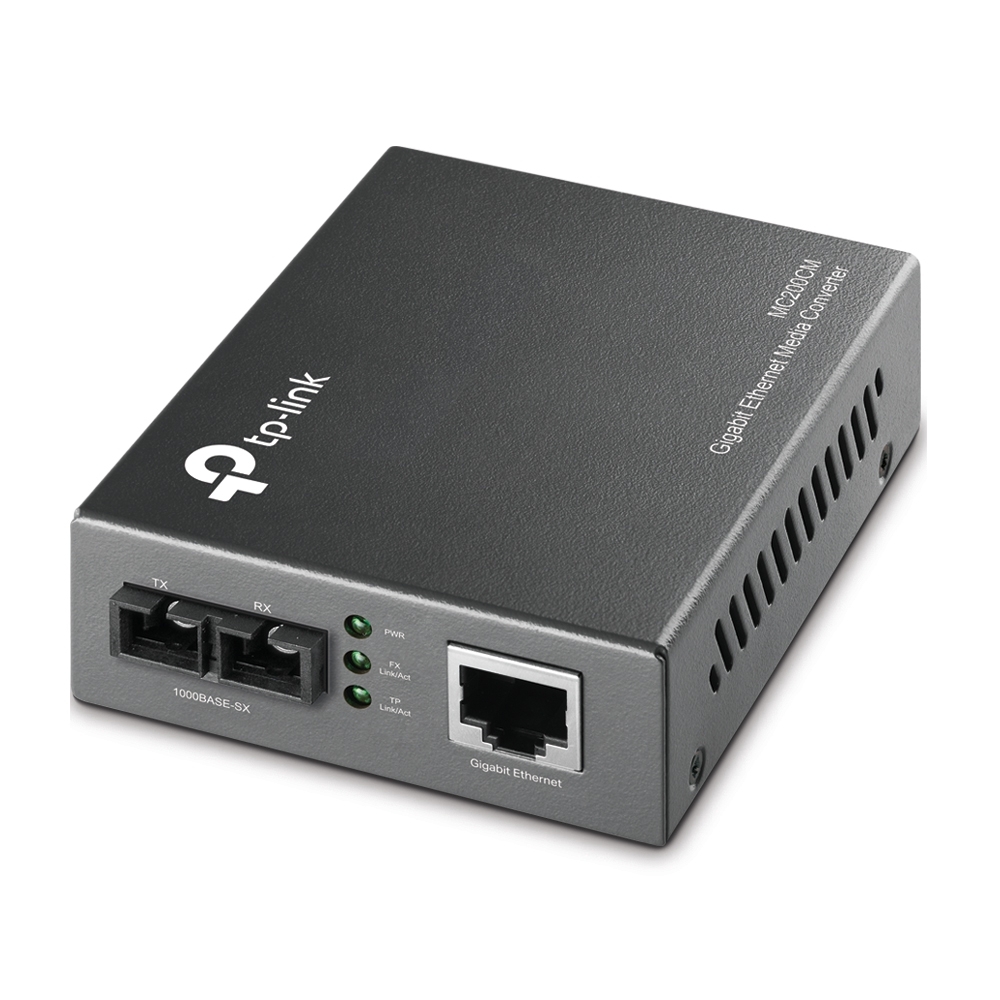

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
(122667)
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Extends fibre distance up to 0.55km using 50/125um fibre |
| Extends fibre distance up to 0.22km using 62.5/125um fibre | |
| Ports | 1 1000M SC/UPC port |
| 1 1000M RJ45 port (Auto MDI/MDIX) | |
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.66W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC200CM |
| • Power Adapter | |
| • Installation Guide | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| SKU | 122667 |
| Model # | MC200CM |
| Barcode # | 6935364030438 |
| Brand | TP-LINK |
| Shipping Weight | 0.4400kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.060m |
| Shipping Length | 0.210m |
