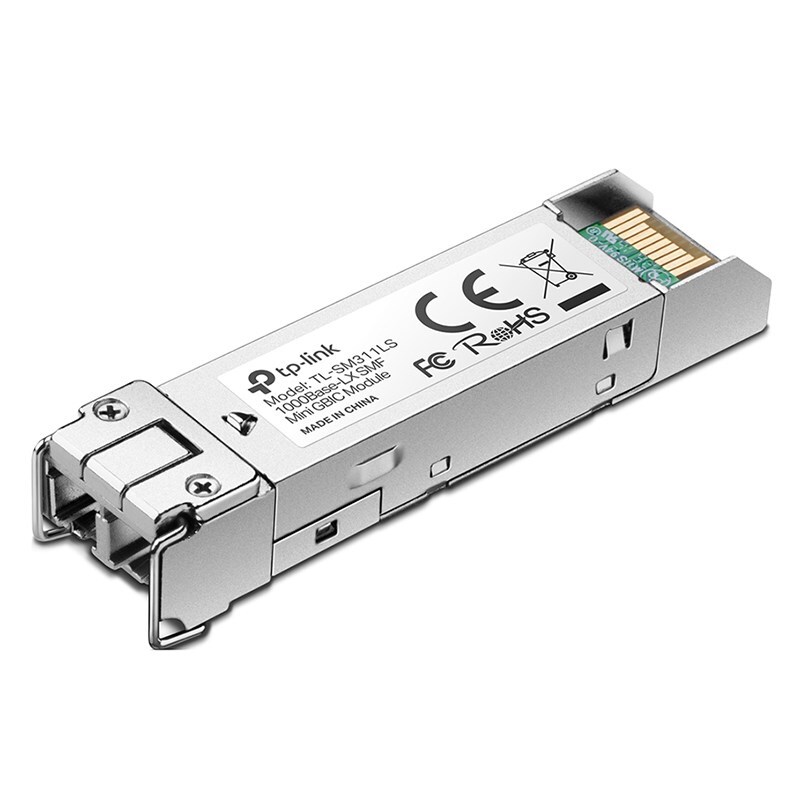

TP-Link TL-SM311LS Gigabit SFP MiniGBIC Module

What This Product Does



The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.



Features



 - Single-mode MiniGBIC module

 - Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L



MEDIA CONVERTER & MODULE



Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length 1310nm

Power Supply 3.3V

Safety & Emission FCC, CE

Cabel Single-mode Fiber

Fiber Type 9/125 μm Single-mode

Max. Cable Length 10km

Data Rate 1.25Gbps

Port Type LC/UPC

Environment Operating Temperature: 0?~70? (32?~158?)

Storage Temperature: -40?~80? (-40?~176?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
