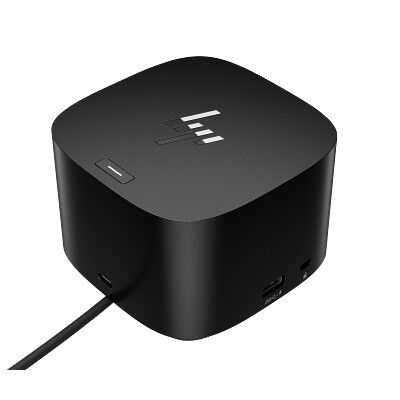

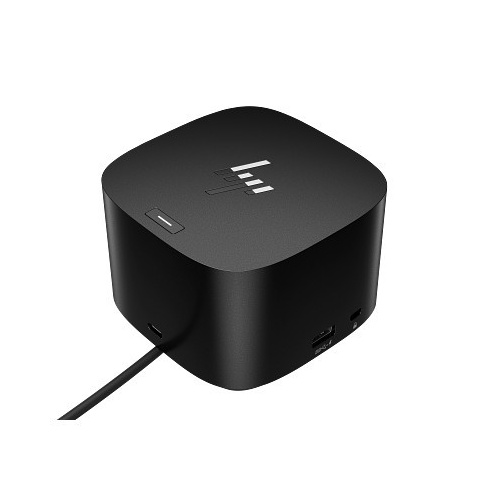

HP Thunderbolt Dock 120W G4 (4J0A2AA)

SKU: 122224

Compatibility disclaimer 1 For Mobile Workstations requiring more than 100W power delivery, use the 280W version 4J0G4AA
Compatibility disclaimer 2 Dock provides up to 100W via USB-C alt mode port.
Compatibility disclaimer 3 Dock power button will not work on all HP Chromebooks (Alt mode required)
Compatibility disclaimer 4 Requires ChromeOS M101 and up on Chromebooks.
Compatible Operating Systems Windows 11; Windows 10; MacOS; Chrome
Dimensions (W x D x H) 98 x 98 x 68 mm
Displays supported Quad monitor
Manufacturer Warranty One-year limited warranty.
Material Type for item FERT
Package dimensions (W x D x H) 275 x 143 x 148.5 mm
Ports Top components: LED and power button to power or wake host system Front components: 1 x USB-C data/power out, (USB 3.2 Gen 2 10 Gbps Data only) Side components: Right side: 1 x Kensington Standard Lock Slot; 2 x USB 3.2 Gen 1 ports - 1 on each side (charging) (5 Gbps) Back components: 2 x USB 3.2 Gen 1 (charging ports when docked) (5Gbps); 1 x HDMI 2.0 port; 2 x DisplayPort 1.4 ports; 1 AC adapter port; 1 x Ethernet port: 2 internal NIC cards to support 1Gb and 2.5Gb Ethernet; 1 x USB-C DP alt mode port; 1 x Thunderbolt™ 4 port
Ports note The dock power button is not functional when connected to non-supported HP notebooks or non-HP notebooks.
Power Input 100 to 240V 1.7A 50 to 60Hz. Output is 19.5V at 6.15A
Registration required No
Security management Standard Kensington lock slot
Technical notes Network manageability features: vPRO (wired or wireless); eTag; Disconnected Firmware updates; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation States); MAC address pass-through (from the On, Off, Sleep or Hibernation States); WLAN-LAN Switching Networking: Supports 1 Gb and 2.5G Ethernet Power to host (USB-C PD): Up to 100W via USB-C / 230W to host using 280W power supply via combo cable External monitor support: Up to 4 Power delivery (PD) profiles: PD 3.0: 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A Temperature (operating): 0° C to 35° C (32° F to 95° F) Relative humidity noncondensing (operating): 10 % to 90 % Maximum altitude unpressurized (operating): 15 m to 3,048 m (- 50 ft to 10,000 ft) Cable length: 0.8M
Video connectors HDMI; DisplayPort™-out; USB Type-C®; Thunderbolt™
Weight 760 g
What's in the box Dock, power supply, power cord, warranty

(122224)

SKU 122224
Model # 4J0A2AA
Barcode # 196068757410
Brand HP
Shipping Weight 1.5300kg
Shipping Width 0.150m
Shipping Height 0.140m
Shipping Length 0.280m
