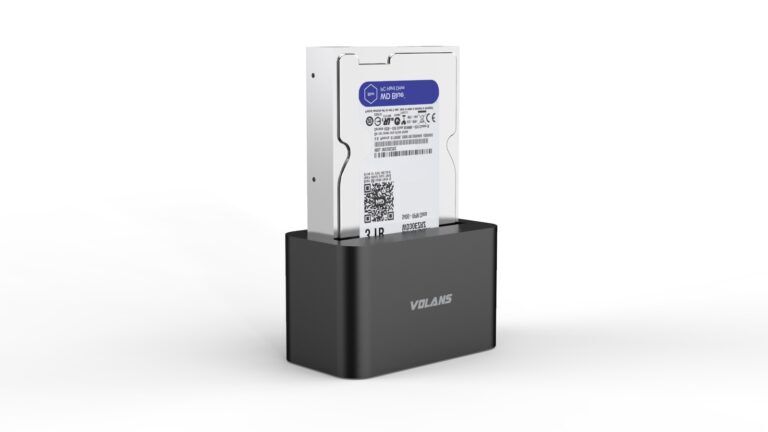

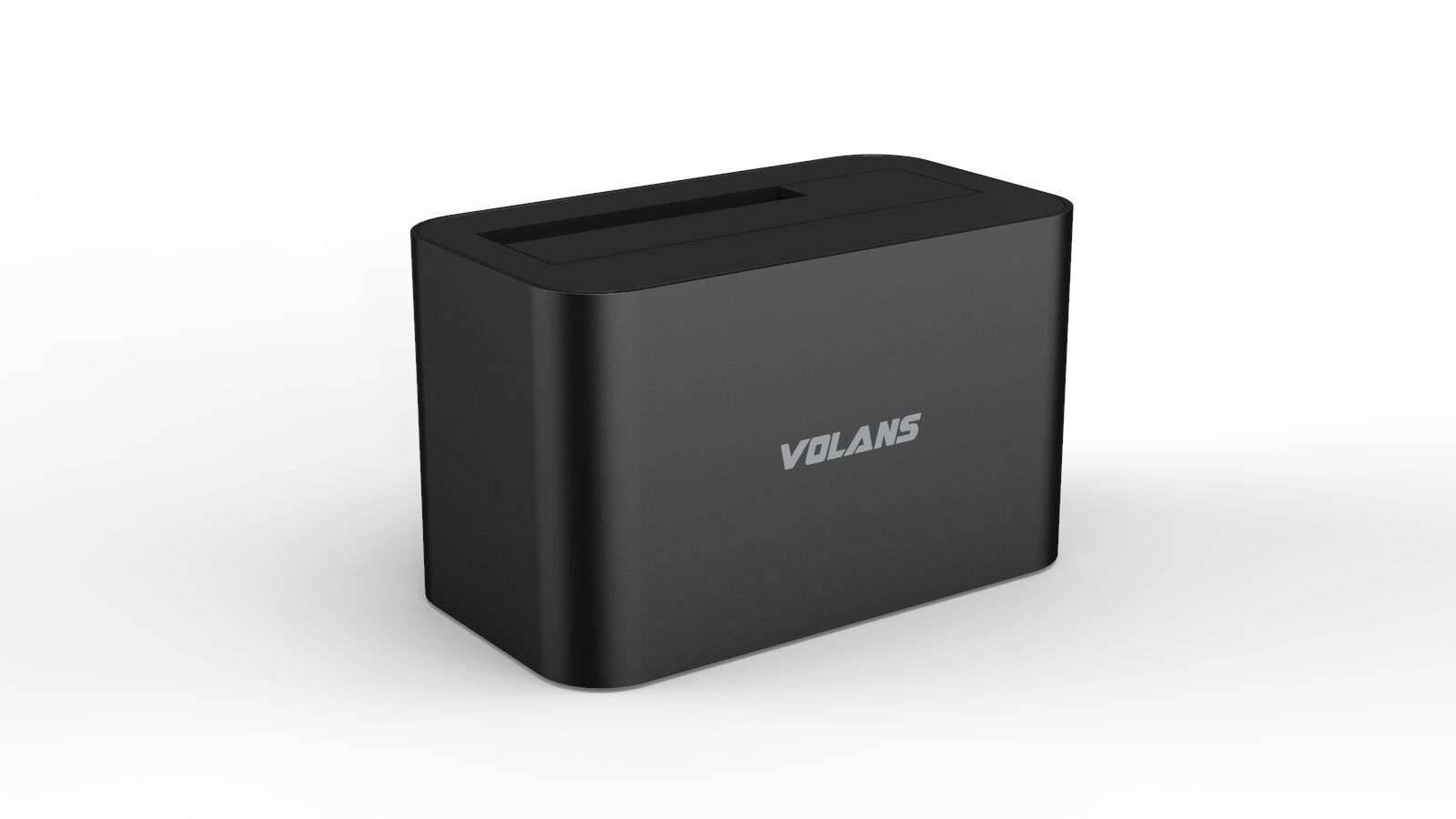

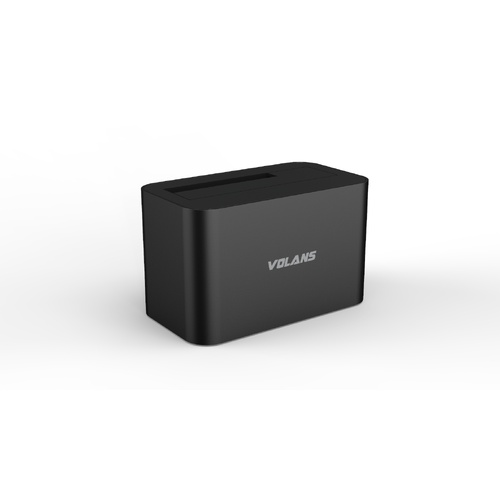

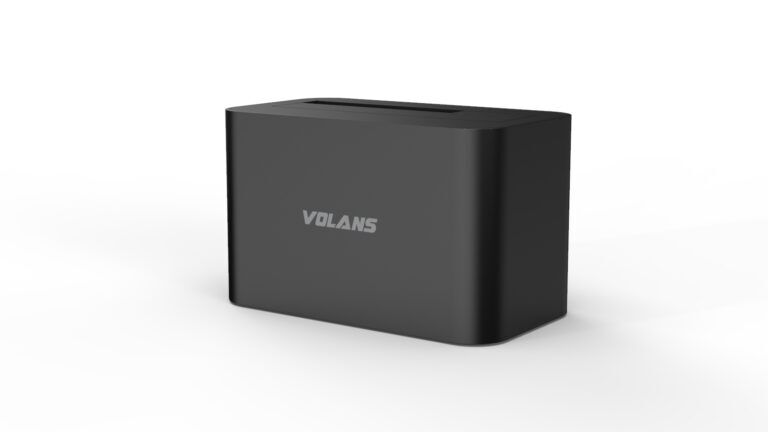

Aluminium 1-Bay USB3.0 HDD Docking Station

SKU: 127717

  • Designed for direct insertion of  one 2.5 inch or 3.5 inch SATA HDD/SSD
  • USB 3.0 SuperSpeed Interface, transfer rates up to 5Gbps
  • Backwards-Compatible with USB 2.0, transfer rates up to 480Mbps
  • LED light indicates Power and Activity status
  • Hot-swappable, plug and play, no drivers needed
  • Support UASP (USB Attached SCSI) for Windows 8 and above, Mac OS 10.8 and above
  • Compatible Operating Systems: Windows XP and above (32/64-bit), Mac OS 10.4 and above, Linux

(127717)

Warranty Information
Warranty 1 Year
Hardware
Chipset ID JMS578
Compatible Drive Types SATA
Drive Installation Removable
Drive Size 2.5in & 3.5in
Interface USB 3.0
Number of Drives 1
Performance
Max Drive Capacity Currently tested with up to 16TB 7200 RPM 3.5″ hard drive and 2TB 7200 RPM 2.5″ hard drive
RAID No
Type and Rate USB 3.0 – 5 Gbit/s
  SATA III (6 Gbps)
UASP Support Yes
Connector(s)
Drive Connectors 1 – SATA Data & Power Combo (7+15 pin) Receptacle

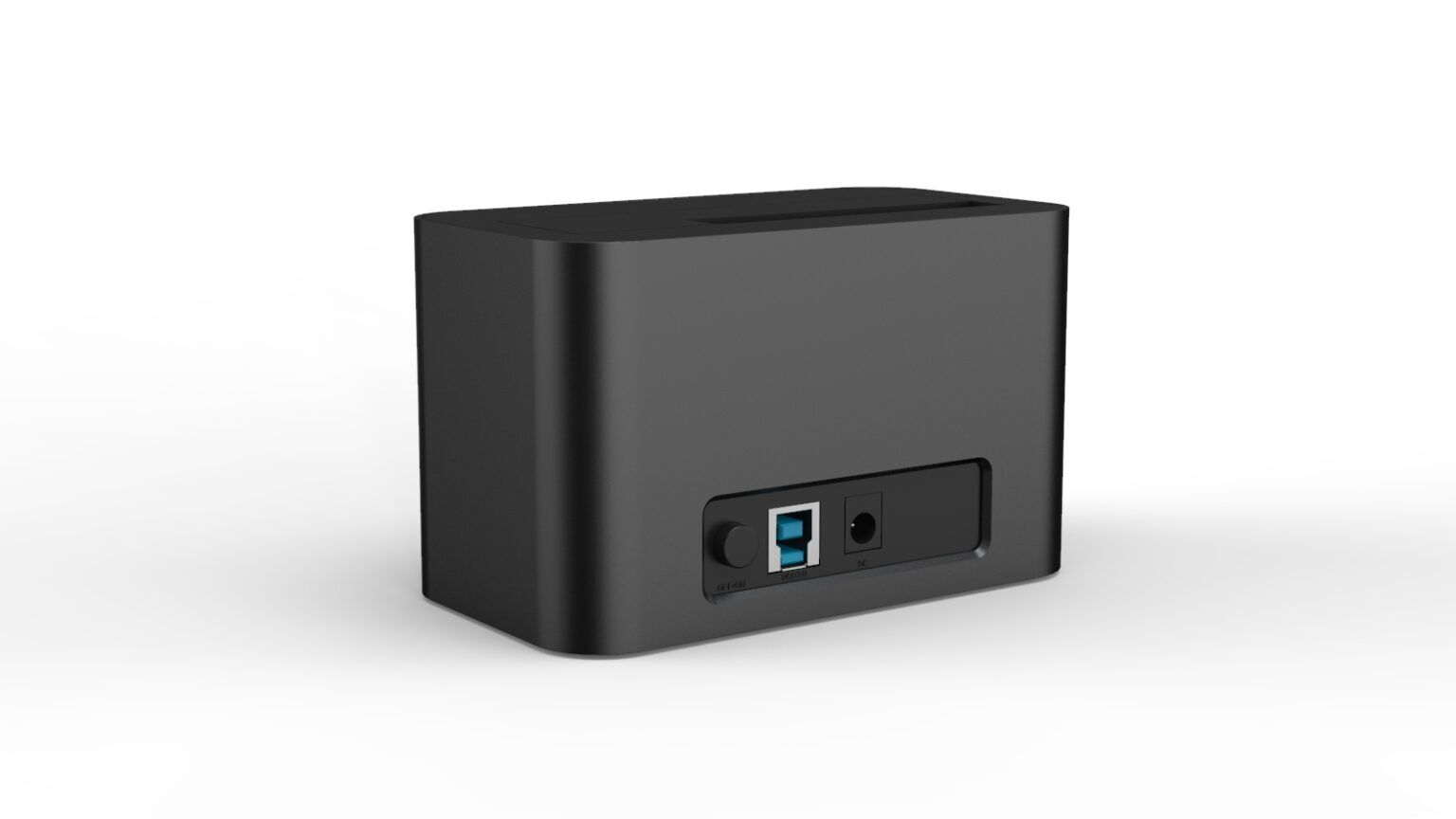

Host Connectors 1 – USB 3.0 B Female
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 1 – Drive Status
  1 – Power Indicator
  1 – Progress Indicator
Power
Input Current 0.6 A
Input Voltage 100 ~ 240V
Output Current 2A
Output Voltage 12V
Power Consumption (In Watts) 24
Power Source AC Adapter Included
Environmental
Humidity 20%RH ~ 80%RH
Operating Temperature 5°C – 35°C (41°C to 95°C)
Storage Temperature -20°C – 50°C (-4°C to 122°C)
Physical Characteristics
Color Black
What’s in the Box
Included in Package 1 – DS10S
  1 – USB 3.0 cable
  1 – power adapter
  1 – instruction manual
SKU 127717
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
