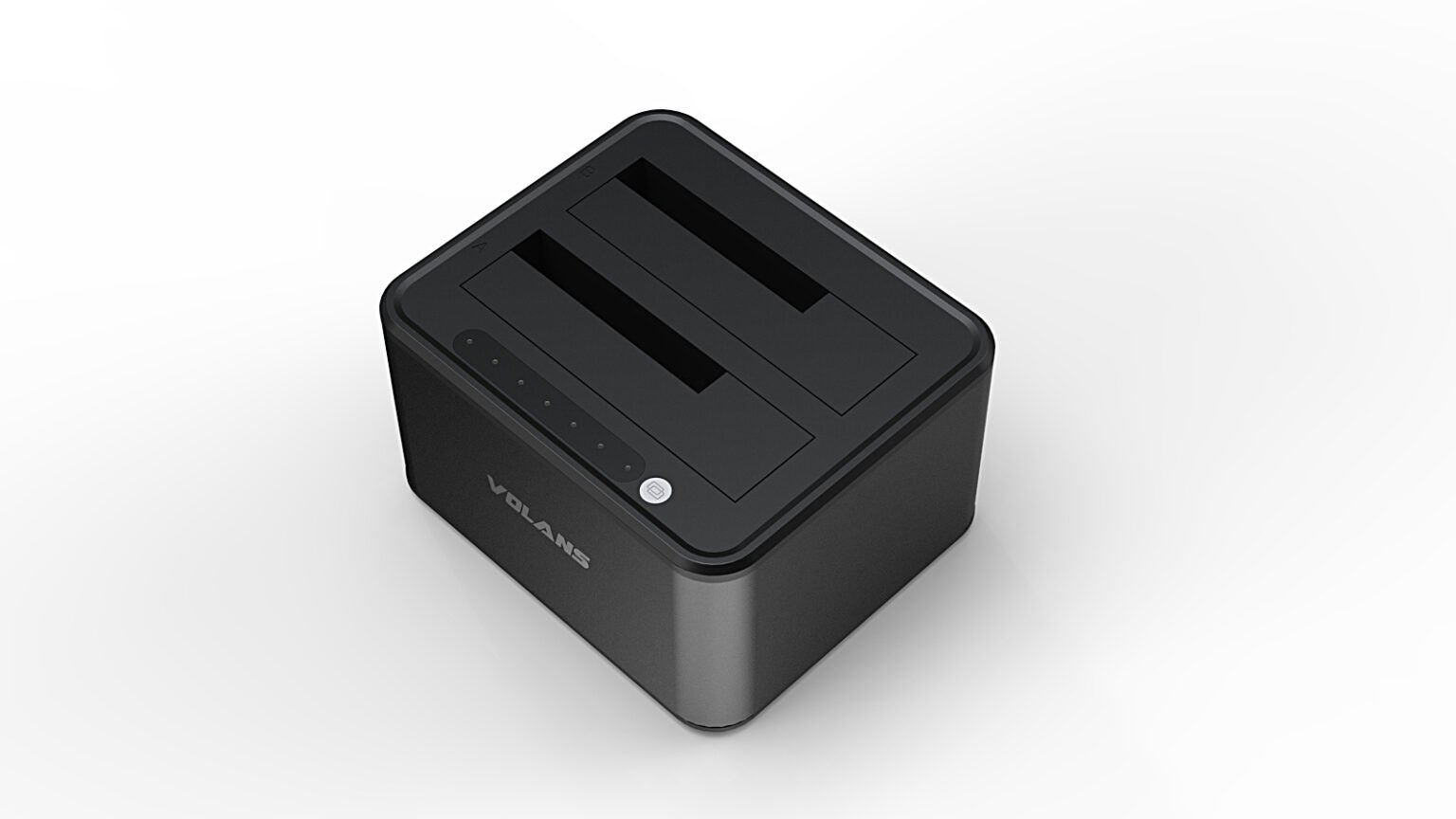

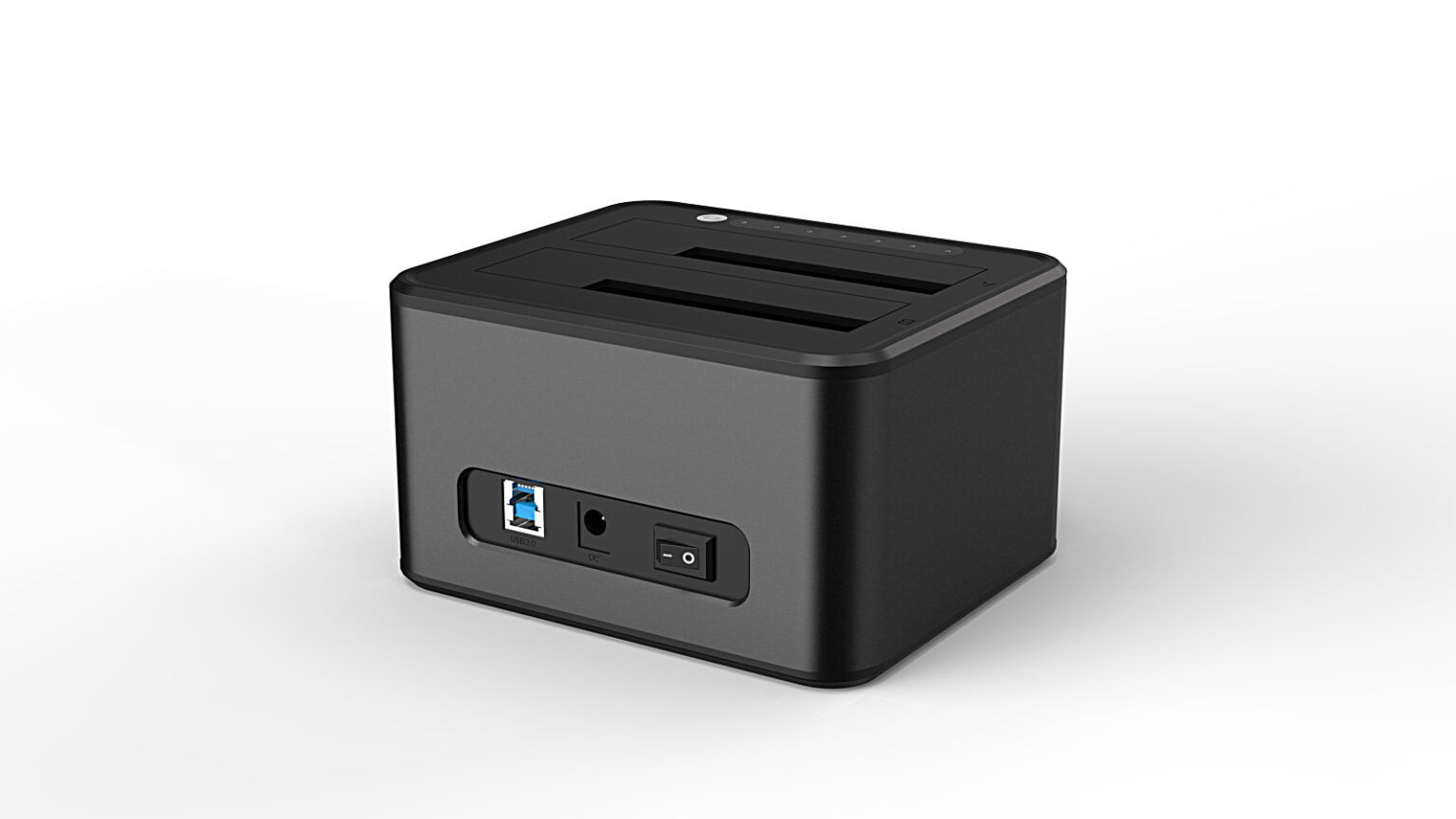

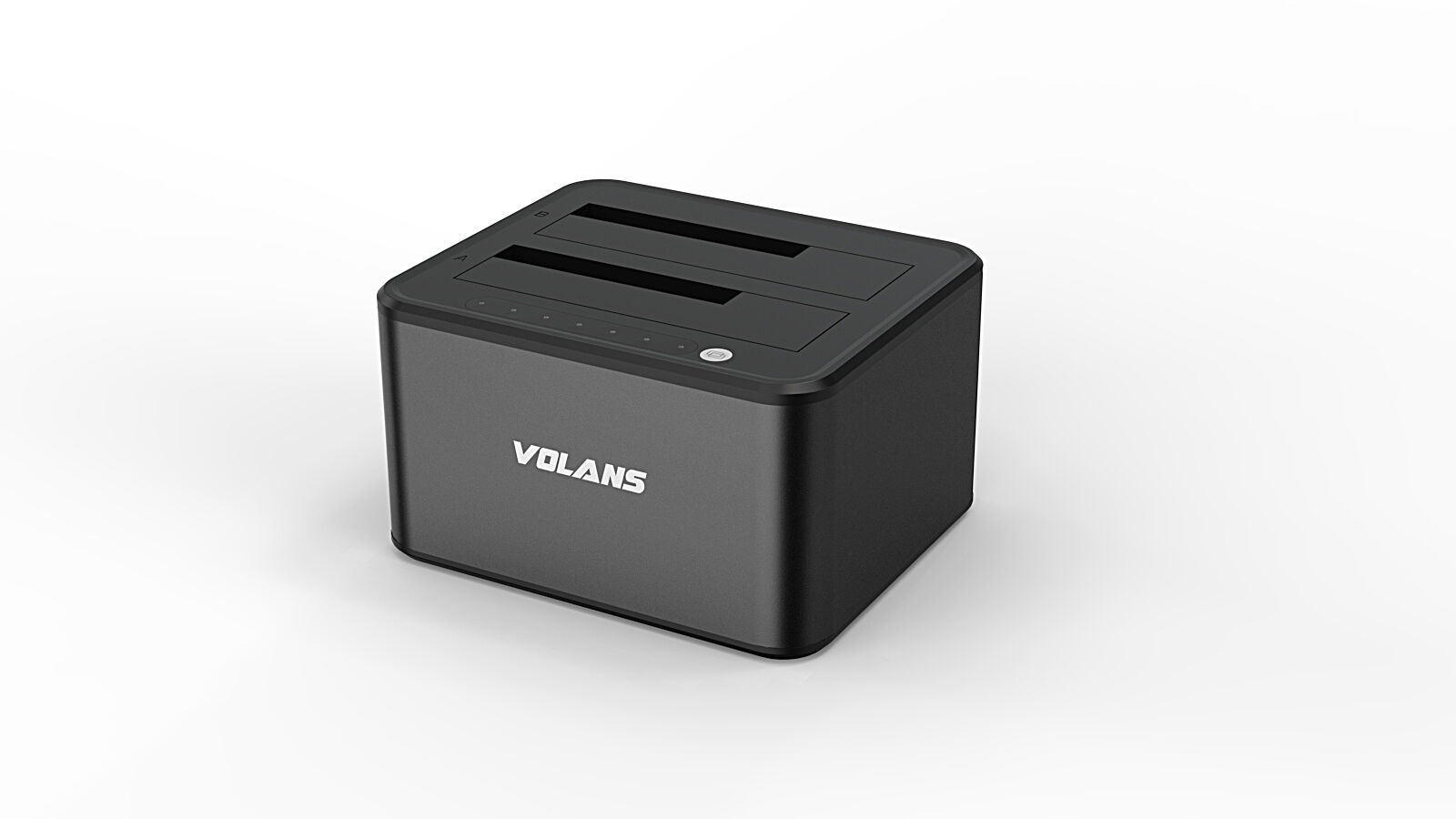

VOLANS VL-DS30S Dual Bay USB3.0 Aluminium Docking Station for 2.5" and 3.5" SATA HDD
SKU: 127718
VOLANS VL-DS30S Dual Bay USB3.0 Aluminium Docking Station for 2.5" and 3.5" SATA HDD
SKU: 127718
$39.00
5
In Stock at store/warehouse
- Designed for 2.5” (4TB total) or 3.5” (32TB total) SATA HDD/SSD
- USB 3.0 SuperSpeed Interface, transfer rates up to 5Gbps
- Backwards-Compatible with USB 2.0, transfer rates up to 480Mbps
- Solid aluminium casing with ABS top panel, elegant and stylish
- LED light indicates Power and Activity status
- Hot-swappable, plug and play, no drivers needed
- Support offline clone, easy installation, computer-independent duplicating/cloning without computer support, high efficiency
- Reliable and high watts DC power supply, so that a stable energy supply is guaranteed
- Compatible Operating Systems: Windows XP and above (32/64-bit), Mac OS 10.10 and Above, Linux.
| Warranty Information | |
| Warranty | 1 Year |
| Hardware | |
| Chipset ID | JMicron – JMS561U |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Interface | USB 3.0 |
| Number of Drives | 2 |
| Performance | |
| Max Drive Capacity | Currently tested with up to 16TB 7200 RPM 3.5″ hard drives per bay (32TB total) and 2TB 7200 RPM 2.5″ hard drives (4TB total) |
| RAID | No |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| SATA III (6 Gbps) | |
| UASP Support | Yes |
| Connector(s) | |
| Drive Connectors | 2 – SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | 1 – USB Type-B (9 pin) USB 3.0 Female |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Indicators | |
| LED Indicators | 2 – Drive Status |
| 1 – Power Indicator | |
| 1 – Mode Indicator | |
| 1 – Progress Indicator | |
| Power | |
| Input Current | 1.3 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2500 mA |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 20%RH ~ 80%RH |
| Operating Temperature | 5°C – 35°C (41°C to 95°C) |
| Storage Temperature | -20°C – 50°C (-4°C to 122°C) |
| Physical Characteristics | |
| Color | Black |
| What’s in the Box | |
| Included in Package | 1 – DS30S |
| 1 – USB 3.0 cable | |
| 1 – power adapter | |
| 1 – instruction manual | |
(127718)
| SKU | 127718 |
| Model # | VL-DS30S |
| Barcode # | 783495871477 |
| Brand | Volans |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.130m |
| Shipping Length | 0.150m |
