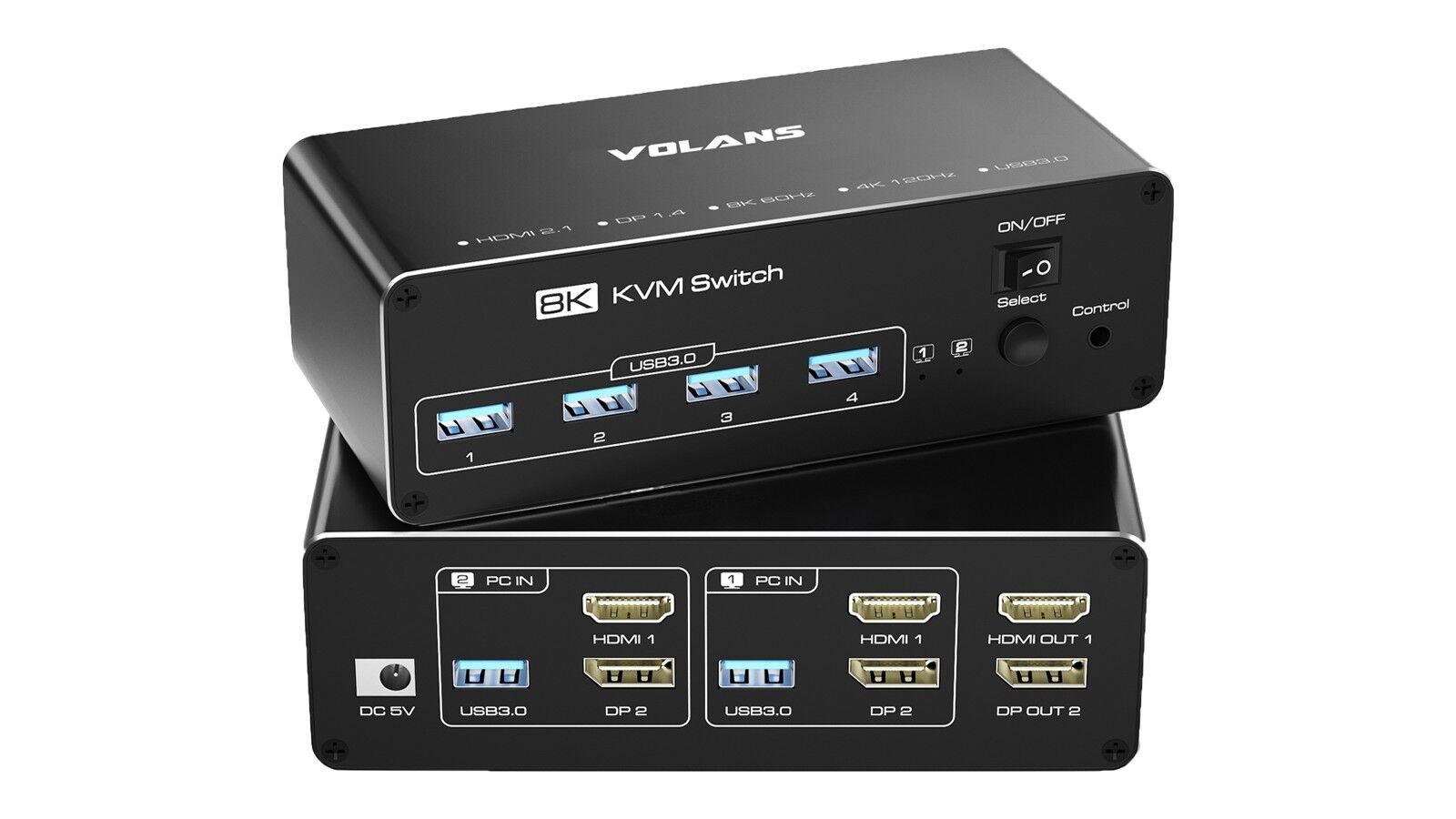

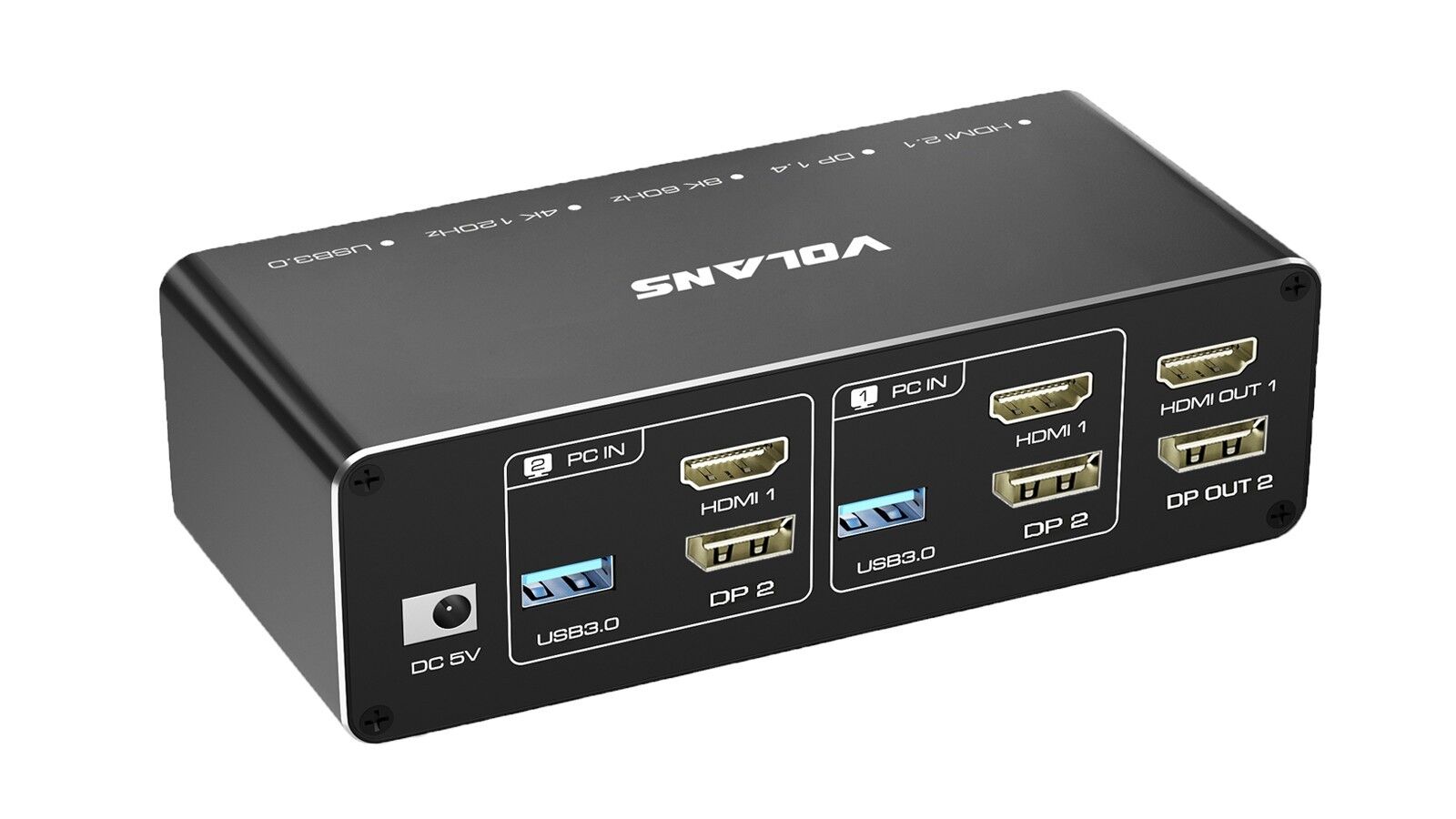

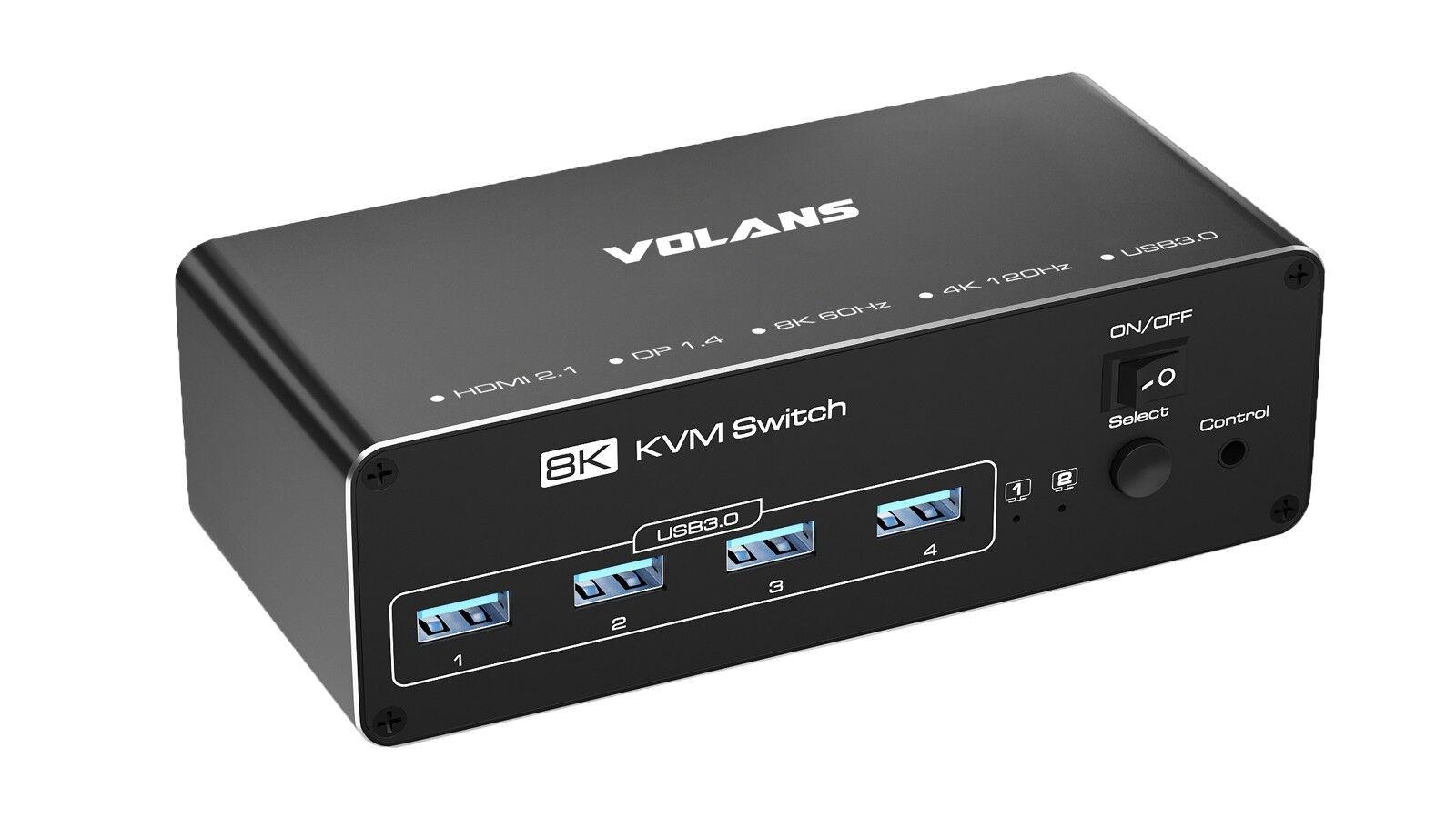

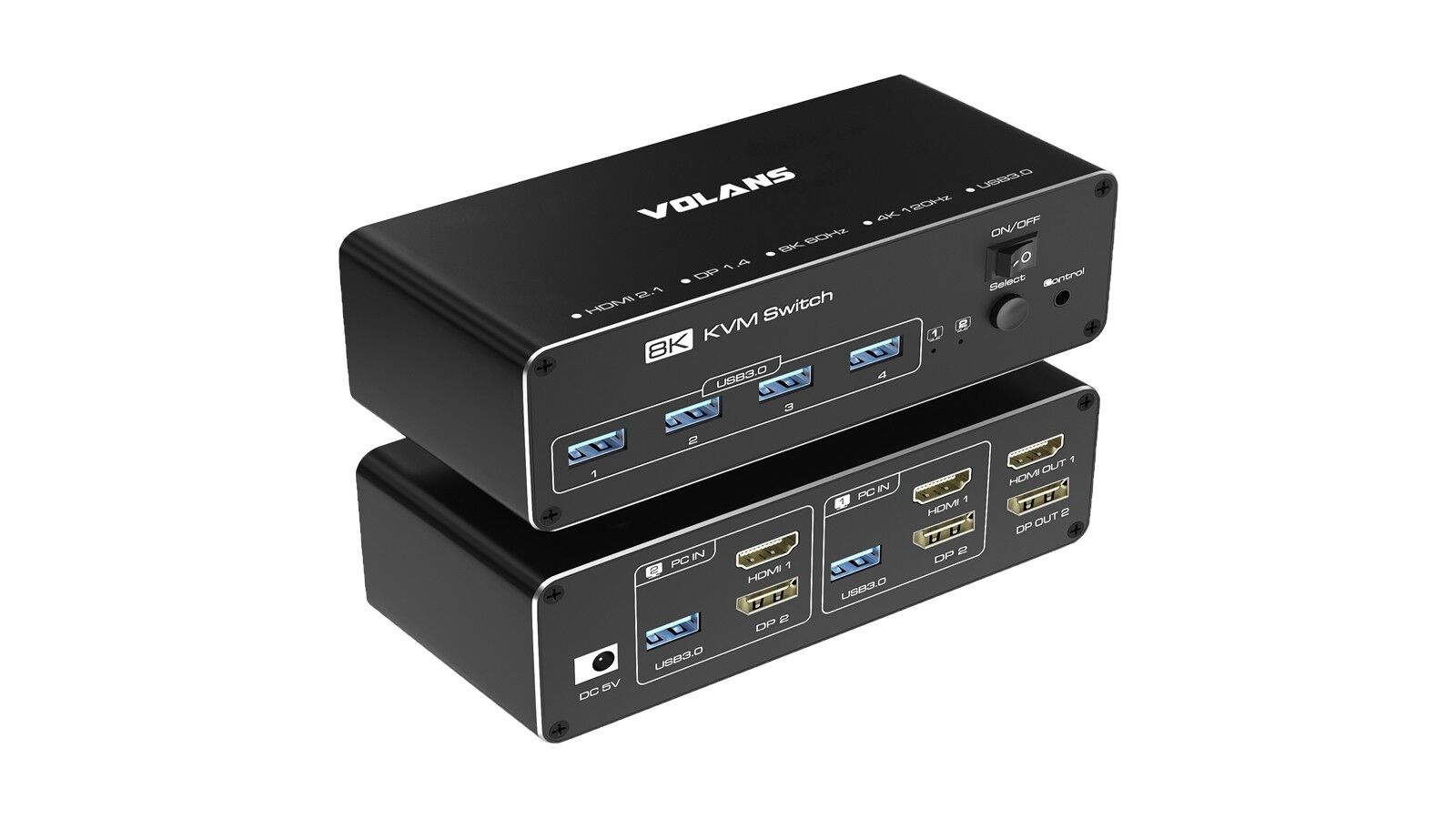

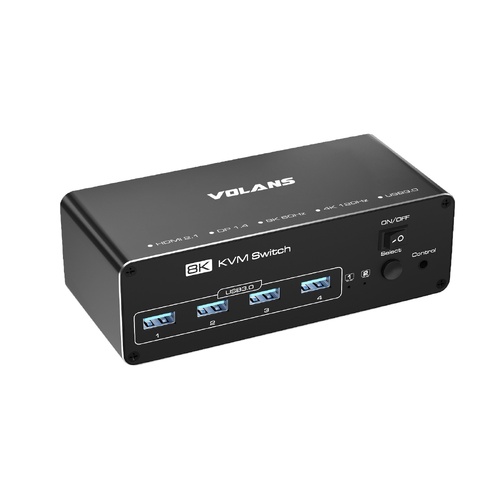

VOLANS VL-KVM9 HDMI and DP Dual Monitor (8K@60Hz) KVM Switch with 4xUSB3.0

SKU: 127976

  • Dual monitor KVM switch allows 2 computers to share 2 displays and 4 USB ports
  • HDMI and DisplayPort dual display ports support extended or mirrored modes
  • HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K@60Hz
  • Integrated 4-port USB 3.0 hub toggled with the display simultaneously
  • 4 USB 3.0 ports for connecting mouse, keyboard, USB drive, printer and more
  • SuperSpeed USB ports support up to 5Gbps data transfer rate
  • Backward compatible with previous versions of USB, HDMI and DP
  • Easy to use by pressing the toggle button on the KVM switch or remote control
  • Plug and play, no driver required with multi-platform compatibility
  • Durable aluminium alloy casing, also efficiently dissipate heat
  • LED lights indicating power and active computer



(127976)

  • Model: VL-KVM9
  • USB Upstream Ports: USB 3.0 AF x2 (Connect to PC1 and PC2)
  • USB Downstream Ports: USB 3.0 AF x4 (Connect USB peripherals)
  • Monitor Input: HDMI 2.1 x2, DP 1.4 x2 (Connect to PC1 and PC2)
  • Monitor Output: HDMI 2.1 x1, DP 1.4 x1 (Connect to displays)
  • Power Input: USB-C, DC 5V (power input only, no data transfer function)
  • USB Max Bandwidth: SuperSpeed 5Gbps
  • Video Max Bandwidth: up to 48Gbps
  • Max Video Resolution: 8K@60Hz (7680×4320), 4K@120Hz (3840×2160), 2K@165Hz (2560×1440), 1080p@240Hz (1920×1080)
  • Max Cable Length for Input/Output: ≤3m for 8K@60Hz, ≤5m for 4K@60Hz
  • Operating Temperature Range: –5°C to 45°C
  • Operating Humidity Range: 5 to 90%RH (no Condensation)
  • Dimension (L x W x H): 14.4 x 6.6 x 4.75cm
  • Weight: 300g
  • Operating System Support: Windows, MacOS, Linux, Chrome OS
SKU 127976
Model # VL-KVM9
Brand Volans
Shipping Weight 0.5800kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.200m
  • Dual monitor KVM switch allows 2 computers to share 2 displays and 4 USB ports
  • HDMI and DisplayPort dual display ports support extended or mirrored modes
  • HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K@60Hz
  • Integrated 4-port USB 3.0 hub toggled with the display simultaneously
  • 4 USB 3.0 ports for connecting mouse, keyboard, USB drive, printer and more
  • SuperSpeed USB ports support up to 5Gbps data transfer rate
  • Backward compatible with previous versions of USB, HDMI and DP
  • Easy to use by pressing the toggle button on the KVM switch or remote control
  • Plug and play, no driver required with multi-platform compatibility
  • Durable aluminium alloy casing, also efficiently dissipate heat
  • LED lights indicating power and active computer



  • Model: VL-KVM9
  • USB Upstream Ports: USB 3.0 AF x2 (Connect to PC1 and PC2)
  • USB Downstream Ports: USB 3.0 AF x4 (Connect USB peripherals)
  • Monitor Input: HDMI 2.1 x2, DP 1.4 x2 (Connect to PC1 and PC2)
  • Monitor Output: HDMI 2.1 x1, DP 1.4 x1 (Connect to displays)
  • Power Input: USB-C, DC 5V (power input only, no data transfer function)
  • USB Max Bandwidth: SuperSpeed 5Gbps
  • Video Max Bandwidth: up to 48Gbps
  • Max Video Resolution: 8K@60Hz (7680×4320), 4K@120Hz (3840×2160), 2K@165Hz (2560×1440), 1080p@240Hz (1920×1080)
  • Max Cable Length for Input/Output: ≤3m for 8K@60Hz, ≤5m for 4K@60Hz
  • Operating Temperature Range: –5°C to 45°C
  • Operating Humidity Range: 5 to 90%RH (no Condensation)
  • Dimension (L x W x H): 14.4 x 6.6 x 4.75cm
  • Weight: 300g
  • Operating System Support: Windows, MacOS, Linux, Chrome OS
SKU 127976
Model # VL-KVM9
Brand Volans
