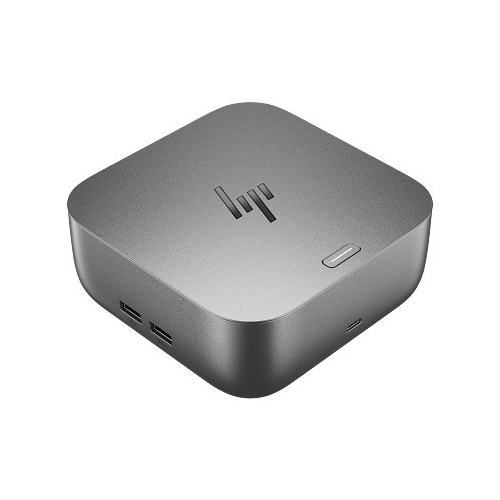

HP Thunderbolt 4 Ultra 280W G6 Dock AW5M5UT

SKU: 127911

Cable length	1 m
Cable type	1 Thunderbolt™ 4 cable and a 4.5 mm power barrel to connect to host system
Cartons per layer	28
Cartons per pallet	5 (air); 10 (ocean)
Certified collaboration software	Intel® Thunderbolt™ 4
Compatibility	Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
Compatibility Statement Note	Our docks are tested and validated with most HP USB-C and Thunderbolt 4 systems as well as tested with select 3rd party systems like Dell, Lenovo, and Apple. Contact your local sales representative to learn more.
Compatible Operating Systems	Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS
Connection type	Thunderbolt™ 4 and 4.5 mm power barrel
Current, maximum	6.15 A
Dimensions (W x D x H)	12.1 x 12.1 x 4.95 cm
Display support	Up to 3 external displays and 1 PC display or up to 4 external displays
Displays supported	Quad monitor
Drivers included	Intel® NIC driver; Realtek NIC driver (ARM); Realtek NIC driver (Windows)
End of Life CO2e (kg)	0.1
I/O Port location	Rear
Layers per pallet	6 (air); 14 (ocean)
LED	Front LED bar: RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red)
Management features	HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging; Intel® vPro® Technology (wired)
Management Software	Poly Lens with automatic firmware updates
Manufacturer Warranty	HP three-year limited warranty
Material Type for item	FERT
Minimum System Requirements	USB Type-C® (USB Power Delivery, Alt Mode DisplayPort™); Thunderbolt™ 4 port
Multiple order quantity	1
Non-Operating Humidity Range	5 to 95% non-condensing
Non-operating temperature - Celsius	-20 to 60°C
Operating altitude	-15 to 3,048 m
Operating humidity range	10 to 90% non-condensing
Operating temperature range	32 to 95°F
Operating voltage	19.5 V
Package dimensions (W x D x H)	39.6 x 17.1 x 9.5 cm
Package weight	1.14 kg
Pallet dimensions (W x D x H)	120 x 100 x 14 cm
Physical security	1 nano security lock slot

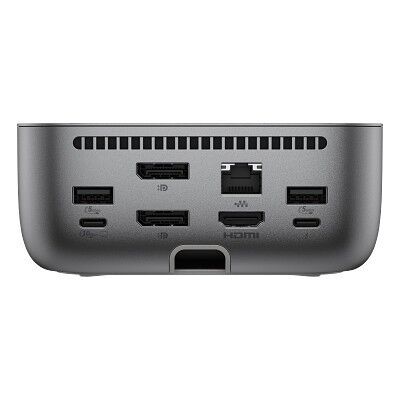

Ports	1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate; 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE)
Power	330 W external power adapter
Power button type	Mechanical power button with RGB LED indicator to power or wake host system
Power delivery (PD) profiles	12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A
Power to host	Up to 280 W via 4.5 mm power barrel or up to 180 W via Thunderbolt™ 4 cable (both HP and non-HP host devices that support Power Delivery 3.1)
Production CO2e (kg)	7
Products per pallet	168 (air); 392 (ocean)
Products per pallet layer	28
Refresh rate (maximum)	360 Hz
Registration required	No
Resolution (maximum)	Up to 8K
Resolutions supported	Non-Thunderbolt™ with multi-function PCs: 4 x QHD (2560 x 1440 @ 60 Hz), 3 x FHD (1920 x 1080 @ 60 Hz), 2 x QHD (2560 x 1440 @ 60 Hz), 1 x 5K (5120 × 2880 @ 60 Hz), 1 x FHD (1920 x 1080 @ 360 Hz); Non-Thunderbolt™ with high-resolution PCs: 4 x 4K (3840 x 2160 @ 60 Hz), 3 x QHD (2560 x 1440 @ 60 Hz), 2 x 4K (3840 x 2160 @ 60 Hz), 1 x 5K (5120 × 2880 @ 60 Hz), 2 x FHD (1920 x 1080 @ 360 Hz); 1 x QHD (2560 x 1440 @ 360 Hz); Thunderbolt™ with dual DisplayPort™ streams: 4 x 4K (3840 x 2160 @ 60 Hz), 3 x QHD (2560 x 1440 @ 60 Hz), 2 x 4K (3840 x 2160 @ 60 Hz), 1 x 5K (5120 × 2880 @ 60 Hz); Thunderbolt™ with single DisplayPort™ stream: 4 x 4K (3840 x 2160 @ 60 Hz), 3 x QHD (2560 x 1440 @ 60 Hz), 2 x 4K (3840 x 2160 @ 60 Hz), 1 x 5K (5120 × 2880 @ 60 Hz)
Security management	HP Sure Start
Software included	HP Quick Connect
Sustainable impact specifications	35% post-consumer recycled plastic
Video connectors	HDMI; DisplayPort™-out; USB Type-C®; Thunderbolt™
Weight	790 g
What's in the box	HP Thunderbolt 4 Ultra 280W G6 Dock; 330 W power adapter; Thunderbolt™ 4 and 4.5 mm power barrel combination cable (1 m); Power cord; Product notice; Warranty card

(127911)

SKU	127911
Model #	AW5M5UT
Barcode #	198701752561
Brand	HP
Shipping Weight	2.1600kg
Shipping Width	0.170m
Shipping Height	0.100m
Shipping Length	0.400m
