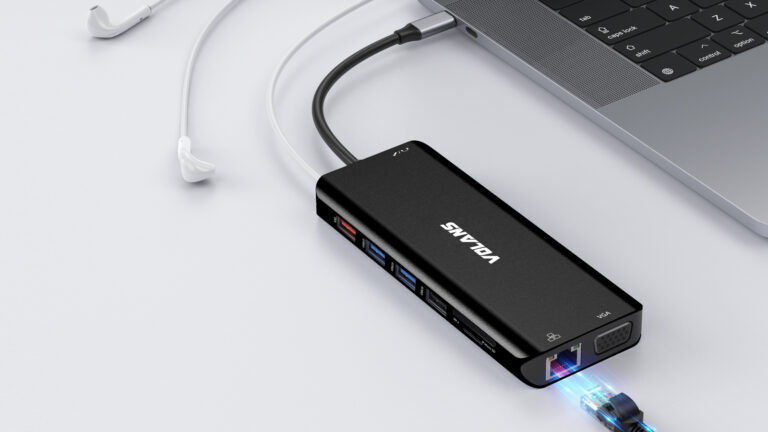

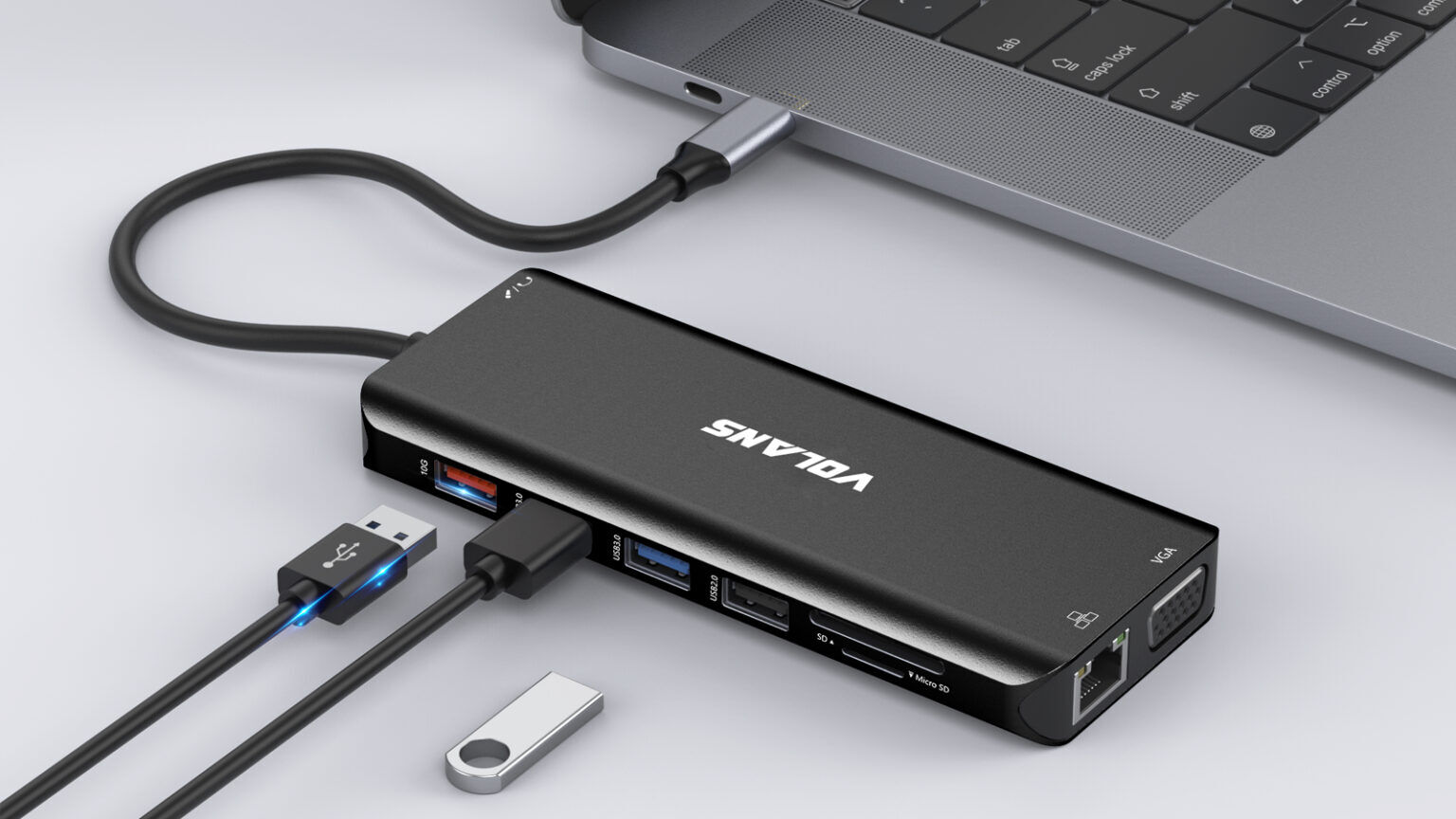

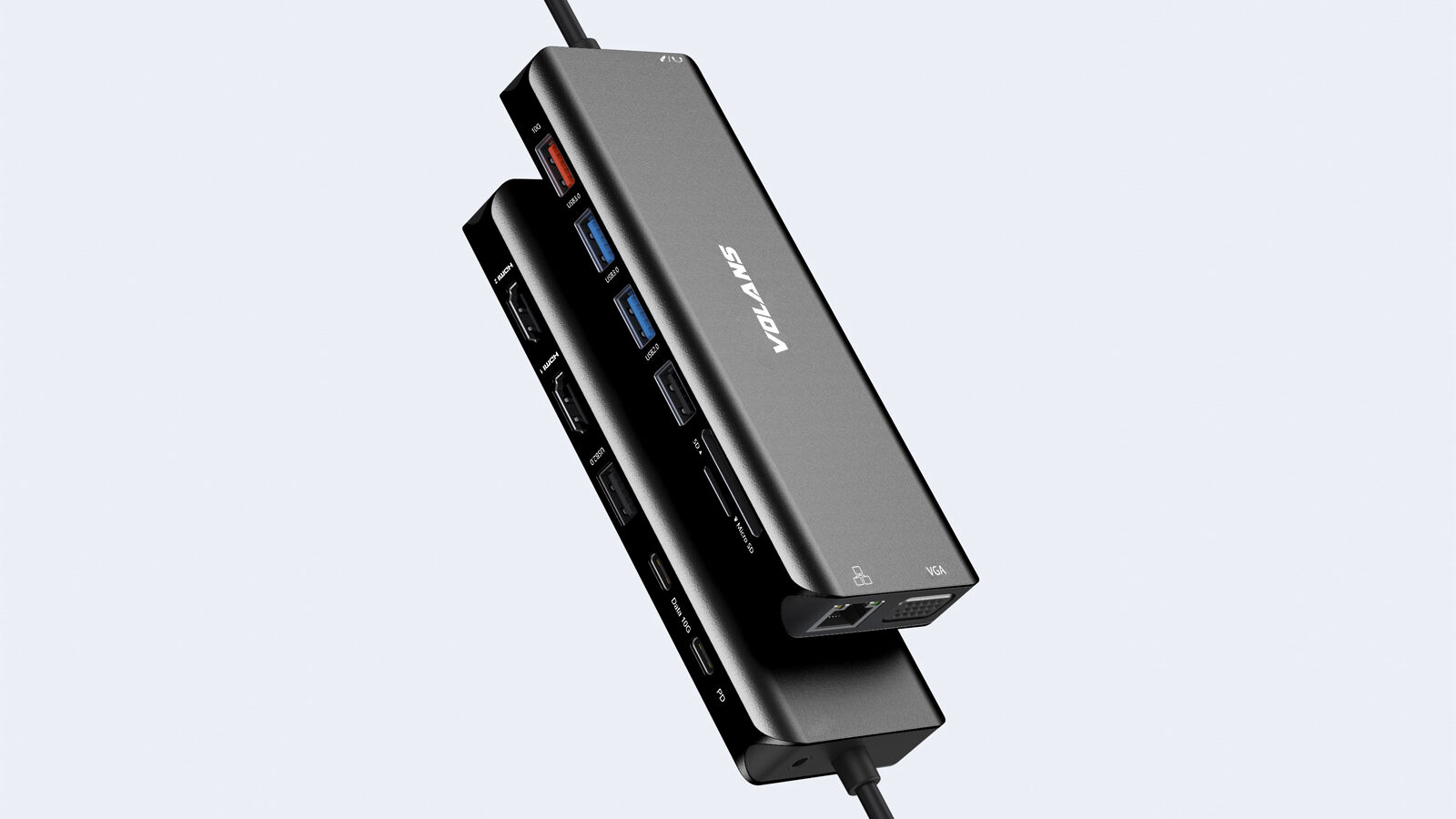

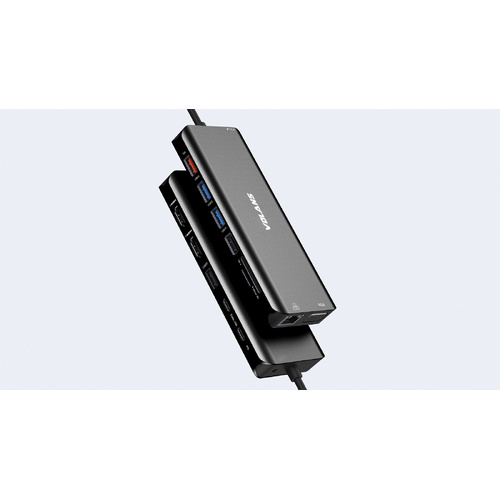

VOLANS VL-UCTDMH-S2 Aluminum 14-in-1 USB-C Hub with 100W PD

SKU: 127707

  • 1. HDMI Output(1st):
    up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
    up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)

    2. HDMI Output(2nd): up to 4K @30Hz resolution
    4K UHD HDMI Display: Enjoy crisp, high-resolution display on any HDMI-enabled monitor. Simply connect a HDMI cable (2.0 or higher) from your monitor to adapter, for brilliant video output up to 4K. Requires a direct HDMI to HDMI connection

    3. 1xUSB-A 2.0
    Up to 480Mbps data speed. Design for the connection of 2.4 GHz wireless devices, such as wireless keyboards/mouse adapters etc.

    4. 2 x USB-C Port(Data): Data Transfer up to 10Gb/s data speed

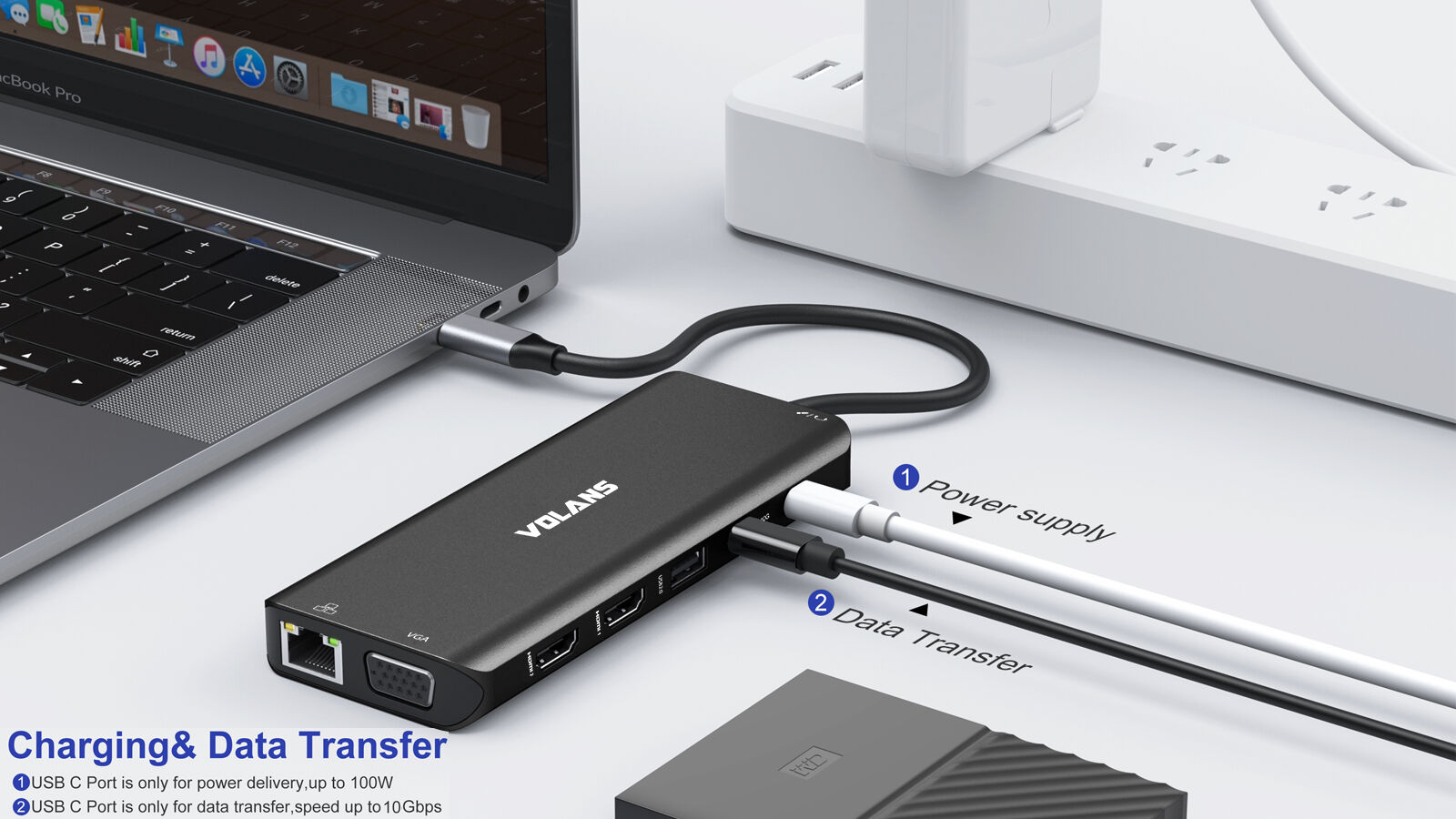

    5. 1 x USB-C Port(PD): Power Delivery Ver3.0
    Up to 100W upstream charging the source devices such as USB-C Laptop/MacBook. Please make sure your device support power delivery protocol

    6. 3.5mm Audio 2-in-1 jack

    7. VGA: Up to 1080P @60Hz

    8. RJ45 Gigabit Ethernet:
    Up to 1000Mbps, stable wired access for high-speed connectivity. Connect to the internet instantly via a wired gigabit Ethernet port.

    9. SD/Micro SD card reader
    Read: 50-104MB/s; Write: 30-80MB/s; SD/TF support working simultaneously. Data transfer rates are subject to the speed of the memory card itself and your computer’s USB port.

    10. 3 x USB-A 3.1
    1xUSB-A 3.1,Gen2 up to 10Gbps,5V0.9A Max / 2xUSB-A 3.1,up to 5Gbps,5V0.9A Max

S/N Function Interface Total Description
1 Video output HDMI 2 Up to 4K@30Hz/60Hz
2 VGA 1 Up to 1080P@60Hz
3 Data Transfer USB-A 2.0 1 480Mb/s data speed
4 USB-A 3.0 3 2 x 5Gb/s and 1 x 10Gb/s data speed
5 USB-C 2 Gen2 up to 10Gbps,5V0.9A Max
6 Power USB-C 1 Gen2 up to 10Gbps,5V0.9A Max
7 Audio Audio jack 1 3.5mm audio 2-in1 jack
8 Lan port RJ45 1 Gigabit Ethernet up to 1000Mbps
9 Data Card slot 2 SD / MicroSD
IC Solution RTD2142（VIDEO)+RTS5459(PD)+VL822(USB3.1)+RTS5411(USB3.0)+FE1.1(USB2.0)+RTL8153(RJ45)+RTS5306(SD/TF)
Product Material Aluminum + ABS
Product Color Black
Product Certificate FCC/CE/ROHS

(127707)




SKU 127707
Model # VL-UCTDMH-S2
Barcode # 742259108174
Brand Volans
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.020m
Shipping Length 0.200m

  • 1. HDMI Output(1st):
    up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
    up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)

    2. HDMI Output(2nd): up to 4K @30Hz resolution
    4K UHD HDMI Display: Enjoy crisp, high-resolution display on any HDMI-enabled monitor. Simply connect a HDMI cable (2.0 or higher) from your monitor to adapter, for brilliant video output up to 4K. Requires a direct HDMI to HDMI connection

    3. 1xUSB-A 2.0
    Up to 480Mbps data speed. Design for the connection of 2.4 GHz wireless devices, such as wireless keyboards/mouse adapters etc.

    4. 2 x USB-C Port(Data): Data Transfer up to 10Gb/s data speed

    5. 1 x USB-C Port(PD): Power Delivery Ver3.0
    Up to 100W upstream charging the source devices such as USB-C Laptop/MacBook. Please make sure your device support power delivery protocol

    6. 3.5mm Audio 2-in-1 jack

    7. VGA: Up to 1080P @60Hz

    8. RJ45 Gigabit Ethernet:
    Up to 1000Mbps, stable wired access for high-speed connectivity. Connect to the internet instantly via a wired gigabit Ethernet port.

    9. SD/Micro SD card reader
    Read: 50-104MB/s; Write: 30-80MB/s; SD/TF support working simultaneously. Data transfer rates are subject to the speed of the memory card itself and your computer’s USB port.

    10. 3 x USB-A 3.1
    1xUSB-A 3.1,Gen2 up to 10Gbps,5V0.9A Max / 2xUSB-A 3.1,up to 5Gbps,5V0.9A Max

S/N Function Interface Total Description
1 Video output HDMI 2 Up to 4K@30Hz/60Hz
2 VGA 1 Up to 1080P@60Hz
3 Data Transfer USB-A 2.0 1 480Mb/s data speed
4 USB-A 3.0 3 2 x 5Gb/s and 1 x 10Gb/s data speed
5 USB-C 2 Gen2 up to 10Gbps,5V0.9A Max
6 Power USB-C 1 Gen2 up to 10Gbps,5V0.9A Max
7 Audio Audio jack 1 3.5mm audio 2-in1 jack
8 Lan port RJ45 1 Gigabit Ethernet up to 1000Mbps
9 Data Card slot 2 SD / MicroSD
IC Solution RTD2142（VIDEO)+RTS5459(PD)+VL822(USB3.1)+RTS5411(USB3.0)+FE1.1(USB2.0)+RTL8153(RJ45)+RTS5306(SD/TF)
Product Material Aluminum + ABS
Product Color Black
Product Certificate FCC/CE/ROHS




SKU 127707
Model # VL-UCTDMH-S2
Barcode # 742259108174
Brand Volans
