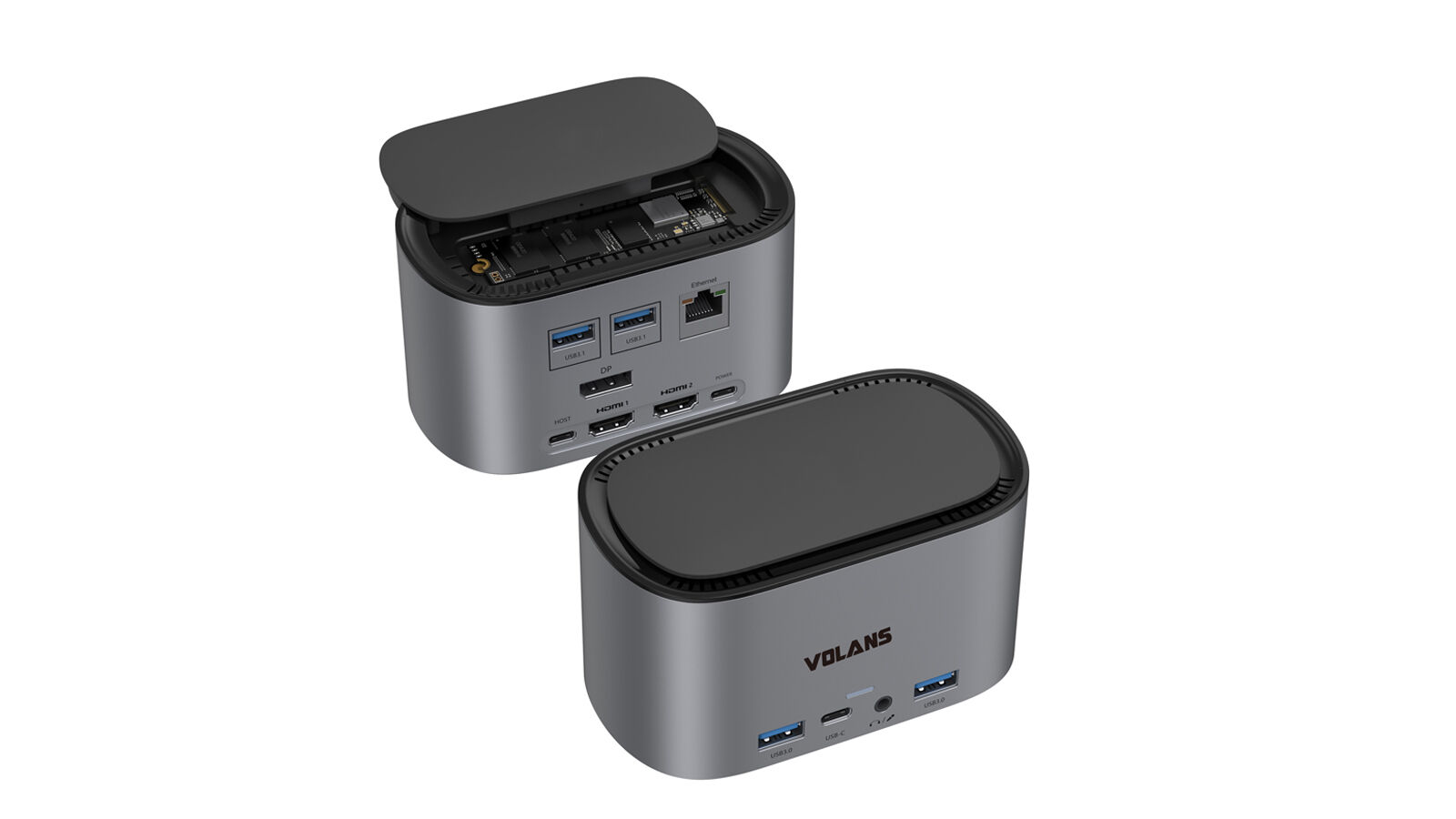

VOLANS VL-UCTDMD USB-C Triple Display DP Alt. Mode Docking Station ? With 100W Power Delivery

SKU: 127709

Triple Display

This docking station can support up to three external displays via the 1 x DisplayPort (DP ++ / DP 1.4) and 2 x HDMI 2.0 outputs. The dock will support extension (MST) or mirroring across the three external displays when used with a Windows Laptop and only support SST over Macbook.

*Refer to the resolution support table for details on different resolutions supported with the dock.

Comprehensive Connectivity

It supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, this docking station also provide all connections you need include: 2x HDMI, 1x DP, 2x USB3.1 Gen 1, 2x USB3.1 Gen 2, 1x RJ45 Gigabit Ethernet, 3x USB-C, 1x Audio & Mic and a special designed 10Gb/s M.2 NVMe + 5Gb/s M.2 SATA dual standard SSD Enclosure.

*Refer to the resolution support table for details on different resolutions supported with the dock.

100W Laptop Charging/Power Delivery

The dock charges your laptop with up to 100W of power when connected to an external USB-C charger. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time. (USB-C charger is not included in the package).

Plug and Play: Driverless

With a plug-and-play design, this dock becomes an extension of your laptop without the need for software or drivers.

Description



(127709)

Specification

Front:

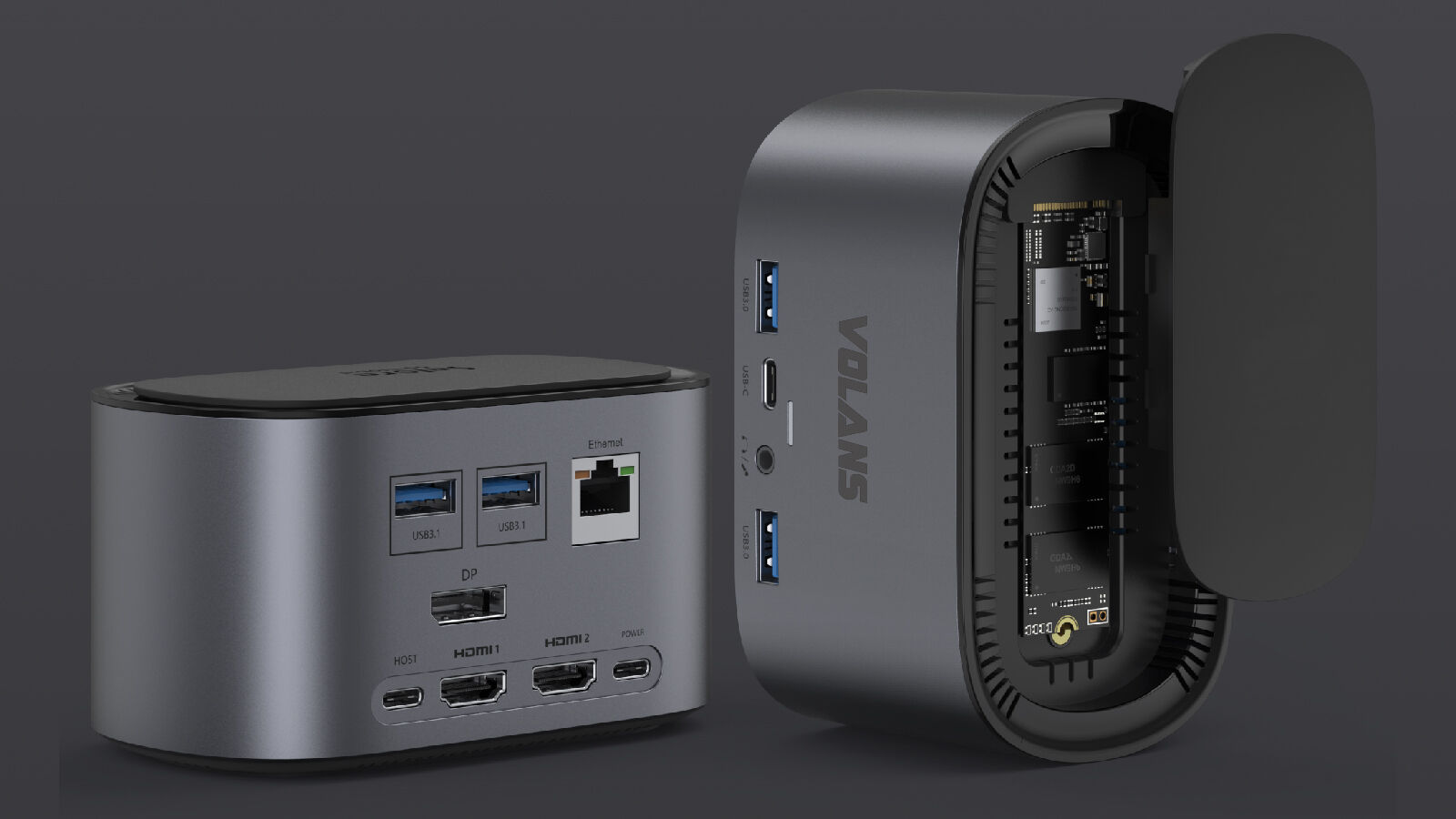

1. M.2 SSD Enclosure (*Note: SSD is not included)

Compatible SSD:

a. M.2 NVMe SSD (M Key and B&M Key) up to 10Gb/s

b. M.2 SATA (B&M Key) up to 5Gb/s

Applicable to sizes 80mm (2280), 60mm (2260), and 42mm (2242) M.2 form factor SSDs

*NOTE: Not compatible with M.2 SATA B Key SSDs, M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and other non-M.2 form factor SSDs.

2. LED indicator

3.USB-A 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed, backwards compatible with USB2.0/USB1.1

4.USB-C 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed, backwards compatible with USB2.0/USB1.1

5. 3.5mm Audio & Microphone (CTIA Standard)

6.USB-A 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed

Back:

1. USB-A 3.1 Gen 2 (Data): Data Transfer up to 10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1

2. USB-A 3.1 Gen 2 (Data): Data Transfer up to 10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1

3. RJ45 Gigabit Ethernet:

Up to 1000Mbps, stable wired access for high-speed connectivity. Connect to the internet instantly via a wired gigabit Ethernet port.

4. DP:

Up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)

Up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)

5. USB-C: connect to host (please do not connect the wrong USB-C Port)

6. HDMI 1:

Up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)

Up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)

7. HDMI 2: 4Kx2K 30Hz / 3840×2160 max

8. USB-C: PD 3.0 100W Max.

Upstream charging your host computer as well as power supply the docking station. Up to 100W upstream charging the source devices such as USB-C Laptop/MacBook. Please make sure your device support power delivery protocol

SKU 127709
Model # VL-UCTDMD
Barcode # 046139456516
Brand Volans
Shipping Weight 0.5000kg
Shipping Width 0.110m
Shipping Height 0.080m
Shipping Length 0.140m
