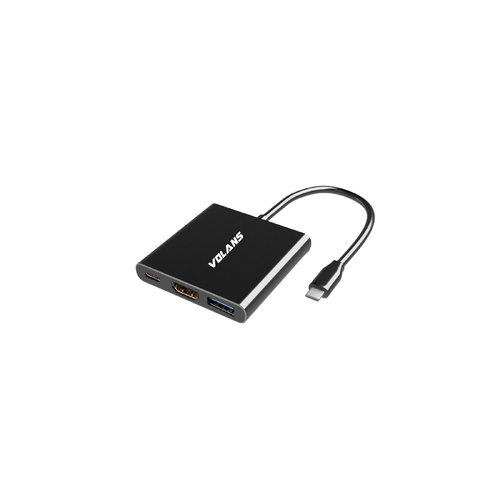

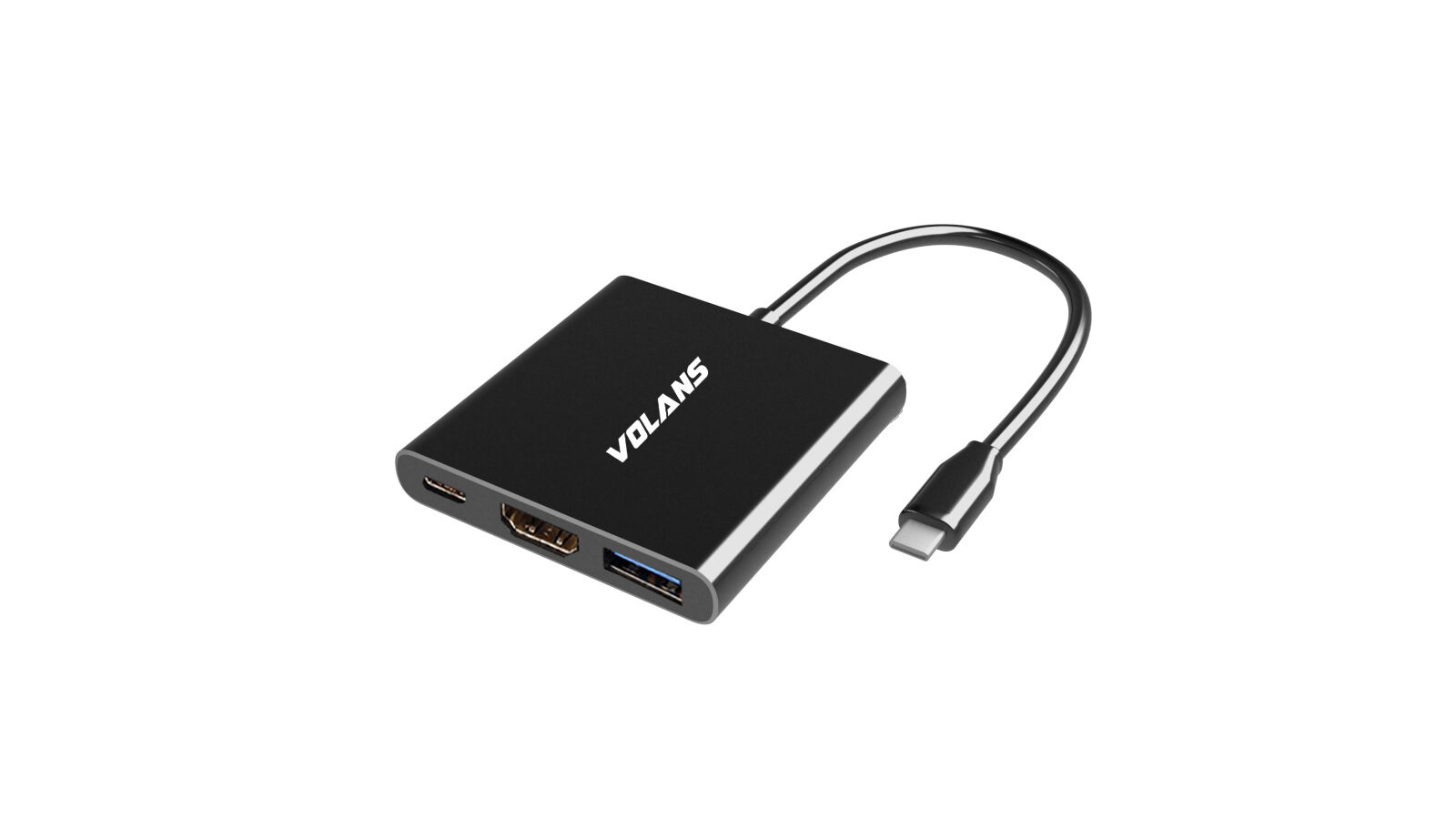

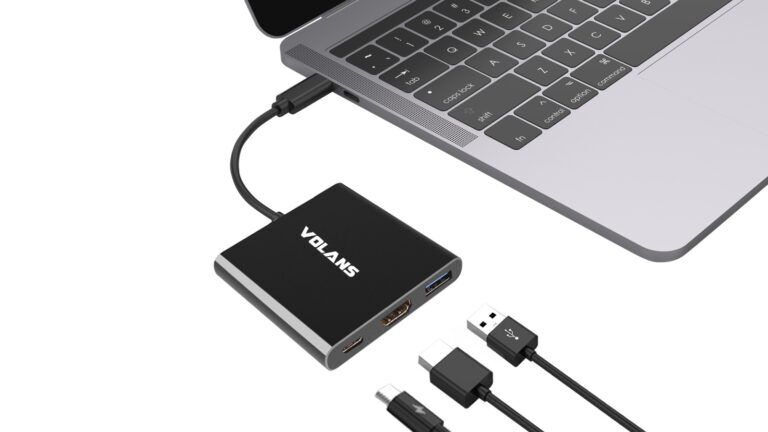

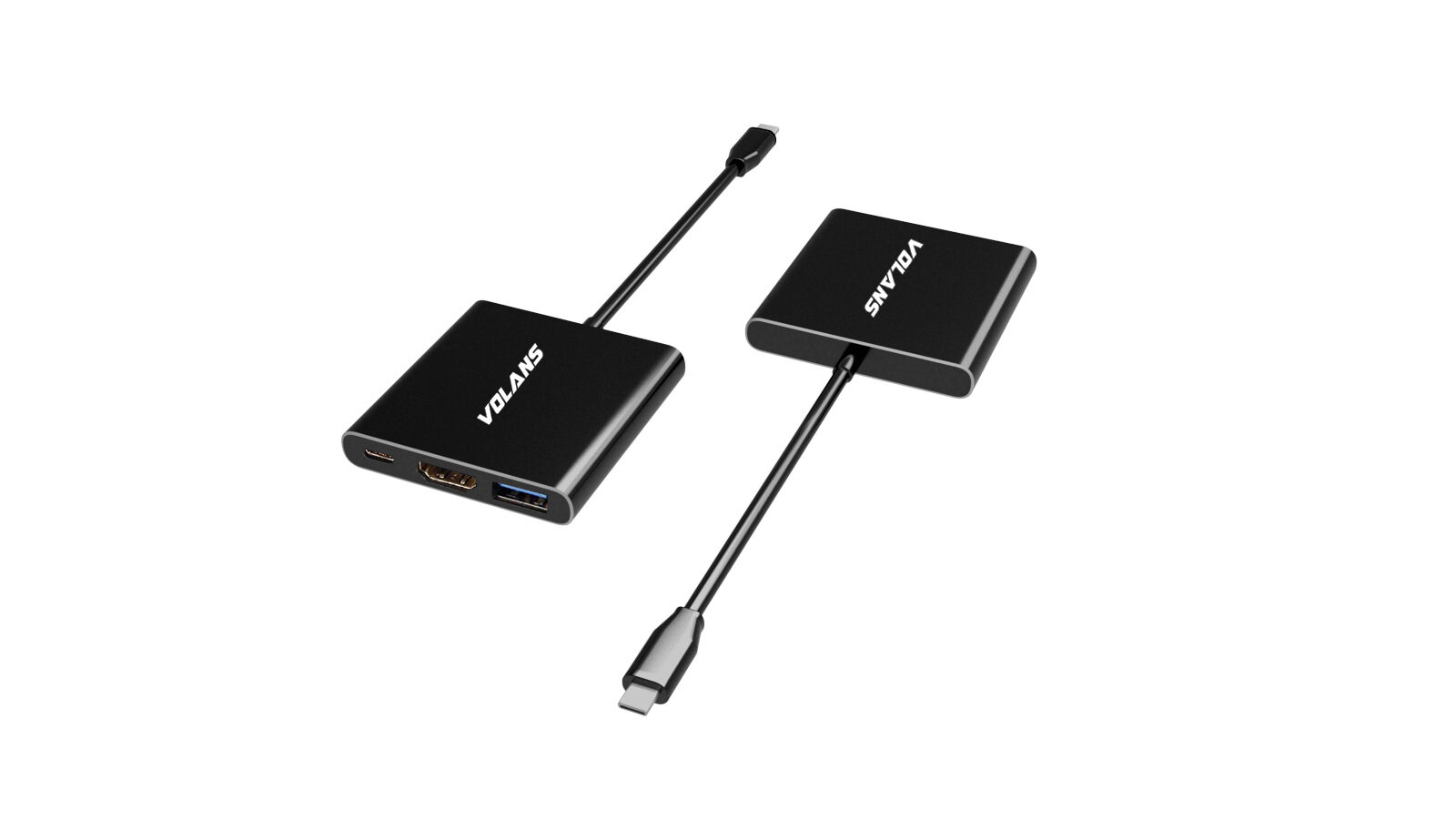

VOLANS VL-UCH3C2 Aluminium 3-in-1 USB-C Hub with 100W PD

SKU: 127705

  • Aluminium, travel-friendly design
  • Supports 4K Ultra HD @60Hz (DP1.4)
  • Charges your laptop with up to 100W
  • Works with older USB-A devices



Warranty Information
Warranty 1 Year
Hardware
4K Support Yes
Bus Type USB-C
Chipset ID VIA – VL102 (PD)
VIA – VL817 (USB3.0)
Parade – PS186 (HDMI)
Displays Supported 1
Fast-Charge Port(s) 1
Industry Standards USB 3.0 – Backward compatible with USB 2.0 and 1.1
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
Maximum Digital Resolutions 4K@60Hz (Require DP1.4)
Type and Rate USB 3.0 – 5 Gbit/s
UASP Support Yes
Connector(s)
Connector Type(s) 1 – USB Type-C (24 pin) USB 3.0 Male
  1 – HDMI (19 pin) Female
  1 – USB Type-A (9 pin) USB 3.0 Female
  1 – USB Type-C (24 pin) USB 3.0 Female
Special Notes / Requirements
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.
  The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
  A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
  USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode).
  Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter).
Power
Power Delivery 100W
Power Source USB-Powered
Environmental
Humidity 0~90% RH (Non-condensing)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Aluminium
What’s in the Box
Included in Package 1 – VL-UCH3C2
1- User Manual

(127705)




SKU 127705
Model # VL-UCH3C2
Barcode # 745051294762
Brand Volans
Shipping Weight 0.2000kg
Shipping Width 0.120m
Shipping Height 0.020m
Shipping Length 0.150m
