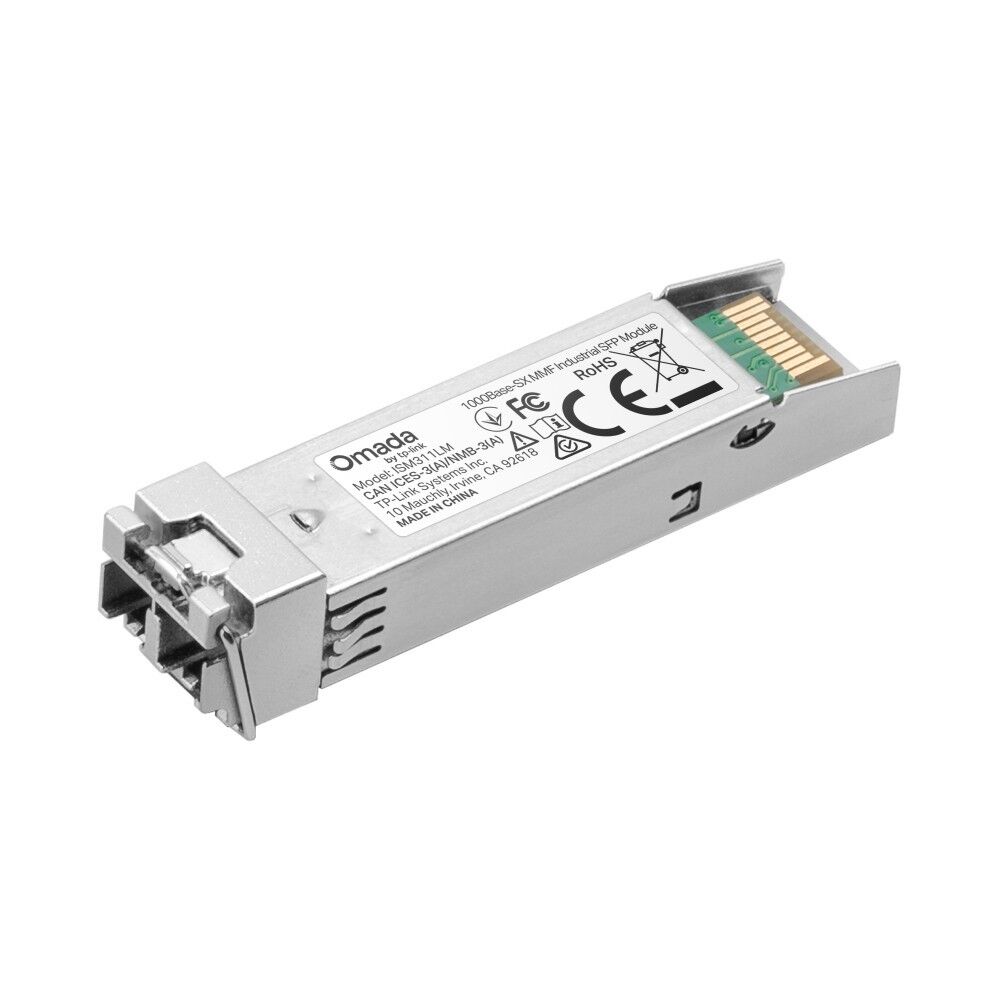

TP-Link ISM311LM 1000Base-SX MMF Industrial SFP Module

SKU: 127634

  • Multi-mode SFP LC Transceiver
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Hot-Pluggable with maximum flexibility
  • Industrial Product Operating Temperature Range: -40-85°C

What This Product Does

ISM311LM is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LM can extend the distance to 550m. Users can choose whether and which items to use the fiber modules according to the demand in order to lower co

(127634)

Transceiver
Standards and Protocols IEEE 802.3z,TCP/IP
Wave Length 850 nm
Power Supply 3.3V
Fiber Type 50/125 μm or 62.5/125 μm
Multi-mode
Max. Cable Length 550m
Data Rate 1.25 Gbps
Connector LC/UPC
Regulatory Compliance FCC, CE
Environment • Operating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F)
• Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F)
• Operating Humidity: 5%~85% non-condensing
• Storage Humidity: 5%~85% non-condensing

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 2.2*0.5* 0.4 in (56.4*13.4*11.0 mm)

Package Content
Package Content • ISM311LM
• Installation Guide
SKU 127634
Model # ISM311LM
Barcode # 1210002601979
Brand TP-LINK
Shipping Weight 0.0600kg
Shipping Width 0.080m
Shipping Height 0.040m
Shipping Length 0.120m
