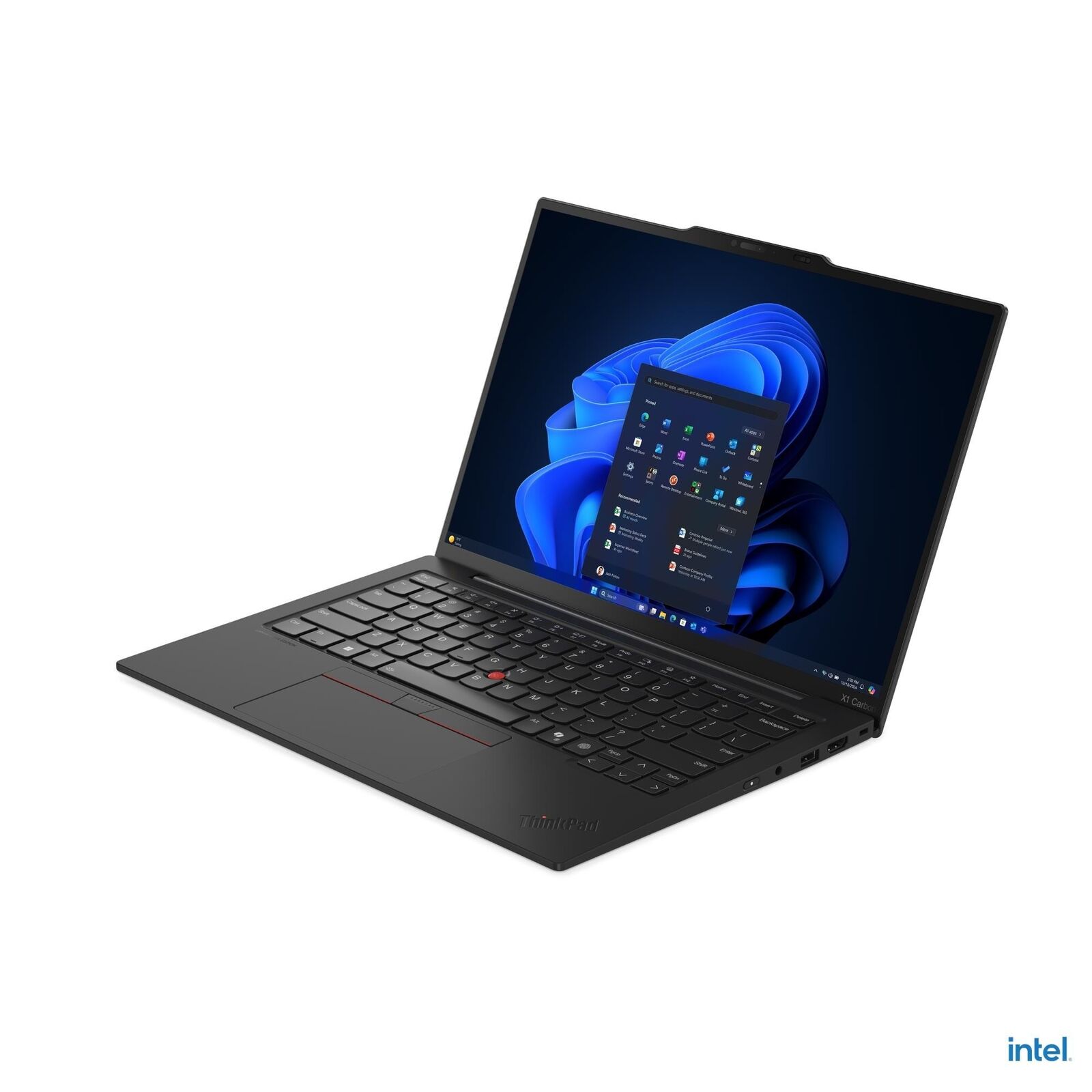

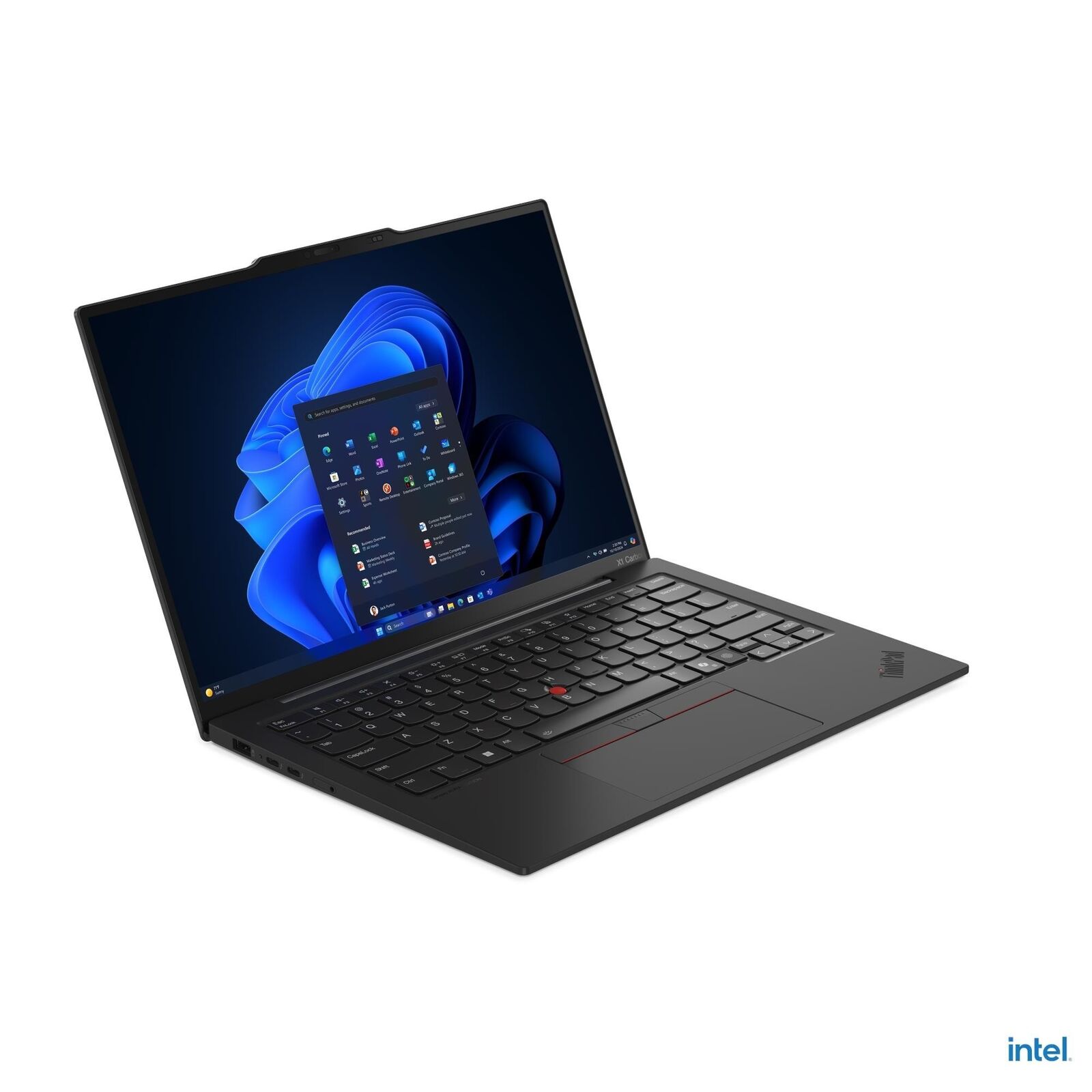

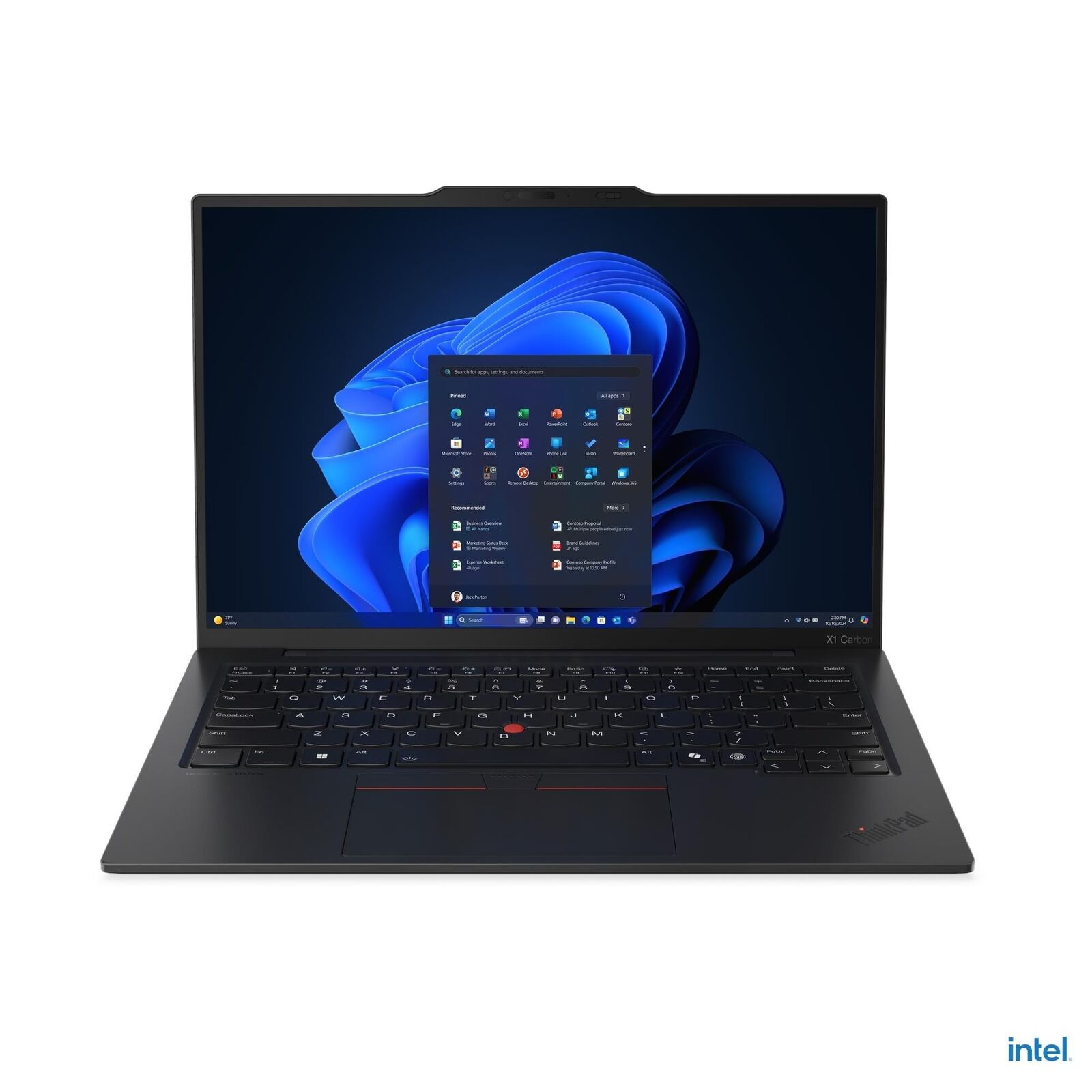

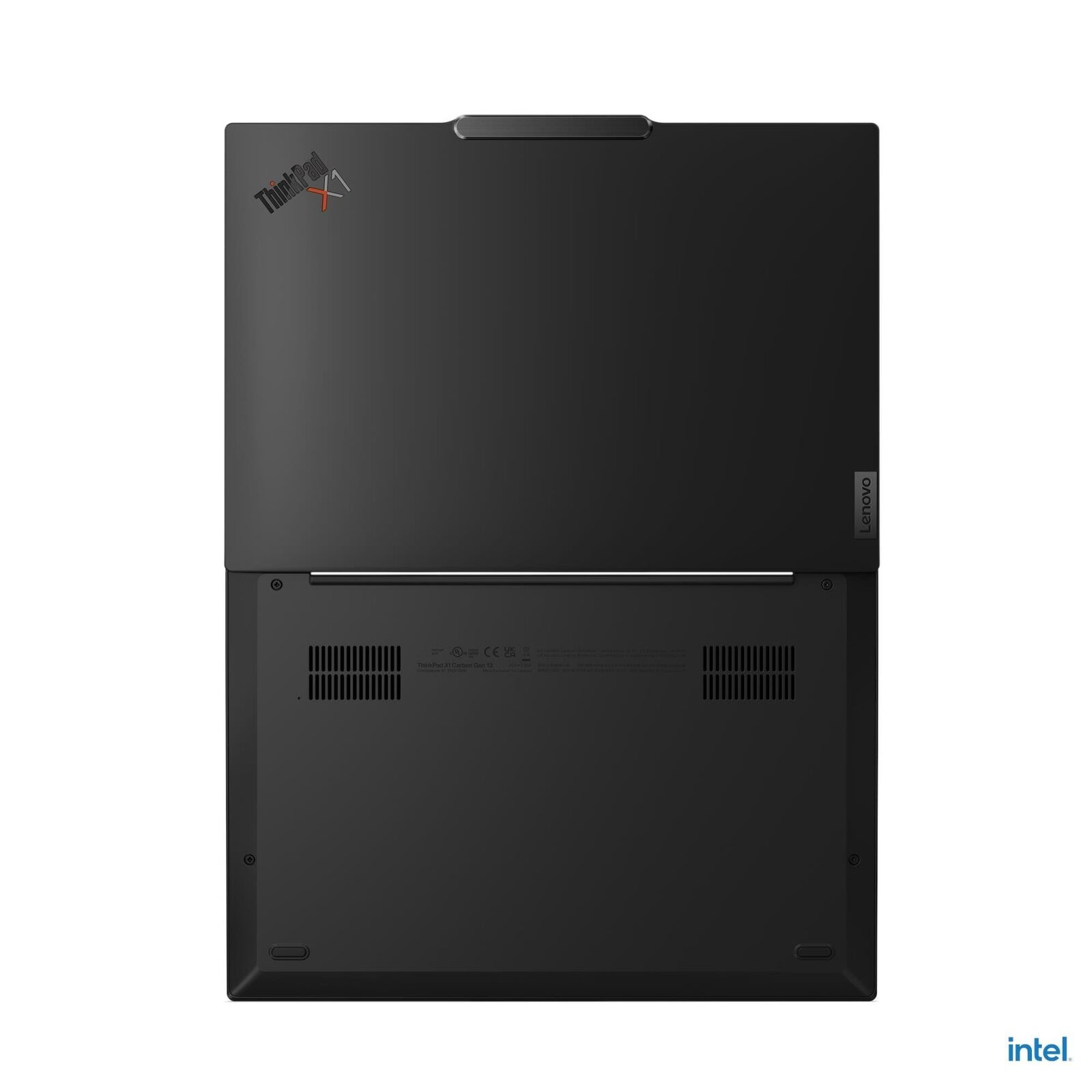

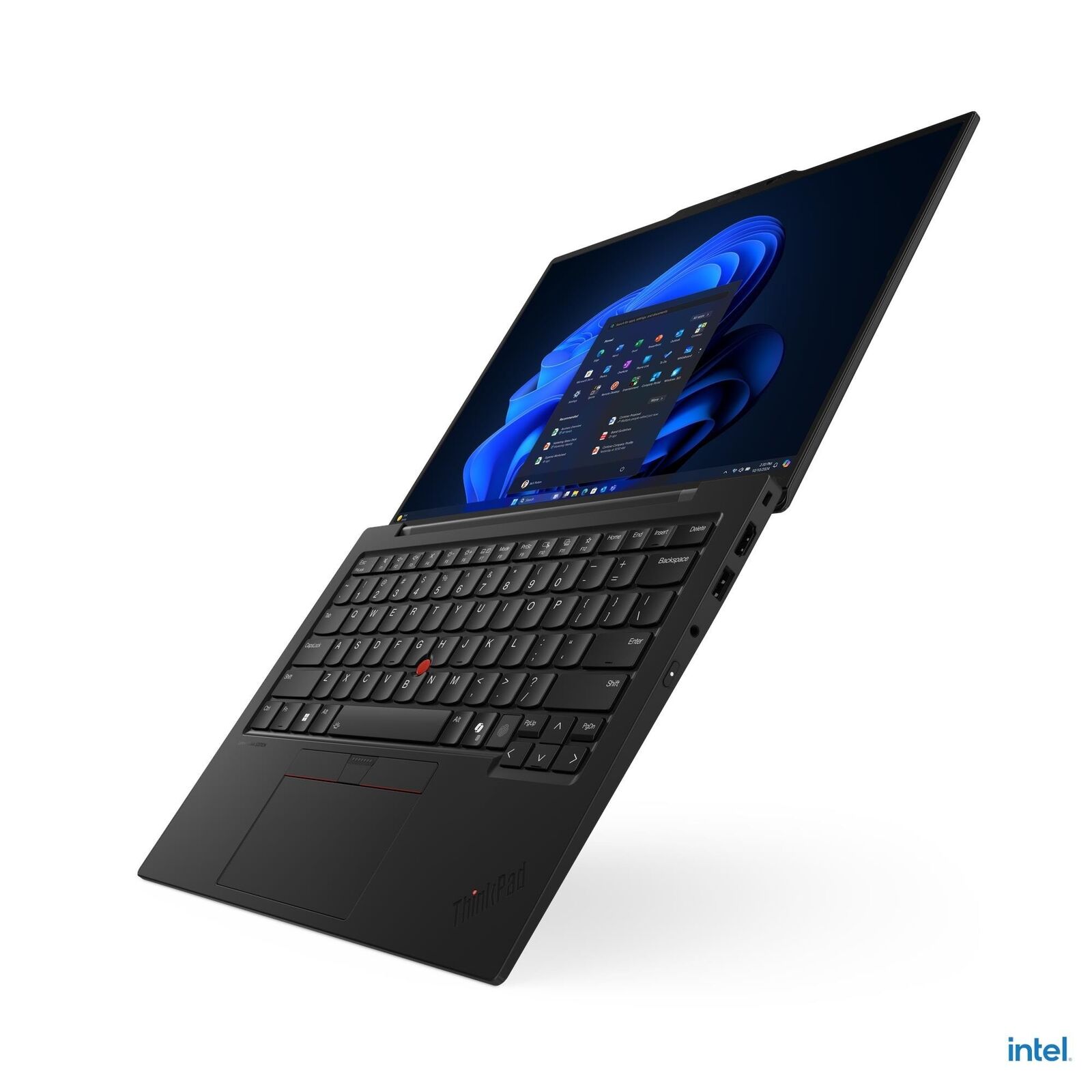

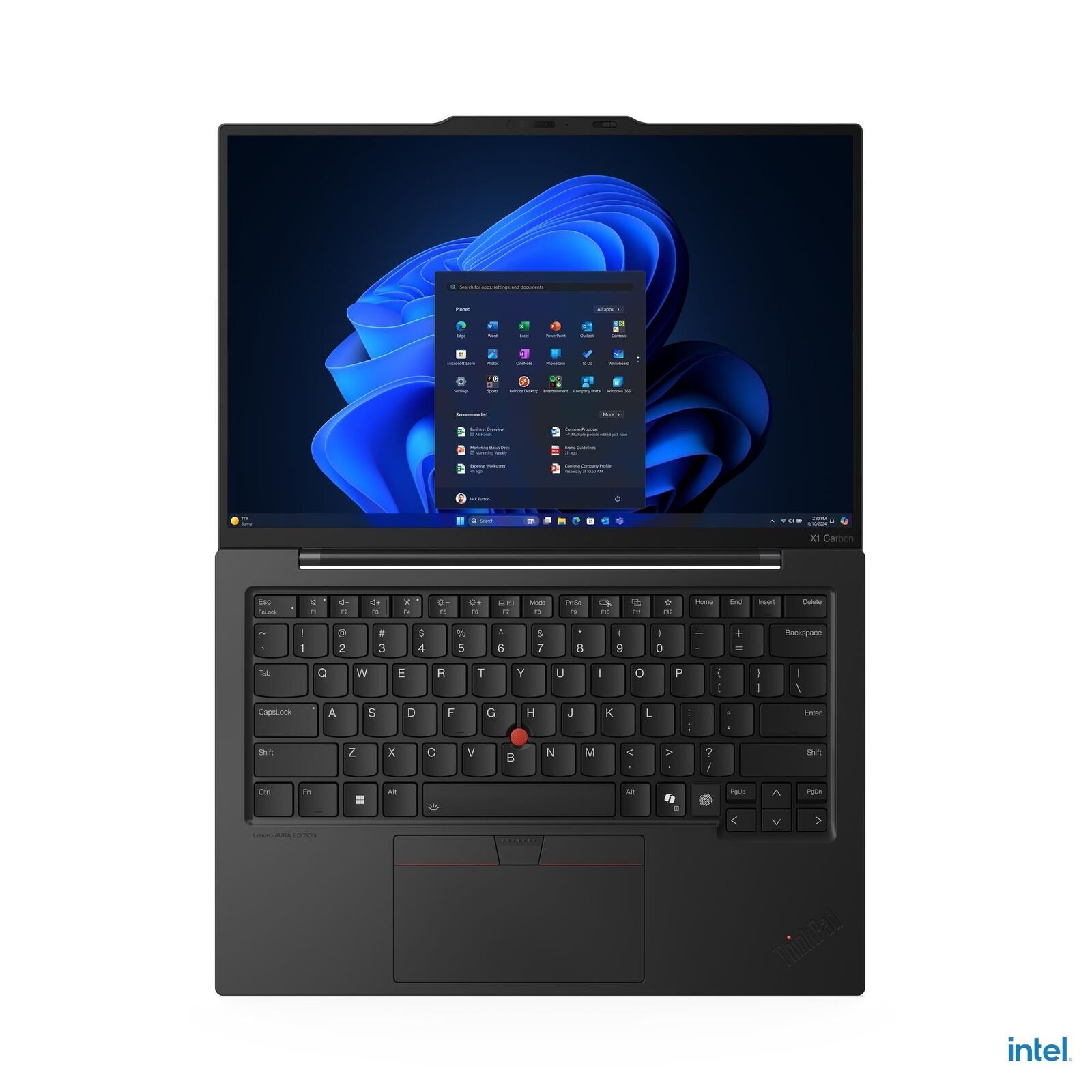

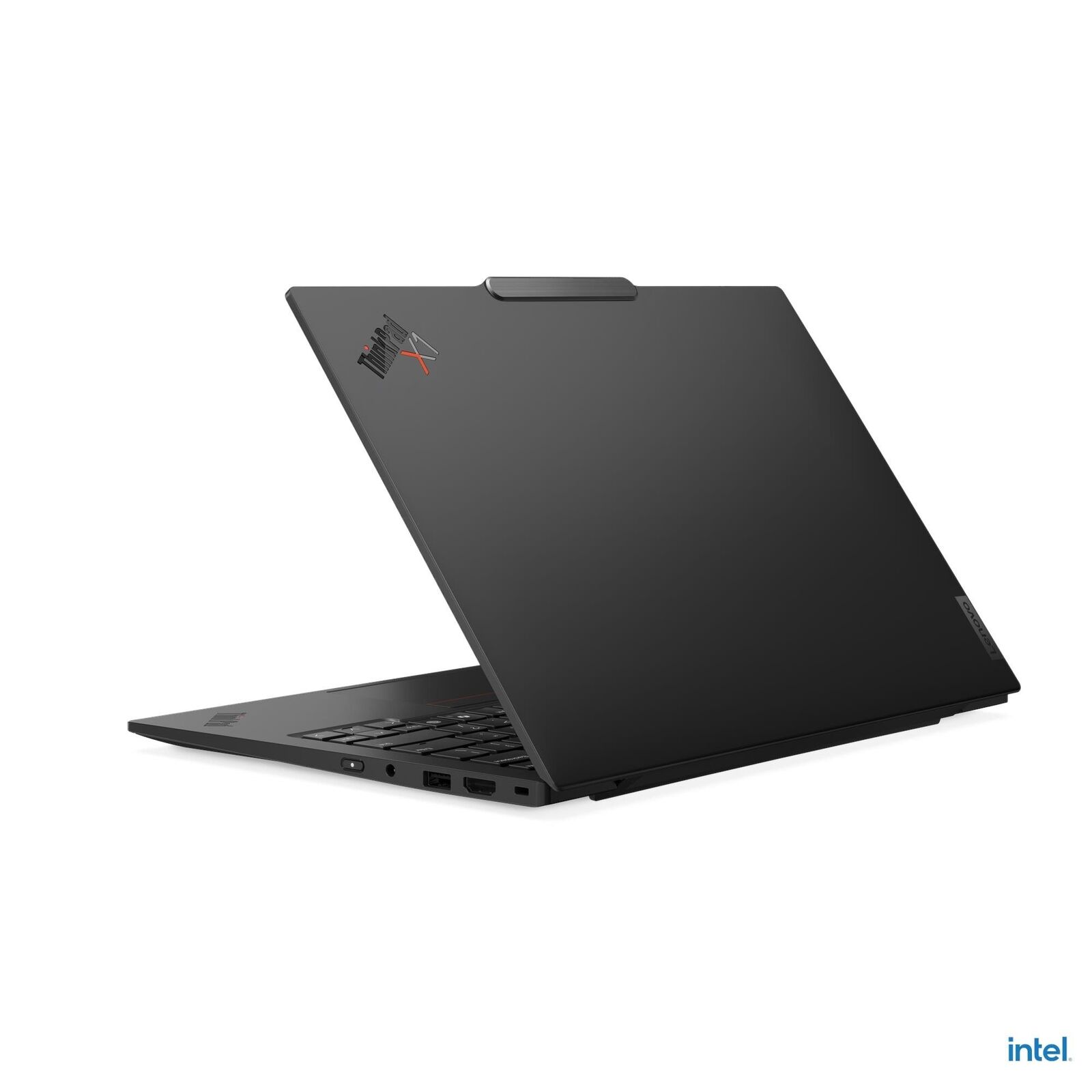

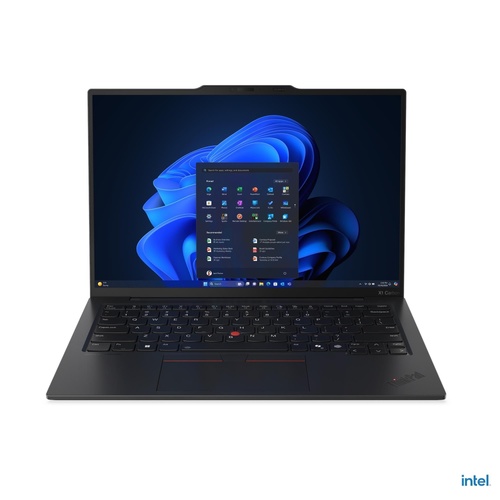

Lenovo ThinkPad X1 Carbon G13 Aura 21NX0029AU 14"WUXGA Core U7-255H 32GB 512GB SSD W11P 3Y PREM

SKU: 127544

PERFORMANCE
Processor	Intel® Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB
AI PC Category	AI PC
NPU	Integrated Intel® AI Boost, up to 13 TOPS
Graphics	Integrated Intel® Arc™ 140T GPU
Chipset	Intel® SoC Platform
Memory	32GB Soldered LPDDR5x-8400
Memory Slots	Memory soldered to systemboard, no slots, dual-channel
Max Memory	32GB soldered memory, not upgradable
Storage	512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot	Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support	One drive, up to 2TB M.2 2280 SSD
Card Reader	None
Audio Chip	Arrow Lake: High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers	Stereo speakers, 2W x2, Dolby Atmos®
Microphone	2x, 360°
Camera	FHD 1080p + IR Discrete with Privacy Shutter
Battery	57Wh
Power Adapter	65W USB-C® (3-pin)
DESIGN
Display	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power
Touchscreen	None
Screen-to-Body Ratio	89.20%
Pen	Pen Not Supported
Keyboard	Backlit, English
Touchpad	Trackpad
Dimensions (WxDxH)	312.80 x 214.75 x 8.38/14.77 (front/rear), 17.95 (maximum) mm; 12.31 x 8.45 x 0.33/0.58 (front/rear), 0.71 (maximum)inches
Weight	Starting at 1006 g (2.22 lbs)
Case Color	Black, Paint
Case Material	Carbon Fiber (Top), Aluminium (Bottom)
SOFTWARE
Operating System	Windows® 11 Pro, English (US) / English (UK)
Bundled Software	Intel® Connectivity Performance Suite + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth	Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN	Non-WWAN
SIM Card	None
Ethernet	No Onboard Ethernet
NFC	None
Standard Ports	1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
	1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
	2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
	1x HDMI® 2.1, up to 4K/60Hz
	1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)	None
Docking	Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 Aura Edition
SECURITY & PRIVACY
Security Chip	Discrete TPM 2.0 Enabled
Physical Locks	Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader	None
Fingerprint Reader	Touch Style, Match-on-Chip, in Keyboard Key
Other Security	Camera privacy shutter
	Ultrasonic Human Presence Detection
	ThinkShield
	IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management	Non-vPro®
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories	None
CERTIFICATIONS
Green Certifications	ENERGY STAR® 9.0
	EPEAT™ Gold Registered
	ErP Lot 6/26
	RoHS compliant
	TCO Certified, generation 10
Mil-Spec Test	MIL-STD-810H military test passed
Other Certifications	Eyesafe® Certified 2.0
	Intel® Evo™ Platform
	SGS High Performance Al PC Certification

(127544)

SKU	127544
Model #	21NX0029AU
Barcode #	198157276130
Brand	LENOVO
Shipping Weight	2.4000kg
Shipping Width	0.300m
Shipping Height	0.070m
Shipping Length	0.460m
