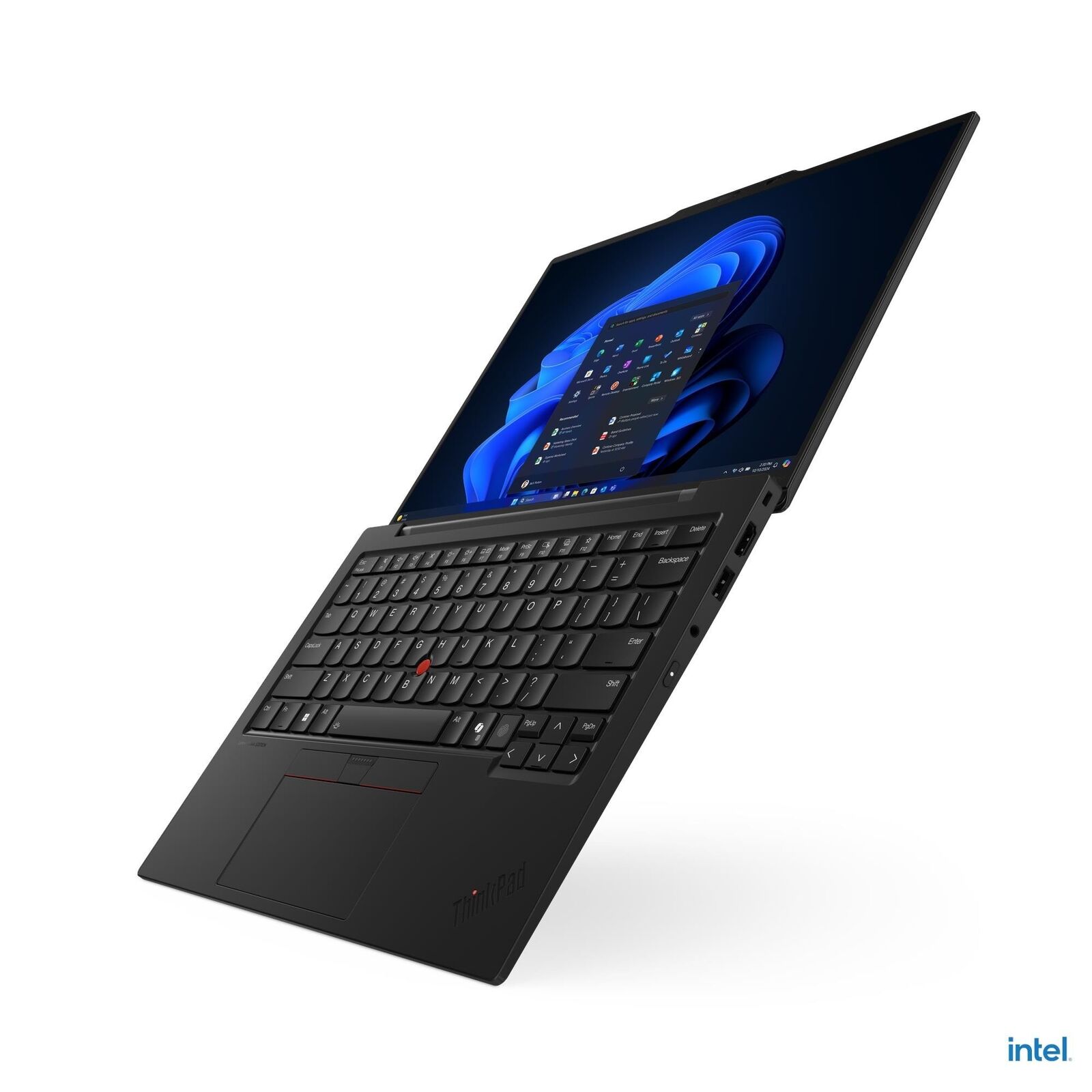

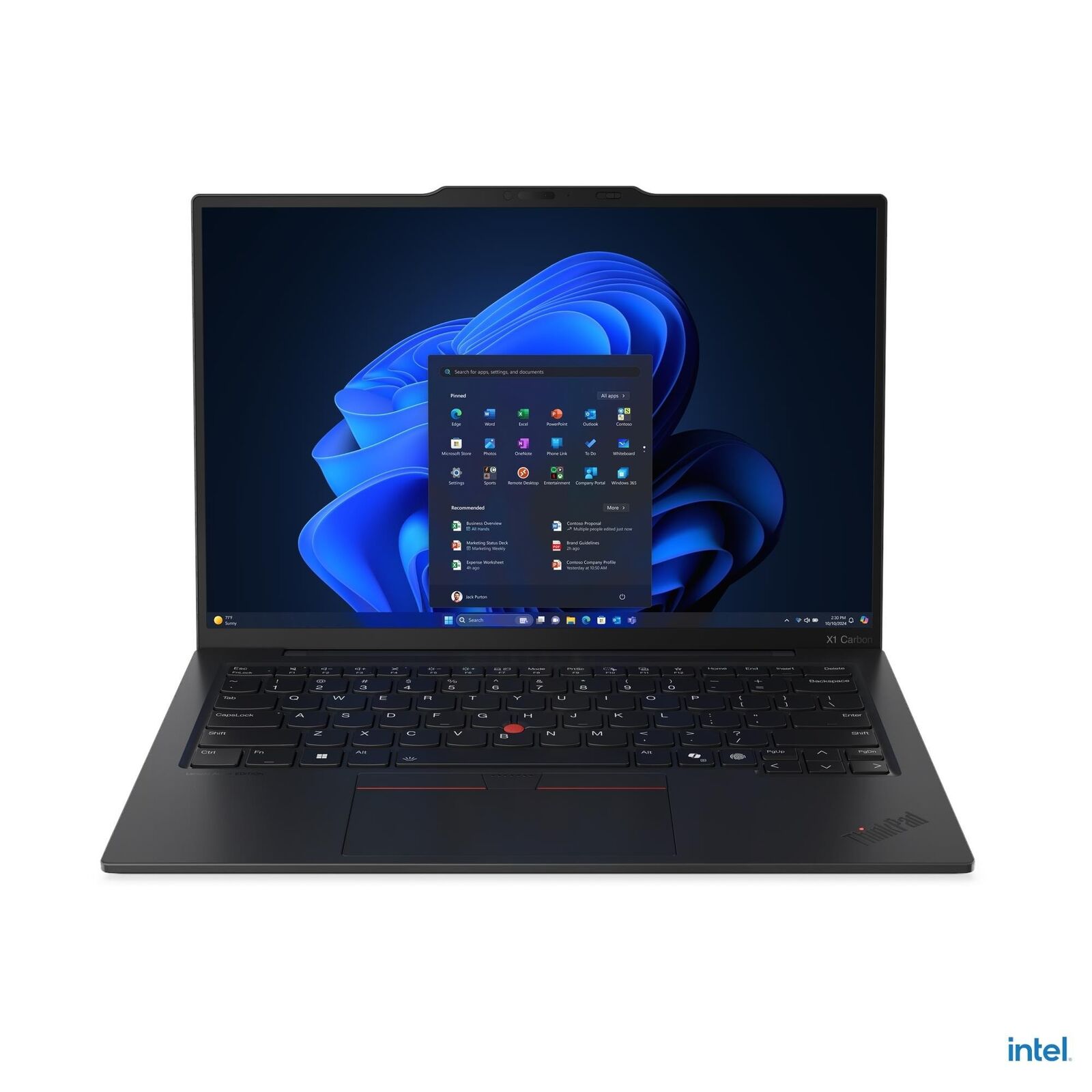

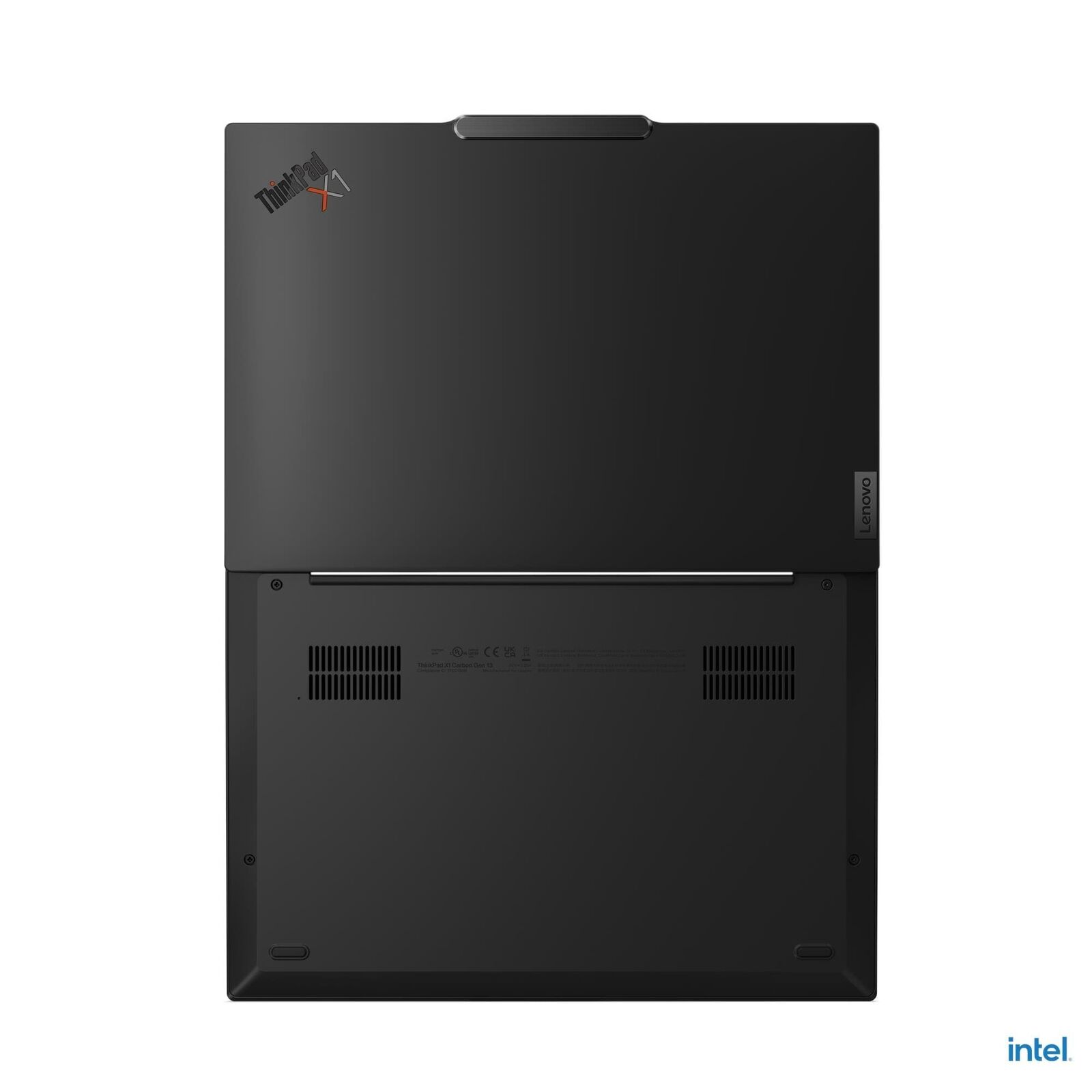

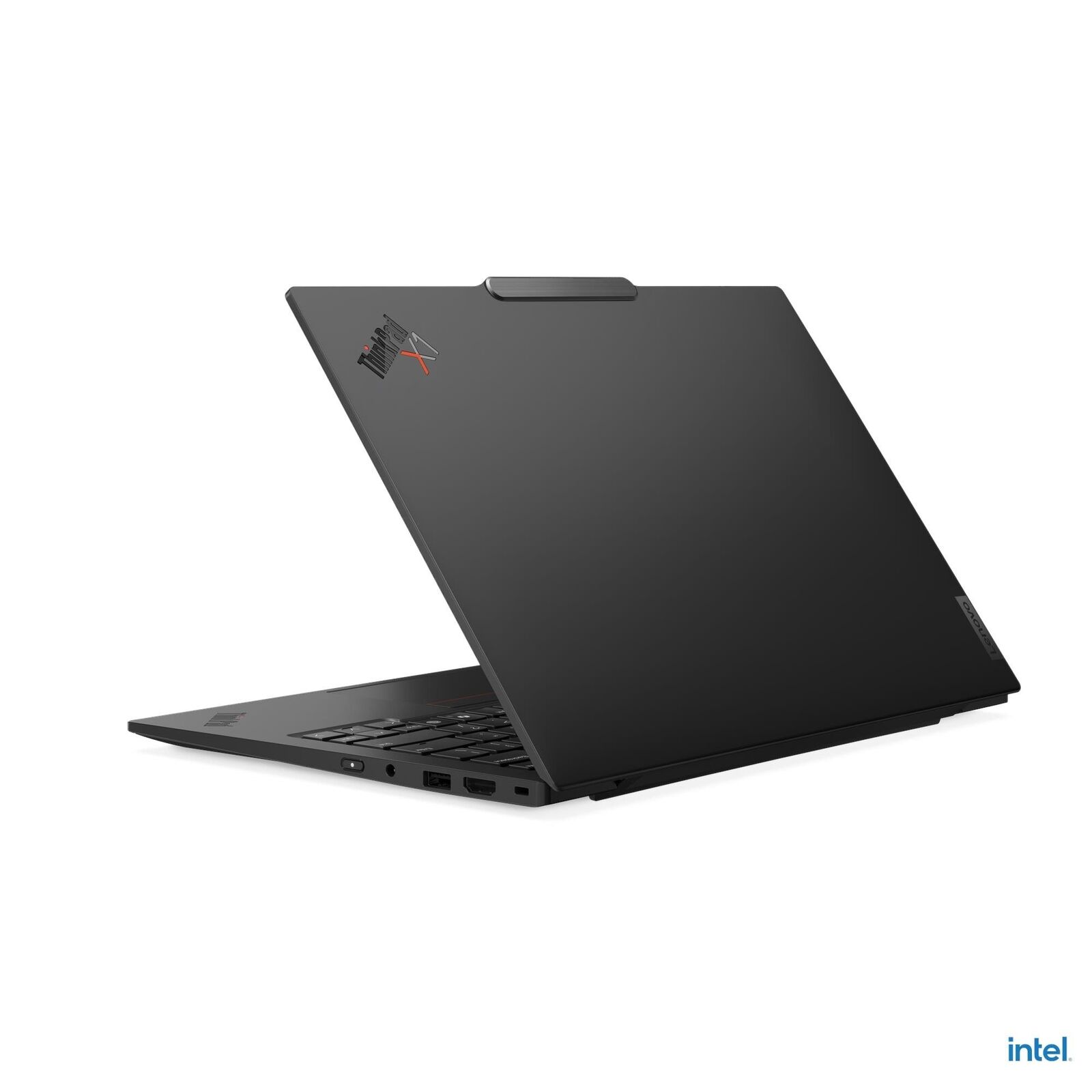

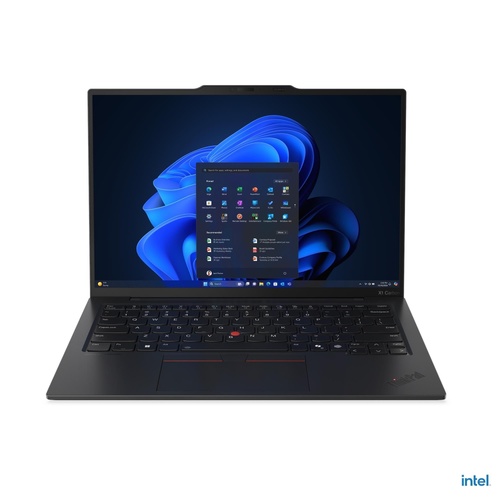

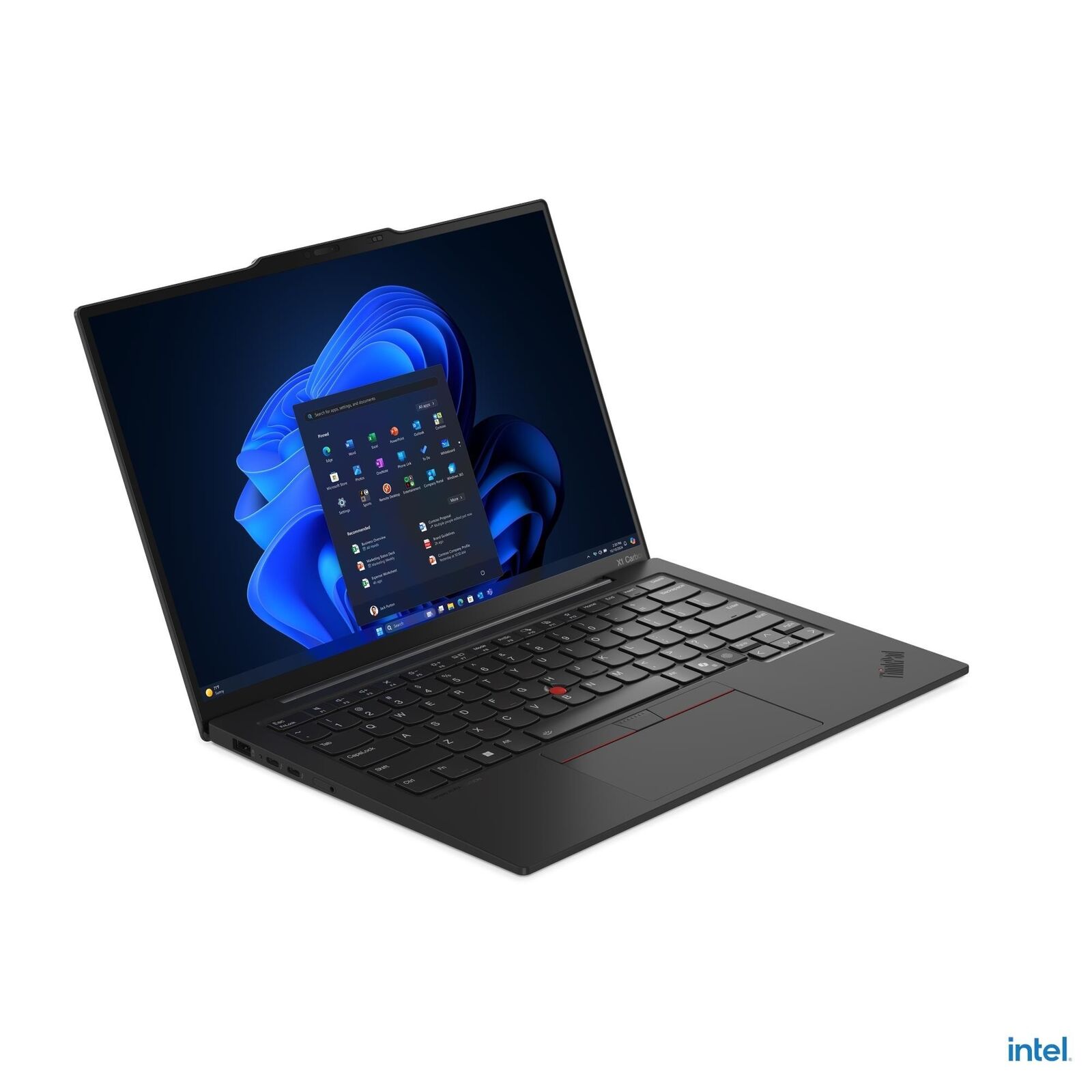

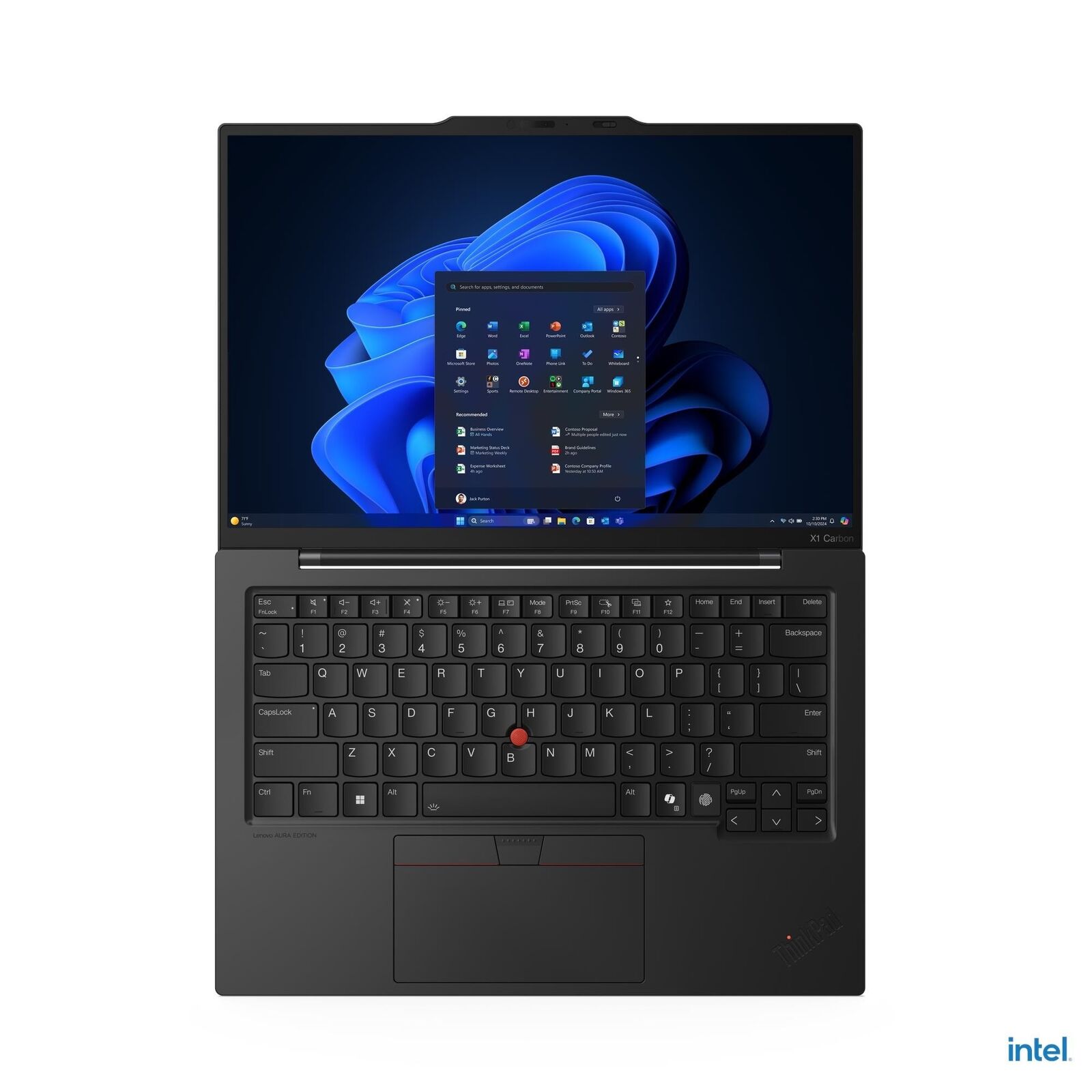

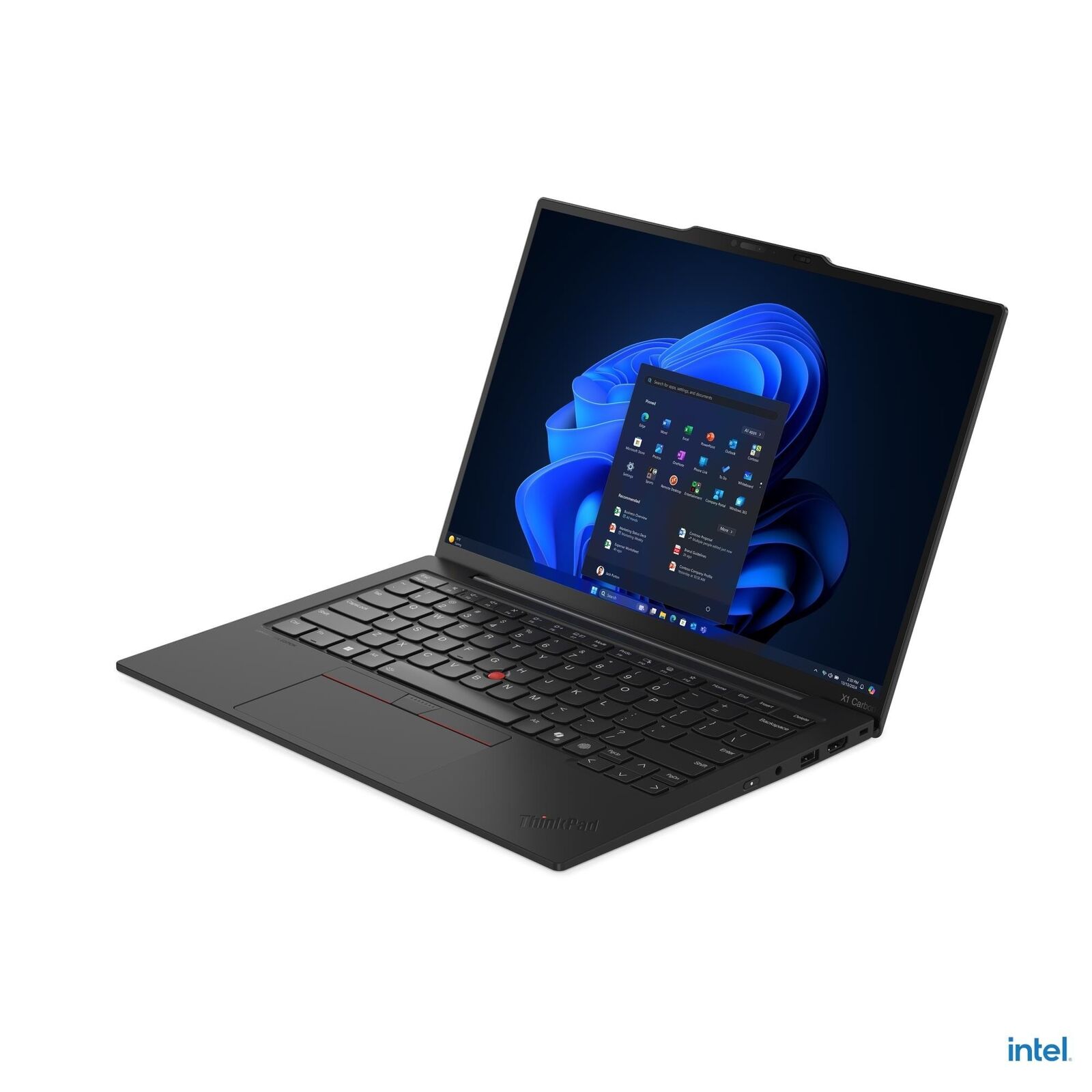

Lenovo ThinkPad X1 Carbon G13 Aura 21NS00FAAU 14"2.8K OLED Core U7-258V 32GB 1TB SSD 5G W11P(CP+) 3Y Prem

SKU: 127549

PERFORMANCE
Processor	Intel Core™ Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel® Smart Cache
AI PC Category	Copilot+ PC
NPU	Integrated Intel® AI Boost, up to 47 TOPS
Graphics	Integrated Intel® Arc™ Graphics 140V
Chipset	Intel® SoC Platform
Memory	32GB Soldered LPDDR5x-8533, MoP Memory
Memory Slots	Memory soldered to systemboard, no slots, dual-channel
Max Memory	32GB soldered memory, not upgradable
Storage	1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot	Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support	One drive, up to 2TB M.2 2280 SSD
Card Reader	No Card Reader
Audio Chip	Lunar Lake: SoundWire®, Realtek® ALC713 codec
Speakers	Stereo speakers, 2W x2, Dolby Atmos®
Microphone	2x, 360°
Camera	FHD 1080p + IR Discrete with Privacy Shutter
Battery	57Wh
Power Adapter	65W USB-C® Nano GaN (2-pin, Wall-mount)
DESIGN
Display	14" 2.8K (2880x1800) OLED 500nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz VRR, DisplayHDR™ True Black 500, Dolby Vision®
Touchscreen	None
Screen-to-Body Ratio	89.20%
Pen	Pen Not Supported
Keyboard	Backlit, English
Touchpad	Trackpad
Dimensions (WxDxH)	312.80 x 214.75 x 8.08/14.37 (front/rear), 16.95 (maximum) mm; 12.31 x 8.45 x 0.32/0.56 (front/rear), 0.67 (maximum) inches
Weight	Starting at 986 g (2.17 lbs)
Case Color	Black, Paint
Case Material	Carbon Fiber (Top), Aluminium (Bottom)
SOFTWARE
Operating System	Windows® 11 Pro, English (US) / English (UK)
Bundled Software	Intel® Connectivity Performance Suite + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth	Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4, vPro®
WWAN	Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM
SIM Card	No physical SIM card inbox
Ethernet	No Onboard Ethernet
NFC	No NFC
Standard Ports	1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
	1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
	2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
	1x HDMI® 2.1, up to 4K/60Hz
	1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)	1x Nano-SIM Card Slot
Docking	Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® X1 Carbon Gen 13 Aura Edition
SECURITY & PRIVACY
ThinkShield	ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here
Security Chip	Discrete TPM 2.0 Enabled
Physical Locks	Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader	No Smart Card Reader
Fingerprint Reader	Touch Style, Match-on-Chip, in Keyboard Key
Other Security	Camera privacy shutter
	IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management	Non-vPro®
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories	None
CERTIFICATIONS
Green Certifications	ENERGY STAR® 9.0
	EPEAT™ Gold Registered
	ErP Lot 6/26
	RoHS compliant
	TCO Certified, generation 10
Mil-Spec Test	MIL-STD-810H military test passed
Other Certifications	Intel Evo™ Platform
	SGS High Performance Al PC Certification
	Eyesafe® Certified 2.0

(127549)

SKU	127549
Model #	21NS00FAAU
Barcode #	198158677578
Brand	LENOVO
Shipping Weight	2.2200kg
Shipping Width	0.310m
Shipping Height	0.080m
Shipping Length	0.460m
