SKU: 127042
SKU: 127042
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km

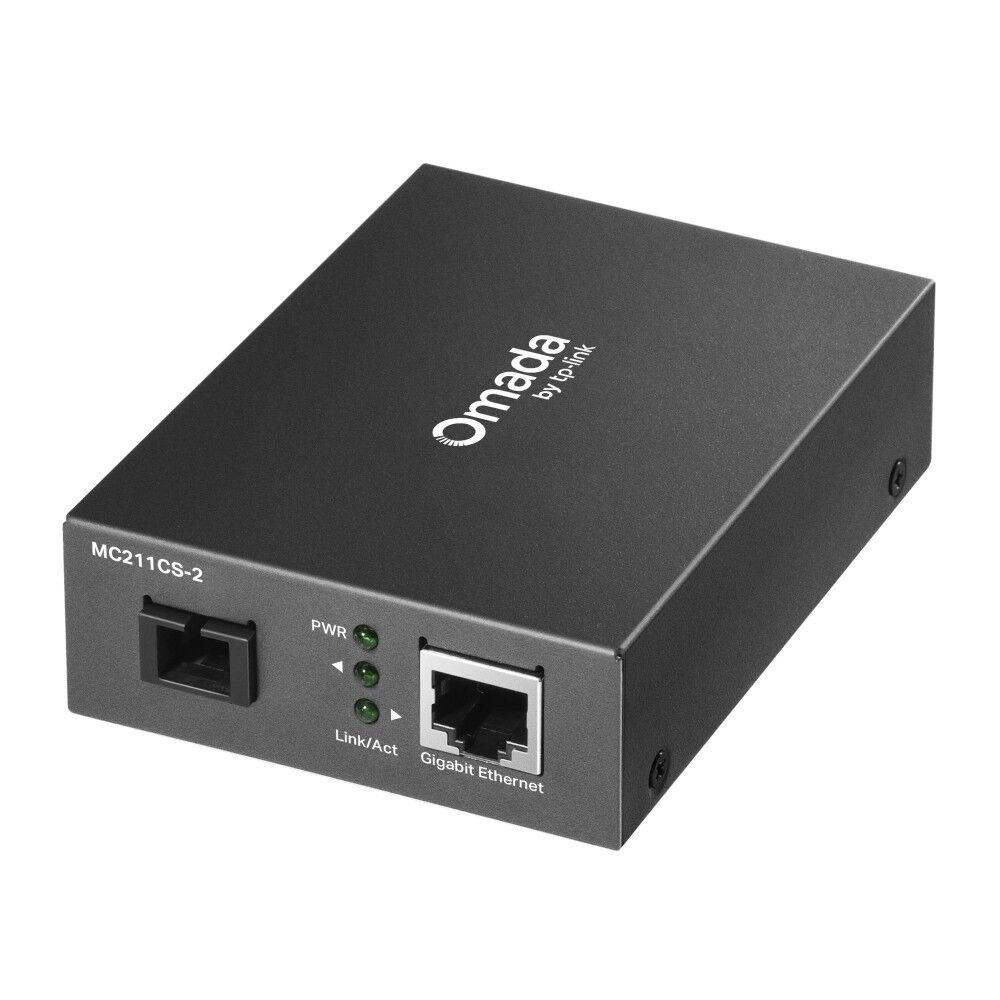

MC211CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
(127042)
| NETWORK | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
|
HARDWARE FEATURES
|
|
| Interface | • 1× Gigabit SC/UPC Fiber Port |
| • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) | |
| Power Supply | External Power Adapter: 9 V/0.6 A |
| LED | PWR, Link/Act |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Dimensions ( W x D x H ) | 94.5x73x27 mm (37.2x28.7x10.6 in) |
|
ENVIRONMENT
|
|
| Operating Temperature | -5˚C to 50˚C (23˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
|
OTHERS
|
|
| Package Content | • Media Converter MC211CS-2 |
| • Power Adapter | |
| • Installation Guide | |
| SKU | 127042 |
| Model # | MC211CS-2 |
| Barcode # | 1210002600903 |
| Brand | TP-LINK |
| Shipping Weight | 0.2900kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
