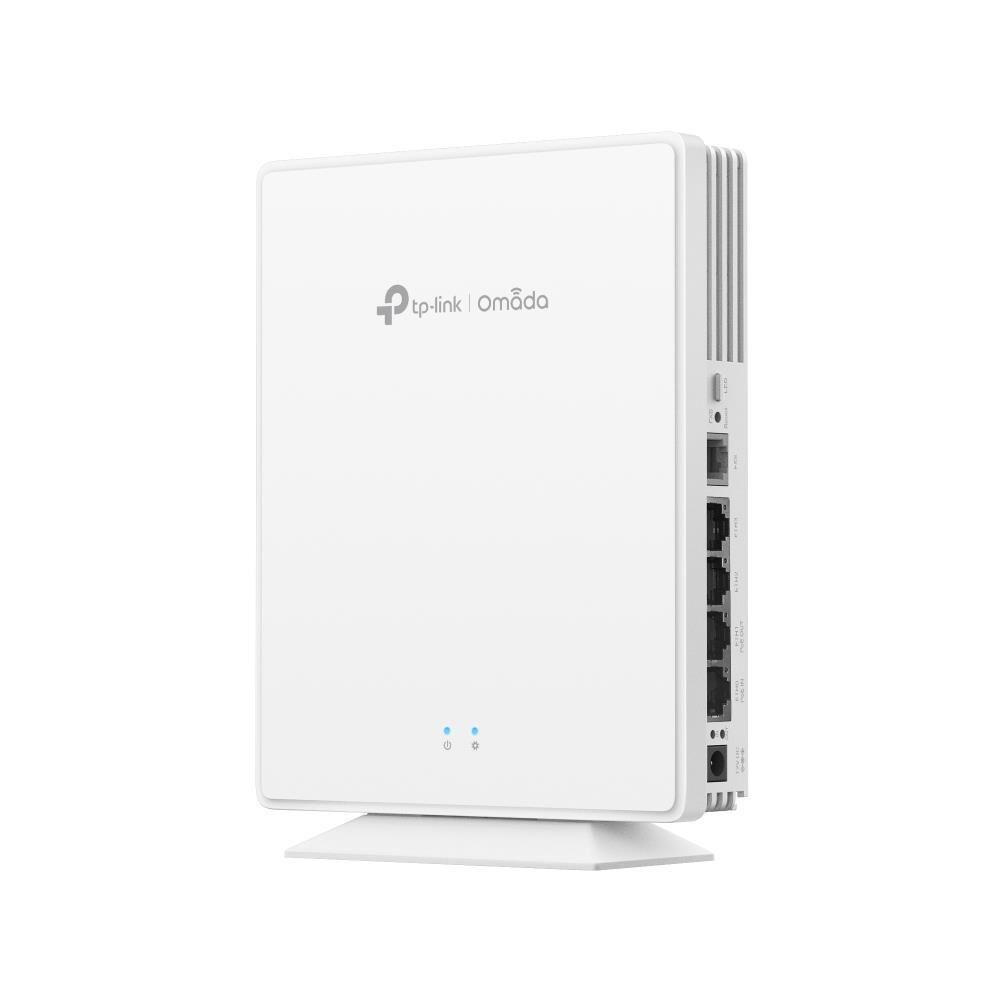

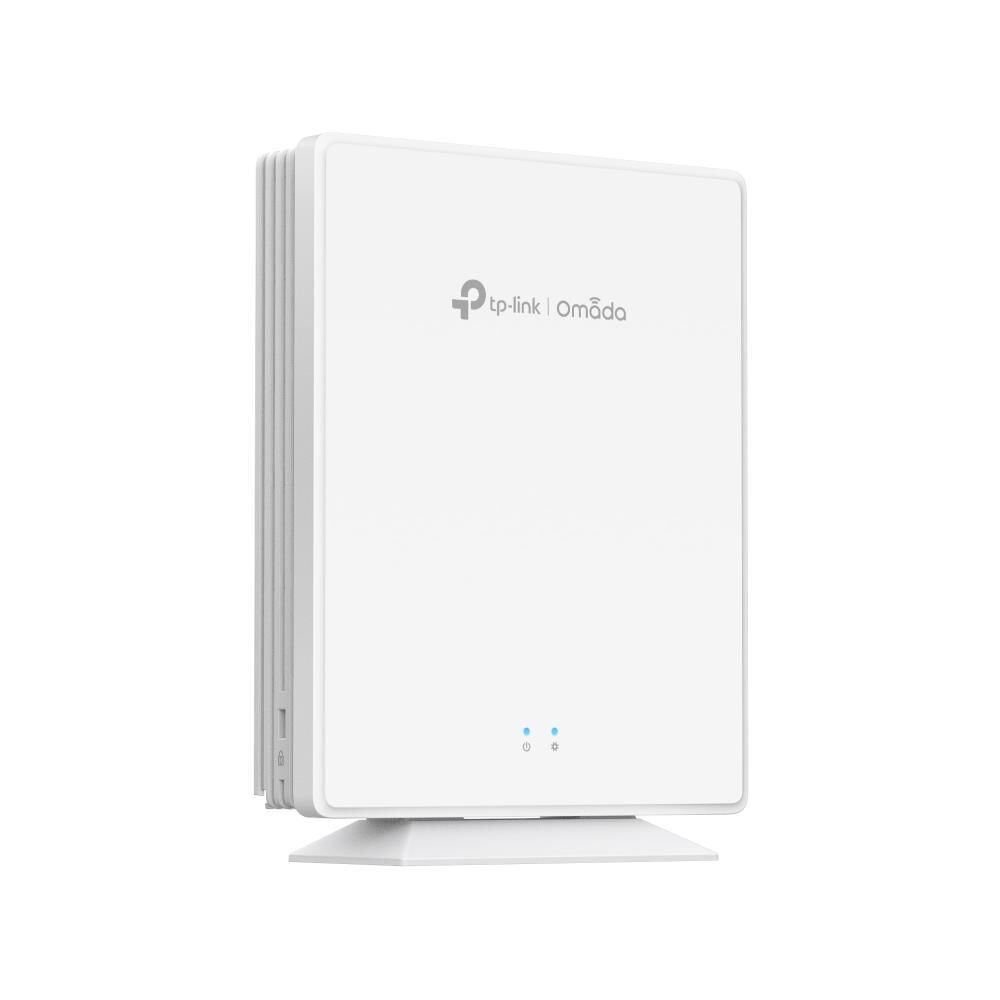

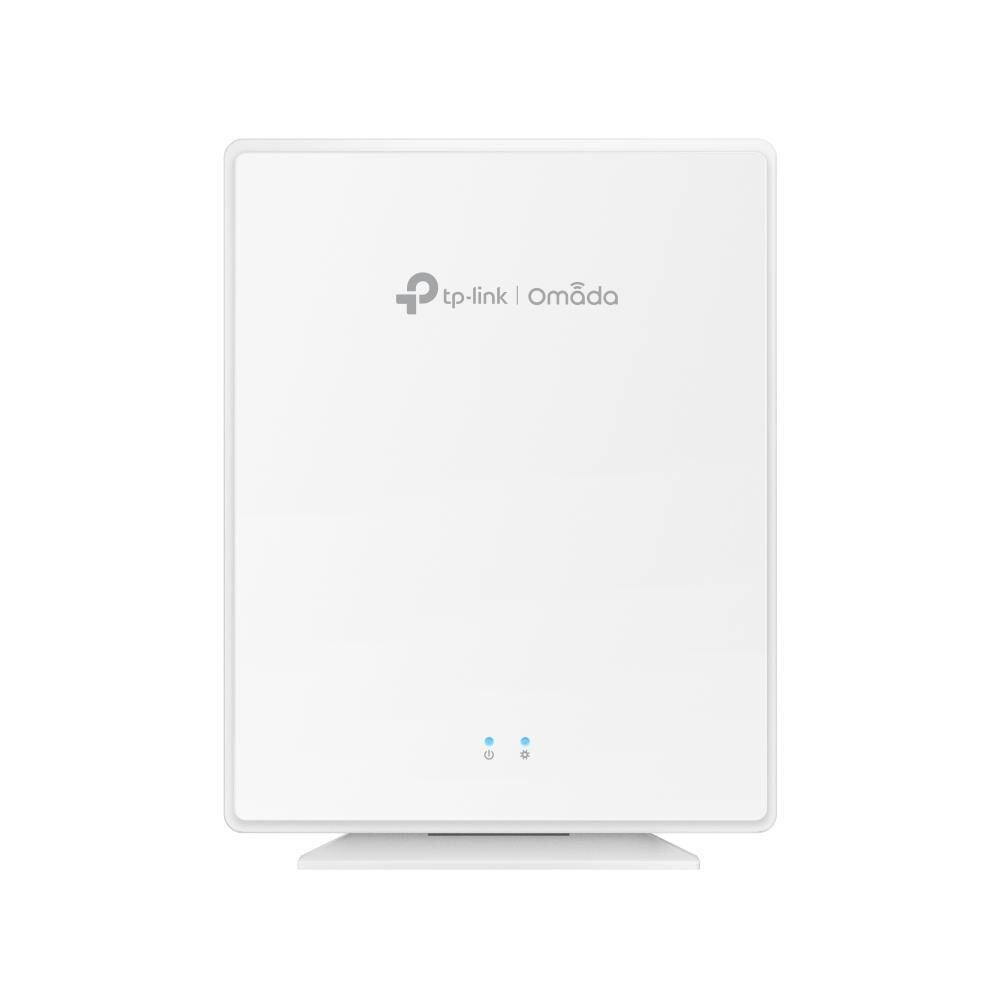

TP-Link EAP650-Desktop Omada AX3000 Desktop Wi-Fi 6 Access Point

SKU: 126313

  • Blazing-Fast AX3000 Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps Wi-Fi speeds. †
  • Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
  • Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
  • No Installation needed:Supports desktop installation without the need for additional setup.
  • High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
  • Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.§
  • Centralised Cloud Management: Integrates with the Omada SDN platform for Centralised Management. §

(126313)

HARDWARE FEATURES

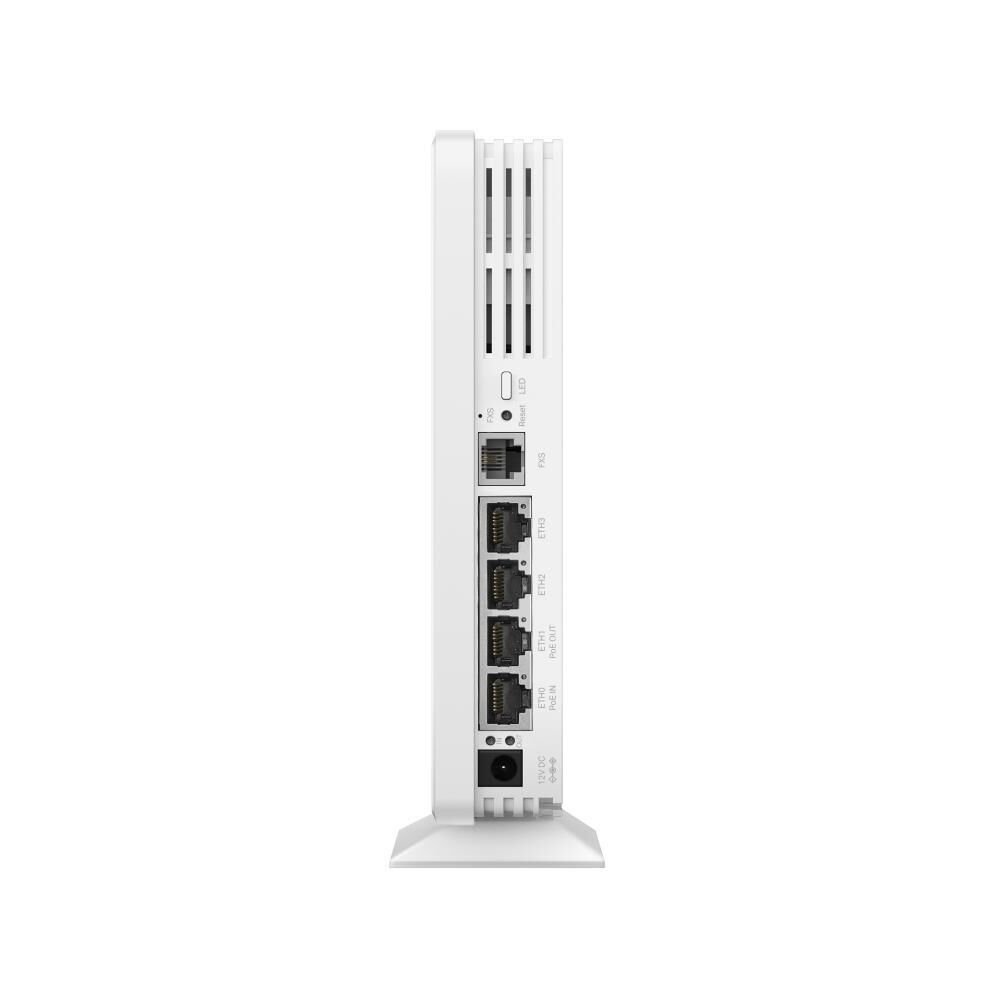

Interface 4× 1Gbps Ethernet Ports + 1× FXS Port
(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button • Reset
• LED
Power Supply 802.3 af/at/bt PoE or 12V/1.5A DC
*PoE Out requires 802.3at/bt PoE power supply
Power Consumption 17.3W (PoE Out Off)
Weight 452g (excluding mounting base)
Dimensions ( W x D x H ) 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 3× 4.7 dBi
Range 140㎡(1500 ft²)*

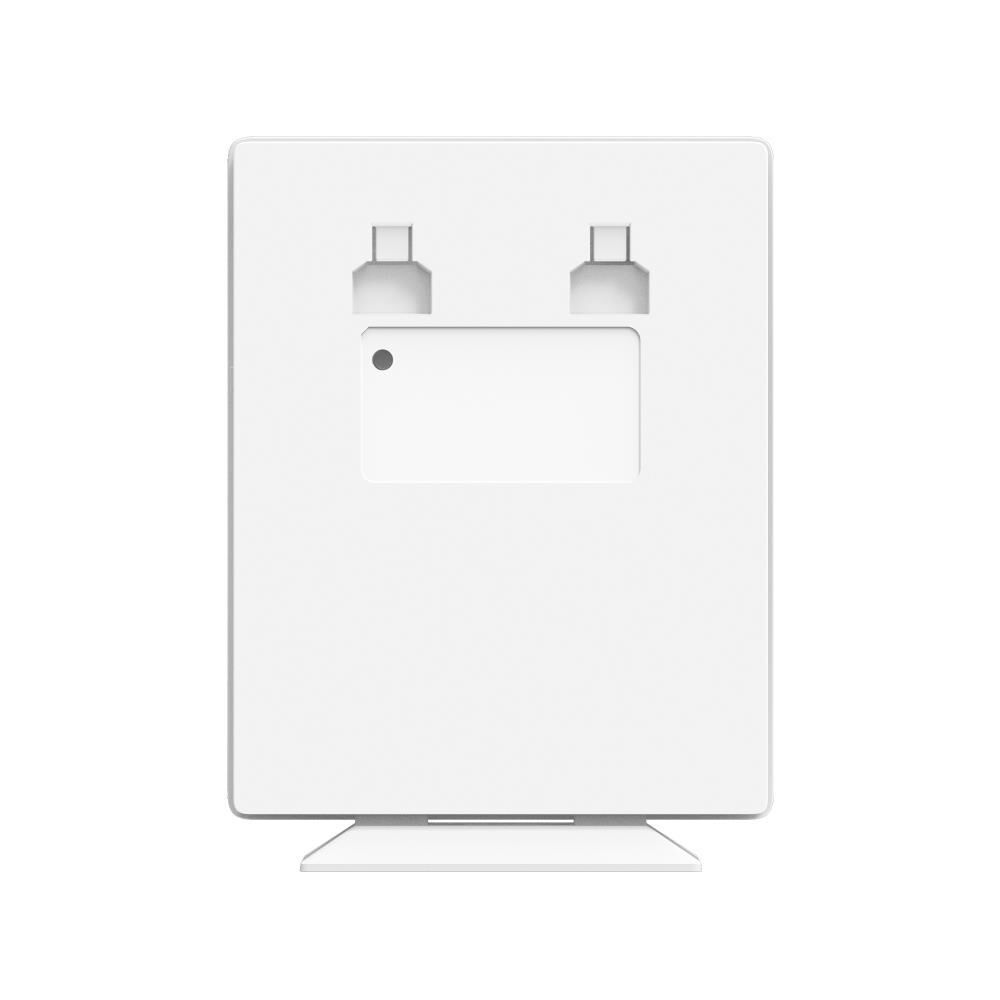

Mounting Desktop / Wall mouting (Kits included)

WIRELESS FEATURES
Concurrent Clients 250+*
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: 2402 Mbps†
• 2.4 GHz: 574 Mbps
Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO‡
• HE160 (160 MHz Bandwidth)‡
• OFDMA‡
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit (Based on SSID/Client)
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<29 dBm(5 GHz, band3, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes.Reauire the use of Omada Cloud-Based controller

OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP650-Desktop
• Desktop/Wall Mounting Kit
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
SKU 126313
Model # EAP650-Desktop
Barcode # 8885020623734
Brand TP-LINK
Shipping Weight 1.0000kg
Shipping Width 0.180m
Shipping Height 0.100m
Shipping Length 0.210m
