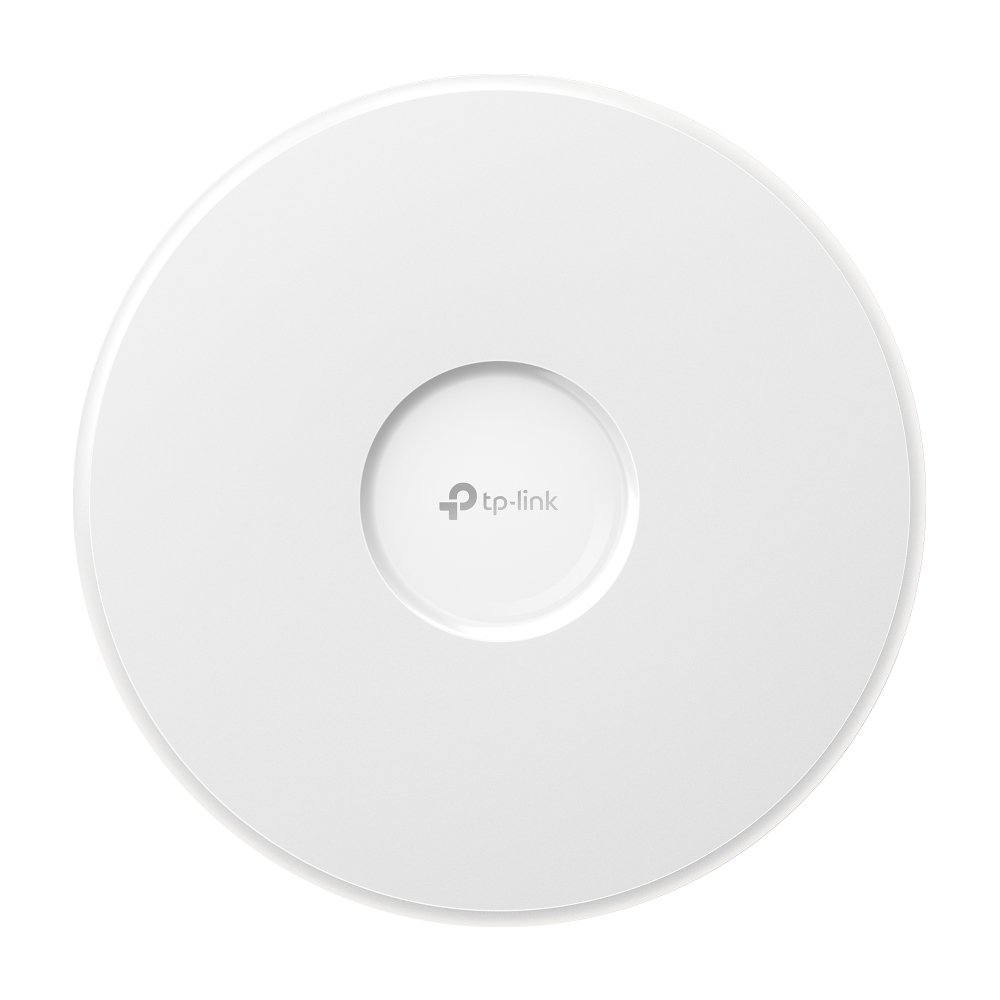

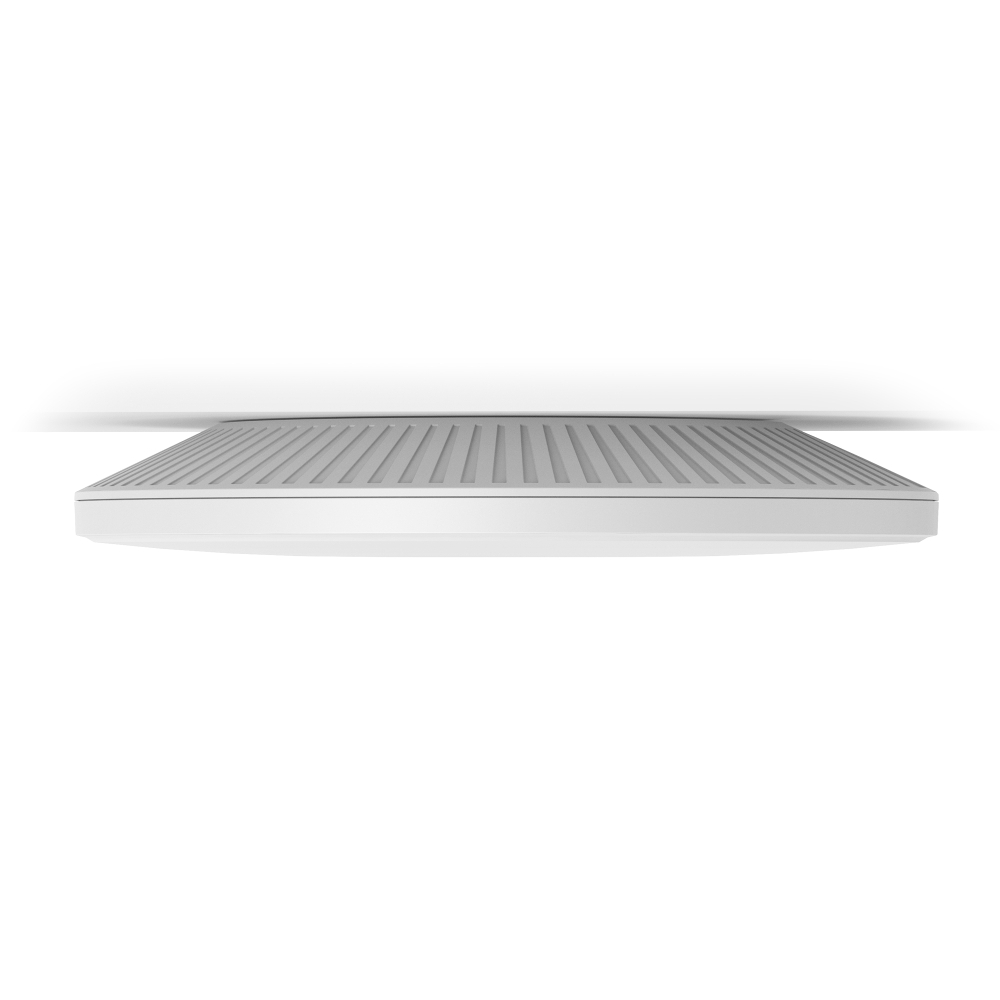

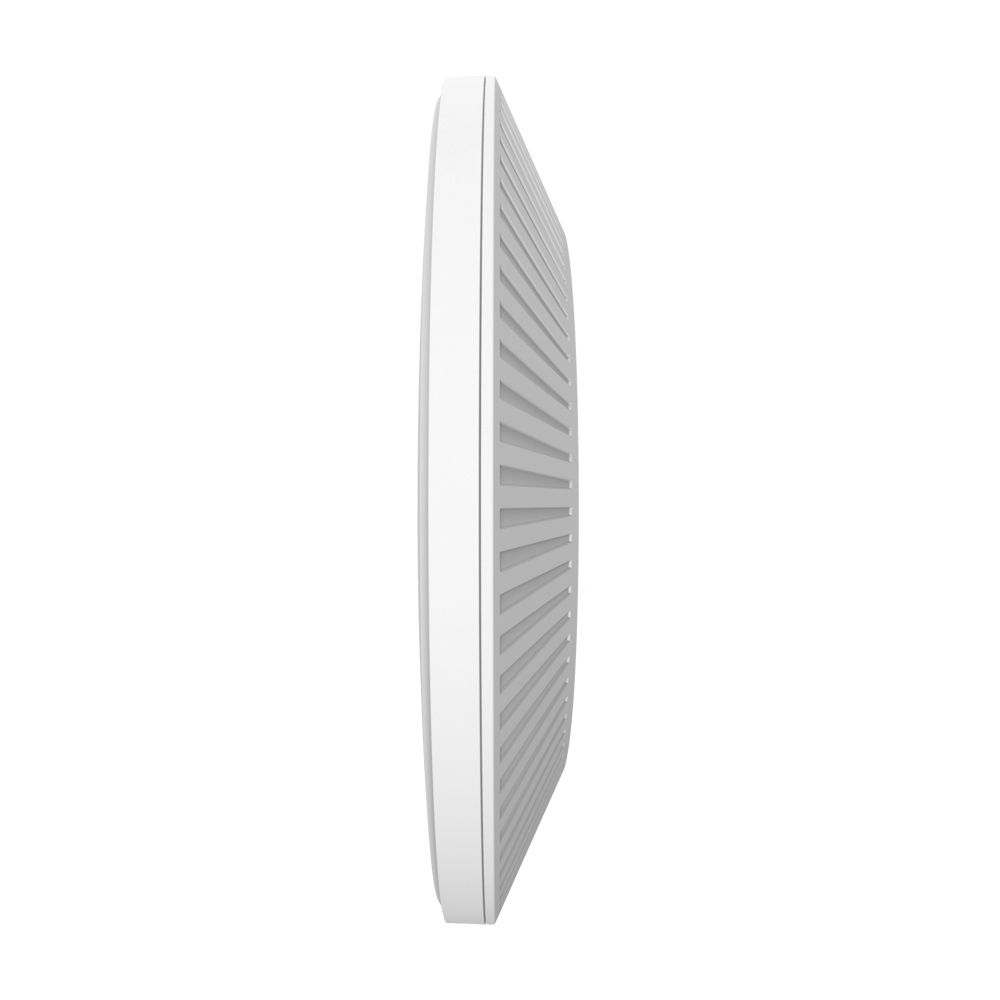

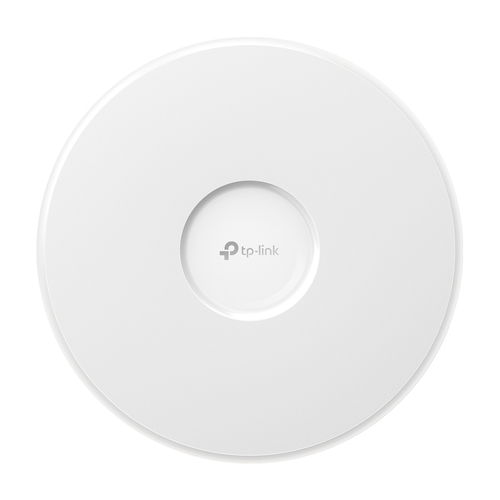

TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
SKU: 125223
TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
SKU: 125223
$349.00
0
Sold Out
- BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).†
- A clear 6 GHz band brings cleaner and wider band resources.‡
- 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralised management, mesh, and AI roaming.△
(125223)
| HARDWARE FEATURES | |

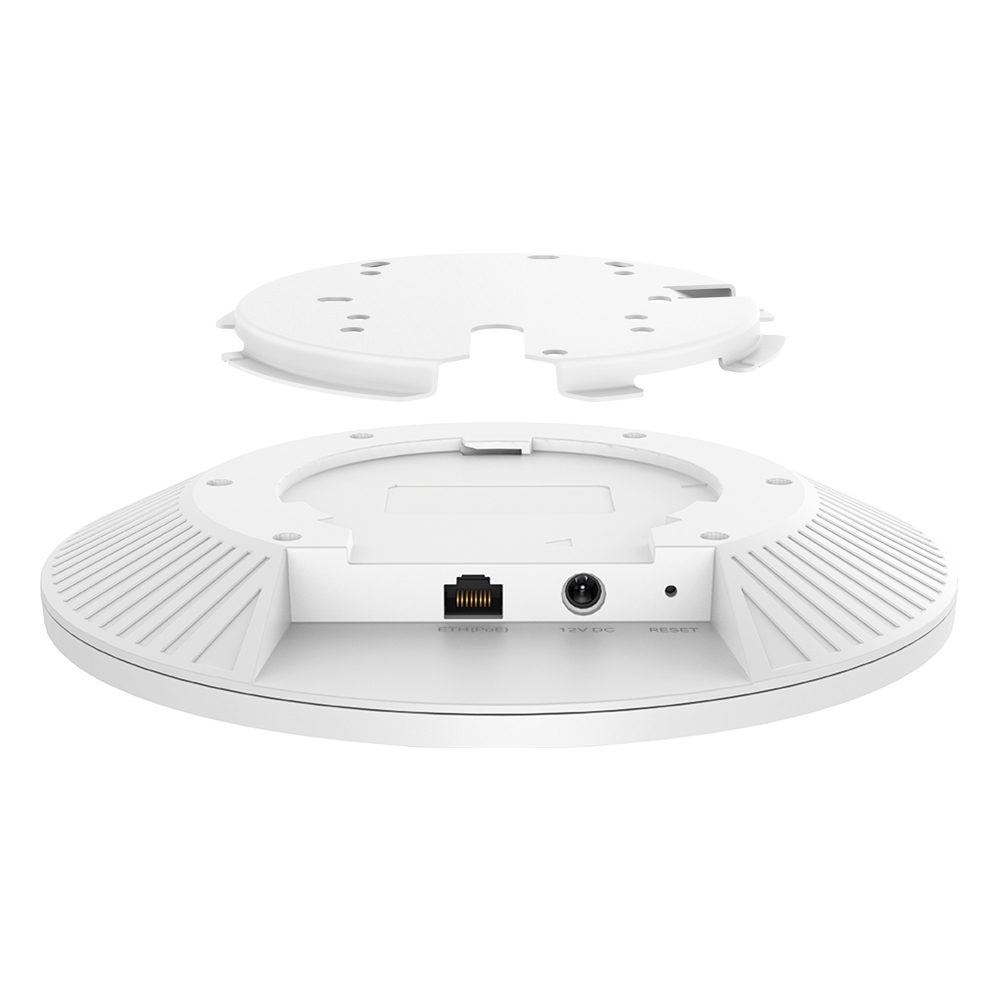

| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Power Consumption | • 25.44 W (For PoE); |
| • 22.57 W (For DC) | |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | • 2.4 GHz: 2× 4.0 dBi |
| • 5 GHz: 2× 5.0 dBi | |
| • 6 GHz: 2× 5.0 dBi | |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 |
| *Firmware update may be required. | |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
|
WIRELESS FEATURES
|
|
| Wireless Client Capacity | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)† |
| Wireless Functions | • MLO‡ |
| • 4K-QAM‡ | |
| • MU-MIMO‡ | |
| • EHT320‡ | |
| • Mesh△ | |
| • BSS Coloring‡ | |
| • OFDMA‡ | |
| • Load Balance | |
| • Band Steering | |
| • Beamforming | |
| • Airtime Fairness | |
| • Multiple SSIDS:24(8 on each band) | |
| • Wireless Schedule | |
| • Reboot Schedule | |
| • QoS(WMM) | |
| • Rate Limit | |
| • Static IP/Dynamic IP | |
| • RADIUS Accounting | |
| • MAC Authentication | |
| Wireless Security | • Captive Portal Authentication△ |
| • Access Control | |
| • Maximum number of MAC Filter: 4,000 | |
| • Wireless Isolation Between Clients | |
| • VLAN | |
| • Rogue AP Detection | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | < 25dBm （2.4GHz） |
| < 25dBm （5GHz） | |
| < 23dBm （6GHz） | |
|
MANAGEMENT
|
|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
|
OTHERS
|
|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP772 |
| • Installation Guide | |
| • Ceiling/Wall Mounting Kit | |
| Note: Power Adapter is NOT included. | |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); | |
| • Operating Humidity: 10%–90% non-condensing; | |
| • Storage Humidity: 5%–90% non-condensing; | |
| SKU | 125223 |
| Model # | EAP772 |
| Brand | TP-LINK |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.100m |
| Shipping Length | 0.280m |
