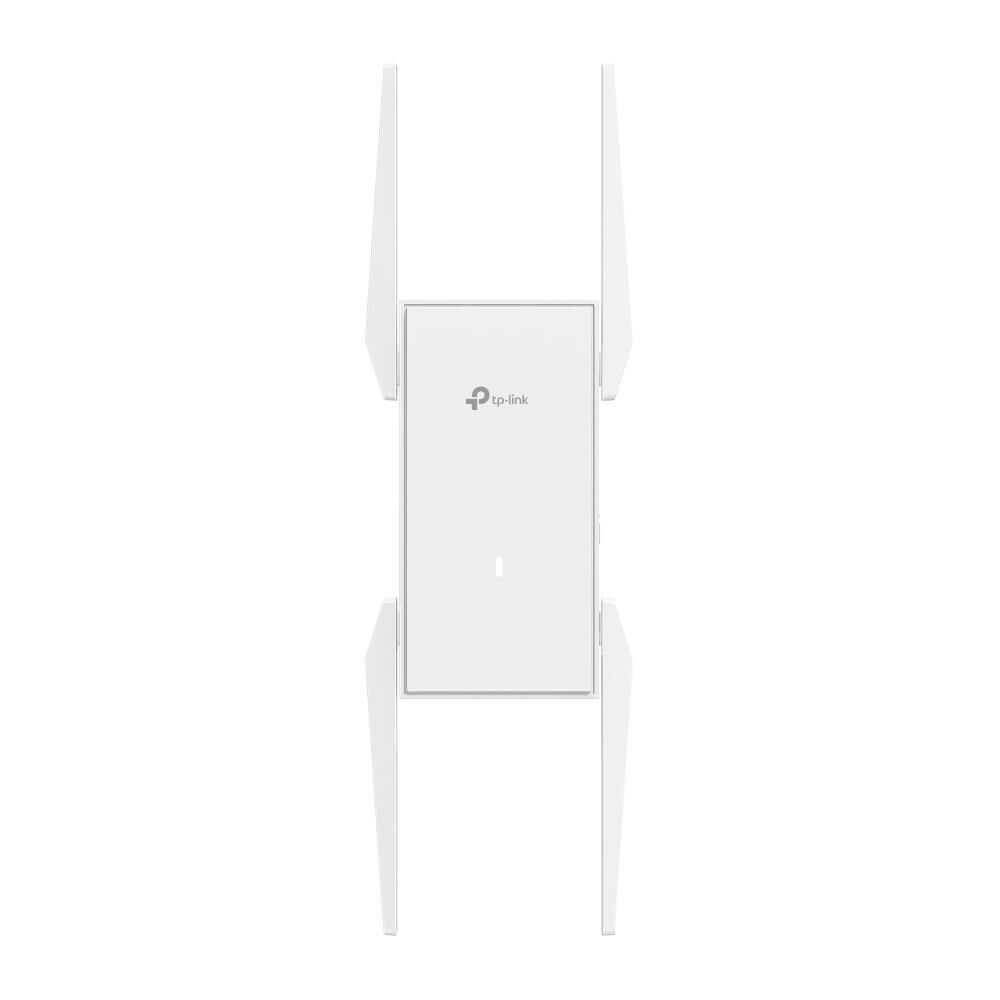

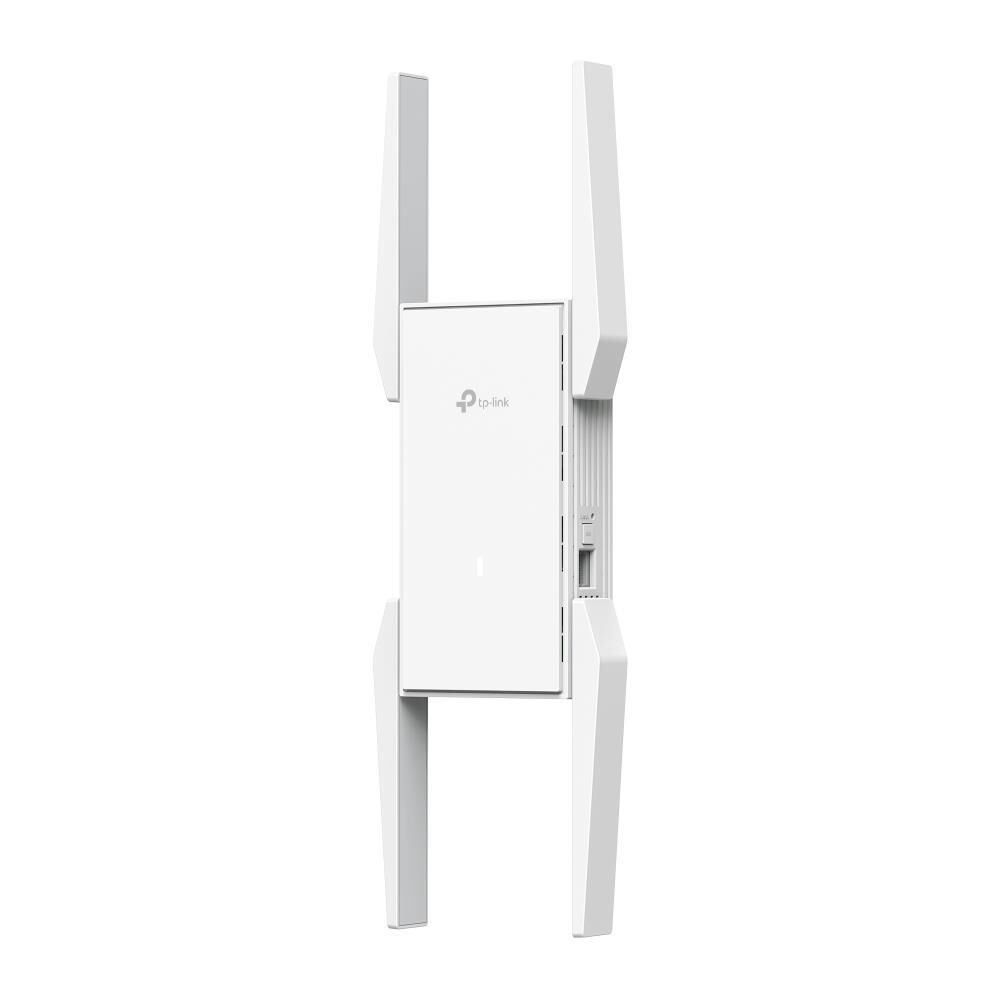

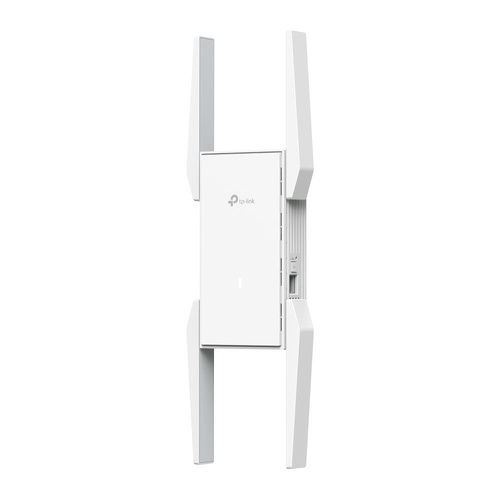

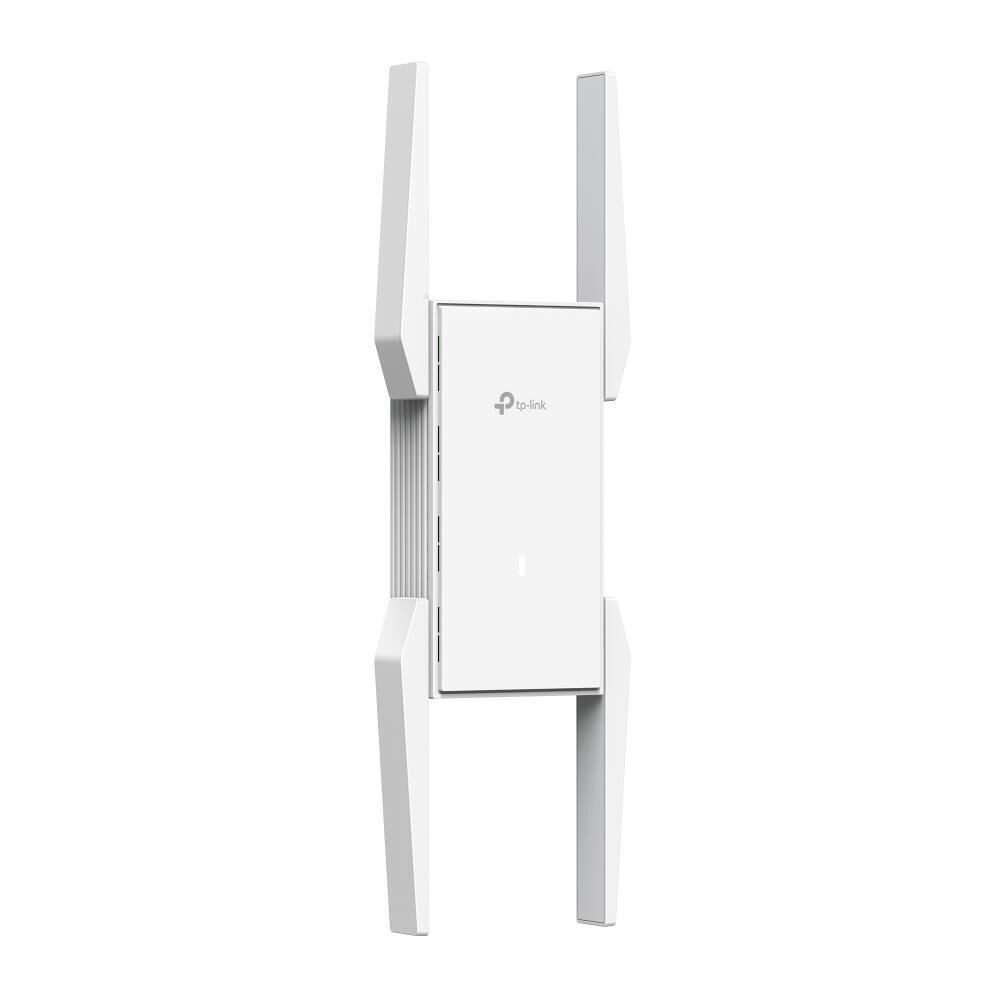

TP-Link EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender

SKU: 126312

  • AX5400 Dual-Band Wi-Fi 6: Up to 5.4 Gbps wireless speeds .†
  • Wi-Fi Dead-Zone Killer: Four high-gain external antennas extend Wi-Fi signals to every dead zone.
  • AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
  • Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios.§
  • Easy & Quick Installation: Standard AC power supply for flexible deployment.
  • Quick adoption: Conveninet operation via Omada web or app once the extender powers on.
  • Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.

(126312)

HARDWARE FEATURES
Interface 1× Gigabit Ethernet Port
Physical Security Lock No
Button Reset, LED
Power Supply 100-240 V ~ 50/60 Hz
Power Consumption 18 W
Dimensions 6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)
Antenna 4× External Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 4× 5 dBi
Mounting Plug in

WIRELESS FEATURES
Coverage 140 ㎡ (1500 ft²)***
Concurrent Clients 250+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming§
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, band1 & band2, EIRP)
<30 dBm (5 GHz, band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification CE, FCC, IC, RoHS, UL
Package Contents • AX5400 Mesh WiFi 6 Extender EAP673-Extender
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
SKU 126312
Model # EAP673-Extender
Barcode # 8885020625400
Brand TP-LINK
Shipping Weight 0.7000kg
Shipping Width 0.140m
Shipping Height 0.120m
Shipping Length 0.210m
