TP-Link SM6220-1M Omada 1 Meter 25G SFP28 Direct Attach Cable

SKU: 126256

  • 25G SFP28 connector on both sides
  • Drives 25 Gigabit Ethernet (1m distance)

What This Product Does

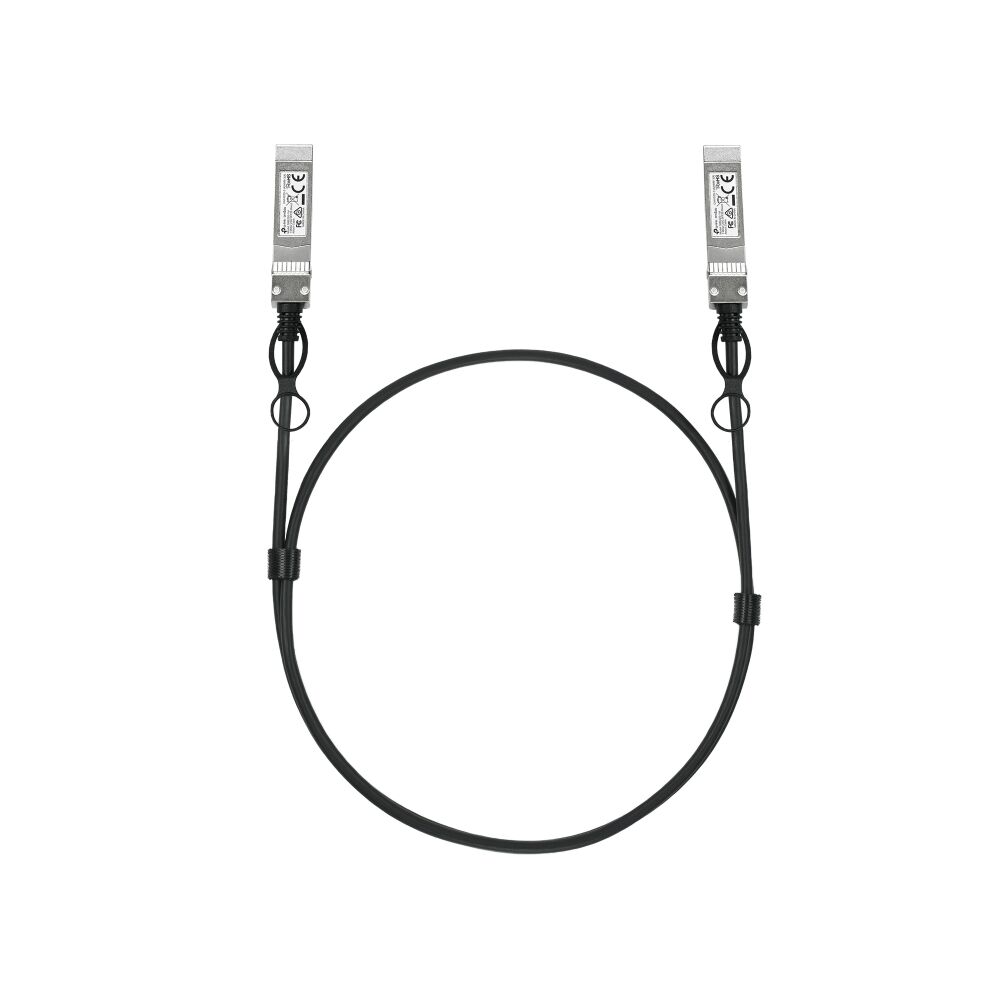

With a passive twin-ax cable assembly of 1 meter and two SFP28 connectors on each side, SM6220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.

(126256)

GENERAL
Product Dimensions • Plug: 2.26*0.53*0.34 in (57.5*13.55*8.55 mm);
• Overall length: 39.37 in (1,000 mm)

SFP28 CABLE
Environment • Operating Temperature: 0–70 ℃ (32–158 ℉)
• Storage Temperature: -40–85 ℃ (-40–185 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Supported Data Rate 25 Gbps / 10 Gbps / 1 Gbps
Conductor Silver Plated Copper
Wire Gauge 30AWG
Minimum Bend Radius 22.5mm
Cable Length 1 m
SKU 126256
Model # SM6220-1M
Barcode # 8885020624052
Brand TP-LINK
Shipping Weight 0.0900kg
Shipping Width 0.300m
Shipping Height 0.060m
Shipping Length 0.320m

Be The First To Review This Product!

Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

  • 25G SFP28 connector on both sides
  • Drives 25 Gigabit Ethernet (1m distance)

What This Product Does

With a passive twin-ax cable assembly of 1 meter and two SFP28 connectors on each side, SM6220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.

GENERAL
Product Dimensions • Plug: 2.26*0.53*0.34 in (57.5*13.55*8.55 mm);
• Overall length: 39.37 in (1,000 mm)

SFP28 CABLE
Environment • Operating Temperature: 0–70 ℃ (32–158 ℉)
• Storage Temperature: -40–85 ℃ (-40–185 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Supported Data Rate 25 Gbps / 10 Gbps / 1 Gbps
Conductor Silver Plated Copper
Wire Gauge 30AWG
Minimum Bend Radius 22.5mm
Cable Length 1 m
SKU 126256
Model # SM6220-1M
Barcode # 8885020624052
Brand TP-LINK
