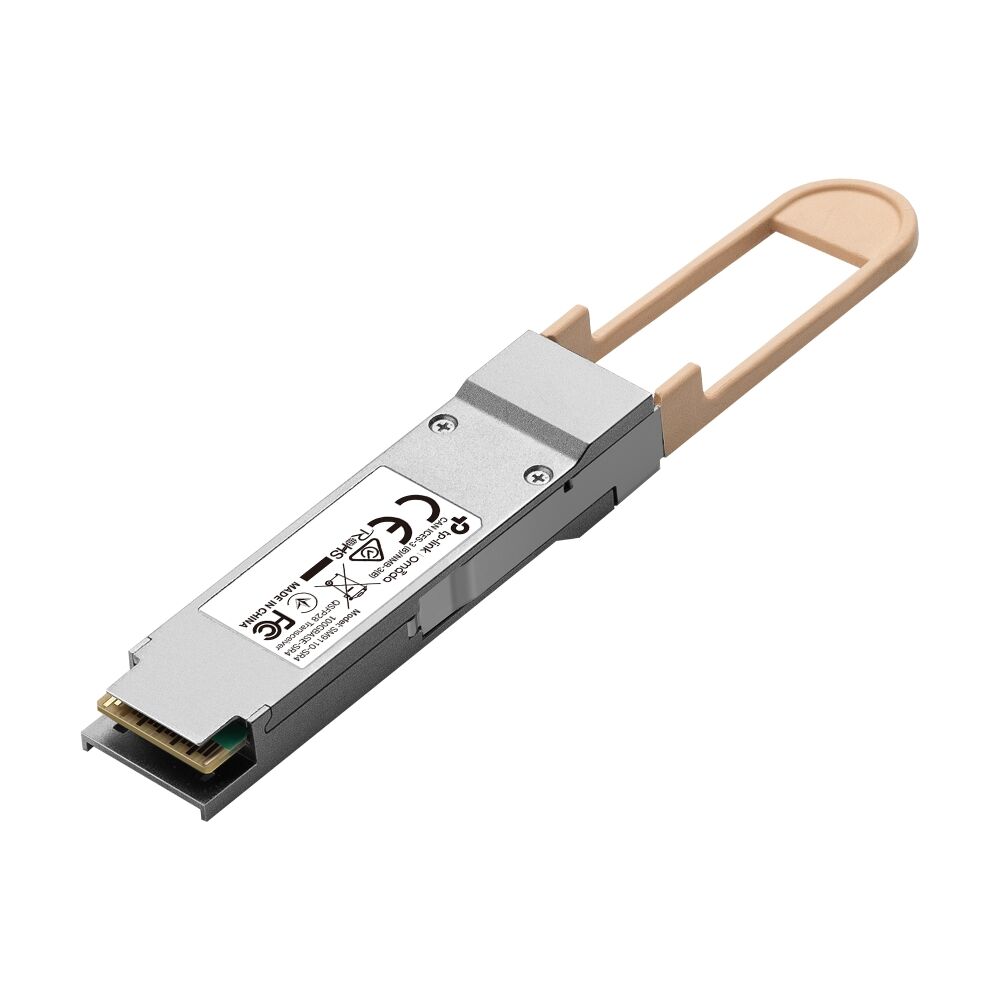

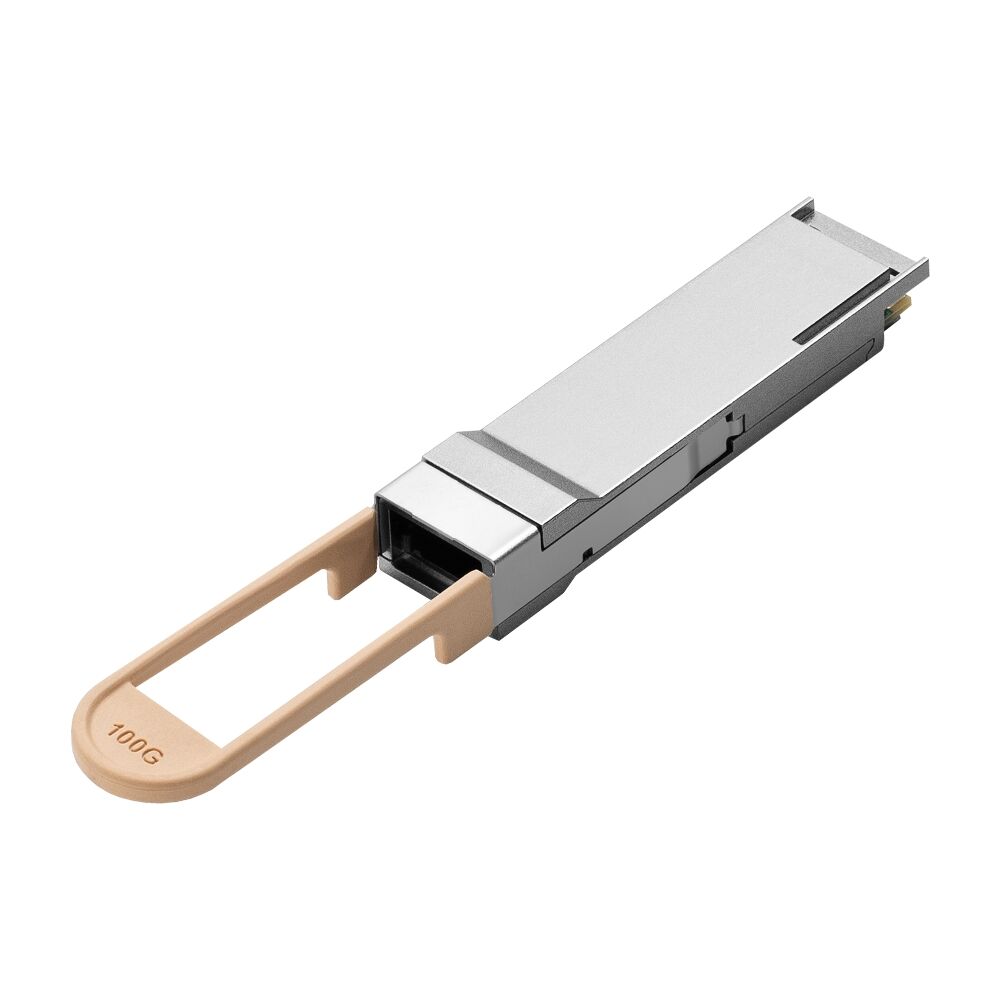

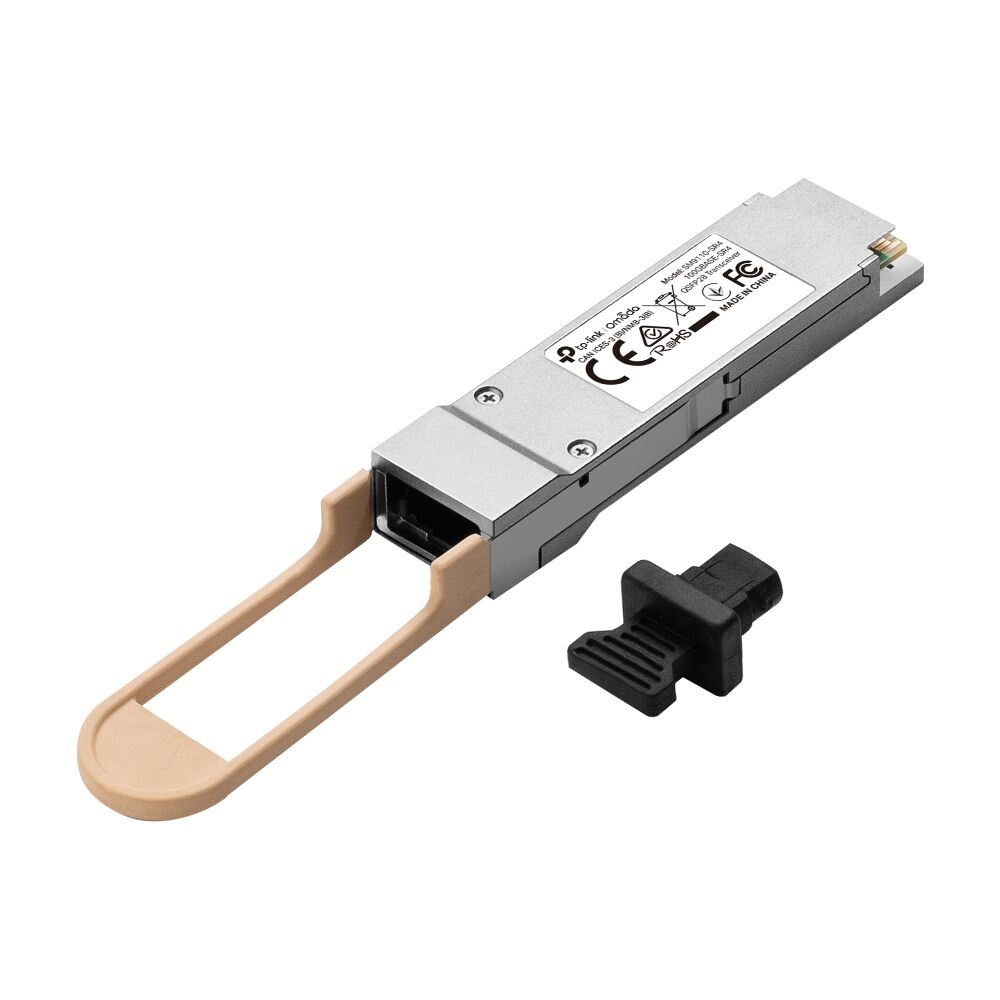

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver

SKU: 126254

  • 100GBASE-SR4 multi-mode QSFP28 Transceiver
  • Supports Digital Diagnostic Monitoring (DDM)
  • Up to 100 m transmission distance
  • Hot-Pluggable with maximum flexibility
  • Wide operating temperature
  • Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

What This Product Does

The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

(126254)

TRANSCEIVER
Form Factor QSFP28
Standards and Protocols • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
• SFF-8665, SFF-8636, SFF-8436,
• CPRI, eCPRI
• TCP/IP
Wave Length 850 nm
Power Supply 3.3 V
Power Consumption Max 1.8 W at 100 Gbps
Max 1.54 W at 40 Gbps
Fiber Type 50/125um MMF (Multimode)
Max. Cable Length 70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps)
100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
Data Rate Dual Rate 103.125 Gbps and 41.2 Gbps
Connector MTP/MPO-12
Transmitter Type VCSEL 850 nm
Receiver Type PIN
Transmitter Power -8.4 dBm to 2.4 dBm @103.125 Gbps
-7.6 dBm to 2.4 dBm @41.2 Gbps
Receiver Sensitivity <-10.3 dBm @103.125 Gbps
<-9.5 dBm @41.2 Gbps
Receiver Overload >2.4 dBm @103.125 Gbps
>2.4 dBm @41.2 Gbps
Extinction Ratio >2 dB @103.125 Gbps
>3 dB @41.2 Gbps
Regulatory Compliance CE, FCC, RoHS

HARDWARE FEATURES
DDM Yes
QSFP28 MSA Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 4.88*0.72*0.46 in (124*18.35*11.7 mm)

PACKAGE CONTENTS
Package Contents • SM9110-SR4
• Installation Guide

ENVIRONMENT
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 0 to 85% RH Non-condensing
Storage Humidity 0 to 85% RH Non-condensing
SKU 126254
Model # SM9110-SR4
Brand TP-LINK
Shipping Weight 0.4900kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
